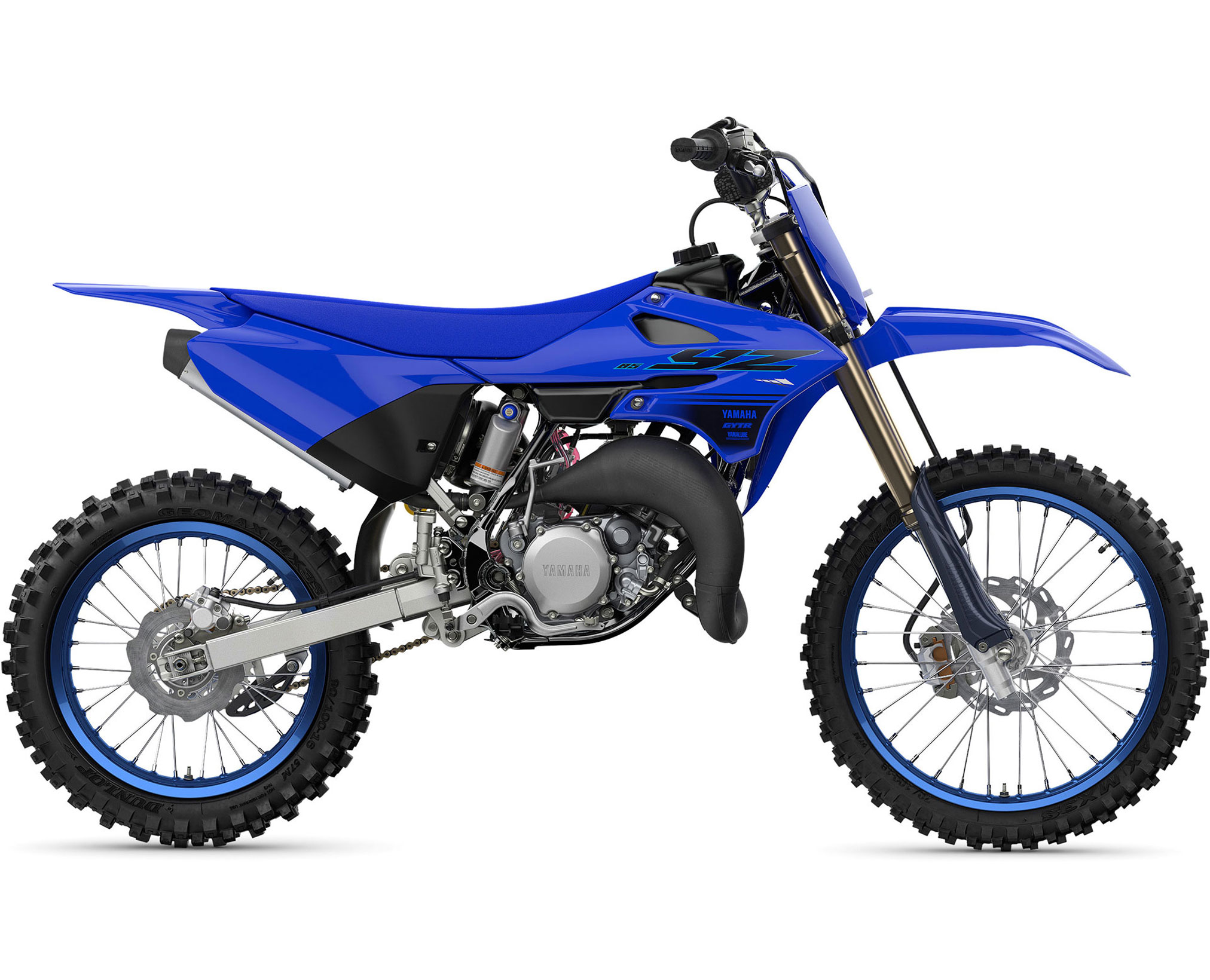

2024 Yamaha YZ85LW: LONG LIVE GASOLINE.
Introducing the new 2024 Yamaha YZ85LW…
Same YZ85 power, same YZ85 fun, equipped with a large wheel package allowing riders to bridge the gap to the next class.
Featuring the Yamaha Power Valve System (YPVS), fully-adjustable suspension, six-speed transmission and adjustable ergonomics, the YZ85LW is ready to win races straight off the dealership floor.
YPVS™ Two-Stroke Power
The 85cc liquid-cooled, two-stroke engine features the Yamaha Power Valve System (YPVS™) for increased low- and mid-range power without losing peak power at high rpms, reducing the need for frequent shifting.
LARGER FRONT & REAR WHEEL
The YZ85 Large Wheel (LW) model raises the bar for off-road capability with a larger 19-inch front wheel and 16-inch rear wheel clad in high performance 70/100/19 front and 90/100/16 rear Dunlop® MX3S tires. Perfect for the advanced 85cc rider looking for a more “big-bike” feel.
FULLY-ADJUSTABLE SUSPENSION
Lightweight 36mm KYB® inverted cartridge fork features low-friction outer tubes, external compression and rebound damping adjustability, paired with a race-proven fully-adjustable KYB® rear shock. Both offer loads of suspension travel to tackle serious off-road competition.
2024 Yamaha YZ85LW Totalmotorcycle.com Key Features
- Features a larger 19-inch front wheel and 16-inch rear wheel
- A longer swingarm accommodates the larger rear wheel and increases handling stability
- Improved rider ergonomics with a narrower tank, flatter seat and slimmer, symmetrical shrouds offering greater freedom of movement
- New Air Intake Design
- Yamaha Power Valve System (YPVS) for broad, tractable
- Potent, easy-to-service two-stroke engine
- Smooth-shifting, six-speed, close-ratio transmission
- Compact, semi-double-cradle, single-backbone steel frame
- Race-ready, fully adjustable suspension
- Aggressive YZ styling
The new YZ85 Large Wheel (LW) model raises the bar for off-road capability with a larger 19-inch front wheel and 16-inch rear wheel clad in high performance 70/100/19 front and 90/100/16 rear Dunlop® MX3S tires. Perfect for the advanced 85cc rider looking for a more “big-bike” feel.
The 85cc liquid-cooled, two-stroke engine features the Yamaha Power Valve System for broad power across the rev range without losing peak power at high rpm—improving rideability and reducing the need for frequent shifting.
For demanding junior racers the new YZ85 has been enhanced in several key chassis areas to optimize strength, rigidity and overall handling stability. Enhancements include the main frame, swingarm and rear wheel axle. The aluminum swingarm was redesigned to refine balance between longitudinal and torsional rigidity. A new removable rear subframe constructed from lightweight, high-strength aluminum reduces weight.
2024 Yamaha YZ85LW Totalmotorcycle.com Features and Benefits
TOP FEATURES
Fully-Adjustable Suspension
Lightweight 36mm KYB® inverted cartridge fork features low-friction outer tubes, external compression and rebound damping adjustability, paired with a race-proven fully-adjustable KYB® rear shock. Both offer loads of suspension travel to tackle serious off-road competition.
High-Quality Embedded Graphics
Inspired by its YZ125 sibling, the aggressive graphics scheme highlights the YZ’s unmatched racing pedigree. Premium Yamaha Blue and dark blue graphics are embedded to provide excellent durability and scratch resistance.
High-Spec Wheels & Brakes
Stylish blue, lightweight 19-inch front and 16-inch rear rims are durable, reduce unsprung weight for optimal suspension performance, and come wrapped in Dunlop® MX3S tires for exceptional traction. Big 220mm and 190mm disc brakes offer precise control and outstanding stopping power.
Larger Front & Rear Wheel
The YZ85 Large Wheel (LW) model raises the bar for off-road capability with a larger 19-inch front wheel and 16-inch rear wheel clad in high performance 70/100/19 front and 90/100/16 rear Dunlop® MX3S tires. Perfect for the advanced 85cc rider looking for a more “big-bike” feel.
Optimized Chassis Design
Built for demanding junior racers, the YZ85 LW’s chassis is optimized for strength, rigidity and overall handling stability. The aluminum swingarm offers refined balance between longitudinal and torsional rigidity, and the removable rear subframe constructed from lightweight, high-strength aluminum reduces weight.
Performance-Minded Ergonomics
The flat seat and narrow fuel tank design, along with smoothly integrated body panels and slim shroud width, combine to enable greater freedom of movement forward and back, allowing the rider to easily shift body weight for increased control and confidence.
YPVS™ Two-Stroke Power
The 85cc liquid-cooled, two-stroke engine features the Yamaha Power Valve System (YPVS™) for increased low- and mid-range power without losing peak power at high rpms, reducing the need for frequent shifting.
ADDITIONAL FEATURES
Adjustable Rider Ergonomics
The four-position adjustable handlebar mounts and taper-style handlebar allow the rider to tune the handlebar position to suit their size and preferences. Flat seat and narrow fuel tank design, along with smoothly integrated body panels and slim shroud width, combine to enable greater freedom of movement for increased control and confidence.
CHASSIS/SUSPENSION
Fully-Adjustable Fork
The lightweight 36mm KYB® inverted cartridge fork features 10.8 inches of travel with compression and rebound damping adjustability. Complete with low-friction outer tubes and internals, the damping settings offer enhanced performance across a range of conditions and rider abilities.
Fully-Adjustable Shock
Rear suspension features fully adjustable KYB® link-type shock with race-tested valving and 11.1 inches of travel. The progressive linkage-type design improves bottoming resistance, allowing racers to charge harder and improve lap times.
High Performance Tires
Dunlop® MX3S tires provide exceptional traction on a variety of tracks and terrain.
Large-Diameter Brakes
Big wave-style brake discs offer improved self-cleaning and cooler-running performance. The 220mm front disc and 190mm rear disc deliver strong, precise stopping power. Rear brake master cylinder also includes built-in sub-reservoir to provide more linear brake response and increased control.
Lightweight Wheels
Lightweight 19-inch front and 16-inch rear rims are durable and reduce unsprung weight for optimal suspension performance.
Optimized Chassis Design
Built for demanding junior racers, the YZ85 LW’s chassis is optimized for strength, rigidity and overall handling stability. The aluminum swingarm offers refined balance between longitudinal and torsional rigidity, and the removable rear subframe constructed from lightweight, high-strength aluminum reduces weight.
ENGINE
Advanced Intake Design & High-Flow Airbox
Advanced intake design allows for a straighter, more efficient draw of air into the intake tract. High-flow airbox ensures excellent air filter performance and easy maintenance.
Durable Transmission
The transmission features oversized gears to provide enhanced engagement and smoother shifts.
High Capacity Radiator
Lightweight radiator has large cores and louvers. Water pump features a cast aluminum (vs. resin) impeller for maximum cooling efficiency.
Potent YPVS™ Two-Stroke Engine
The 85cc liquid-cooled, two-stroke engine features the Yamaha Power Valve System (YPVS™) for broad power across the rev range without losing peak power at high rpms, reducing the need for frequent shifting.
Tuned Crankcase & Intake
The crankcase design features a spacer-style reed valve intake for improved air/fuel flow, which inhales through a 28mm Hitachi Astemo® Keihin flat-slide carburetor for seamless throttle response.
Tuned Expansion Chamber
Carefully matched to suit the YPVS™-equipped engine, the exhaust expansion chamber optimizes gas flow for enhanced power delivery, especially in the low- and mid-range.
*Manufacturer’s Suggested Retail Price (MSRP) shown. Does not include tax, title, prep or destination charges. Actual prices set by dealer.
**Fuel Economy is estimated.
***Wet weight includes the vehicle with all standard equipment and all fluids, including oil, coolant (as applicable) and a full tank of fuel. It does not include the weight of options or accessories. Wet weight is useful in making real-world comparisons with other models.
2024 Yamaha YZ85LW – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $5,199 USD
Canada MSRP Price: $6,799 CDN
Europe/UK MSRP Price: £NA GBP (On The Road inc 20% Vat)
ENGINE
| ENGINE | 2-stroke, liquid-cooled, crankcase-reed-valve single with YPVS |
| DISPLACEMENT | 85cc |
| BORE AND STROKE | 47.5 x 47.8 mm |
| COMPRESSION RATIO | 8.2-9.6:1 |
| FUEL DELIVERY | Keihin PWK28 |
| IGNITION / STARTING | CDI / Kick |
| TRANSMISSION | Constant mesh, 6-speed |
| FINAL DRIVE | Chain |
CHASSIS
| SUSPENSION (FRONT) | Fully adjustable KYB 36 mm inverted fork / 275 mm (10.8 in) wheel travel |
| SUSPENSION (REAR) | Fully adjustable KYB shock / 287 mm (11.3 in) wheel travel |
| BRAKES (FRONT) | 220 mm disc / twin-piston caliper |
| BRAKES (REAR) | 190 mm disc / single-piston caliper |
| TIRES (FRONT) | 70/100-19 Geomax MX3SF |
| TIRES (REAR) | 90/100-16 Geomax MX3S |
CRITICAL DATA
| LENGTH | 1,895 mm (74.6 in) |
| WIDTH | 760 mm (29.9 in) |
| HEIGHT | 1176 mm (46.3 in) |
| WHEELBASE | 1285 mm (50.6 in) |
| GROUND CLEARANCE | 361 mm (14.2 in) |
| SEAT HEIGHT | 884 mm (34.8 in) |
| FUEL CAPACITY | 5 litres (1.1 imp. gal.) |
| WET WEIGHT | 75 kg (165 lb) |
| COLOUR(S) | Yamaha Racing Blue |
2024 Yamaha YZ85LW – Totalmotorcycle.com Canada Specifications/Technical Details
ENGINE
| ENGINE | 2-stroke, liquid-cooled, crankcase-reed-valve single with YPVS |
| DISPLACEMENT | 85cc |
| BORE AND STROKE | 47.5 x 47.8 mm |
| COMPRESSION RATIO | 8.2-9.6:1 |
| FUEL DELIVERY | Keihin PWK28 |
| IGNITION / STARTING | CDI / Kick |
| TRANSMISSION | Constant mesh, 6-speed |
| FINAL DRIVE | Chain |
CHASSIS
| SUSPENSION (FRONT) | Fully adjustable KYB 36 mm inverted fork / 275 mm (10.8 in) wheel travel |
| SUSPENSION (REAR) | Fully adjustable KYB shock / 287 mm (11.3 in) wheel travel |
| BRAKES (FRONT) | 220 mm disc / twin-piston caliper |
| BRAKES (REAR) | 190 mm disc / single-piston caliper |
| TIRES (FRONT) | 70/100-19 Geomax MX3SF |
| TIRES (REAR) | 90/100-16 Geomax MX3S |
CRITICAL DATA
| LENGTH | 1,895 mm (74.6 in) |
| WIDTH | 760 mm (29.9 in) |
| HEIGHT | 1176 mm (46.3 in) |
| WHEELBASE | 1285 mm (50.6 in) |
| GROUND CLEARANCE | 361 mm (14.2 in) |
| SEAT HEIGHT | 884 mm (34.8 in) |
| FUEL CAPACITY | 5 litres (1.1 imp. gal.) |
| WET WEIGHT | 75 kg (165 lb) |
| COLOUR(S) | Yamaha Racing Blue |
2024 Yamaha YZ85LW – Totalmotorcycle.com European Specifications/Technical Details
NA
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
