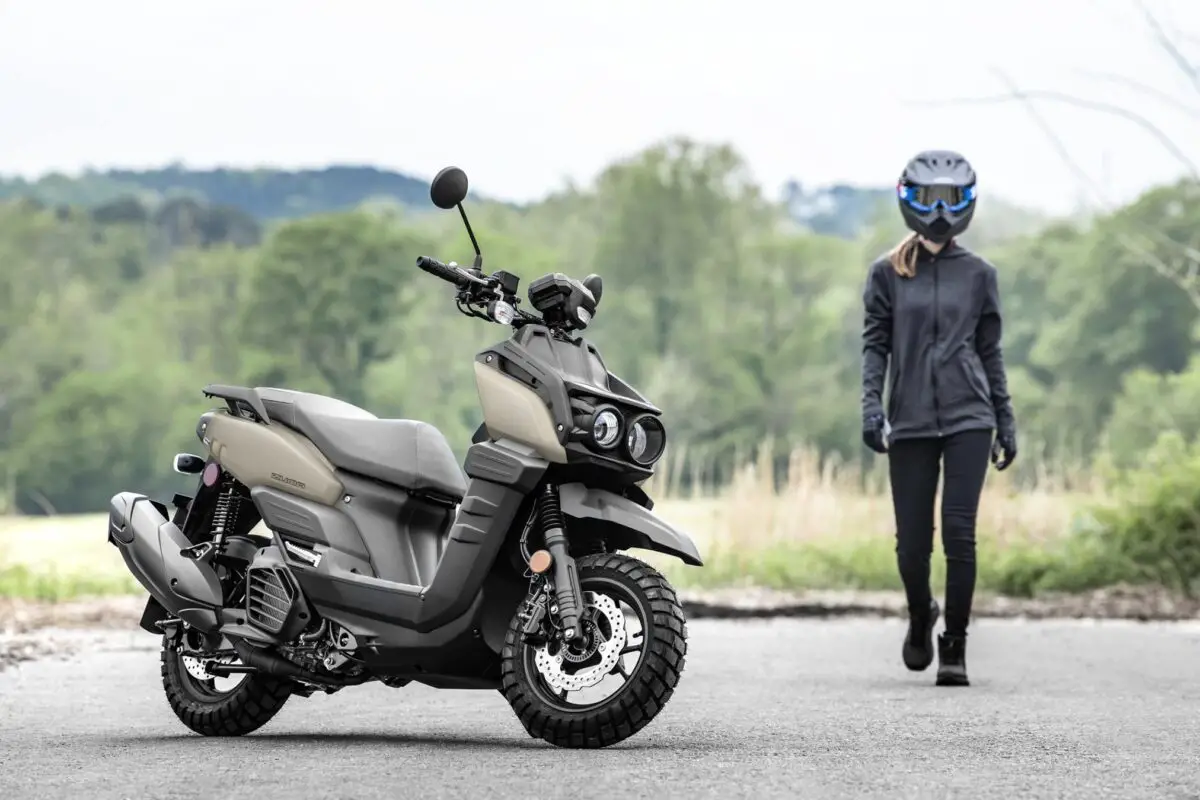

2024 Yamaha Zuma 125: COMPACT RUGGED ADVENTURER.
Introducing the new 2024 Yamaha Zuma 125…
The reimagined, ultra‑modern, Zuma 125 is a rugged and fuel efficient scooter with big features in a compact package.
2024 Yamaha Zuma 125 Totalmotorcycle.com Key Features
- Blue Core VVA Engine
Powering the ZUMA 125 is a compact Yamaha Blue Core, VVA (Variable Valve Actuation) 125cc 4-stroke engine with 4 valves, a 11.2:1 compression ratio, DiASil cylinder and aluminum alloy forged piston, giving this scooter modern reliability and economical performance. With an amazing 101 mpg and a 1.6 gallon fuel tank, you get plenty of range, too.
- Automatic Convenience
A fully-automatic V-belt transmission and push-button electric starting make the ZUMA 125 a super-convenient transportation option. Standard center and side stands, along with a locking cover on the ignition switch, make it easy and secure to park, too.
- Rugged, Modern Design
Beneath the rugged styling, the ZUMA 125 is built around a strong steel frame with aggressive tread tires and tough suspension. This scooter boasts capability on roads of all sorts, with plenty of attitude for your daily commute.
- Adjustable Asymmetrical Headlights
The ZUMA 125 features a unique asymmetric headlight design with easily adjustable beams to optimize view angles for a wide range of riders.
- Plenty of Storage with USB Charging
The cavernous underseat storage compartment is roomy enough for a full-face helmet and features two helmet hangers. The front storage compartment is equipped with an electric USB socket for conveniently charging your device on the go.
- Roomy, Step-Through Ergonomics
There’s room for two atop the ZUMA 125’s seat and lots of locking storage beneath it. The step-through floorboards making getting on and off a breeze.
2024 Yamaha Zuma 125 Totalmotorcycle.com Features and Benefits
ENGINE
Automatic Convenience
Fully automatic, V-belt transmission with centrifugal clutch provides easy, twist-the-throttle-and-go operation with great off-the-line acceleration.
Clean-Running Design
An upswept muffler incorporates two exhaust catalysts to reduce air pollution and meet emission regulations.
Comfort-Focused Engine Bracket
A reliable steel engine bracket with rubber bushing linkage contributes a comfortable ride with reduced vibration. The link mechanisms are positioned on the underside of the chassis to maximize space for the storage compartment.
Easy Engine Starts
A decompression mechanism on the ZUMA 125 reduces the engine cranking compression pressure, combined with a starter generator control unit for smooth, quiet engine starts with better fuel consumption.
Variable Valve Actuation
The ZUMA 125’s engine features Yamaha’s Variable Valve Actuation (VVA) technology, changing valve timing at different rpm, for linear acceleration, strong torque at lower speeds and power that lasts into the top-end.
Yamaha Blue Core Engine
Yamaha’s Blue Core 125cc liquid-cooled, four-stroke, single-cylinder engine, delivers excellent fuel efficiency and significant power for its compact size, using an SOHC 4-valve head with 11.2:1 compression ratio, a DiASil cylinder and an aluminum alloy forged piston. The fuel injection provides the optimal fuel mixture for varying conditions, including easy cold starts.
CHASSIS/SUSPENSION
Comfortable Ergonomics
A plush and roomy riding position is ready for two, with a narrow seat design for easier flat-footing at stops, and plenty of leg space in front of the rider’s seat. Meanwhile, the passenger gets dedicated foldable footrests and secure handholds that blend cleanly into the ZUMA 125’s body design.
Durable Suspension
The telescopic fork features beefy outer tubes for strength, while fork boots help protect the large 33mm inner tubes from debris. The rear wheel swingarm features twin rear shocks with a full 3.1 in of travel for comfortable riding both on streets and on unpaved roads.
Extensive Fuel Range
The ZUMA 125 boasts extreme fuel efficiency carrying the 1.6 gallon fuel tank over a wide cruising range. Its fuel tank emissions system includes a charcoal canister to control gasoline evaporation and reduce air pollution.
Hardy Steel Frame
The robust steel-tube frame is light but strong, and features a step-through design for easy mounting.
Heavy-Duty Tires and Wheels
Fat 120/70-12 front and 130/70-12 rear DURO tubeless tires have an aggressive looking block pattern combined with lightweight wheels for great handling on unpaved roads and on the street.
High Quality Braking
The 245mm hydraulic front disc and 230mm rear disc brakes provide plenty of stopping power while the wave-type front rotor design adds cutting-edge style. With a unified brake system, the rear brake lever applies some braking force to the front brake, while keeping the front brake from operating alone for safe and smooth-controlled stops.
ADDITIONAL FEATURES
Modern Gauge Package
The ZUMA 125’s stylish LCD meter features a fuel gauge as well as a full range of indicator lights with easy-to-read visibility.
Plenty of Storage with USB charging
The cavernous underseat storage compartment is roomy enough for a full-face helmet and features two helmet hangers. The front storage compartment is equipped with an electric USB socket for conveniently charging your device on the go.
Secure and Convenient
The ZUMA 125 provides both a centerstand and side stand for parking convenience. For extra security when parked, the main switch is equipped with a keyhole lock cover. And the fuel filler is found just left of the ignition switch for easy refueling.
*Manufacturer’s Suggested Retail Price (MSRP) shown. Does not include tax, title, prep or destination charges. Actual prices set by dealer.
**Fuel Economy is estimated.
***Wet weight includes the vehicle with all standard equipment and all fluids, including oil, coolant (as applicable) and a full tank of fuel. It does not include the weight of options or accessories. Wet weight is useful in making real-world comparisons with other models.
2024 Yamaha Zuma 125 – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $3799 USD
Canada MSRP Price: $ NA CDN
Europe/UK MSRP Price: £ NA GBP (On The Road inc 20% Vat)
ENGINE
Engine Type 125cc liquid-cooled, 4-stroke SOHC single; 4 valves
Bore x Stroke 52.0mm × 58.7mm
Compression Ratio 11.2:1
Fuel Delivery Fuel Injection
Ignition TCI (Transitor Controlled Ignition)
Transmission V-Belt automatic
Final Drive
Fuel Capacity 1.6
CHASSIS
Suspension/Front Telescopic upright fork with 3.2 in of travel
Suspension/Rear Dual shock absorber with swingarm with 3.1 inches of travel
Brakes/Front Disc brake / 245mm / single disc with double-piston caliper
Brakes/Rear Disc brake / 230mm / single disc with single-piston caliper
Tires/Front 120/70-12 51L
Tires/Rear 130/70-12 56L
DIMENSIONS
LxWxH 75.6 in x 29.9 x 45.3
Seat Height 30.9 in
Wheelbase 52.8 in
Fuel Capacity 1.6
Fuel Economy** 101 mpg
Wet Weight*** 282 lb
OTHER
*Manufacturer’s Suggested Retail Price (MSRP) shown. Does not include tax, title, prep or destination charges. Actual prices set by dealer.
**Fuel Economy is estimated.
***Wet weight includes the vehicle with all standard equipment and all fluids, including oil, coolant (as applicable) and a full tank of fuel. It does not include the weight of options or accessories. Wet weight is useful in making real-world comparisons with other models.
2024 Yamaha Zuma 125 – Totalmotorcycle.com Canada Specifications/Technical Details
See BWS 125
2024 Yamaha Zuma 125 – Totalmotorcycle.com European Specifications/Technical Details
NA
