2026 Yamaha YZF-R1M: THE ULTIMATE R.
Introducing the new 2026 Yamaha YZF-R1M…
Yamaha’s highest specification Supersport, the 2026 YZF-R1M comes adorned in striking carbon fiber bodywork including MotoGP-inspired winglets, distinctive R1M styling and an engraved serial number badge to further highlight its exclusivity. Taking all the explosive performance and capability of the YZF-R1 to an even higher level, the R1M’s advanced Öhlins Electronic Racing Suspension works with a dedicated Suspension Control Unit to rapidly adjust front and rear damping in real time, whether braking, cornering or accelerating.
2026 Yamaha YZF-R1M Totalmotorcycle.com Key Features
- 998cc DISPLACEMENT
- 452 lb WET WEIGHT
- 33.9 in SEAT HEIGHT
- 55.3 in WHEEL BASE
- MotoGP®-Derived Crossplane Crankshaft Engine

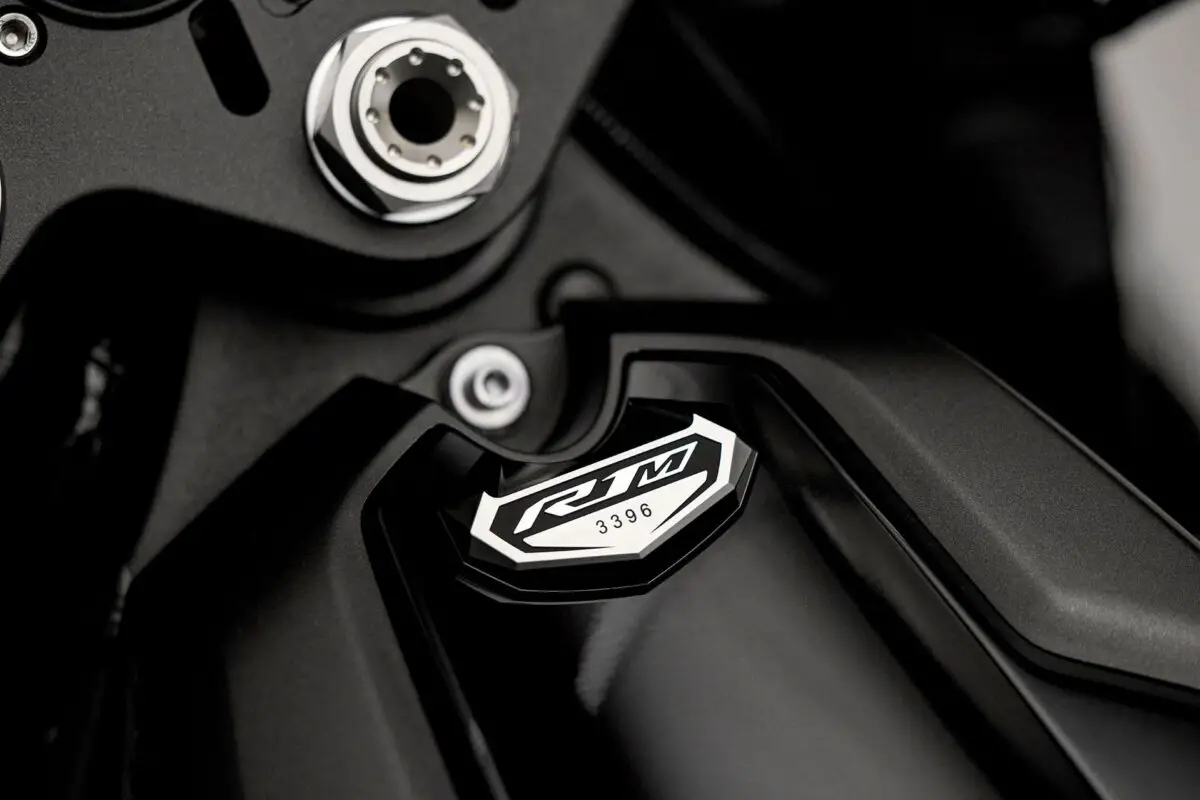

- Carbon fibre bodywork with individualized numbered badge
- Öhlins® Electronic Racing Suspension with NPX gas-charged front fork for rapid real-time automatic damping adjustment
- Cable-free ride-by-wire Yamaha Chip Controlled Throttle (YCC-T)
- Six-axis Inertial Measurement Unit (IMU)
- Integrated Communications Control Unit (CCU) – datalogging and GPS system
- Yamaha Ride Control (YRC) – onboard electronic suite of rider aids
- Power Delivery Mode, Traction Control, Slide Control, Lift Control, Launch Control, Engine Brake Management, and Brake Control
- Aerodynamic bodywork
- Bidirectional Quickshifter
- Titanium, magnesium and aluminum engine components

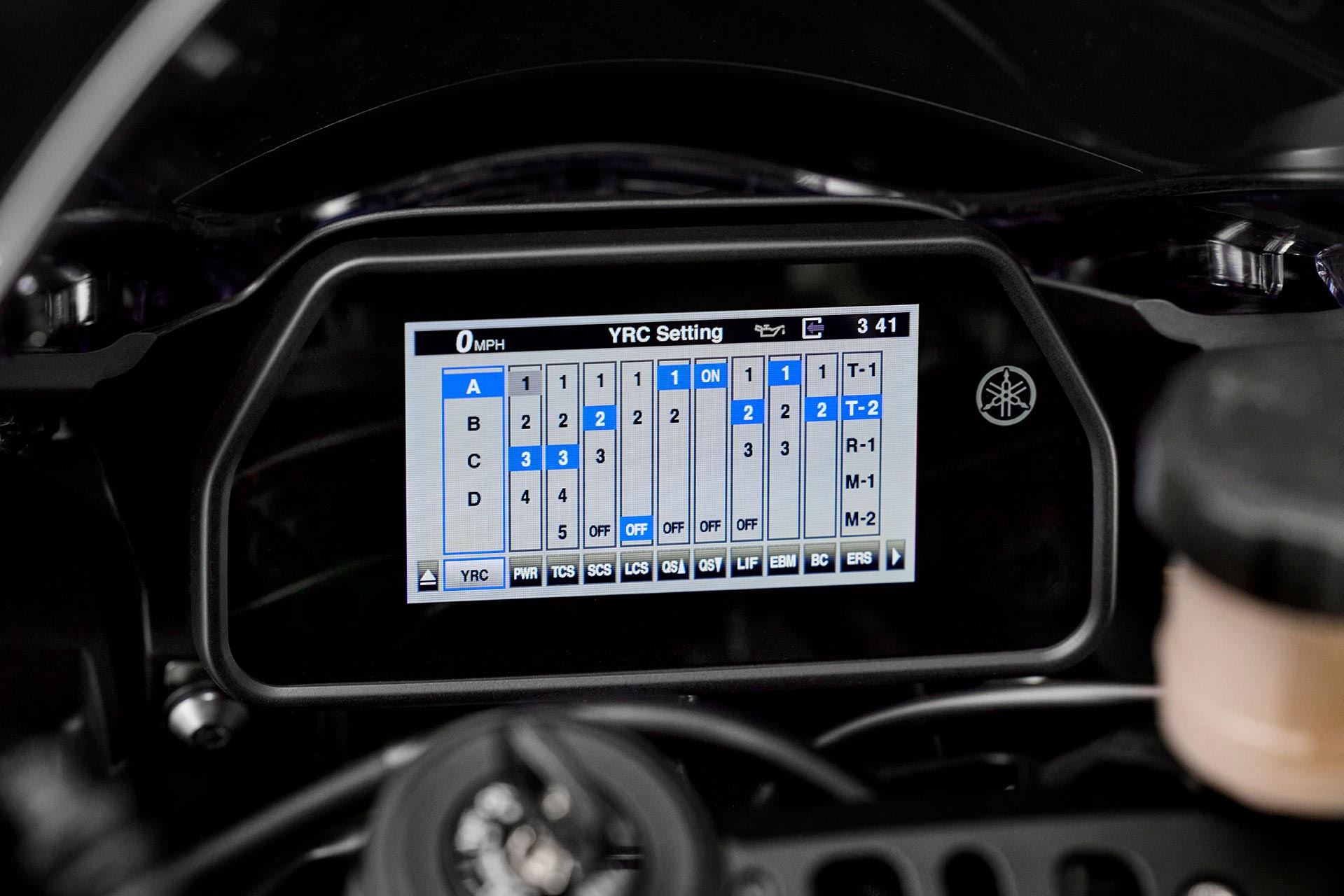

- TFT instrument screen
MotoGP-Inspired Winglets
Developed through extensive simulator and on-track testing, MotoGP-inspired carbon fiber winglets create additional downforce for exceptional chassis stability and added front-end feel when braking or cornering.
MotoGP-Derived Crossplane Crankshaft Engine
The YZF-R1M’s 998cc inline-four-cylinder engine features Yamaha’s exclusive crossplane crankshaft technology derived from the YZR-M1 MotoGP race bike. By equalizing inertial forces at the crankshaft, the CP4 motor delivers a direct feeling of linear torque, giving the rider the ultimate connection between throttle grip and the rear wheel.
Dynamic Öhlins Electronic Racing Suspension
The YZF-R1M utilizes the advanced Öhlins ERS system, featuring the NPX gas-charged front fork. A dedicated suspension control unit rapidly adjusts the front and rear damping in real time for optimum suspension performance whether braking, cornering or accelerating.
Digital Superbike Technology
The YZF-R1M features a cableless ride-by-wire Yamaha Chip Controlled Throttle (YCC-T) system that transforms the rider’s inputs into motion, with a full suite of IMU-powered electronic rider aids that bring new meaning to the term “rider confidence.” The R1M also features a Communication Control Unit (CCU) as standard enabling a GPS-tracked lap timer, data recorder from the IMU, ECU and GPS, and mobile phone/tablet YRC adjustability.
Sharp Styling with Unique R1M Features
The YZF-R1 features beautifully integrated bodywork and sleek, stylish lines which create an unmistakably aggressive, aerodynamic profile. R1M riders are treated to even higher levels of fit and finish thanks to full carbon-fiber bodywork, including a carbon windscreen fairing, side fairings, front fender and tail section, matched to a polished aluminum swingarm and topped with a unique serial-numbered YZF-R1M badge on top of the airbox cover.
Yamaha Celebrates 70th Anniversary
Yamaha Motor Company marked its 70th anniversary earlier this year and the celebrations are set to continue into 2026 as the Supersport range will be available in a new, eye-catching and evocative 70th Anniversary colourway.
Based on the iconic colours of the limited edition, race-focused 1999 R7, the white and red colourway evokes memories of Yamaha’s statement-marking, revolutionary Supersport models of the 1990s.
The 70th Anniversary colours were first seen earlier this year when the Monster Energy Yamaha MotoGP Team and Prima Pramac Yamaha MotoGP team ran the one-off livery at the TT Circuit Assen as Yamaha’s 70th celebrations kicked off. The Yamaha Racing Team and YART also adorned the 70th anniversary colours at the prestigious Suzuka 8 Hour.
The occasion was also marked by Yamaha’s teams in the FIM Superbike World Championship and FIM Supersport World Championship, who ran liveries inspired by the colours at the Circuito de Jerez in October.
For 2026, the R125, R3, new Yamaha R7, and the award-winning Yamaha R9 will be available in the white and red 70th anniversary colours, combining Qualitative Pearlish White and vivid sporty red and black with historic Yamaha speedblock graphics.
2026 Yamaha Motorcycles and Scooters Range Updates
Yamaha celebrated its 70th anniversary in July 2025, and ever since its foundation the mission has been to create innovative machines, which transcend boundaries and offer each Yamaha rider the feeling of deep satisfaction and intense excitement born from encountering something of exceptional value, quality and performance – KANDO.
For the 2026 model year the market leading Adventure segment goes from strength to strength with the introduction of the upgraded Ténéré 700 World Raid featuring a restyled body and new colour as well as next generation electronic control technology and premium enhanced suspension. 2026 also sees the introduction of the new WR125R – an exciting new model that offers the next generation of riders an accessible entry point into the exciting world of adventure riding.
Yamaha’s Sport Heritage range pays homage to the company’s most iconic designs from a previous era, while at the same time giving the rider the very latest engine, chassis and design technology. Flagship of the range is the outstanding XSR900 GP, a truly stunning machine inspired by Yamaha’s Grand Prix winning race bikes from the past. Now available in a new Legend Yellow colour alongside the current Legend Red, this bike blends authentic retro race-bike charisma with up to the minute performance.
Driven by characterful crossplane technology engines and equipped with wind-beating bodywork and state of the art electronic control technology, Yamaha’s TRACER 9 and TRACER 7 models are built to go the distance in comfort. For 2026 the remarkable Y-AMT system (Yamaha Automated Manual Transmission) is now featured on the TRACER 7 & TRACER 7 GT models. Following its successful introduction in 2025 on the TRACER 9, TRACER 9 GT & TRACER 9 GT+, this clutchless system elevates the Sport Touring experience.
Yamaha’s Sport Scooter lineup delivers premium, sporty, and dynamic scooters designed to offer MAX riders comfortable and enjoyable rides. The TMAX has set the standard in the maxi scooter category for 25 years, while the NMAX continues to be a best seller, complementing the range alongside the versatile XMAX. For 2026, all TMAX, XMAX and NMAX models are now offered in Yamaha’s race-inspired Icon Blue colour that reinforces their dynamic and sporty attitude – and the premium Tech MAX and Tech MAX+ range comes in an exclusive new Crystal Graphite. The new NMAX 155 Tech MAX is equipped with the innovative YECVT (Yamaha Electric Continuously Variable Transmission) technology that delivers an exciting new riding experience. YECVT enables you to instantly select ‘Sport’ or ‘Town’ engine running modes to suit the situation – and there’s also a new downshift function for increased acceleration and stronger engine braking.
2026 Yamaha YZF-R1M Totalmotorcycle.com Features and Benefits
KEY DIFFERENCES between R1M & R1
- Premium Öhlins Electronic Racing Suspension (ERS)
- Communication Control Unit (CCU) – Datalogger & vehicle info via Wi-Fi (standard equipment)
- Wider 200 series rear tire (200/55ZR17)
- Carbon fibre bodywork
Engine
- Ultra-lightweight, compact, 998 cc, DOHC, 16-valve (4-valves / cyl.), liquid-cooled, in-line four-cylinder engine with crossplane-style crankshaft.
- Redesigned in 2020: cylinder head, fuel injectors, finger-follower rocker arms and camshaft profiles
- The key components of this cutting edge engine design are the “crossplane” crankshaft and an uneven firing order. Both of these features are used on Yamaha’s race-winning M1 MotoGP racer. The R1M crossplane crankshaft locates the centre two rods at a 90-degree plane from the outer cylinders. Instead of the crank pins aligned on the same plane (a straight line drawn through the center of the crankshaft), they align on 2 planes in the form of a cross, or “crossplane”. Working in conjunction with the crossplane crank is an uneven firing order. This R1M engine fires 1,3,2,4 cylinders and the firing intervals are uneven at 270 / 180/ 90 /180 degrees. What all this means to the rider is the most linear torque possible and amazing throttle control. This engine design allows a whole new level of rider/machine communication. One of the most important benefits is the outstanding cornering performance that increased engine / throttle control allows.
- The key engineering goal for the R1 series is significant horsepower with excellent controllability, making the bike easier and more enjoyable to ride. The R1M is a rider’s machine.
- 4-valve cylinder head design
- compact pent-roof combustion chambers with 13:1 compression ratio
- lightweight 33 mm intake titanium valves and 26.5 mm steel exhaust valves
- 4-valve design optimizes breathing efficiency and overall engine performance
- combustion chambers are machined to ensure exact volume spec for maximum power
- Special intake port shape provides maximum filling efficiency.
- port shape, valve placement and combustion chamber shape induce a tumbling effect of the inbound fuel – air charge that increases combustion speed, power and torque
- Finger-follower rocker arms.
- reduces friction, allows greater valve lift and provides super accurate control of valve opening and closing at high rpms
- sliding area of the rocker arms feature a DLC (diamond like coating) to reduce friction and wear
- valve adjustment pads sit under the rocker arm
- Valve adjustment intervals are every 42,000 km.
- High-performance intake and exhaust cams
- deck aluminum cylinder with linerless ceramic composite-plated cylinder bores.
- ceramic coating sprayed directly on the aluminum block, eliminating the liner and reducing weight
- excellent heat dissipation for consistent power delivery
- coating enhances the thin film of oil between the cylinder and piston, reducing friction and increasing power
- deck design allows cylinders to be spaced more closely together, reducing engine width
- cylinder is a standalone design (not integrated into the upper crank case)
- Offset cylinder design
- offset cylinder block relative to the crankshaft (to the exhaust side) reduces frictional losses between the piston and cylinder wall during the power stroke for improved power output
- Short skirt, forged aluminum pistons.
- lightweight design for fast throttle response
- piston features a box-shaped “bridge box” on the underside for increased rigidity and durability
- special Defric coating on skirt to further reduce friction
- ring expansion tension is optimized to reduce frictional losses
- piston oil coolers spray oil at the underside of piston to reduce temperature
- Crossplane crankshaft design.
- crank inertial moment has been engineered to achieve linear throttle response, strong acceleration and excellent cornering exit control
- Super light, fracture split titanium connecting rods feature a “nutless” design.
- lower end “cap” of the rod is made from the same piece of material as the upper portion; the 2 pieces are “split” apart using a special process known as fracture splitting and then machined
- lightweight titanium design (60% lighter than a conventional steel con rod) reduces horsepower losses and provides faster throttle response
- fracture split “Ti” rods are a world’s first to be used on a production motorcycle
- Single axis balancer shaft
- reduces engine vibration
- Crankcases feature a “Tri-Axis” layout for the crank, main and drive axles.
- creates a more compact and shorter engine (front to back)
- shorter engine allows for optimum engine placement in the “sweet spot” of frame for desired weight distribution and great handling
- Closed-loop, 45 mm Mikuni throttle body fuel injection system with twin injectors.
- Twin injector (primary and secondary) system is used on our MotoGP M1 race bike and R1 models
- primary injectors are located in the throttle bodies, secondary injectors located in the airbox, very near the computer-controlled intake funnels
- both primary and secondary injectors utilize 10 spray holes to maximize fuel atomization
- secondary injectors, located inside the air box, begin to function at mid-rpm to redline
- ” loop system” uses dual oxygen sensors to sniff spent exhaust gases and automatically adjusts the fuel / air ratio for reduced emissions
- fuel injection benefits include instant throttle response, choke-free starting, steady idle during warm up and reduced emissions
- Yamaha Chip Control Throttle (YCC-T)
- YCC-T electronically controls throttle valves for outstanding throttle response and controllability
- system features Throttle Position Sensor (TPS) and D.C. motor driven throttle valves
- YCC-T system provides precise control of intake air volume for a smoother torque curve
- ECU that controls YCC-T is capable of responding to changes at a speed of 1/1000th of a second
- Yamaha Chip Controlled Intake (YCC-I) system
- intake funnels / stacks vary in length between two preset positions depending on engine rpm
- electronic servo motor varies the funnels. The revolutionary YCC-I provides the best of both worlds – solid low-rpm torque and power combined with an amazing high-rpm rush. It takes only 0.3 seconds for the funnels to move from the tall to the short position
- Accelerator Position Sensor with Grip (APSG).
- eliminates the need for throttle cables and reduces weight while providing smoother throttle operation
- Compact six-speed transmission.
- features optimized gear ratios matched to engine output for maximum performance
- Compact, lightweight slipper or back limiter clutch assembly with assist.
- reduces rear wheel hop when making down shifts under hard braking
- key benefit is reduced lap times and smoother control when participating in a race or track day
- assist function reduces clutch lever effort
- Ram Air Induction System
- features a centrally-located intake duct between the LED headlights, delivering cool, force-fed air which pressures the airbox and increases power output at higher speeds
- straight shot induction from centrally located fairing duct to air box without bends or turns
- Large capacity 10.5-litre air box
- large capacity maximizes performance
- M1-inspired intake duct with solenoid valve reduces intake noise and improves high-rpm power
- viscous type, high-flow air filter is used
- Mid-ship design 4-into-2-into-1 exhaust system
- features lightweight titanium header pipes and muffler for reduced weight
- design maximizes power, reduces weight, centralizes mass and lowers the centre of gravity for fast, light, agile handling
- dual 3-way honeycomb catalyzers which reduce harmful exhaust emissions.
- Special exhaust valve device
- located in under-engine chamber and features two separate exhaust flow routes based on rpm
- system allows a more compact muffler design that provides outstanding power output and torque characteristics while still providing sufficient silencing
- Yamaha’s EXUP System (Exhaust Ultimate Power Valve).
- part of the mid-ship exhaust system
- utilizes a titanium body and butterfly valves that prevent the “blow-back” phenomenon caused by “valve overlap”
- design reduces weight and maximizes cornering clearance
- EXUP system eliminates “flat spots” in the powerband and reduces emissions too
- High-efficiency, high-capacity curved radiator.
- curved rad provides more cooling surface area than a conventional flat rad
- ring-type fan provides increased airflow (and cooling) versus a standard cooling fan
- Air-cooled oil cooler sits below the main rad to maintain stable lubricant temperatures.
- Optimized wet sump lubrication system
- features special oil routing to the big end rod bearings
- lightweight, deep bottom magnesium oil pan significantly reduces weight
- convenient spin-on-type oil filter is used.
- Super lightweight magnesium cylinder head and crankcase covers secured by aluminum bolts.
- magnesium offers significant weight savings
- Compact ACM (alternator) is mounted directly to the crankshaft.
- compact ACM uses rare earth magnets which produce more power for a given size than conventional magnets, therefore reducing size and weight
- Maintenance-free, transistor-controlled ignition (TCI).
- produces a strong spark for fast starts
- provides precise ignition timing / mapping for optimum engine performance at all rpm
- Direct ignition coils, iridium dual electrode spark plugs and high-output magneto.
- ignition coils integrated into plug caps, significantly reducing weight and complexity
ELECTRONIC RIDER AIDS (YRC)
Many of the following rider assist aids are derived from Yamaha’s MotoGP race efforts and help make the R1M more controllable and enjoyable to ride. We call them Yamaha Ride Controls (YRC).
- At the heart of the “Yamaha Ride Control” electronic rider assist aids are the Inertial Measurement Unit (IMU) and Electronic Control Unit (ECU).The IMU features six axis of measurement using a gyro sensor to detect rotational motion in the pitch, roll and yaw directions. A G-sensor detects acceleration / velocity in the forward/back, up/down and left/right directions. The vehicle position information obtained from the two sensors including bank angle, pitch rate and sideways slide acceleration is sent to the ECU, which in turn controls the five YRC systems (not including the quickshift system). These variables are calculated 125 times per second.
- PWR: Power Delivery Modeis Yamaha’s variable throttle control, which controls the throttle valve opening speed, enabling the rider to adjust performance characteristics of the engine based on riding preferences or conditions. There are four power settings available from an enhanced race setting to a slippery condition mode with softer power characteristics.
- TCS: Traction Control Systemwith lean angle sensor. System uses front and rear wheel sensors to detect slip and then adjusts / regulates power via the ECU / IMU to control rear wheel spin. In addition to detecting difference in speed between the front and rear wheels, the system uses input on the degree of bank / lean angle to adjust the degree of TCS intervention to an optimum level in relation to riding conditions in real-time. As the banking angle increases, the amount of TCS intervention also increases. When the TCS is disabled, SCS, LIF and LCS systems will automatically be shut down as well. There are 9 settings plus off.
- SCS: Slide Control Systemcontrols engine power when side slip is detected. Power output is adjusted to an optimum level to control side slide. There are 3 settings plus off.
- LIF: Lift Control System(a.k.a. anti-wheelie control) reduces time loss due to wheelies during closed course competition. System reduces front end lift during starts and hard acceleration. When the IMU and other sensors detect lift, engine output is adjusted to the optimum level to maintain strong acceleration without lift. There are 3 settings plus off.
- Revised Launch Control Systemensures fast, strong, controllable starts in closed-course competition situations. When the LCS is activated, it keeps the engine limited to a specific rpm and maintains an optimum level of engine power in conjunction with inputs from the TCS and LIF systems, allowing the rider to concentrate on clutch engagement and the other competitors, reducing stress associated with race starts. There are 2 settings plus off.
- QSS: Quick Shift System provides smooth, fast. clutchless upshifts and downshifts. When the switch on the shift lever rod detects motion, it adjusts engine output and momentarily cancels out the drive torque to promote faster gear shifts. There are 2 settings plus off.
- Engine Brake Management (EBM):
- allows the rider to adjust engine braking to suit personal preferences and track conditions.
- offers three levels of engine brake force to allow smoother corner entry
- Communication Control Unit (CCU)
- CCU is Yamaha’s data acquisition unit – a great tool for track day and race enthusiasts
- works with iOS and Android platforms
- parameters recorded include: traction-control activation, front and rear ABS activation, lean angle, vehicle speed, engine rpm, wheel speeds, throttle position, gear position, front and rear brake pressures, coolant temperature and lap times
- information in conjunction with position on the race track
- possible to overlay multiple laps and share data with other R1M riders
- SCU: Suspension Control Unit controls the electronic adjustments (front and rear) to the Ohlin’s “Electronic Racing Suspension”, available only on the R1M. There are 3 automatic setting modes and 3 manual setting modes.
Chassis/Suspension
- Gravity-cast aluminum Deltabox frame
- designed to offer an optimized rigidity balance to maximize handling and suspension performance. Frame provides a balance of strength, rigidity and tuned flex
- engine is a stressed member with rigid mounts
- benefits include reduced weight, excellent high-speed stability and cornering characteristics, excellent traction / drive characteristics exiting a corner, and a greater freedom in choosing or changing a line through a turn
- Detachable magnesium cast rear subframe
- reduces weight
- allows easier rear shock access and reduces costs in the event of damage
- Polished, lightweight aluminum upward truss-type swingarm
- provides great torsional rigidity for excellent rear wheel traction and control
- swingarm length is 570 mm
- design and length help reduce effects of chain tensioning during hard acceleration
- swingarm is polished aluminum and clearcoated (not painted)
- Key chassis geometry figures:
- 1,405 mm wheelbase, 24-degree caster angle, 102 mm of trail
- 56-degree maximum lean angle
- Electronically adjustable, premium Öhlins Electronic Racing Suspension (ERS) with 120 mm (4.7″) of wheel travel front and rear.
- “ERS” further enhances the performance potential of the R1M with electronically-controlled independent damping front and rear
- spring preload (front and rear) is set manually; 15 turns of front preload and 9 mm of threaded rear spring preload
- based on data from IMU and various sensors, the Suspension Control Unit (SCU) makes automatic, independent adjustments of both front and rear suspension compression and rebound damping based on real-time riding conditions
- SCU (suspension control unit) calculates the ideal damping for the front and rear suspension
- ERS has a choice of Automatic or Manual modes. Within these 2 modes there are also 3 running modes each, for a total of six different settings to fit rider preferences or track conditions
- Two of the Automatic modes have fine adjustment functions for damping force
- Manual mode cancels the semi-active damping and reverts to a traditional suspension with a significant adjustment range
- Electric steering damper
- ABS equipped, radial mount, 4-piston, monoblock calipers squeeze fully floating 320 mm dual front discs.
- incredible braking performance with excellent control and lever feedback
- radial-mount design helps to reduce caliper distortion for improved braking performance
- Nissin radial master cylinder
- stainless steel mesh brake lines
- 6-position adjustable brake lever
- Single-piston, slide-type Nissin rear caliper squeezes a lightweight 220 mm disc.
- Front and rear brakes feature Yamaha’s latest anti-lock brake (ABS) technology
- main benefit of ABS is excellent control under hard braking or braking on wet or slippery surfaces
- when ABS system senses impending wheel lock-up (via active type wheel sensors) it regulates the hydraulic brake pressure to the point just before the wheel(s) lock-up
- NEW Brake Control (BC)
- Developed on racetracks around the world, Yamaha’s new Brake Control system works with ABS to minimize brake slip under aggressive braking, or on less than ideal surfaces. The adjustable BC system uses the IMU to provide progressive brake force intervention as lean angle increases, to boost rider confidence when braking mid-corner.
- Super lightweight, die cast magnesium 10-spoke mag wheels.
- lightweight design reduces unsprung weight and contributes to excellent suspension and handling performance
- front rim size is MT3.50 x 17, rear rim is MT6.00 x17
- R1M features a 200 series rear tire – 200/55ZR17

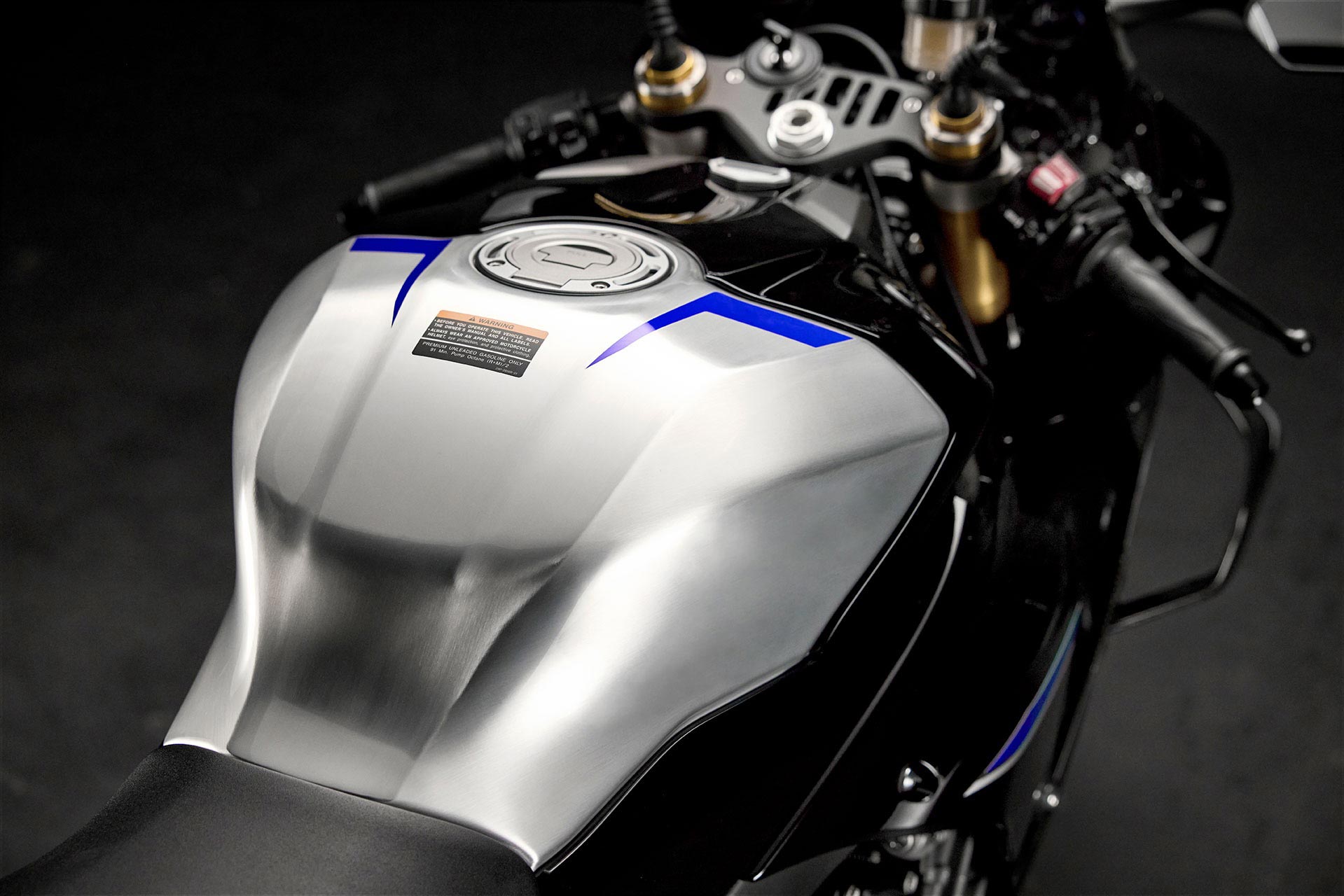

- Lightweight, 17-litre aluminum fuel tank.
- tank provides excellent knee grip for hard braking and easy manoeuvrability
- elongated shape helps to centralize mass and reduces variance in riding feel as the fuel load (weight) changes
- 3-litre reserve capacity (fuel trip meter activates)
- Redesigned bodywork for 2020
- 3% increase in aerodynamic efficiency over previous R1
- super light, trick carbon fibre bodywork including front fender, fairing and tail section
- reduced wind noise and pressure on the rider when in a tucked position
- improved comfort from smoother side sections where the rider’s legs contact the bike
- LED headlights and high-intensity LED position lights.
- new lights create a “face” never seen before on a motorcycle and provide a stylish and unique look for the R1/R1M
- excellent illumination and visibility
- reduced power consumption
- Fully digital instrument panel with TFT liquid crystal display.
- displays have been concentrated into a single 4.2-inch screen that adopts a fully transmissive Thin Film Transistor (TFT) liquid crystal display that reduces reflections and glare
- white or black backgrounds can be selected
- auto brightness adjustment based on available ambient light
- 2 screen modes are available: street and track
- street display mode functions include; speedo, bar-style tach, odometer, dual trip meters, gear position, intake air temp, coolant temp, instant and average fuel efficiency, clock, fuel consumed, fuel trip meter (appears when fuel switches to reverse – 3 litres remaining), peak rpm indicator, front brake pressure indicator, acceleration indicator, lap timer, ERS indicator and selected YRC setting info
- track mode functions include; race tach setting (tach starts at 8,000 rpm), lap number, lap timer (up to 40 laps), stop watch, gear position, speed and most of the above street displays including YRC setting info
- Immobilizer ignition system is designed to reduce the possibility of “ride-away” theft.
- system must recognize the “coded ignition key” in order for the unit to start
- if the immobilizer ignition does not recognize the key, the ignition system and starter will not function, even if the ignition is forced into the on position
Details
- LED front turn signals integrated into mirrors
- Compact, LED rear turn signals
- LED tail light
- 12-volt auxiliary DC connector (24 W / 2A)
- Large 25 mm hollow front axle
- Extensive use of lightweight fasteners
- Oil level sight glass window
- Lightweight 525 series “O” ring drive chain.
- Low maintenance, lightweight, sealed battery (battery should be charged during winter storage)
NOTE: The YZF-R1M offers a significant level of power and performance. It is not intended for novice or inexperienced riders. All information is subject to change without notice.
2026 Yamaha YZF-R1M – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $ 27,899 USD
Canada MSRP Price: $35,099 CDN
Europe/UK MSRP Price: £ NA GBP (On The Road inc 20% Vat)
ENGINE
| Engine Type | 998cc, liquid-cooled inline 4 cylinder DOHC; 4-valves per cylinder |
| Bore x Stroke | 79.0mm x 50.9mm |
| Compression Ratio | 13.0:1 |
| Fuel Delivery | Fuel injection with YCC-T and YCC-I |
| Transmission | 6-speed; wet multiplate assist and slipper clutch |
| Final Drive | Chain |
| Fuel Capacity | 4.5 gal |
CHASSIS
| Suspension/Front | 43mm Öhlins Electronic Racing Suspension NPX fork, fully adjustable; 4.7-in travel |
| Suspension/Rear | Öhlins Electronic Racing Suspension single shock, fully adjustable; 4.7-in travel |
| Brakes/Front | Dual 320mm hydraulic disc; Brake Control System and ABS |
| Brakes/Rear | 220mm hydraulic disc; Brake Control System and ABS |
| Tires/Front | 120/70ZR17 Bridgestone BATTLAX RACING STREET RS11F |
| Tires/Rear | 200/55ZR17 Bridgestone BATTLAX RACING STREET RS11R |
DIMENSIONS
| LxWxH | 80.9 in x 27.2 in x 45.9 in |
| Seat Height | 33.9 in |
| Wheelbase | 55.3 in |
| Rake (Caster Angle) | 24.0° |
| Trail | 4.0 in |
| Max. Ground Clearance | 5.1 in |
| Fuel Capacity | 4.5 gal |
| Fuel Economy** | 33 mpg |
| Wet Weight*** | 452 lb |
OTHER
| Warranty | 1 Year (Limited Factory Warranty) |
*Manufacturer’s Suggested Retail Price (MSRP) shown. Does not include tax, title, prep or destination charges. Actual prices set by dealer.
**Fuel Economy is estimated.
***Wet weight includes the vehicle with all standard equipment and all fluids, including oil, coolant (as applicable) and a full tank of fuel. It does not include the weight of options or accessories. Wet weight is useful in making real-world comparisons with other models.
2026 Yamaha YZF-R1M – Totalmotorcycle.com Canada Specifications/Technical Details
| Engine | Liquid-cooled, DOHC, 16-valves (4-valves / cyl), inline four |
| Displacement | 998 cc |
| Bore and Stroke | 79 x 50.9 mm |
| Compression Ratio | 13:1 |
| Maximum Torque | 11.5 kg-m (83.2 ft-lb) @ 11,500 rpm |
| Engine Management | YCC-T, YCC-I, PWR, TCS, LCS, LIF, SCS, QSS, BRM, BC, CCU & SCU |
| Fuel Delivery | Mikuni 45 mm throttle body FI with twin injectors (primary & secondary) |
| Estimated Fuel Consumption± | 14.4 kpl / 40.6 mpg (Imp.) |
| Lubrication | Wet sump |
| Ignition / Starting | TCI / Electric |
| Transmission | 6-speed |
| Final Drive | 520 series “O” ring chain |
Chassis
| Suspension (Front) | Öhlins Electronic Racing Suspension (ERS) / 43 mm inverted fork / 120 mm (4.7″) wheel travel |
| Suspension (Rear) | Öhlins Electronic Racing Suspension (ERS) – bottom link Monocross / 120 mm (4.7″) wheel travel |
| Brakes (Front) | Dual 320 mm discs / radial mount, 4-piston calipers / ABS |
| Brakes (Rear) | 220 mm disc / single-piston caliper / ABS |
| Tires (Front) | 120/70ZR17 |
| Tires (Rear) | 200/55ZR17 |
Critical Data
| Length | 2,055 mm (80.9″) |
| Width | 690 mm (27.2″) |
| Height | 1,166 mm (45.9″) |
| Wheelbase | 1,405 mm (55.3″) |
| Rake / Trail | 24° / 102 mm |
| Ground Clearance | 130 mm (5.1″) |
| Seat Height | 860 mm (33.9″) |
| Fuel Capacity | 17 litres (3.7 Imp. gal.) |
| Wet Weight | 205 kg (452 lb) |
| Colour(s) | Carbon fibre |
2026 Yamaha YZF-R1M – Totalmotorcycle.com European Specifications/Technical Details
NA
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
