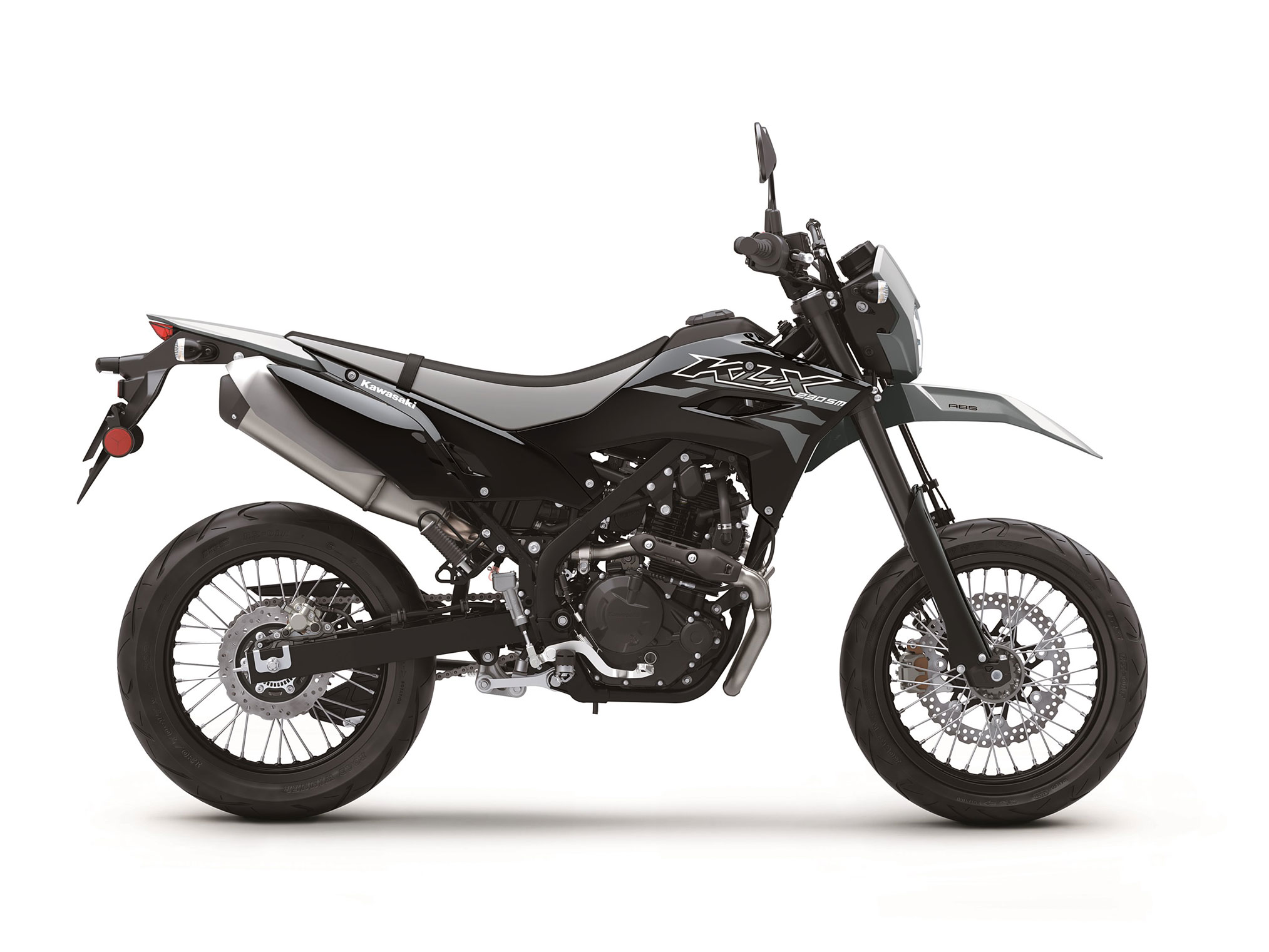

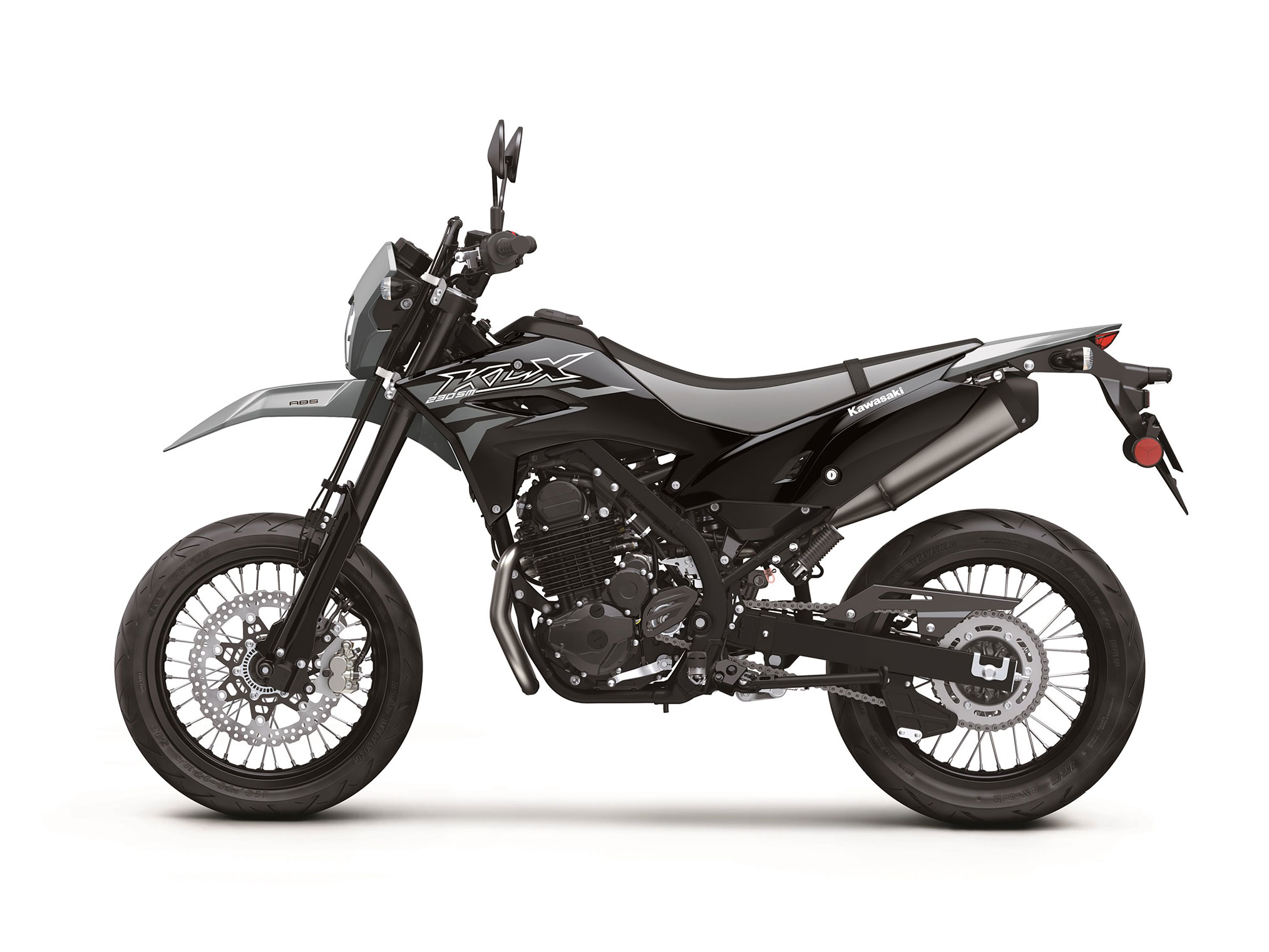

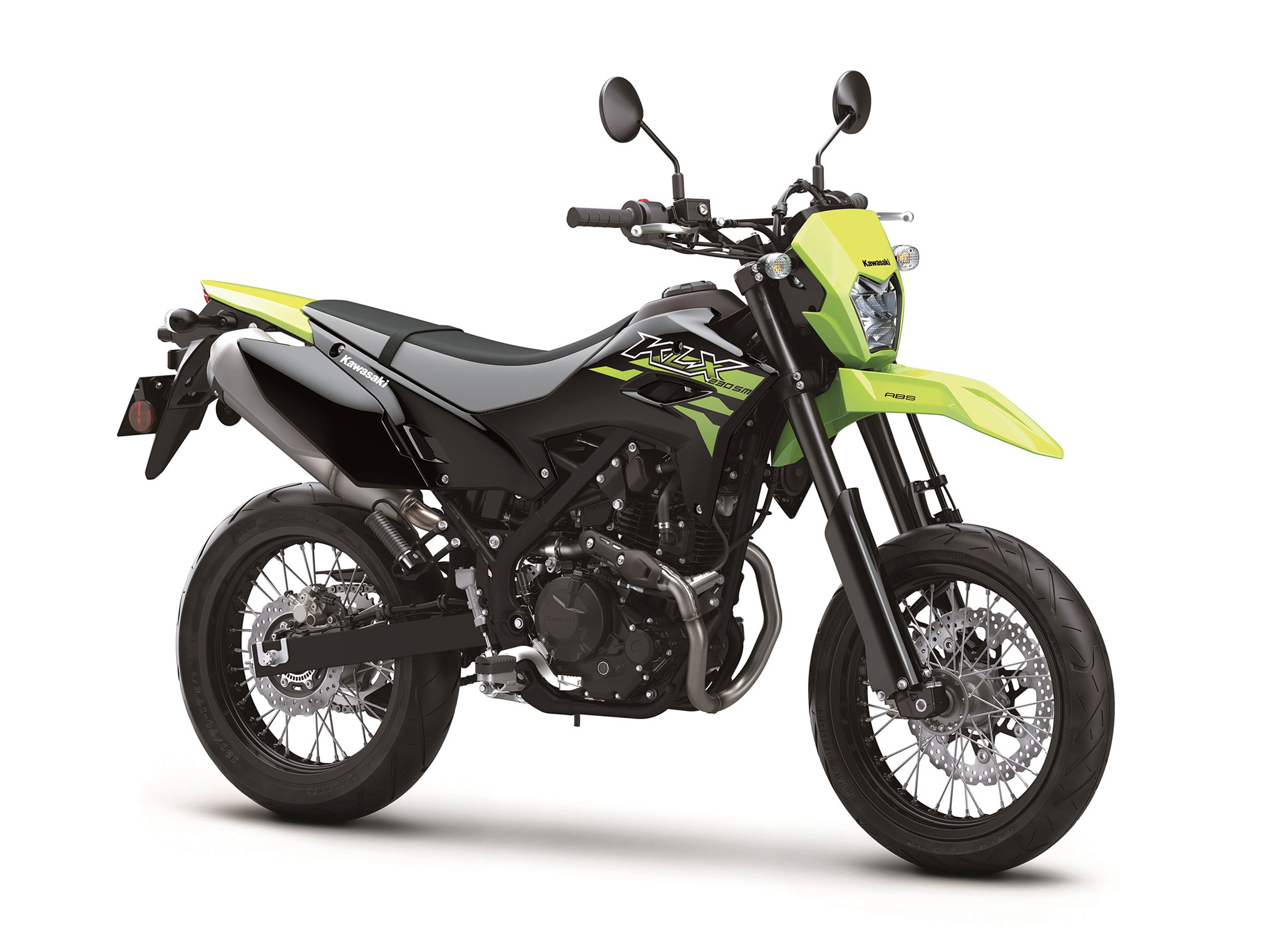

2027 Kawasaki KLX230SM ABS: FUN. FUN. FUN. LET’S PLAY!
Introducing the 2027 Kawasaki KLX230SM ABS…
The 2027 Kawasaki KLX230SM ABS was developed utilizing the dual-purpose KLX230 platform and caters specifically to street riding. It features the same 233cc four-stroke air-cooled single-cylinder engine, high-tensile steel perimeter frame, digital instrumentation, and Bluetooth wireless connection via RIDEOLOGY THE APP MOTORCYCLE*.
Turn up the fun on the streets with the lightweight KLX230SM ABS supermoto motorcycle. Experience an exciting spread of power tuned for low- to mid-range acceleration, making it that much more fun to navigate through the city. Lightweight and nimble handling starts with a compact chassis while sporty 17-inch wheels with road tires adds confidence and capability on the streets.
The KLX230SM ABS motorcycle comes with 17” front and rear wheels with road tires, which are wider than those found on the KLX230 to help riders navigate the roads with increased handling precision. A large 300mm semi-floating petal disc front brake with a twin-piston caliper adorns the front wheel of the motorcycle, delivering powerful stopping power and adding to the sleek supermoto look. Like its KLX230 brethren, a 220mm disc with a single-piston caliper oversees slowing the rear. The 37mm inverted forks and New Uni-Trak rear suspension are equipped with stiffer spring settings compared to the KLX230 model, reducing the amount of travel, and offering greater overall composure while in use. Aggressive supermoto styling can be found from front to rear on the KLX230SM ABS, beginning with its sporty front fender that is designed to match the 17” front wheel. Since this motorcycle is geared for the streets, the off-road rider footpegs are replaced with standard footpegs with rubber pads, adding to the rider’s overall comfort.
SUPERMOTO STYLE
ALL ATTITUDE. NO APOLOGIES.
The aggressive supermoto-inspired bodywork, finishes, and components on the KLX230SM ABS supermoto motorcycle deliver performance and attitude.
POWER DELIVERY
The KLX230SM ABS motorcycle’s engine offers broad low- to mid-range torque, pulling strongly and facilitating low-speed control. Smooth power delivery and crisp throttle response help you maneuver through stop-and-go city traffic.
RESPONSIVE POWER
REV UP THE FUN
The KLX230SM ABS supermoto motorcycle is powered by a 233cc, fuel-injected, air-cooled engine. Experience a fun and exciting spread of power tuned for low- to mid-range acceleration.
WHEELS
The road tires, 17-in wheels, and short wheelbase add agility to the quick handling package.
SUPERMOTO-TUNED PERFORMANCE
READY FOR ACTION
The KLX230SM ABS supermoto motorcycle is built with a compact and purpose-built chassis that contributes to lightweight and highly-maneuverable handling.
ERGONOMICS
The KLX230SM ABS motorcycle’s low-profile seat has a flat silhouette for added freedom of movement, while smooth bodywork also facilitates rider movement.
COMFORTABLE ERGONOMICS
MAKE COMFORT A PRIORITY
An upright and relaxed riding position makes it comfortable to ride the KLX230SM ABS supermoto motorcycle. Rider-friendly ergonomics complement a comfortable seat, rubber-dampened footpegs, and a 33.0-in seat height to make the KLX230SM one of the best options for tackling any urban jungle.
2027 Kawasaki KLX230SM ABS Totalmotorcycle.com Key Features
- 233cc FUEL-INJECTED, AIR-COOLED, 4-STROKE ENGINE WITH ELECTRIC START
- SUPERMOTO-TUNED LONG-TRAVEL SUSPENSION
- 17-INCH FRONT & REAR WHEELS WITH ROAD TIRES
- SMARTPHONE CONNECTIVITY VIA RIDEOLOGY THE APP MOTORCYCLE†
- Comfortable seat and low seat height
- Aggressive supermoto styling
- KX-inspired ergonomics
- Powerful large-diameter petal disc brakes
- LED headlight
The KLX230 motorcycle lineup continues to set the benchmark for rider-friendly performance, blending off-road capability with everyday versatility. For 2027, the Kawasaki KLX230 S ABS returns with weight reduction efforts and an expanded range of accessories that further enhance their appeal, inviting riders to confidently explore everything from dirt trails to city streets.
At the core of the KLX230 S ABS is a proven 233cc fuel-injected, air-cooled, four-stroke engine paired with a durable high-tensile steel perimeter frame. This combination delivers smooth, responsive power and a balanced, manageable chassis. Long-travel suspension, full-size wheels, and a low seat height contribute to confident handling across varied terrain, while KX-inspired styling, LED lighting, and smartphone connectivity via RIDEOLOGY THE APP MOTORCYCLE* add modern functionality to its rugged design.
Sharing much of the same foundation, the KLX230SM ABS adapts the platform for street-focused performance. Key distinctions include wider 17-inch front and rear wheels, street-oriented tires, and stiffer suspension settings tuned for paved roads. A large 300mm semi-floating petal front brake enhances stopping power, while supermoto styling and rubber-padded footpegs emphasize comfort and control in urban environments. Together, these models deliver a versatile riding experience tailored for both adventure and everyday fun.
*RIDEOLOGY THE APP* is not intended for use during vehicle operation. Only use RIDEOLOGY THE APP when the vehicle is not being operated and it is safe to do so.
2027 Kawasaki KLX230SM ABS Totalmotorcycle.com Features and Benefits
BLACKED OUT
Blacked-out features like the triple clamps, engine, fork, fork covers, frame, exhaust pipe cover, and wheels give the KLX230SM ABS motorcycle a distinctly aggressive look.
MODERN TOUCHES
The compact LED headlight cowl and sporty front fender add to the already aggressive supermoto image, while the frame was designed to give you an easier grip for improved chassis control. Seams between the shrouds, side panels, and seat are flush, which helps improve freedom of movement when changing riding positions.

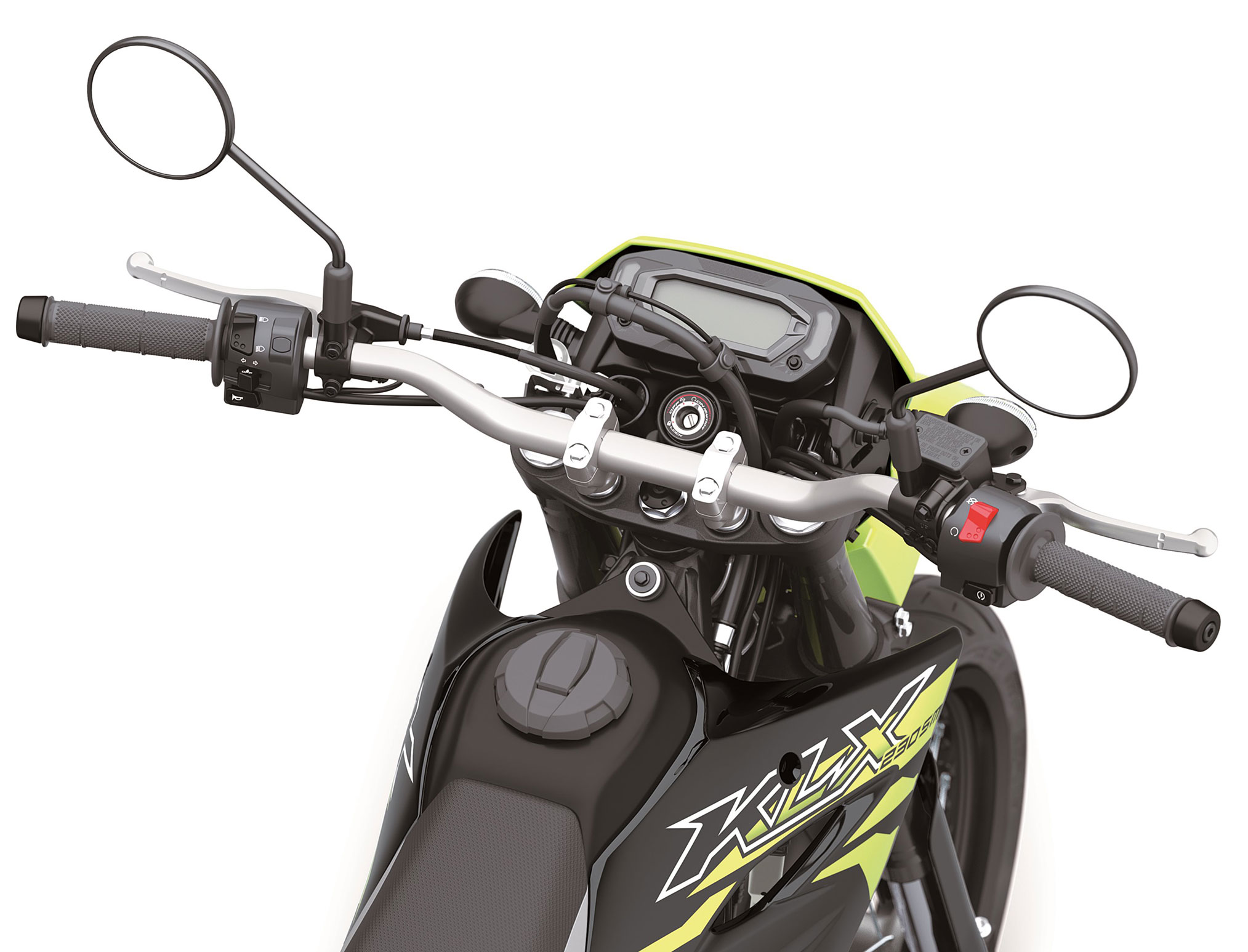

DIGITAL INSTRUMENTATION
From the cockpit, an all-digital instrument panel offers at-a-glance information thanks to a large, easy-to-read LCD display screen. The KLX230SM ABS features smartphone connectivity via RIDEOLOGY THE APP MOTORCYCLE† which connects you with your bike like never before. Smartphone connectivity enables riders to access instrument functions like vehicle info, riding log, phone notifications, and general settings for an enhanced riding experience.
POWER DELIVERY
The KLX230SM ABS motorcycle’s engine offers broad low- to mid-range torque, pulling strongly and facilitating low-speed control. Smooth power delivery and crisp throttle response help you maneuver through stop-and-go city traffic.
RELIABLE STARTING
Electric start offers quick and easy engine starting at the push of a button. Fuel injection delivers precise response and reliability in a wide range of conditions and contributes to improved fuel economy.
WHEELS
The road tires, 17-in wheels, and short wheelbase add agility to the quick handling package.
SUSPENSION
Suspension performance offers 7.4-in of travel up front and 8.7-in at the rear, while a 37mm inverted telescopic front fork contributes to supermoto styling as well as front-end rigidity. The Uni-Trak rear suspension provides great bump absorption, and a lightweight, aluminum swingarm helps keep the bike light for improved handling.
BRAKES
Substantial braking power is provided by a large 300mm semi-floating petal disc and twin-piston caliper up front and a 220mm petal disc and single-piston caliper rear brake package.
ERGONOMICS
The KLX230SM ABS motorcycle’s low-profile seat has a flat silhouette for added freedom of movement, while smooth bodywork also facilitates rider movement.
Comfort Is Key
The KLX230SM ABS features a low 33.0-in seat height, which allows riders to comfortably reach the ground at stops for increased confidence. Thick padding contributes to your comfort and helps with soaking up bumps on uneven pavement, making sport riding and everyday journeys more enjoyable.
Convenient Design
Ergonomic clutch and brake hand levers are in a prime position for easy access when riding.
KAWASAKI GENUINE ACCESSORIES
An expanded lineup of accessories for the 2027 KLX230 S ABS and KLX230SM ABS enhances both rider comfort and vehicle protection while reinforcing each model’s functional, purpose-built design. A D.I.D aluminum fat-type handlebar replaces the previous accessory steel version, offering reduced weight and increased rigidity for more responsive, agile handling. For the KLX230 S ABS model, metal-reinforced hand guards provide added wind protection in a variety of riding conditions, while also boosting rider confidence and contributing to a tougher, off-road-inspired appearance. Completing the package, a durable aluminum skid plate helps protect the engine’s crankcase from impacts with rocks and debris, further emphasizing the bikes’ readiness for demanding terrain.
2027 Kawasaki KLX230SM ABS – Totalmotorcycle.com Specifications/Technical Details
US MSRP Price: $5,799 USD
Canada MSRP Price: $ See Dealer CDN
Europe/UK MSRP Price: £ See Dealer (On The Road inc 20% Vat)
POWER
| POWER | |
| Engine | 4-stroke single, SOHC, air-cooled |
| Displacement | 233cc |
| Bore x Stroke | 67.0 x 66.0mm |
| Compression Ratio | 9.4:1 |
| Maximum Horsepower | 17 hp¹ @ 8,000 rpm |
| Maximum Torque | 13.3 lb-ft @ 6,400 rpm |
| Fuel System | DFI® with 32mm throttle body |
| Ignition | TCBI with Electronic Advance |
| Transmission | 6-speed |
| Final Drive | Sealed chain |
| Electronic Rider Aids | Anti-lock Brake System (ABS) |
PERFORMANCE
| PERFORMANCE | |
| Front Suspension / Wheel Travel | 37mm telescopic fork/7.4 in |
| Rear Suspension / Wheel Travel | New Uni-Trak® linkage system and single shock with adjustable spring preload/8.8 in |
| Front Tire | 110/70-17 |
| Rear Tire | 120/70-17 |
| Front Brakes | Single 300mm semi-floating petal disc with a dual-piston caliper and ABS |
| Rear Brakes | Single 220mm petal disc with single-piston caliper and ABS |
DETAILS
| DETAILS | |
| Frame Type | Perimeter, high-tensile steel |
| Rake/Trail | 24.9°/3.0 in |
| Overall Length | 80.1 in |
| Overall Width | 33.3 in |
| Overall Height | 44.3 in |
| Ground Clearance | 8.7 in |
| Seat Height | 33.1 in |
| Estimated Dry Weight | 286.5 lb** 50-State Model; 284.4 lb** 49-State Model |
| Curb Weight | 302.1 lb* 50-State Model; 299.9 lb* 49-State Model |
| Fuel Capacity | 2.0 gal |
| Wheelbase | 53.7 in |
| Special Features | ERGO-FIT®, LCD Instrumentation with Smartphone Connectivity via RIDEOLOGY THE APP MOTORCYCLE |
| Color Choices | Neon Green/Ebony |
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
