2006 Suzuki Burgman 400

You are here: Home — New 2006 Models — 2006 Suzuki Motorcycle Models

2006 Suzuki Burgman 400
Back to 2006 Suzuki Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

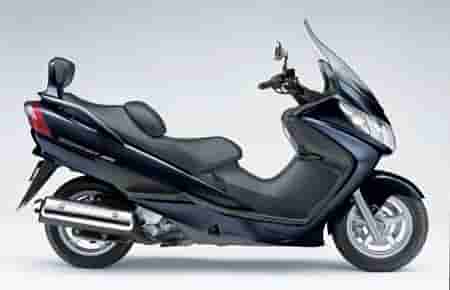

2006 Suzuki Burgman 400

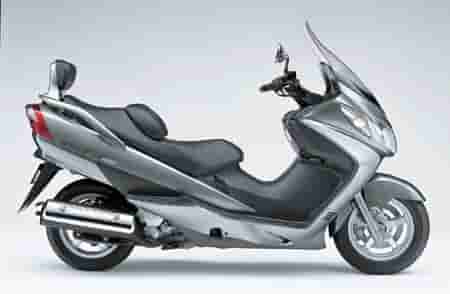

2006 Suzuki Burgman 400



– 2006 Suzuki Burgman 400

2006 Suzuki Burgman 400

ENGINE FEATURES 400

– Liquid-cooled, 385cc SOHC 4-valve engine – designed to produce broad, usable power with smooth/quiet operation and low maintenance. S

– Injector is mounted directly in the intake pipe and aimed directly at the intake valves for more efficient combustion. S

– Electronically controlled pulsed-air injection system (PAIR), helps reduce emissions. S

– Convenient electric starting system with maintenance-free battery. S

– Belt-drive, CVT transmission is fully automatic and easy-to-use. S

– High-efficiency liquid-cooling system includes thermostatically-controlled fan for consistent engine temperature under all operation conditions. S

– Attractive stainless steel exhaust system provides quiet operation and features a chrome muffler end-cap for improved appearance and high heat resistance. S

– Stylish bodywork with dual multi-reflector headlights, flush-mounted front turn signals, and large combination taillight/brake designed for strength and rigidity. S

S = Standard O = Optional N/A = Not available

CHASSIS FEATURES 400

– High-tensile steel-tube frame designed for strength and rigidity. S

– Telescopic front fork with 41mm inner tubes, provides 100mm of wheel travel for sport performance and a comfortable ride. S

– Link-type rear suspension features a single shock absorber with 100mm of wheel travel and convenient hydraulic preload adjustment – no tools required. S

– Front disc brake with 260mm rotor and four-piston caliper, rear disc brake with 210mm rotor and twin-piston caliper – rear brake includes lever-operated parking brake system. S

– Suzuki Combination Brake System – links front and rear disc brake operation by using left-hand brake lever or operate front brake only with right-hand lever. S

– Lightweight five-spoke aluminum wheels – F: 3.00 x 13 with 110/90-13 tire, R: 3.5 x13 with 130/70-13 tire. S

S = Standard O = Optional N/A = Not available

SPECIFICATIONS

Engine: 385cc, four-stroke, liquid-cooled, single-cylinder, SOHC, 4-valve
Bore Stroke: 83.0 x 71.2mm
Compression Ratio: 10.2:1
Fuel System: Fuel Injection
Lubrication: Wet Sump
Ignition: Digital/Transistorized
Transmission: V-belt, CVT- automatic
Final Drive: Shaft
Overall Length: 2260mm (89.0 in.)
Overall Width: 760mm (29.9 in.)
Overall Height: 1235mm (48.6 in.)
Seat Height: 695mm (27.4 in.)
Ground Clearance: 125mm (4.9 in.)
Wheelbase: 1590mm (62.6 in.)
Dry Weight: 184kg (405 lbs.)
Suspension Front: Telescopic, oil damped
Suspension Rear: Link-type, adjustable preload
Brakes Front: Single hydraulic disc
Brakes Rear: single hydraulic disc
Tires Front: 110/90-13
Tires Rear: 130/70-13
Fuel Tank Capacity: 13 liter (3.4 gal.)
Color: Candy Grand Blue
