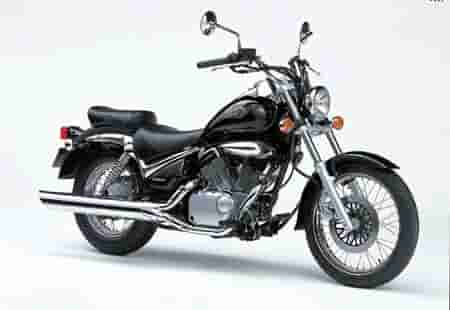

2006 Suzuki Intruder 125LC

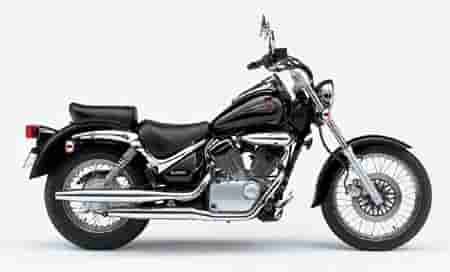

2006 Suzuki Intruder 125LC

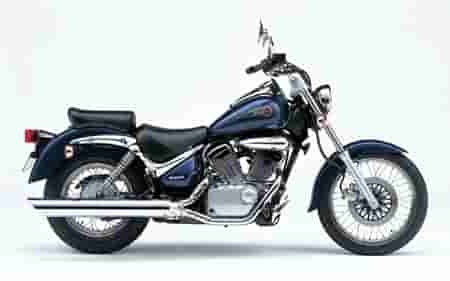

2006 Suzuki Intruder 125LC

2006 Suzuki Intruder 125LC



– 2006 Suzuki Intruder 125LC

2006 Suzuki Intruder 125LC – Europe Model

Big bike feel in learner-legal package. Stable and unintimidating to ride with low centre of gravity.



FEATURES:

Top selling custom bike in the UK – 2000
124cc, air-cooled, 4-stroke 65 degree V-twin engine, SOHC

Maximum power output of 13.3ps @ 10,500rpm

Dry weight of 140kg

Large comfortable seat and low seat height

Comfortable riding position

12 litre fuel tank

Big cruiser styling with plenty of chrome

Removable pillion seat



SPECIFICATIONS

TECHNICAL SPECIFICATIONS:
Overall Length: 2,240 mm
Overall Width: 880 mm
Overall Height: 1,110 mm
Wheelbase: 1,520 mm
Ground Clearance: 150 mm
Seat Height: 685 mm
Dry Mass: 140 kg
Fuel Capacity: 12 litres

ENGINE:
Engine Type: Air-cooled, 4-stroke, 65 degree V-twin, SOHC
Bore x Stroke: 44 x 40.9 mm
Max Power: 13.3 PS (9.8 Kw) @ 10,500 rpm
Max Torque: 9.8 Nm @ 8,000 rpm
Piston Displacement: 124 cc
Compression Ratio: 10.3 : 1
Carburettor: Mikuni BDS26
Lubrication: Wet sump

ELECTRICAL SYSTEM:
Ignition Type: Digital electronic
Starter System: Electric

TRANSMISSION:
Clutch: Wet multi plate
Transmission: 5-speed constant mesh
Drive System: Chain

CHASSIS:
Front Suspension: Conventional, oil damped, coil-sprung telescopic
Rear Suspension: Twin shock absorber, adjustable spring preload
Rake/Trail: 31.7 degrees / 120 mm
Front Brake: Single piston caliper, 275 mm single disc
Rear Brake: 130 mm drum
Front Tyre: 90/90-18
Rear Tyre: 130/90-15
