2006 Suzuki RM-Z250

You are here: HomeNew 2006 Models — 2006 Suzuki Motorcycle Models

2006 Suzuki RM-Z250
Back to 2006 Suzuki Motorcycle Index Page


Click photos to enlarge.
They make great desktop images.

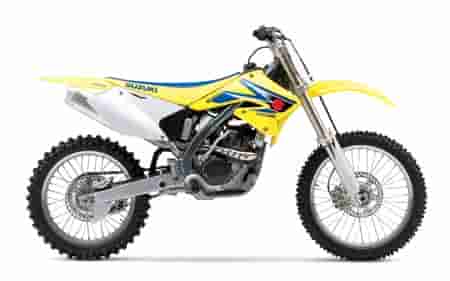

2006 Suzuki RM-Z250
2006 Suzuki RM-Z250


– 2006 Suzuki RM-Z250

2006 Suzuki RM-Z250


Lightweight perimeter-type frame with thick-walled steering head for increased rigidity and improved handling performance, plus D-shaped upper spars that contribute to a slim design and improved position and rider mobility

Slim bodywork allows greater freedom of movement for the rider

Specially designed seat cover and seat foam material for better rider grip plus high comfort and durability

Wide handlebar mounting position for increased handlebar strength and bending resistance

Kayaba 48mm inverted, bladder-style front fork with low-friction fork oil seals and special valve system to optimize internal pressure and damping performance throughout the stroke

Kayaba reservoir-type rear shock absorber with 16-way adjustable compression and rebound damping

Rear linkage system places the suspension load on the swingarm instead of the frame to reduce frame weight, and allows smoother movement of the rear shock and linkage for improved rear wheel traction

Aluminum swingarm with tapered hydro-formed beams, forged axle holder, plus cast and forged linkage components

Front disc brake system consists of a dual-piston caliper with 27mm pistons, master cylinder with large 11mm piston and thin Kevlar brake line for reduced weight and progressive brake feel

Lightweight rear brake system includes a dual piston caliper with 25.4mm pistons and durable forged brake pedal

On-the-fly clutch lever adjuster mounted to the clutch lever perch for rider convenience

Aluminum skid plate with plastic side guards and aluminum engine mounting plates



Compact 249cc, 4-stroke, liquid-cooled, DOHC, 4-valve engine – designed for easy-to-ride 4-stroke power

Advanced 4-valve cylinder head design with narrow 25-degree included valve angle and titanium valves, plus straight exhaust ports and extended center rib for intake ports for strong low to mid range engine response

Cam profiles selected for a wide powerband with strong peak power

Composite-plated aluminum alloy cylinder for increased durability, optimum engine cooling and operating temperature

Forged, 2-ring piston designed for maximum oil retention and minimal wear, plus tin-plating for added durability

Keihin FCR37 carburetor with throttle position sensor and accelerator pump – throttle valve design and stainless-steel throttle cable are designed for low-friction throttle operation

Strong, reinforced airbox designed for durability and secure intake seal

Automatic decompression system for easy kick starting

Semi-dry-sump lubrication system features separate oil chambers for the transmission and crankshaft using the transmission as the oil sump, allowing low crankshaft placement, reduced engine height and a low center of gravity

Large radiators for increased cooling capacity and more stable engine operating temperature

AC-CDI ignition system with two ignition maps automatically increases engine idle speed to reduce engine brake effect – ignition timing and rev limiter set for optimum high rpm and over-rev performance

Five-speed transmission featuring a ratchet-type shift mechanism designed for light shifting effort

Magnesium cylinder head, generator and outer clutch covers minimize overall engine weight

Lightweight exhaust system features a titanium and stainless steel construction, plus a repackable aluminum/stainless steel muffler



MSRP: $5,599.00

Engine: 249cc, four-stroke, single-cylinder, liquid cooled, DOHC, 4-valve
Bore & Stroke: 77.0 x 53.6mm
Compression ratio: 12.6:1
Fuel System: Keihin™ FCR37
Lubrication: Semi-dry sump
Ignition: Digital AC-CDI
Starter: Kick
Transmission: 5-speed
Final Drive: #520 chain
Overall Length: 2170 mm (85.4 in)
Overall Width: 840 mm (33.1 in)
Overall Height: 1270 mm (50.0 in)
Seat Height: 960 mm (37.8 in)
Ground Clearance: 340 mm (13.4 in)
Wheelbase: 1475 mm (58.1 in)
Dry Weight: 92.5 kg (204 lbs)



FRONT: Telescopic, cartridge-type, 16 compression & rebound settings, 11.8 inches, 300mm of wheel travel
REAR: Link-type, spring preload fully-adjustable, 16 compression & rebound settings, 310 of wheel travel
FRONT: Single hydraulic disc
REAR: Single hydraulic disc
FRONT: 80/100-21 51M
REAR: 100/90-19 57M
Fuel Tank Capacity: 7.5 liter (2.0 gal.)
Color: Yellow
