2006 Suzuki SV1000SZ

You are here: HomeNew 2006 Models — 2006 Suzuki Motorcycle Models

2006 Suzuki SV1000SZ
Back to 2006 Suzuki Motorcycle Index Page


Click photos to enlarge.
They make great desktop images.

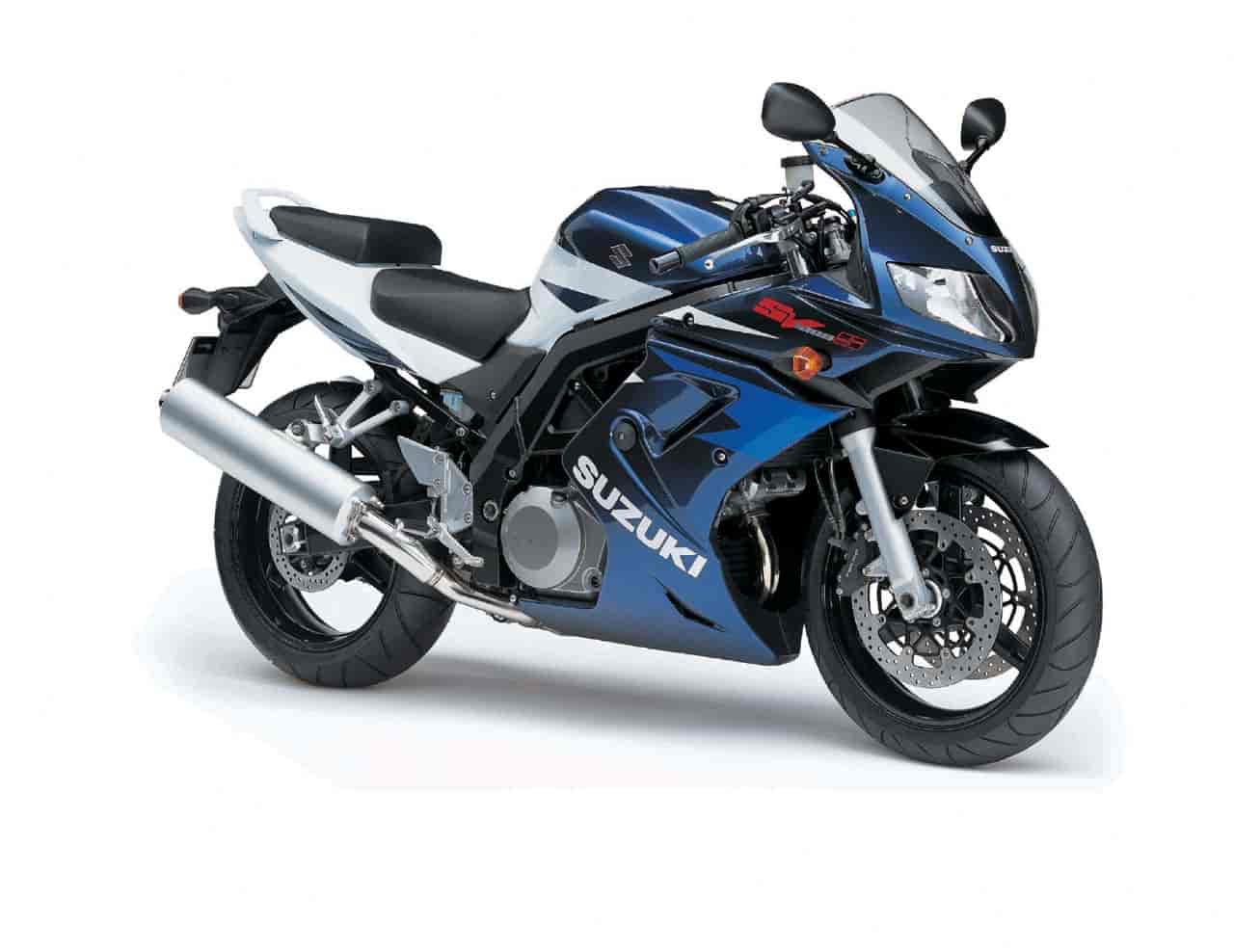

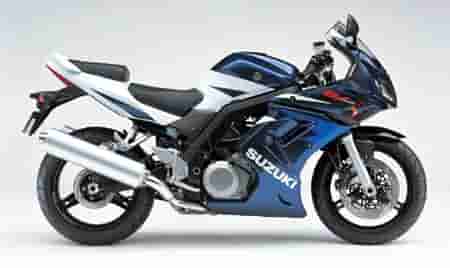

2006 Suzuki SV1000SZ
2006 Suzuki SV1000SZ

2006 Suzuki SV1000SZ
2006 Suzuki SV1000SZ


– 2006 Suzuki SV1000SZ

2006 Suzuki SV1000SZ – Europe Model

In the 20th anniversary year of the GSX-R series Suzuki release a special edition of the SV1000S.

The SV1000SZ shares the same iconic colour as the GSX-R range and comes as standard with full fairing and a stylish looking all black frame, swingarm and wheels.

Improved performance and quicker throttle response for an all round better performing machine.



Overall Length: 2,085 mm
Overall Width: 745 mm
Overall Height: 1,170 mm
Wheelbase: 1,430 mm
Ground Clearance: 150 mm
Seat Height: 800 mm
Dry Mass: 187 kg
Fuel Capacity: 17 litres

Engine Type: 90-degree 4-stroke V-twin, DOHC, liquid cooled, electronic fuel injected, 4 valves per cylinder
Bore x Stroke: 98.0 x 66.0 mm
Max Power: 125.1 PS
Max Torque: 102 Nm @ 7,500rpm
Piston Displacement: 996cc
Compression Ratio: 11.6:1
Carburettor: Fuel injection 52 mm
Lubrication: Wet sump

Ignition Type: Digital electronic
Starter System: Electric

Clutch: Wet multi plate
Transmission: 6-speed
Drive System: Chain

Front Suspension: Conventional 46 mm telescopic. Fully adjustable
Rear Suspension: Link type, coil spring, oil damped, fully adjustable
Rake/Trail: 24.5 degrees / 99 mm
Front Brake: 4-piston calipers, 310 mm dual discs
Rear Brake: Singel-piston caliper, 220 mm disc
Front Tyre: 120/70R15
Rear Tyre: 180/55ZR17
