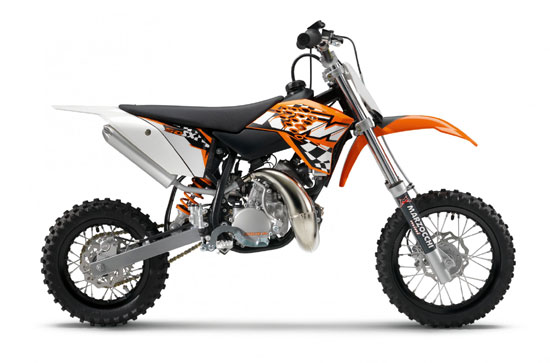

2011 KTM 50 SX
2011 KTM 50 SX

– 2011 KTM 50 SX

2011 KTM 50 SX

KTM for racers aged between about 4 and 10 years and up to a height of 130cm. This is no “toy” with dodgily built cheap components; this is a proper motorcycle that sets standards in its class for safety, child ergonomics and riding fun. Equipped with high-quality components throughout, such as generously dimensioned suspension elements, high-quality disc brakes, a sturdy frame made from chrome-molybdenum stainless steel, alloy rims and aluminium handlebars with safety padding. The engine is a completely new development specifically for the 50SX and excels with linear power development and innovative solutions, such as a centrifugally controlled automatic clutch that can be adjusted individually to the riding ability of the budding racer: nice and gentle for beginners, then later powerful and direct with higher revs. Another sensible option for beginners lacking in experience: the restrictor kit from the PowerParts range of accessories.

The 50 SX with its highly modern 2-stroke is the ultimate mini race bike. Derived from fullsize race bikes it is adopted exactly for the needs of our small racers. Start it, open the throttle – that’s it! Easier than riding a bicycle thanks to the centrifugal clutch!

NEW
– New decals
– New color for the rear fender, front fork protector and front number plate.





2011 KTM 50 SX – USA Specifications
MSRP: $TBA USD

Engine type Single cylinder, 2-stroke
Displacement 49 cc
Bore x stroke 39.5 x 40 mm (1.55 x 1.57″)
Starter Kickstarter
Transmission Single gear automatic
Carburetor Dell’Orto PHBG 19 BS
Engine lubrication Mixture oil lubrication 1:60
Transmission oil Motorex ATF Super
Primary drive 61:33
Final drive 11:40
Cooling Liquid cooled
Clutch Centrifugal clutch (adjustable)
Ignition Seletra 2p D36


Frame Double grinded central double-cradle-type frame
Subframe Steel
Handlebar Pro Taper, Aluminium Ø 22 mm (0.87″)
Front suspension Marzocchi Ø 32 mm (1.26″)
Rear suspension WP mono shock
Suspension travel front/rear 185/185 mm (7.28″/7.28″)
Front brake Disc brake Ø 160 mm (6.3″)
Rear brake Disc brake Ø 140 mm (5.51″)
Rims, front/rear 1.5 x 12″; 1.6 x 10″ Alu
Tires, front/rear 60/100 x 12″; 2.75 x 10″
Chain 1/2 x 3/16″
Main silencer Aluminium
Steering head angle 66°
Wheel base 1032 mm (40.63″)
Ground clearance (unloaded) 252 mm (9.92″)
Seat height 684 mm (26.93″)
Tank capacity approx. 2.3 liters (0.61 gal)
Weight (no fuel) approx. 39.8 kg (87.74 lbs)





2011 KTM 50 SX – Canada Specifications
MSRP: $TBA CDN

Engine

Engine type Single cylinder, 2-stroke
Displacement 49 cc
Bore x stroke 39.5 x 40 mm (1.55 x 1.57″)
Starter Kickstarter
Transmission Single gear automatic
Carburetor Dell’Orto PHBG 19 BS
Engine lubrication Mixture oil lubrication 1:60
Transmission oil Motorex ATF Super
Primary drive 61:33
Final drive 11:40
Cooling Liquid cooled
Clutch Centrifugal clutch (adjustable)
Ignition Seletra 2p D36



Chassis

Frame Double grinded central double-cradle-type frame
Subframe Steel
Handlebar Pro Taper, Aluminium Ø 22 mm (0.87″)
Front suspension Marzocchi Ø 32 mm (1.26″)
Rear suspension WP mono shock
Suspension travel front/rear 185/185 mm (7.28″/7.28″)
Front brake Disc brake Ø 160 mm (6.3″)
Rear brake Disc brake Ø 140 mm (5.51″)
Rims, front/rear 1.5 x 12″; 1.6 x 10″ Alu
Tires, front/rear 60/100 x 12″; 2.75 x 10″
Chain 1/2 x 3/16″
Main silencer Aluminium
Steering head angle 66°
Wheel base 1032 mm (40.63″)
Ground clearance (unloaded) 252 mm (9.92″)
Seat height 684 mm (26.93″)
Tank capacity approx. 2.3 liters (0.61 gal)
Weight (no fuel) approx. 39.8 kg (87.74 lbs)





2011 KTM 50 SX – International Specifications

Engine

Engine type Single cylinder, 2-stroke
Displacement 49 cc
Bore x stroke 39.5 x 40 mm (1.55 x 1.57″)
Starter Kickstarter
Transmission Single gear automatic
Carburetor Dell’Orto PHBG 19 BS
Engine lubrication Mixture oil lubrication 1:60
Transmission oil Motorex ATF Super
Primary drive 61:33
Final drive 11:40
Cooling Liquid cooled
Clutch Centrifugal clutch (adjustable)
Ignition Seletra 2p D36



Chassis

Frame Double grinded central double-cradle-type frame
Subframe Steel
Handlebar Pro Taper, Aluminium Ø 22 mm (0.87″)
Front suspension Marzocchi Ø 32 mm (1.26″)
Rear suspension WP mono shock
Suspension travel front/rear 185/185 mm (7.28″/7.28″)
Front brake Disc brake Ø 160 mm (6.3″)
Rear brake Disc brake Ø 140 mm (5.51″)
Rims, front/rear 1.5 x 12″; 1.6 x 10″ Alu
Tires, front/rear 60/100 x 12″; 2.75 x 10″
Chain 1/2 x 3/16″
Main silencer Aluminium
Steering head angle 66°
Wheel base 1032 mm (40.63″)
Ground clearance (unloaded) 252 mm (9.92″)
Seat height 684 mm (26.93″)
Tank capacity approx. 2.3 liters (0.61 gal)
Weight (no fuel) approx. 39.8 kg (87.74 lbs)





KTM PRESS RELEASE

PERFECTLY POSITIONED: THE KTM OFFROAD MODEL YEAR 2011

KTM’s Mattighofen factory in Austria has invested a huge amount of effort in developing the latest Offroad motorcycles for the 2010 season with the clear aim of improving the advantage on loose ground even more. Star of the KTM model range is the revolutionary MX1 innovation, the 350 SX-F.

The current motorsport season is well underway and the KTM factory riders have already claimed a slew of podiums on the latest “Made in Austria“ Offroaders. Now the sports brand from Austria presents the line-up of brand new motorcycles for the Model Year 2011.

With three high quality and competitive Minicycle variants for the youngest offroad enthusiasts, a total of six uncompromising Motocross motorcycles especially designed for winning races as well as eight versions of Sport Enduros, the Austrian manufacturer presents the perfect line-up for the coming season. In doing so, KTM once again underlines its leading role in the world of Offroad sports activity.

The huge amount of depth of development in the new Offroad model range extends all the way from the 50 cc two-stroke (50 SX) right up to the powerful displacement of the Enduro 530 EXC-R. In between there is a whole range of tailor-made sports machines for every type of offroad riding and for every rider profile, all absolutely true to the KTM “Ready to Race” philosophy. KTM has just the right machine, regardless of whether it’s for the ambitious hobby rider or the ruling world champion.

As well as the huge development effort that the KTM technicians have applied to the entire model range, these new motorcycles still include some very special innovations. This especially applies to the 350 SX-F, which was first exhibited last autumn. This, the first ever 350 cc bike deployed in the MX1 World Championship, has already been mastered by factory riders Antonio “Tony” Cairoli and his Red Bull KTM teammate Rui Goncalves. Cairoli not only won the premiere race for the 350 machine; after his GP victories, he is also leading the championship standings.

In addition to the unique engine concept, the MX lineup for the 2011 also includes a newly developed frame and chassis components.

The Enduro models, which have been similarly decorated with world championship titles all also profit from the massive amount of experience gathered by not less than 176 World Championship titles. This can be seen both in the feather light two-stroke versions as well as the highly modern and performance powerful four-stroke models. With significant improvements in a while range of areas as well as the extensive series equipment, these machines are prepared in the best possible way for the new racing season.

The new Motocross, Enduro and Minicycle models will be delivered to KTM dealers from June of this year.
.
