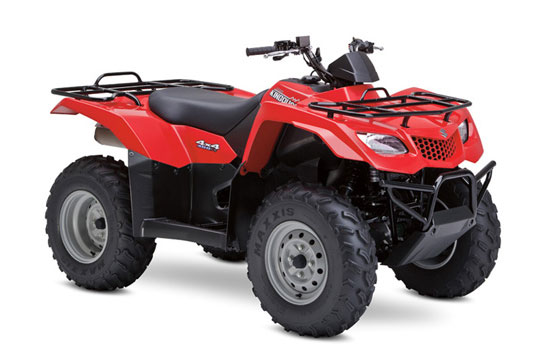

2009 Suzuki KingQuad 400 FS

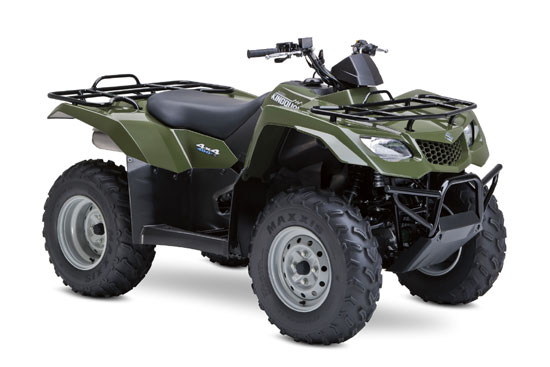

2009 Suzuki KingQuad 400 FS
– 2009 Suzuki KingQuad 400 FS
2009 Suzuki KingQuad 400 FS
The KingQuad400 4×4 Semi-Automatic specializes in versatility. With its five-speed transmission and automatic clutch, it combines sporty performance and convenient operation. And since it’s a KingQuad, you know you’re in for an incredible combination of gutsy performance and lightweight agility.
Key Features
Angular and aggressive bodywork featuring high clearance fenders, the distinctive KingQuad headlights and grill, a T-shaped seat, and highlighted by a large diameter steel tube bumper
Large 4.2-gallon fuel tank for long riding range and improved rider comfort
Large 190mm diameter front disc brakes combined with front brake calipers featuring 34mm-diameter pistons for improved braking performance
25-inch Maxxis tires featuring an aggressive dual stage tread pattern for consistent traction and a quiet ride are mounted on durable steel wheels
Gate-type shift lever is mounted on the left side providing simple and precise shifting in various riding conditions
Semi-Automatic version of the KingQuad400 – combines comfort and practical features with a sporty feel and an aggressive look – the best features and value in the mid-size class
Engine Features
Dependable 376cc single-cylinder, 4-valve, 4-stroke engine is tuned for high-torque output and quick acceleration, and uses Suzuki’s well-proven SACS air-oil cooling system. Gear-driven balancer shaft reduces vibration
Keihin™ CVK32 carburetor provides smooth throttle response and high fuel efficiency – throttle pulley system designed for light throttle lever operation
Five-speed transmission with automatic clutch, high/low range and reverse – subtransmission and reverse controlled by a single automotive-style, fuel tank-mounted drive selection lever
Choose 2WD or 4WD operation with convenient handlebar-mounted control lever
Torque-sensing limited-slip front differential provides maximum traction and light steering in tight turns
Electric and recoil starting with “in gear” starting capability – engine will start in any transmission setting by pulling the hand brake lever and pressing the starter button
Chassis Features
Styled for a big, strong appearance with high radius fenders, a rugged-style grill and large front bumper designed for easy winch installation
Compact instrument display including speedometer, odometer, tripmeter, and indicator lights for neutral, reverse and oil temperature
12V/120W electrical outlet mounted in left front fender – standard automotive-style outlet fits a wide range of electrical accessories
Twin 35/35W fender-mounted multi-reflector headlights, plus large 5/21W combination taillight and brake light as standard equipment
Durable steel frame made of large diameter, thin-wall tubing for maximum strength and minimal weight
Lightweight polyethylene skid plate and bumper guard provide maximum protection with minimal resistance over rocks and other obstacles
Independent double A-arm front suspension with class-leading 6.7 in. of wheel travel for a comfortable ride on all types of terrain
Swingarm-style rear suspension with oil-damped shock absorbers provide 6.7 in. of wheel travel and 9.3 in. of ground clearance
High-capacity racks and towing capacity, plus 4.0 liter storage box now located and protected under the seat
Special
Minimum Age: 16 years old
2009 Suzuki KingQuad 400 FS – USA Specifications
American MSRP $5,249+ USD
Model Number KLTF400FK9
Type Utility Sport
Warranty 12 month limited warranty.
Suggested Retail $5249
SEP $576
Engine 4-stroke, air-cooled with SACS, OHC
Bore & Stroke 82.0 mm (3.228 in) x 71.2 mm (2.803 in)
Compression Ratio 9.0 : 1
Fuel System KEIHIN CVK32, single
Lubrication Wet sump
Ignition Electronic ignition (CDI)
Starter Electric starter
Transmission 5-speed forward constant mesh
Final Drive Shaft drive
Overall Length 2060 mm (81.1 in)
Overall Width 1145 mm (45.1 in)
Overall Height 1220 mm (48.0 in)
Seat Height 840 mm (33.1 in)
Ground Clearance 250 mm (9.8 in)
Wheelbase 1270 mm (50.0 in)
Curb Weight 279 kg (615 lbs)
Suspension Front Independent, double wishbone, coil spring, oil damped
Suspension Rear Swingarm type, coil spring, oil damped
Brakes Front Disc brake, twin
Brakes Rear Drum brake
Tires Front AT25 × 8-12, tubeless
Tires Rear AT25 × 8-12, tubeless
Fuel Tank Capacity 16.0 L (4.2/3.5 US/Imp gal) – Including Reserve
Color Red, Green
2009 Suzuki KingQuad 400 FS – Canada Specifications
Canadian MSRP $TBA CDN
TBA
