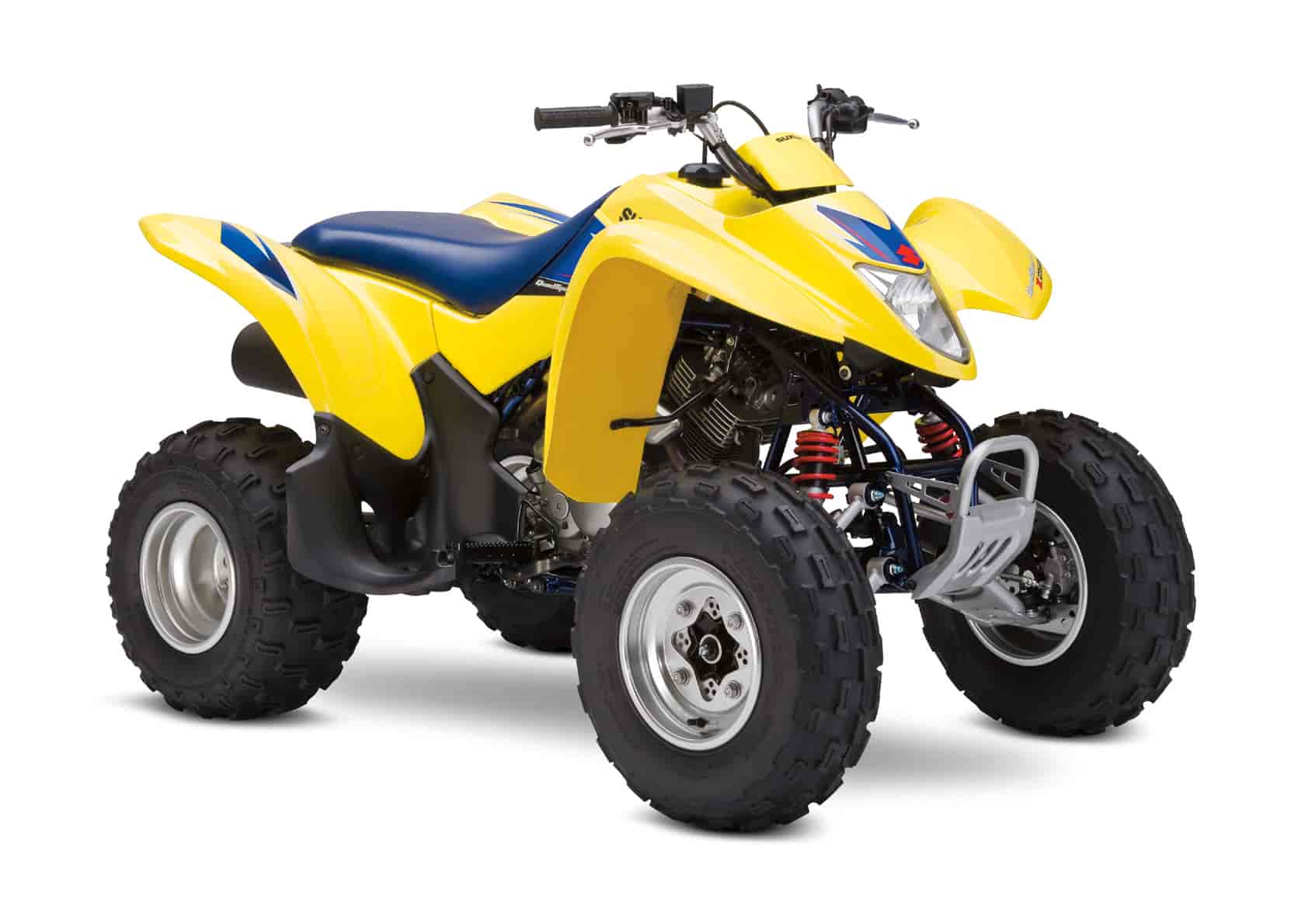

2009 Suzuki QuadSport Z250
– 2009 Suzuki QuadSport Z250
2009 Suzuki QuadSport Z250
Here is an awesome recreational sport four-wheeler with all the looks of a high-performance machine. Check out the QuadSport Z250’s race-inspired graphics, radical fenders and aggressive stance. It shouts sport performance – and has the power to make good on the promise.
As a sporting middleweight, the QuadSport Z250 combines agile responsiveness with a smooth and torquey powerband. Count in a wide range of features designed for comfort and convenience, and you’ve got the perfect choice for sport riders of all skill levels.
So tap into the excitement – with the QuadSport!
Key Features
Entry-level sport model loaded with style, performance and rider-friendly features
Engine Features
Single cylinder, 246cc, SOHC, air-cooled, 4-stroke engine designed to produce smooth, usable power over a wide rpm range
Cylinder head features screw/locknut valve adjustment system for simplified maintenance, plus a link-plate-type cam chain and automatic tensioner to reduce mechanical noise
Power is enhanced by a Mikuni BS 29mm carburetor mated to a large capacity airbox and a specially tuned exhaust system for a throaty sound
Convenient electric start system with Start-In-Gear feature
Electric start system and CDI ignition are powered by compact maintenance-free battery with 150 watt charging system
Five-speed transmission with automatic clutch includes an easy-to-use reverse gear system: place the transmission in neutral and turn the fender-mounted knob and depress the shift lever
Low-maintenance shaft final-drive system is simple and reliable
Chassis Features
Aggressive-styled bodywork includes high-clearance fenders, performance-inspired graphics and vertically mounted halogen headlight
Wide, T-shaped seat combines comfort with a functional shape that allows the rider to easily shift his/her weight
Single 40/40W, body-mounted halogen headlight provides and exciting look and bright illumination – large 5/21W taillight/brake light combination is standard
Rugged steel-tube frame with standard steel skid plate and tube-type bumper
Independent double A-arm front suspension with preload-adjustable oil-damped shock absorbers – provides 6.3 inches of wheel travel for a comfortable ride over all types of terrain
Swingarm-type rear suspension features single shock absorber with five preload adjustments and 6.7 inches of rear wheel travel, plus 9.1 inches of ground clearance
Large diameter front disc brakes with single-piston pin-slide calipers and single cable-operated rear drum brake
Lightweight aluminum wheels and rugged tires (F: 22×7-10, R: 20×10-9), for high style and traction under a wide variety of terrain conditions
Serrated-type footpegs for high grip and comfort with additional built-in mudguard protection
Convenient, 5-liter water-resistant storage box under the seat
Large 2.8 gallon fuel tank with vacuum-operated fuel petcock
Special
Minimum Age: 16 years old
2009 Suzuki QuadSport Z250 – USA Specifications
American MSRP $3,999+ USD
Model Number LTZ250K9
Type Sport
Warranty 12-month limited warranty
Suggested Retail $3999
SEP $446
Engine 4-stroke, air-cooled, OHC
Bore & Stroke 66.0 mm (2.598 in) x 72.0 mm (2.835 in)
Compression Ratio 9.2 : 1
Fuel System MIKUNI BSR29, single
Lubrication Wet sump
Ignition Electronic ignition (CDI)
Starter Electric
Transmission 5-forward and 1-reverse
Final Drive Shaft drive
Overall Length 1720 mm (67.7 in)
Overall Width 1070 mm (42.1 in)
Overall Height 1090 mm (42.9 in)
Seat Height 810 mm (31.9 in)
Ground Clearance 230 mm (9.1 in)
Wheelbase 1135 mm (44.7 in)
Curb Weight 177 kg (390 lbs)
Suspension Front Independent, double wishbone, coil spring, oil damped
Suspension Rear Swingarm type, coil spring, oil damped
Brakes Front Disc brake, twin
Brakes Rear Drum brake
Tires Front 0
Tires Rear 0
Fuel Tank Capacity 10.6 L (2.8/2.3 US/Imp gal) – Including Reserve
Color Yellow, White
2009 Suzuki QuadSport Z250 – Canada Specifications
Canadian MSRP $5,999+ CDN
Engine 246cc, four-stroke, OHC, single cylinder, air-cooled
Carburator Mikuni BSR29
Ignition CDI
Starter Electric
Transmission 5-speed with reverse
Final Drive Shaft
Front Suspension Independent, double A-arm, 5-way adjustable preload, 16 cm (6.3 inches) of travel
Rear Suspension Swingarm, coil spring, oil-damped, piggy-back style, spring preload 5-way adjustable, 17 cm (6.7 inches) of travel
Front Brakes Dual hydraulic discs
Rear Brakes Single mechanical drum
Front Tire AT 22×7-10
Rear Tire AT 20×10-9
Overall Length 172 cm (67.7 inches)
Overall Width 106.9 cm (42.1 inches)
Wheelbase 113.5 cm (44.7 inches)
Seat Height 81 cm (31.9 inches)
Ground Clearance 23 cm (9.1 inches)
Dry Weight 165 kg (365 lbs)
Fuel Tank Capacity 10.6 litres (2.3 imp. gal)
Colour White, Yellow
Warranty 6 months
