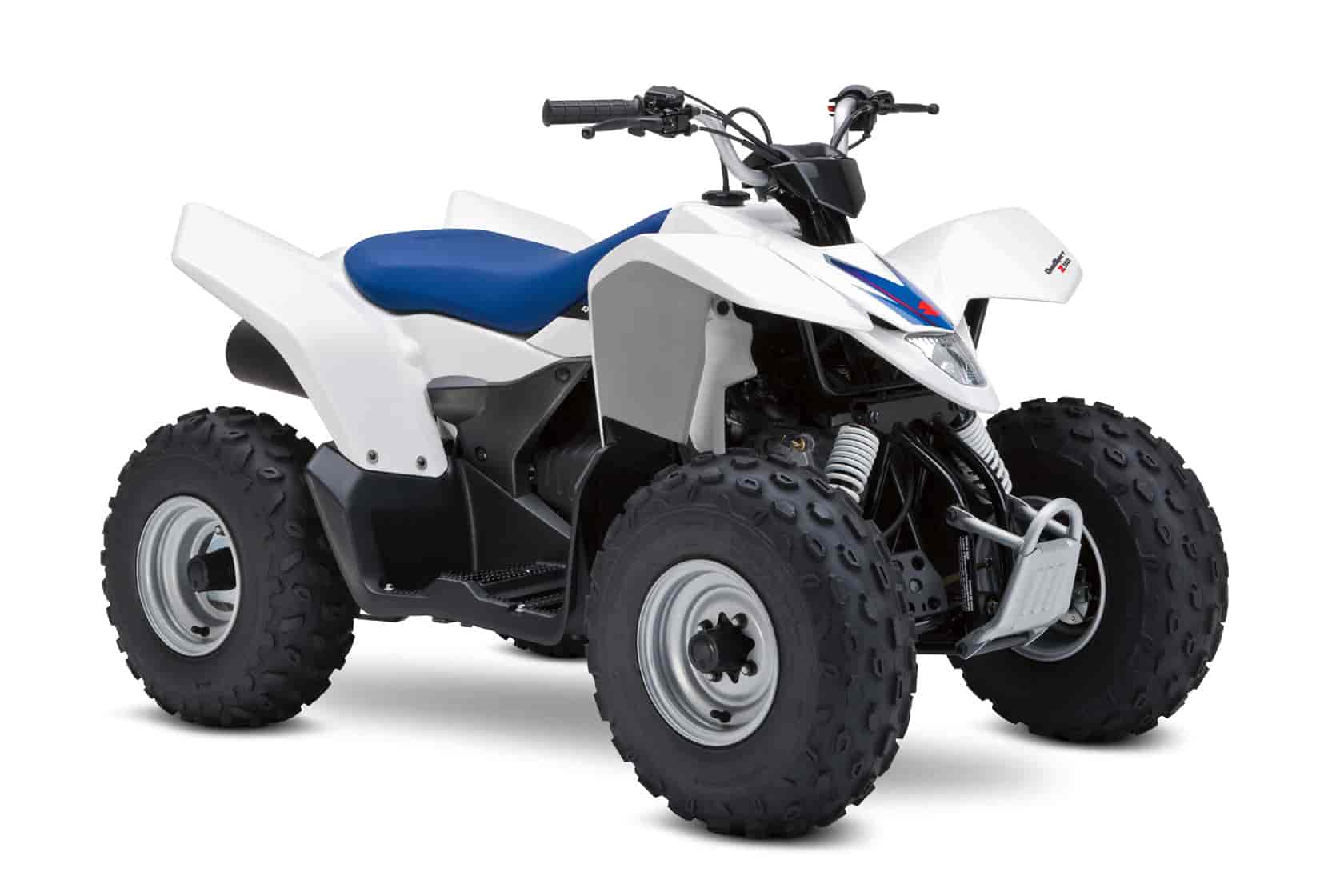

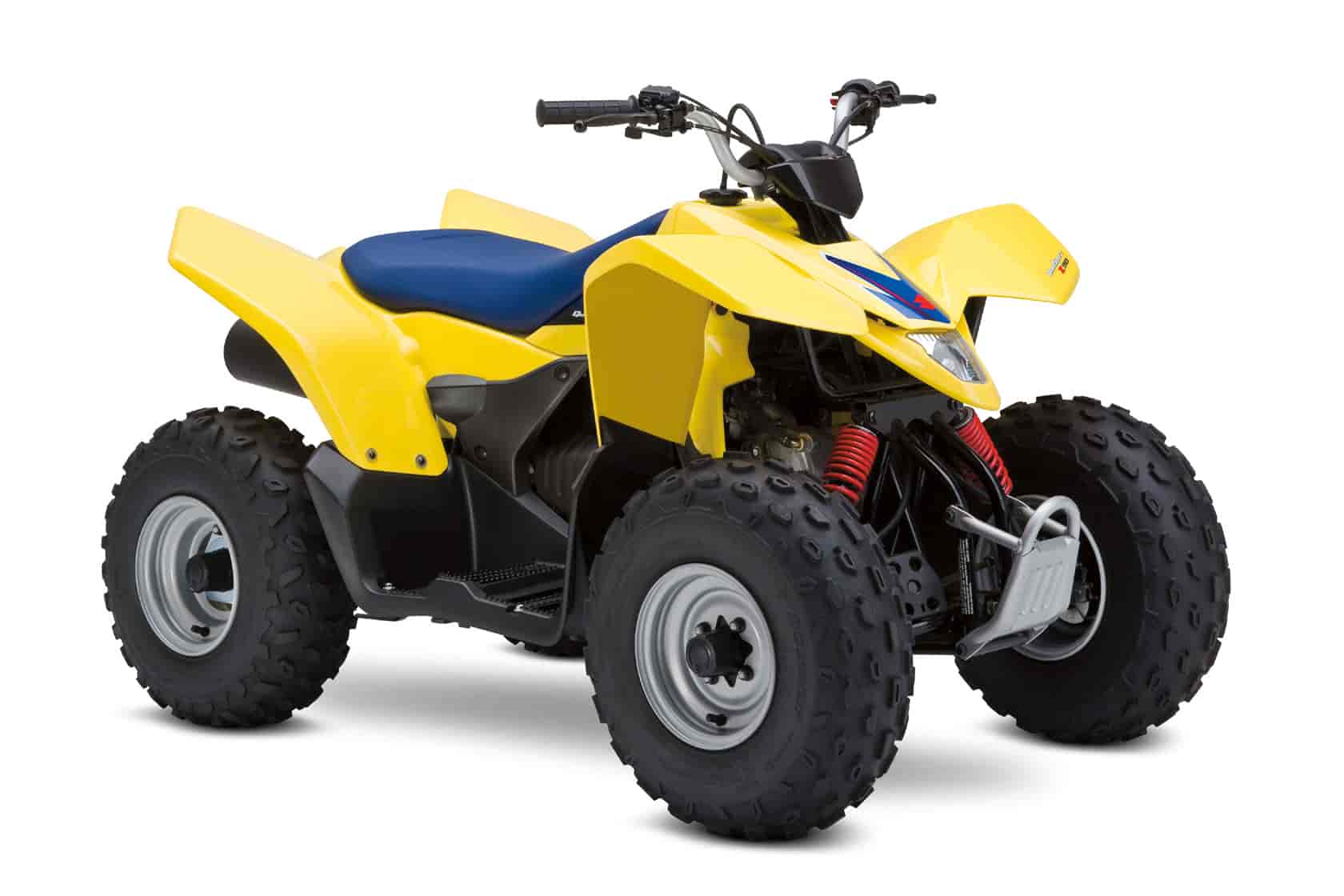

2009 Suzuki QuadSport Z90
2009 Suzuki QuadSport Z90

2009 Suzuki QuadSport Z90
2009 Suzuki QuadSport Z90

– 2009 Suzuki QuadSport Z90

2009 Suzuki QuadSport Z90

Experience the exhilarating 2009 QuadSport® Z90. The QuadSport Z90 is designed for adult-supervised riders age 12 and older, and includes many safety features, such as simple screw-type throttle limiter which allows parents to control maximum speed that make learning to ride a safe and fun experience. Value, aggressive R450-like styling, ease of use and reliability, these are traits of the QuadSport Z90.



Key Features
QuadSport Z90 is designed for adult-supervised riders age 12 and older – includes many features that make learning to ride a safe and fun experience

Engine Features
Electric starting system plus standard backup recoil starter

Compact 90cc 4-stroke, single-cylinder, air-cooled engine designed for durability and low maintenance

Suzuki Composite Electrochemical Material (SCEM) cylinder, derived from Suzuki’s high-performance, high-mileage GSX-R sportbikes, provides durability, weight reduction and superior heat transfer

Clean-burning four-stroke engine meets the strict emissions regulations imposed by the California Air Resources Board (CARB)

Smooth-running CVT automatic transmission provides easy operation and allows the rider to focus on riding instead of shifting

Simple screw-type throttle limiter allows adult supervisors to limit the maximum power deliver to suit a rider’s ability.

Large 1.6-gallon fuel tank for long operating range combined with vacuum fuel petcock for low maintenance

Chassis Features
Modern styling with full floorboards and a big Quad look, plus bright yellow or white paint and graphics

Child-size (Y-12) controls for easy operation

Strong, high-rigidity steel frame is sturdy and compact. This machine has a low seat height of just 25.6 inches.

Single A-arm front suspension with twin independent shock absorbers, and single-shock rear suspension provide long wheel travel for a comfortable ride

Large diameter semi-sealed front drum brakes and single fully sealed rear drum brake provide strong braking performance

One-piece 8-inch wheels with tubeless tires provide a smooth comfortable ride

Drive shaft has double oil seals for long-life performance.

Suzuki T-shaped seat similar to the LT-R450 for smooth weight transition and a comfortable ride, and is easy to remove for simple maintenance

Headlamp style front piece is detachable to achieve the race machine look of the LT-R450

Minimum Age: 12 Years Old




2009 Suzuki QuadSport Z90 – USA Specifications
American MSRP $2,499+ USD

Model Number LTZ90K9
Type Sport
Warranty 12 month limited warranty.

Suggested Retail $2499
SEP $334
Engine 4-stroke, air-cooled
Bore & Stroke 45.5 mm (1.791 in) x 55.2 mm (2.173 in)
Compression Ratio 9.5 : 1
Fuel System MIKUNI VM16, single
Lubrication Wet sump
Ignition Electronic ignition (CDI)
Starter Electric and recoil
Transmission Automatic
Final Drive RK530, 60 links
Overall Length 1505 mm (59.3 in)
Overall Width 875 mm (34.4 in)
Overall Height 915 mm (36.0 in)
Seat Height 650 mm (25.6 in)
Ground Clearance 150 mm (5.9 in)
Wheelbase 1005 mm (39.6 in)
Curb Weight 127 kg (280 lbs)
Suspension Front Independent, swing axle, coil spring, oil damped
Suspension Rear Swingarm type, coil spring, oil damped
Brakes Front Drum brake
Brakes Rear Drum brake
Tires Front 0
Tires Rear 0
Fuel Tank Capacity 6.0 L (1.6/1.3 US/Imp gal)
Color Yellow, White



2009 Suzuki QuadSport Z90 – Canada Specifications
Canadian MSRP $3,299+ CDN

Engine 89.8cc, 4-stroke, single cylinder, air-cooled
Bore Stroke 45.5 x 55.2mm
Ignition CDI
Compression Ratio 9.2:1
Transmission V-belt, automatic
Final Drive Chain
Front Suspension Independent, single A-arm, oil damped shocks
Rear Suspension Swingarm, coil spring, oil-damped shock
Front Brakes Dual mechanical drum
Rear Brakes Mechanical drum
Front Tire AT 19 x 7-8
Rear Tire AT 19 x 7-8
Overall Length 1515mm (59.6 in.)
Overall Width 855mm (33.7 in.)
Overall Height 865mm (34.1 in.)
Wheelbase 1030mm (40.6 in.)
Seat Height 645mm (25.4 in.)
Ground Clearance 150mm (5.9 in.)
Dry Weight 115 kg (254 lbs.)
Fuel Tank Capacity 6.0 liter (1.32 imp gal.)
Colour Yellow, White
