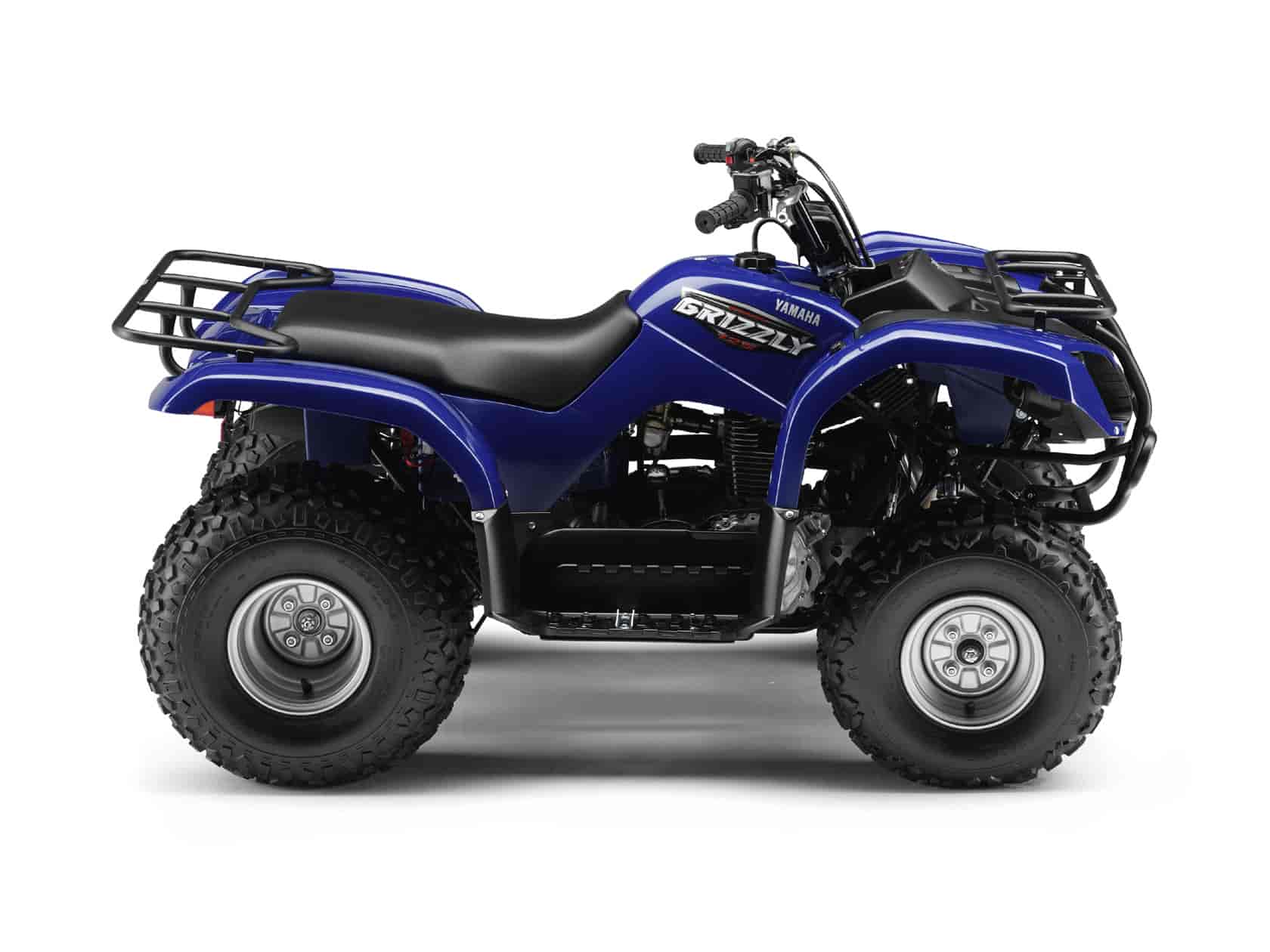

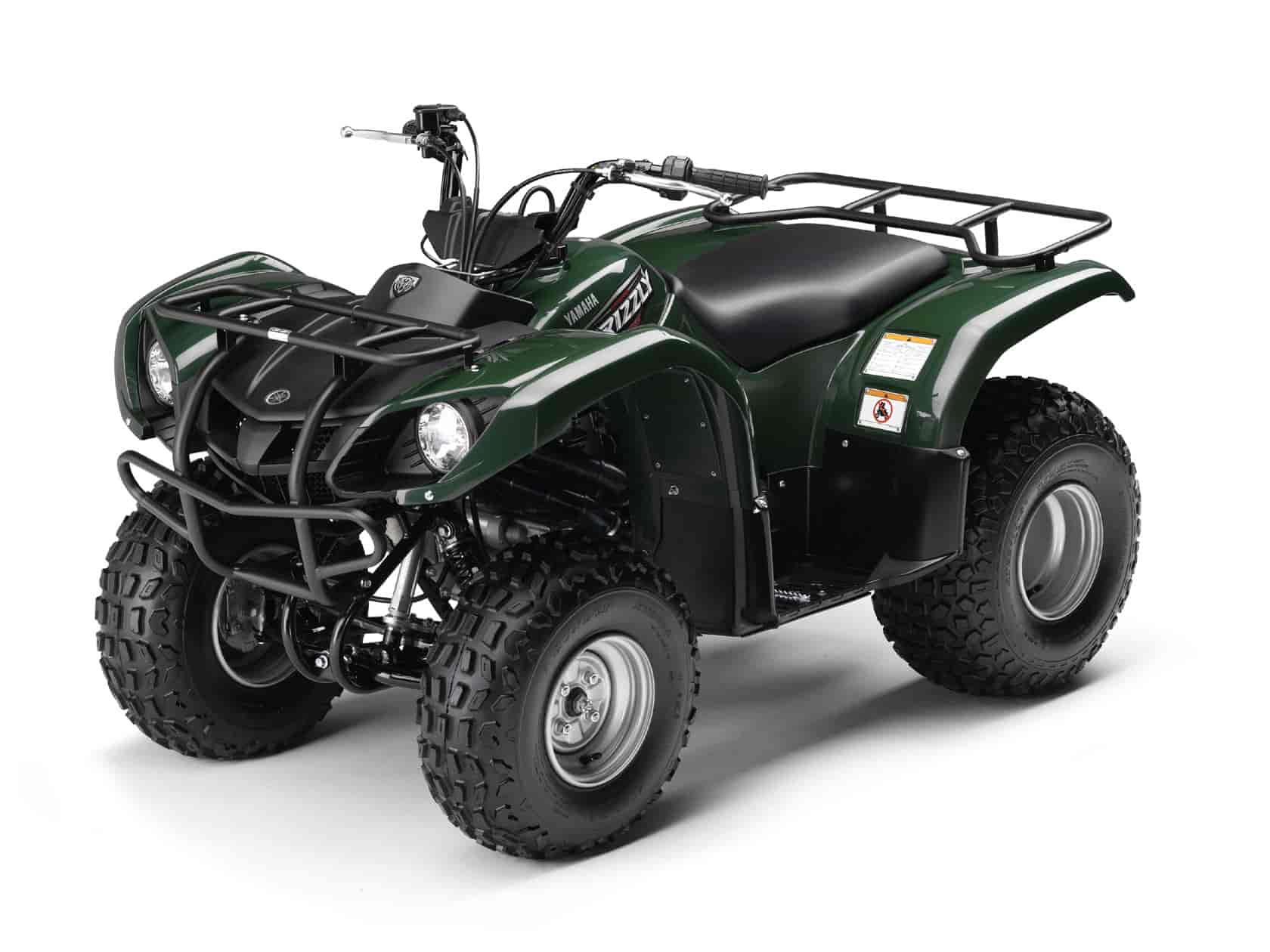

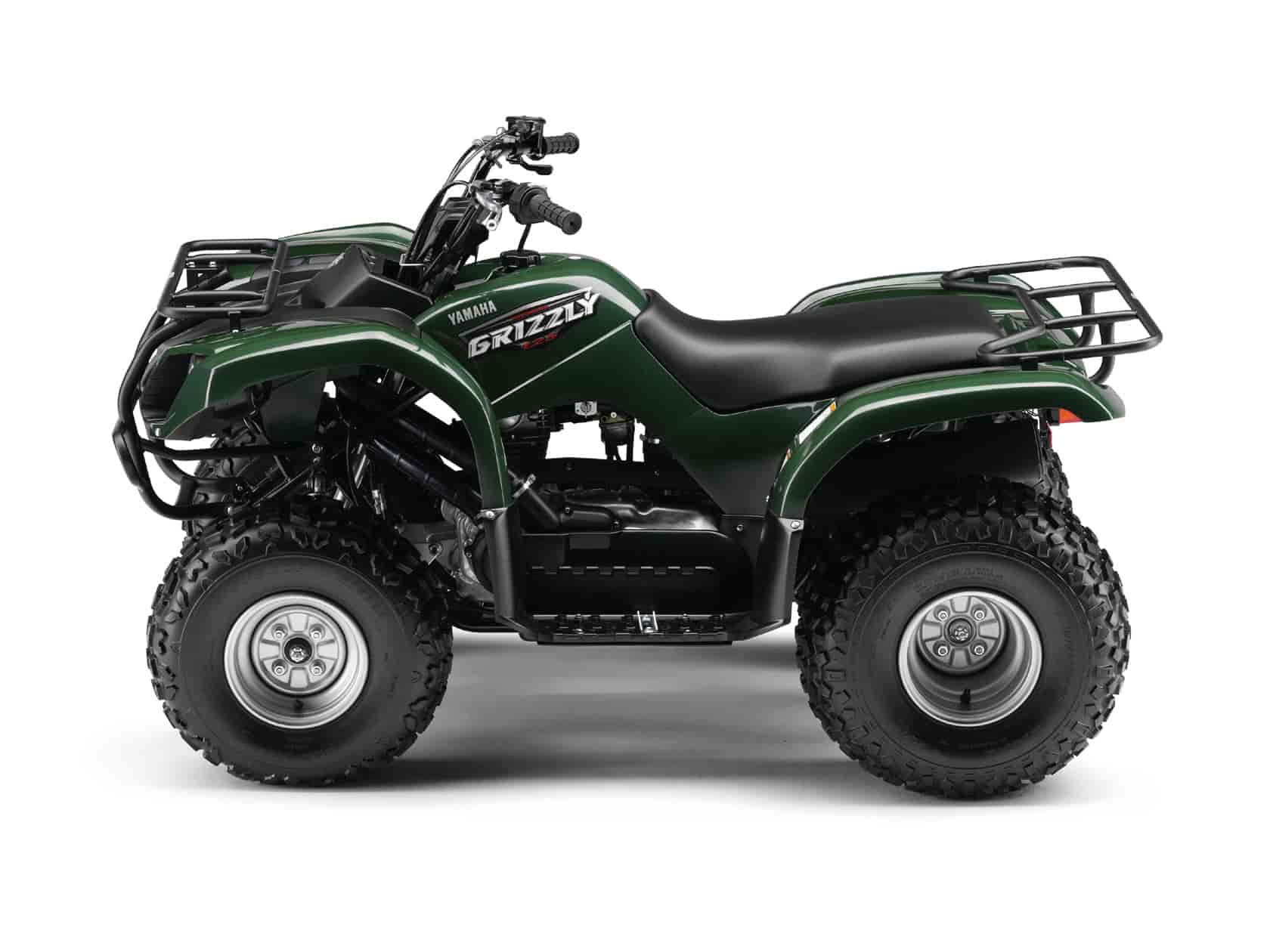

2009 Yamaha Grizzly 125
2009 Yamaha Grizzly 125

2009 Yamaha Grizzly 125
2009 Yamaha Grizzly 125

2009 Yamaha Grizzly 125
2009 Yamaha Grizzly 125

2009 Yamaha Grizzly 125
2009 Yamaha Grizzly 125

2009 Yamaha Grizzly 125
2009 Yamaha Grizzly 125

2009 Yamaha Grizzly 125
2009 Yamaha Grizzly 125

– 2009 Yamaha Grizzly 125

2009 Yamaha Grizzly 125

The Grizzly 125 is the most user friendly of all ATV’s. For features and styling, it takes the lead from the Grizzly 660, but offers the convenience of automatic transmission and the fuel efficiency of 2WD.

The family resemblance in the Grizzly clan is more than skin deep.

You’ll find the same superior engineering standards and materials in Grizzly 125 and Grizzly 80, too: Nearly bulletproof, torquey four-stroke engines, chain drive, maximum durability and go-anywhere terrainability are what they’re all about. Grizzly 125, for riders 16 and older, makes the connection with a fully automatic transmission with reverse, front and rear racks and sealed-drum brakes.




Light, small easy to ride

Fully automatic



Features and Benefits:

Key Features:
Grizzly styling provides industry-leading good looks and durability, and a big Grizzly-style seat provides maximum rider comfort.
Fully automatic V-belt transmission with forward, neutral and reverse is simple to operate and eliminates the need for shifting.
Tough, powerful 124cc SOHC, four-stroke single cranks out plenty of smooth, broadband propulsion.
Rugged midsize steel frame ?ts a wide range of riders.
Rugged steel cargo racks can pack a total of 33 pounds of combined cargo—11 pounds up front and 22 on the rear.
Simple-to-use, handlebar-mounted parking brake and choke lever for added convenience.
Wide front and rear fenders with integrated full ?oorboards provide mud and splash protection for a dry, comfortable ride.

Powerful 124cc air-cooled four-stroke single delivers reliable, smooth engine performance for all riders.
Simple-to-operate selector knob lets you effortlessly select forward, neutral or reverse.
Adjustable throttle limiter lets adult supervisor add power gradually as beginning riders over 16 years gain experience.
Reliable, pushbutton electric start in any gear adds extra convenience and dependability.
Rugged muffler with USFS-approved spark arrestor for quiet operation.
Automatic cam chain tensioner reduces engine maintenance and extends engine life.

Independent A-arm front suspension with 2.8 inches of travel delivers a smooth, plush ride and responsive steering.
Rugged swingarm packing a single rear shock with 3.2 inches of travel smoothes out the bumps for a comfortable ride.
Class-leading low, 27-inch seat height enhances rider comfort and allows for great handling.
5.7-inch ground clearance allows smooth riding in a wide variety of terrain.
Fully sealed front and rear drum brakes provide strong, reliable stopping power.
Rugged 20×7-8 front and 22×10-8 rear knobby tires offer excellent traction and boost ground clearance.

Additional Features:
Dual 30-watt multi-reflector Krypton headlights, set back in the front cowl, add the perfect menacing appearance.
Taillight has an incorporated brake light.
Large, 2-gallon fuel tank provides excellent range.


2009 Yamaha Grizzly 125 – USA Specifications
MSRP* $3,199 (Hunter Green) Available from June 2008
$3,199 (Black Metallic) Available from June 2008

Type 124cc, 4-stroke, air-cooled single; SOHC

Bore x Stroke 49.0mm x 66.0mm

Compression Ratio 9.0:1

Carburetion Mikuni® 18mm

Ignition DC – CDI

Starting System Electric

Transmission V-belt automatic/F, N, R

Drive Train 2WD; O-ring chain

Suspension/Front Independent wishbone, 2.8-in travel

Suspension/Rear Swingarm, 3.2-in travel

Brakes/Front Dual sealed drum

Brakes/Rear Sealed drum

Tires/Front AT20x7-8

Tires/Rear AT22x10-8

L x W x H 66.9 x 39.0 x 38.6 in

Seat Height 27.0 in

Wheelbase 42.5 in

Turning Radius 114 in

Ground Clearance 5.7 in

Fuel Capacity 2.0 gal

Dry Weight 306 lb

Rack Capacity 11 lb Fr./ 22 lb Rr.

Instrumentation N/A

Lighting Dual 30W Krypton multi-reflector headlights; 21W/5W brakelight

Warranty 6 Month (Limited Factory Warranty)


2009 Yamaha Grizzly 125 – Canada Specifications
Canadian MSRP $4,599

Engine 4-stroke, SOHC, air-cooled, single
Displacement 124cc
Bore and Stroke 49 x 66mm
Compression Ratio 9:1
Carburetion Mikuni VM18SH
Ignition CDI
Starting electric
Lubrication wet sump
Oil Capacity 1.5 litres
Transmission V-belt, automatic with reverse
Final Drive O” ring chain

Suspension (Front) swing axle
Suspension (Rear) Monocross
Brakes (Front) dual drums
Brakes (Rear) single drum
Tires (Front) 20 x 7-8
Tires (Rear) 22 x 10-8

Length 1,699mm (66.9”)
Width 990mm (39.0”)
Height 980mm (38.6”)
Wheelbase 1,080mm (42.5”)
Ground Clearance 145mm (5.7”)
Seat Height 685mm (27.0”)
Dry Weight 139kg (306 lb)
Fuel Capacity 7.6 litres
Colour(s) Dark Blue
Dark Green
