– 2010 Honda FourTrax Rancher TRX420TM

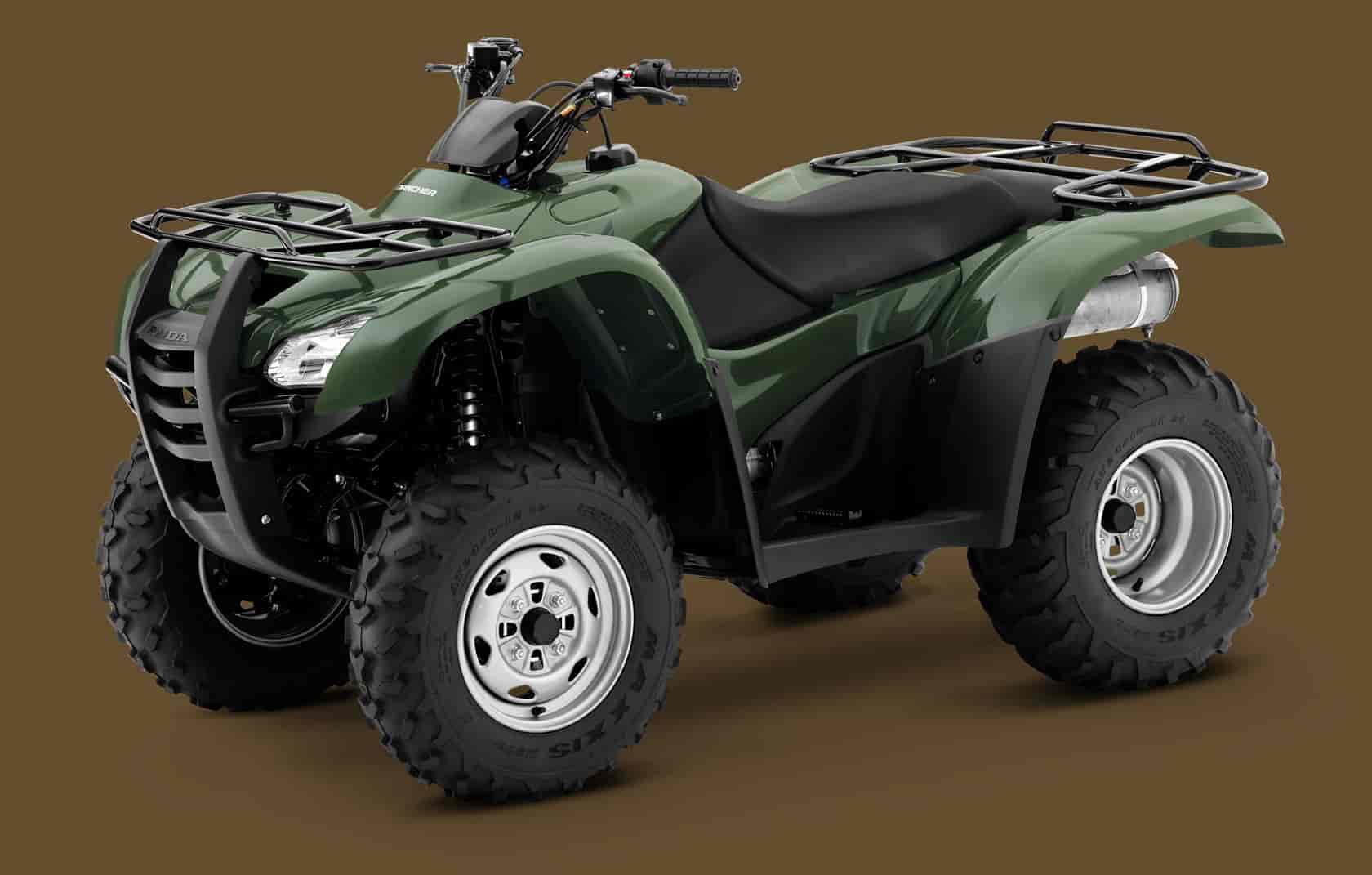

2010 Honda FourTrax Rancher TRX420TM
There’s a simple reason why Honda’s Ranchers have long been America’s best-selling ATVs. First, of course, is because they’re Hondas, with all the legendary dependability and quality our name guarantees. Then there’s the lineup itself: with six unique Rancher models, there’s one to fit every need and conquer any task. With selectable 2WD/4WD (TraxLok), Programmed Fuel Injection, two-wheel-drive, four-wheel-drive, electric power steering, and two transmission choices (semi-automatic and electric shift), there’s no shortage of cutting-edge capability and features.
From our tough, no-frills 2WD Rancher through the Rancher 4×4 ES with Power Steering, you can be certain there’s a machine for you, and even more important, for whatever chore, hunt, expedition or trail you aim to tackle. The FourTrax Rancher family. So good they’re almost unfair.
Important Safety Information
Recommended for riders 16 years of age and older. Honda recommends that all ATV riders take a training course and read their owner’s manual thoroughly.
Easy Does It.
Providing lighter steering effort at low speeds (and reduced assist as speed increases) in both 2WD and 4WD, Honda’s revolutionary Electric Power Steering (EPS), makes the toughest tasks and trails seem like less work.
When you start with an engine like this, building a great ATV is easy.
Like all Honda utility ATVs, our FourTrax Ranchers feature a strong, single-cylinder engine with a crankshaft that sits front-to-back in the chassis. That eliminates any unnecessary right-angle powertrain directional changes, and that means more power gets to the ground where it does the most good. Just another example of how Honda’s smart engineering gives you more than the competition.
Absolute power. Absolute workhorse.
ATV owners work hard, so they need an engine that works hard, too. Like this 420cc fuel-injected taskmaster boasting power, torque and bulletproof Honda reliability.
2010 Honda FourTrax Rancher TRX420TM – USA Specifications
US MSRP* $4,999 USD
Type 420cc liquid-cooled fuel-injected OHV wet-sump longitudinally mounted single-cylinder four-stroke
Bore And Stroke 86.5mm x 71.5mm
Induction Keihin 34mm throttle-body fuel-injection system
Ignition Full-transistorized type with electronic advance
Starter Electric with optional auxiliary recoil
Transmission Five-speed with Reverse
Driveline Direct rear driveshaft
Chassis / Suspension / Brakes
Chassis / Suspension / Brakes
Front Suspension Independent double-wishbone; 6.3 inches travel
Rear Suspension Swingarm with single shock; 6.3 inches travel
Front Brakes Dual hydraulic disc
Rear Brake Sealed mechanical drum
Front Tire 24 x 8-12
Rear Tire 24 x 10-11
Length 80.9 inches
Width 46.1 inches
Height 45.1 inches
Wheelbase 49.2 inches
Seat Height 32.4 inches
Ground Clearance 6.5 inches
Turning Radius 8.9 feet
Curb Weight 547 lbs (Includes all standard equipment, required fluids and a full tank of fuel-ready to ride)
Fuel Capacity 3.5 gallons (including 1.0 gallon reserve)
Note No operator under age 16. Honda recommends that all ATV riders take a training course and read their owner’s manual thoroughly.
Emissions Meets current California Air Resources Board (CARB) and EPA off-road emissions standards.
Available Colors Red, Olive
Model Id TRX420TM
Factory Warranty Information
Duration One year
Description Transferable limited warranty; extended coverage available with a Honda Protection Plan.
2010 Honda FourTrax Rancher TRX420TM – Canada Specifications
Canadian MSRP* NA CDN
Model not available in Canada
