2011 Yamaha Grizzly 125
2011 Yamaha Grizzly 125

2011 Yamaha Grizzly 125
2011 Yamaha Grizzly 125

2011 Yamaha Grizzly 125
2011 Yamaha Grizzly 125

2011 Yamaha Grizzly 125
2011 Yamaha Grizzly 125

– 2011 Yamaha Grizzly 125

2011 Yamaha Grizzly 125

Big Grizzly styling, tough engineering and automatic transmission make for an ideal entry-level machine.

The 2011 Yamaha Grizzly 125 is the most user-friendly of all ATVs. For features and styling, it takes its lead from the Yamaha Grizzly 660, but offers the convenience of automatic transmission and the fuel efficiency of 2WD.

The family resemblance in the Grizzly clan is more than skin deep.

You’ll find the same superior engineering standards and materials in Grizzly 125 : Nearly bulletproof, torquey four-stroke engines, chain drive, maximum durability and go-anywhere terrainability are what they’re all about. Grizzly 125, for riders 16 and older, makes the connection with a fully automatic transmission with reverse, front and rear racks and sealed-drum brakes.


Light, small easy to ride

Fully automatic


Key Features:

” Grizzly styling provides industry-leading good looks and durability, and a big Grizzly-style seat provides maximum rider comfort.
” Fully automatic V-belt transmission with forward, neutral and reverse is simple to operate and eliminates the need for shifting.
” Tough, powerful 124cc SOHC, four-stroke single cranks out plenty of smooth broadband propulsion.
” Rugged midsize steel frame fits a wide range of riders.
” Rugged steel cargo racks can pack a total of 33 pounds of combined cargo-11 pounds up front and 22 on the rear.
” Simple-to-use handlebar-mounted parking brake and choke lever for added convenience.
” Wide front and rear fenders with integrated full floorboards provide mud and splash protection for a dry, comfortable ride.

” Powerful 124cc air-cooled four-stroke single delivers reliable, smooth engine performance for all riders.
” Simple-to-operate selector knob lets you effortlessly select forward, neutral or reverse.
” Adjustable throttle limiter lets adult supervisor add power gradually as beginning riders 16 years and older gain experience.
” Reliable, pushbutton electric start in any gear adds extra convenience and dependability.
” Rugged muffler with USFS-approved spark arrestor provides quiet operation.
” Automatic cam chain tensioner reduces engine maintenance and extends engine life.

” Independent A-arm front suspension with 2.8 inches of travel delivers a smooth, plush ride and responsive steering.
” Rugged swingarm packing a single rear shock with 3.2 inches of travel smoothes out the bumps for a comfortable ride.
” Class-leading low 27-inch seat height enhances rider comfort and allows for great handling.
” 5.7-inch ground clearance allows smooth riding in a wide variety of terrain.
” Fully sealed front and rear drum brakes provide strong, reliable stopping power.
” Rugged 20×7-8 front and 22×10-8 rear knobby tires offer excellent traction and boost ground clearance.

Additional Features:
” Dual 30-watt multireflector Krypton headlights, set back in the front cowl, add the perfect menacing appearance.
” Taillight has an incorporated brake light.
” Large 2-gallon fuel tank provides excellent range.




2011 Yamaha Grizzly 125 – USA Specifications

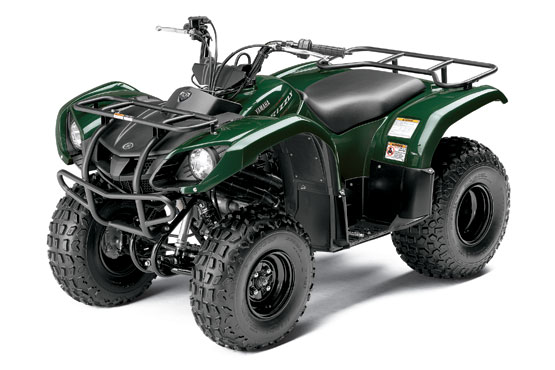

MSRP* $3,599 (Hunter Green) Available from June 2010

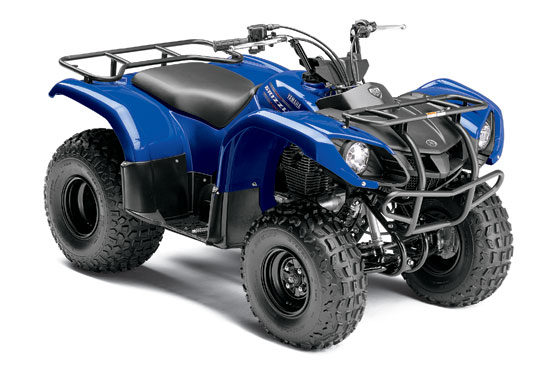

$3,599 (Steel Blue) Available from June 2010

Type 124cc, 4-stroke, air-cooled single; SOHC

Bore x Stroke 49.0mm x 66.0mm

Compression Ratio 9.0:1

Fuel Delivery Mikuni® 18mm

Ignition DC – CDI

Starting System Electric

Transmission V-belt automatic/F, N, R

Drive Train 2WD; O-ring chain

Suspension/Front Independent wishbone, 2.8-in travel

Suspension/Rear Swingarm, 3.2-in travel

Brakes/Front Dual sealed drum

Brakes/Rear Sealed drum

Tires/Front AT20x7-8

Tires/Rear AT22x10-8

L x W x H 66.9 x 39.0 x 38.6 in

Seat Height 27.0 in

Wheelbase 42.5 in

Turning Radius 114 in

Ground Clearance 5.7 in

Fuel Capacity 2.0 gal

Wet Weight 335 lb

Rack Capacity 11 lb Fr./ 22 lb Rr.

Instrumentation N/A

Lighting Dual 30W Krypton multireflector headlights; 21W/5W brakelight

Warranty 6 Month (Limited Factory Warranty)



2011 Yamaha Grizzly 125 – Canadian Specifications
Canadian MSRP* $4,699 CDN

Engine 4-stroke, SOHC, air-cooled, single
Displacement 124cc
Bore and Stroke 49 x 66mm
Compression Ratio 9:1
Carburetion Mikuni VM18SH
Ignition CDI
Starting electric
Lubrication wet sump
Oil Capacity 1.5 litres
Transmission V-belt, automatic with reverse
Final Drive O” ring chain
Suspension (Front) Independent wishbone, 2.8-in travel
Suspension (Rear) Swing-arm, 3.2-in travel
Brakes (Front) Dual sealed drum
Brakes (Rear) Sealed drum
Tires (Front) 20 x 7-8
Tires (Rear) 22 x 10-8
Length 1,700mm (66.9”)
Width 990mm (39.0”)
Height 980mm (38.6”)
Wheelbase 1,080mm (42.5”)
Ground Clearance 145mm (5.7”)
Seat Height 685mm (27.0”)
Dry Weight 139kg (306 lb)
Wet Weight 152 kg (335 lb) – ready to ride full of fuel and oil
Fuel Capacity 7.6 litres
Colour(s) Dark Green


Specifications, appearance, and price of product are subject to change without notice.

* MSRP does not include freight, PDI (Pre Delivery Inspection), pre-rigging (boats), or taxes. Dealer may sell for less.
