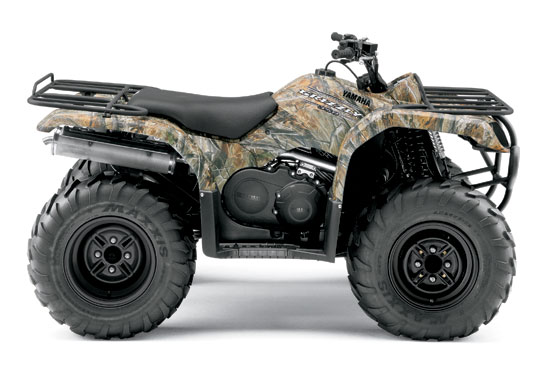

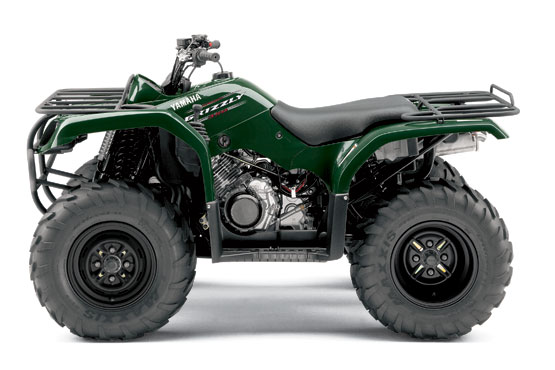

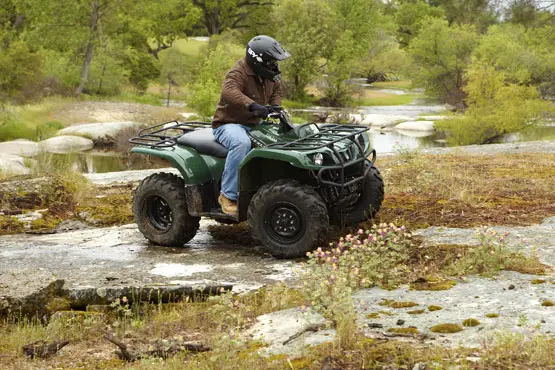

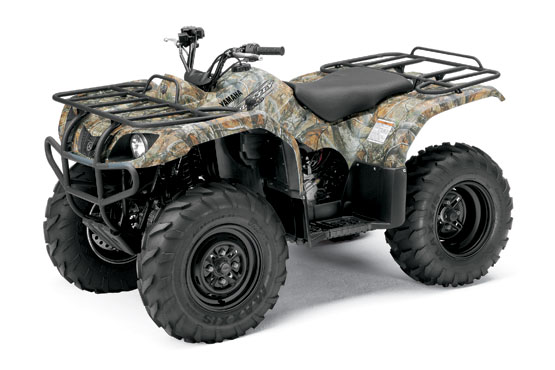

2011 Yamaha Grizzly 350 2WD
2011 Yamaha Grizzly 350 2WD

2011 Yamaha Grizzly 350 2WD
2011 Yamaha Grizzly 350 2WD

2011 Yamaha Grizzly 350 2WD
2011 Yamaha Grizzly 350 2WD

2011 Yamaha Grizzly 350 2WD
2011 Yamaha Grizzly 350 2WD

– 2011 Yamaha Grizzly 350 2WD

2011 Yamaha Grizzly 350 2WD

An ATV with a proven engine and rugged chassis, providing great performance in an affordable package.

Grizzly on the spot. All the time every time.

This mid-size Grizzly ATV is ready and willing when you need it to be thanks to its exclusive fully automatic Ultramatic transmission, front disc brakes, scratch resistant racks and more.

Key Features:

” The power-packed, full-featured Grizzly 350 Automatic 2WD carries a lot of advanced Yamaha ATV technology in an affordable package.
” Industry-exclusive, fully automatic Ultramatic® transmission is the most advanced drive system in ATV-ing. An automatic centrifugal clutch maintains constant belt tension for reduced belt wear and sprag clutch for downhill engine braking.
” Light weight and advanced design produce an ATV with light steering and a class-leading turning radius, for excellent maneuverability and nimble handling.
” Left-side-mounted F/N/R shift lever keeps throttle hand free.
” Aggressive 25×8-12 front and 25×10-12 rear tires further boost ground clearance while providing plenty of traction and responsive handling.
” Steel cargo racks with special, extra-durable wrinkle paint finish feature a combined cargo capacity of 264 pounds (88 front, 176 rear).
” Standard, center-mounted trailer hitch can hook up more than 1100 pounds of payload.

” Tough-as-nails 348cc air/oil-cooled SOHC, four-stroke single produces stump-pulling bottom-end power and loves to rev.
” Semi-oval slide 33mm Mikuni® carburetor and high-output DC-CDI ignition deliver excellent throttle response and engine performance at all rpm.
” Sealed drive case keeps out water and debris to minimize belt slippage.
” Pushbutton electric starter is backed up by auxiliary recoil starter.
” Stainless steel muffler and header design provides superior power characteristics, exhaust sound and unmatched durability.
” Automatic cam chain tensioner reduces engine maintenance.

” Lightweight CAD-designed chassis features outstanding durability with superior rigidity for class-leading agility and handling.
” 9.7 inches of ground clearance and high-impact plastic skidplate offers great handling and undercarriage protection.
Light steering and a class-leading turning radius combine for increased comfort and incredible maneuverability.
” Reliable, low-maintenance shaft drive.
” 32.6-inch seat height creates enhanced handling.
” Independent double-wishbone front suspension has five-way preload-adjustable shocks and 6.3 inches of travel.
” Sturdy steel swingarm is controlled by a single rear shock with five-way adjustable preload and 7.1 inches of travel.
” Heavy-duty front carry bar.

Additional Features:
” Specially designed drive system air intake vent prevents overheating and keeps water and mud from entering drive case.
” Tool-free, easy-access air filter box for quick maintenance.
” Large front and rear fenders with inner guards offer excellent mud/splash protection.
” Water-resistant, large-capacity underseat storage box provides added convenience.
” Plush, specially designed seat is contoured for incomparable rider comfort.
” Large-capacity, 3.8-gallon fuel tank has an easy-to-reach petcock.
” Rear brake/taillight.
” Maintenance-free 12-amp-hour battery provides reliable all-weather starting power.
” Easy-access underseat marine-spec electrical components ensure maximum protection from the elements.
” Dual, bright, multireflector 30-watt Krypton bulb headlights with high and low beams.
” Easy, handlebar-mounted choke lever.
” Assembled in Newnan, GA, U.S.A.




2011 Yamaha Grizzly 350 2WD – USA Specifications
MSRP* $4,999 (Hunter Green) Available from July 2010
$4,999 (Steel Blue) Available from July 2010

Type 348cc, 4-stroke, air/oil-cooled single; SOHC

Bore x Stroke 83.0mm x 64.5mm

Compression Ratio 9.2:1

Fuel Delivery Mikuni® 33mm BSR

Ignition DC-CDI

Starting System Electric w/auxiliary pull

Transmission Yamaha Ultramatic® V-belt with rear-wheel engine braking/F, N, R

Drive Train 2WD; shaft drive

Suspension/Front Independent double wishbone; 5-way preload adjustment, 6.3-in travel

Suspension/Rear Swingarm; 5-way preload adjustment, 7.1-in travel

Brakes/Front Dual hydraulic discs

Brakes/Rear Fully sealed drum

Tire/Front AT25x8-12

Tire/Rear AT25x10-12

L x W x H 78.1 x 42.7 x 44.1 in

Seat Height 32.6 in

Wheelbase 48.5 in

Turning Radius 118 in

Ground Clearance 9.7 in

Fuel Capacity 3.8 gal

Wet Weight 540 lb

Rack Capacity 88 lb Fr./176 lb Rr.

Towing Capacity 1102 lb

Instrumentation None

Lighting Dual 30W Krypton multireflector headlights & 21/5W brakelight

Warranty 6 Month (Limited Factory Warranty)



2011 Yamaha Grizzly 350 2WD – Canadian Specifications
Canadian MSRP* $NA

Model not available in Canada

Specifications, appearance, and price of product are subject to change without notice.

* MSRP does not include freight, PDI (Pre Delivery Inspection), pre-rigging (boats), or taxes. Dealer may sell for less.
