2011 Yamaha Grizzly 700 FI 4x4
2011 Yamaha Grizzly 700 FI 4×4

2011 Yamaha Grizzly 700 FI 4x4
2011 Yamaha Grizzly 700 FI 4×4

2011 Yamaha Grizzly 700 FI 4x4
2011 Yamaha Grizzly 700 FI 4×4

2011 Yamaha Grizzly 700 FI 4x4
2011 Yamaha Grizzly 700 FI 4×4

– 2011 Yamaha Grizzly 700 FI 4×4

2011 Yamaha Grizzly 700 FI 4×4

Stout 686cc liquid-cooled, 4-stroke powerplant helps this feature-laden ATV navigate the toughest terrain.

With a powerful big bore engine, the 2011 Yamaha Grizzly 700 is overflowing with top of the line features including fuel injection, Yamaha exclusive Ultramatic transmission, On-Command 2WD/4WD with Diff Lock, independent rear suspension, 4-wheel disc brakes and much more.

Key Features:

” This most powerful Grizzly ever: 686cc liquid-cooled, four-stroke engine and light weight has the best power-to-weight ratio of any Yamaha utility model.
” Steel Blue model includes cast aluminum wheels.
” Yamaha Fuel Injection means instantaneous cold starts and optimal performance in nearly any condition, from below sea level to 15,000 feet.
” Industry-exclusive, fully automatic Ultramatic® transmission is the most advanced drive system in ATV-ing. An automatic centrifugal clutch maintains constant belt tension for reduced belt wear and sprag clutch for all-wheel downhill engine braking in 4WD mode.
” Three-position On-Command® In/Out 4WD feature lets you switch between 2WD, limited-slip 4WD and fully locked differential 4WD-all with the simple push of a button.
” Fully independent long-travel four-wheel suspension with WideArc™ A-arms up front and five-way preload-adjustable shocks provides maximum ground clearance for unparalleled comfort over rough terrain.
” Trick digital instrument panel boasts a multifunction LCD display with speedometer, odometer, dual tripmeter, hour meter, 4WD status, transmission position, clock and fuel gauge.
” The Grizzly 700 boasts the lightest weight in its class at 648 pounds wet weight.

” Raptor®-based four-valve combustion chamber design produces a potent combination of low-rev torque, right-now throttle response and high horsepower.
” Compact engine design features a 35-degree cylinder angle for ground clearance and lower seat height for quick steering and maneuverability.
” Gear-driven crankshaft balancer shaft and rubber-damper engine mounts reduce vibration.
” Ceramic-composite cylinder liners provide outstanding durability and heat dissipation; forged piston is light and strong and rides a carburized, chrome-moly connecting rod.
” Two-lobe overhead cam and a pair of needle-roller rocker arms reduce friction by 50 percent for increased fuel efficiency and torque.
” Mikuni® fuel injection with 44mm bore and throttle position sensor means easy cold starts and flawless fuel delivery in nearly any condition.
” Pushbutton electric start with seven-disc torque-limiting damper assembly to protect the starter motor.
” Straight driveshaft layout to the front differential eliminates U-joints for reduced friction, noise, vibration, and maintenance.
” Stainless steel exhaust system features aluminum heat shields and a screen-type spark arrestor for great power with minimum noise output.
” High-capacity aluminum radiator with fan-assist delivers maximum cooling efficiency and is positioned high in the frame for optimal protection.
” Automatic cam chain tensioner reduces engine maintenance and helps extend engine life.
” Five-position shift lever with H, L, N, R and P gates provides positive Ultramatic® transmission operation.
” Override button allows engine to make maximum rpm in full Diff. Lock mode.
” Electronic servo-activated 2WD/4WD/Diff. Lock via the On-Command® system.
” Sealed drive case keeps out water and debris to help increase durability.

” Comfortable chassis provides outstanding handling and maneuverability.
” WideArc™ front suspension A-arms provide outstanding ground clearance.
” Five-way preload-adjustable shocks provide a comfortable ride, whatever the load or trail conditions.
” Four-wheel hydraulic disc brakes serve up consistent, long-lasting braking power under all sorts of nasty conditions.
” 5.3-gallon fuel tank is located under the seat for excellent mass centralization and handling; there’s a 4.8-liter waterproof storage compartment under there, too.
” 11.8 inches of ground clearance and full-length composite skidplate deliver maximum underbelly protection while enhancing terrainability.
” 25×8-12 front and 25×10-12 rear Dunlop® tires provide responsive steering and handling along with excellent comfort.
” Rugged injection-molded front bumper and CV joint guards protect against rock and debris damage.

Additional Features:
” LCD instrument display contains fuel injection, as well as bar-type fuel gauge, speedometer, odometer, trip meter, clock and Diff. Lock indicator.
” Rugged steel cargo racks with special, extra-durable wrinkle paint finish can pack a total of 286 pounds combined (99 front, 187 rear).
” Center-mounted, heavy-duty trailer hitch comes standard and can tow more than 1300 pounds.
” Large, specially designed seat is extra plush and widely contoured for all-day rider comfort.
” Dual 35-watt multireflector halogen bulb headlights with high/ low beams light up the night.



2011 Yamaha Grizzly 700 FI 4×4 – USA Specifications

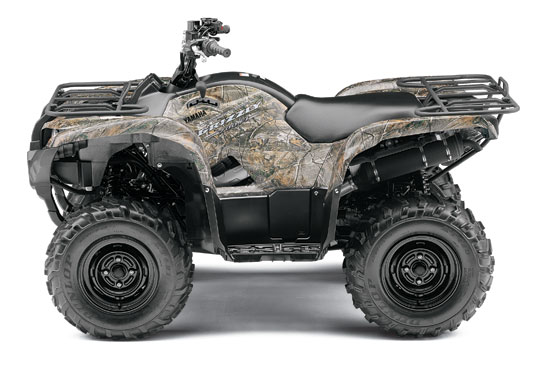

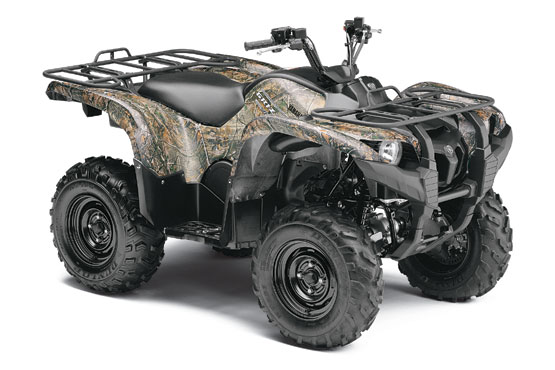

MSRP* $9,349 (Realtree AP Camo) Available from June 2010

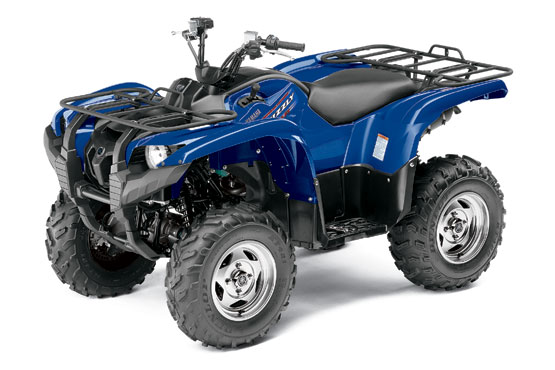

$9,149 (Steel Blue) Available from June 2010

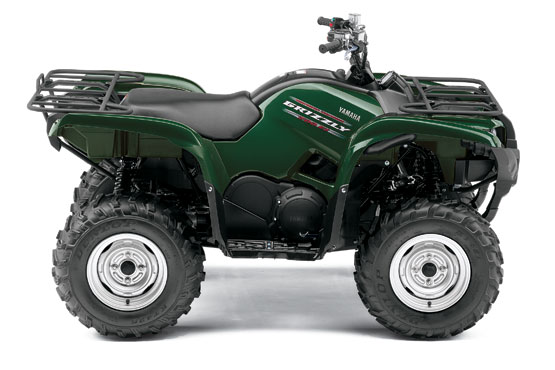

$8,899 (Hunter Green) Available from June 2010

Type 686cc, 4-stroke, liquid-cooled single; SOHC, 4 valves

Bore x Stroke 102.0mm x 84.0mm

Compression Ratio 9.2:1

Fuel Delivery Yamaha Fuel Injection (YFI), 44mm

Ignition 32-Bit ECU

Starting System Electric

Transmission Yamaha Ultramatic® V-belt with all-wheel engine braking/H, L, N, R, P

Drive Train Yamaha On-Command® pushbutton; 3-way locking differential; 2WD, 4WD, locked 4WD; shaft drive

Suspension/Front Independent double wishbone; 5-way preload adjustment, 7.1-in travel

Suspension/Rear Independent double wishbone; 5-way preload adjustment, 9.5-in travel

Brakes/Front Dual hydraulic disc

Brakes/Rear Dual hydraulic disc

Tires/Front AT25 x 8-12

Tires/Rear AT25 x 10-12

L x W x H 81.3 x 46.5 x 48.8 in

Seat Height 35.6 in

Wheelbase 49.2 in

Turning Radius 126 in

Ground Clearance 11.8 in

Fuel Capacity 5.3 gal

Wet Weight 648 lb

Rack Capacity 99 lb Fr./187 lb Rr.

Towing Capacity 1322 lb

Instrumentation Digital LCD multifunction display: speedometer, odometer, dual tripmeter, hour meter, clock, fuel gauge, gear position, and EFI function

Lighting Dual 35W Halogen multireflector headlights & 21W/5W brakelight

Warranty 6 Month (Limited Factory Warranty)




2011 Yamaha Grizzly 700 FI 4×4 – Canadian Specifications
Canadian MSRP* $NA

Model not available in Canada

Specifications, appearance, and price of product are subject to change without notice.

* MSRP does not include freight, PDI (Pre Delivery Inspection), pre-rigging (boats), or taxes. Dealer may sell for less.
