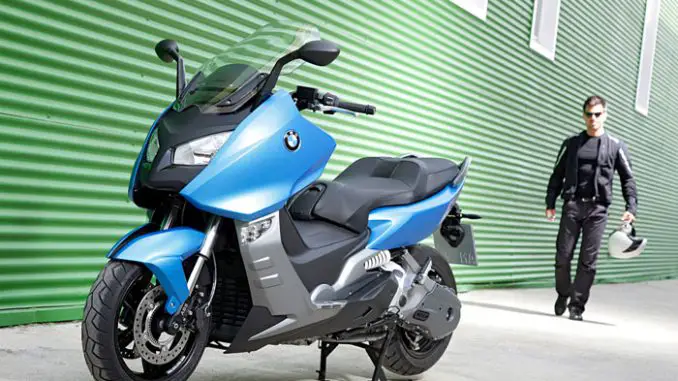

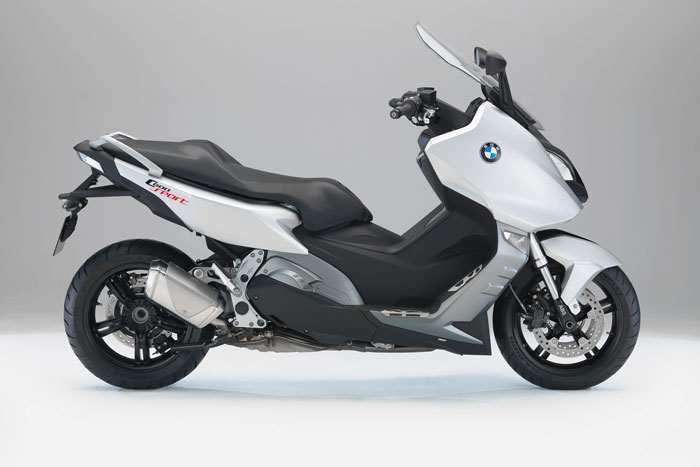

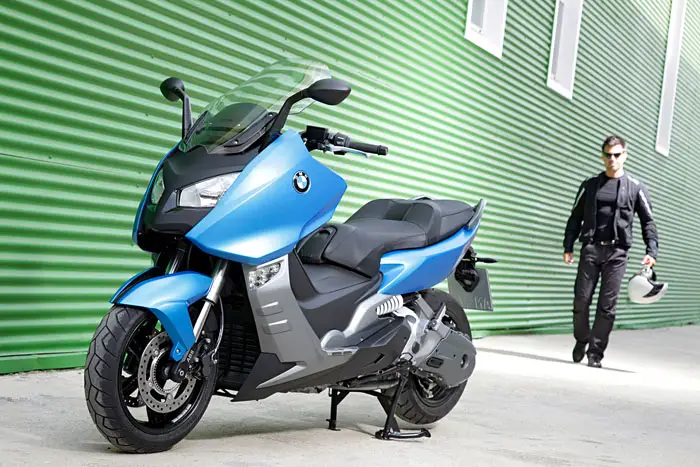

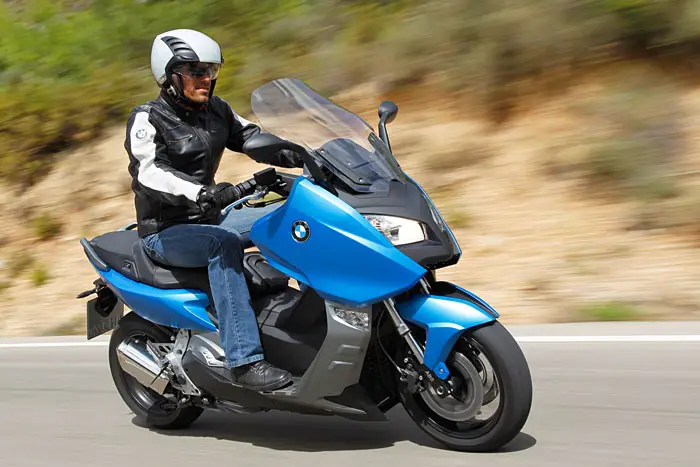

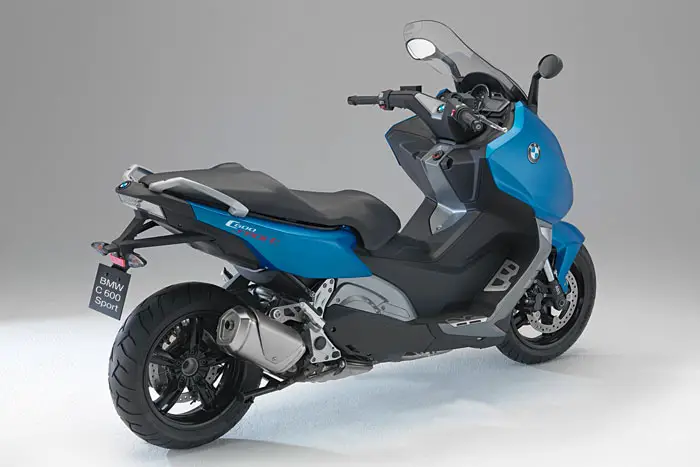

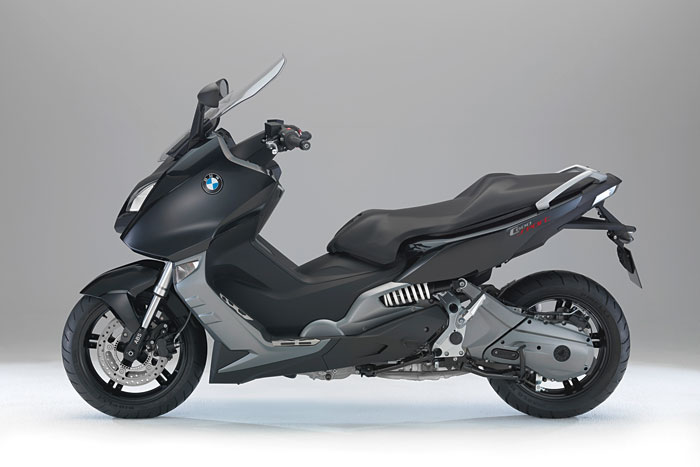

2012 BMW C600 Sport
2012 BMW C600 Sport Review
The city: a world of streets and possibilities. It offers adventures and challenges in equal measure, and is the perfect environment for the first maxi-scooter ever developed by BMW Motorrad – the C600 Sport. This intelligent mobility solution is an out-and-out BMW Motorrad machine; and its excellent handling and sophisticated drive train ensure a level of performance that will captivate riders and any onlookers.
The city is waiting for you and for the first ever BMW Motorrad Maxi-Scooter. The new C 600 Sport is perfect for anyone who is looking for an intelligent mobility solution combined with BMW Motorrad riding experience. The C 600 Sport offers excellent handling and performance. The striking design in characteristic BMW style, is a definite attention grabber. This is certainly the way to handle urban mobility. A world full of possibilities, adventures and challenges.
C 600 Sport offers a large windshield to protect you from the elements and a cavernous storage to haul all your needs.
With this Scooter you will cover you everyday routes with more enjoyment. The combination of excellent handling and performance is something you simply have to experience first hand.
The new C 600 Sport – the talk of the town.The striking design is typical of BMW styling, and rounds off a complete package that offers a whole new world of transportation.
You’ll realise the C 600 Sport is a genuine BMW as soon as you climb aboard. Its level of performance is nothing short of remarkable, and the maxi-scooter provides a hugely enjoyable ride. The large, variable storage component (Flex Case) sets new standards in terms of practicality and functionality, while the adjustable windshield demonstrates that the model is as sports-focused as it is comfortable.
Overall concept and vehicle properties
There have been drastic changes in the requirements for individual mobility concepts, specifically for conurbations. The challenges facing inner city traffic in future will be growing traffic volume, rising energy costs, and greater stringency of CO2 stipulations.
The BMW Group has recognised these challenges and is developing series solutions for the mobility needs of today and tomorrow. As an integral part of the BMW Group, BMW Motorrad is also dealing with the issues of individual single track mobility and the future needs of customers. In this context, BMW Motorrad is expanding its business activities to include urban mobility.
As its first offers on this sector, BMW Motorrad will be presenting two premium vehicles on the maxi scooter segment.
The BMW C 600 Sport and the BMW C 650 GT combine the outstanding riding properties of a motorcycle with the specific agility and conceptual comfort of a scooter for a new kind of dynamic riding experience.
The new maxi scooters will be built at the BMW Motorrad plant in Berlin.
Two dynamic maxi scooters for sports and touring.
The differing characteristics of the concepts behind these two maxi scooters appeal to a wide target group: the C 600 Sport for the riders with sports ambitions, and the C 650 GT for customers attaching greater importance to comfort and touring ability.
Irrespectively of their differing concepts, the C 600 Sport and the C 650 GT present the unique design language of BMW Motorrad, setting new standards on this segment in this category as well. Modern and dynamic, they are the perfect examples of the BMW Motorrad design philosophy.
Powerful 2-cylinder inline engine with CVT and characteristic sound.
The 2-cylinder inline engine of the C 600 Sport and C 650 GT is an all new development by BMW Motorrad with a displacement of 647 cc. In both models, its rated power output is 44 kW (60 hp) at 7500 rpm, and its max torque of 66 Nm is available at 6000 rpm. The power is transferred via a directly integrated CVT, or continuously variable transmission.
The engine owes its low position and therefore low centre of gravity to its cylinder bank, which is inclined to the front through 70°. The characteristic sound and low vibration levels are the result of the 90° crank pin offset, 270° ignition spacing, and two balancer shafts driven by spur gears.
An electronic fuel injection system supplies the four valves under the two overhead camshafts. Oil is supplied from a dry sump with double oil pump, and an efficient cooling concept optimises the thermal equilibrium in the 2-cylinder engine.
The exhaust system is made completely of stainless steel and complies with motorcycle specifications. Fitted with a closed loop catalytic converter and an oxygen sensor, the C 600 Sport and C 650 GT fulfil today the Euro-4 emission limits of tomorrow.
Suspension with playful handling and best riding stability.
One objective in the development of the C 600 Sport and C 650 GT was to combine directional stability at high speeds on the motorway with playful handling in city traffic and clear feedback to the rider – just like a motorcycle.
Accordingly, the design of the C 600 Sport and C 650 GT suspension features a torsionally rigid hybrid interconnection of a tubular steel bridge frame and a diecast aluminium unit at the swingarm bearing. In addition, the 2-cylinder inline engine functions as a stressed element, presenting a particularly rigid construction for stable and high precision response.
The greatest possible riding stability is also provided by the bearing for the cast light-alloy single swingarm with coaxial centre of rotation.
Also the suspension elements fulfil more fastidious needs for sporting character and comfort. At the front, an upside down fork presents a generous fork diameter of 40 mm. The tail presents a reclining spring strut on the left side. The spring travels are each 115 mm, as they also occur quite commonly on the motorcycle sector. Also the tyre widths and cross sections of the C 600 Sport and the C 650 GT are aligned to motorcycle dimensions.
Powerful braking system with BMW Motorrad ABS fitted as standard.
The new C 600 Sport and C 650 GT are fitted with a generously sized braking system consisting of a two-rotor disc brake at the front and a single disc brake at the rear, each 270 mm in diameter. At the same time, the BMW Motorrad ABS fitted as standard ensures maximum possible safety.
Multifunctional instrument cluster and optional LED daytime running light.
The instrument cluster of the C 600 Sport and C 650 GT presents a large, easily readable LCD display with integrated engine speed readout and an analogue speedometer. The instrument cluster presents considerably more functions than usual in this vehicle class.
For the first time, BMW Motorrad is also offering an LED daytime running light as an optional equipment feature on its C 600 Sport and C 650 GT.
C 600 Sport with the world premiere FlexCase.
The FlexCase for the C 600 Sport is an innovative stowage space concept. A flap in the tail base under the seat enlarges the stowage space on the stationary vehicle. This can be used e.g. to hold two helmets.
2012 BMW C600 Sport Model Features and Benefits
The highlights at a glance
•Efficiency optimised 2-cylinder inline engine with high torque and CVT.
• The most powerful and efficient engine of its class.
•Compact design with dry sump lubrication.
•Power output 44 kW (60 hp) at 7500 rpm, max torque 66 Nm at 6000 rpm.
•Punchy sound and low vibration levels thanks to the 90° crank pin offset, 270° ignition spacing, and two balancer shafts.
•Low fuel consumption and low emissions thanks to electronic fuel injection and closed loop catalytic converter.
•Suspension concept similar to a motorcycle; particularly rigid and hence more stable suspension system of tubular steel bridge frame and diecast aluminium unit at the swingarm bearing.
•Generously dimensioned upside down fork with 40 mm diameter.
•Swingarm with wide bearing base and reclining spring strut on the side.
•Swingarm’s centre of rotation coaxial with the output shaft, so constant chain tension and reduced reaction torques.
•Low maintenance, encapsulated secondary drive via roller chain in oil bath.
•High level of active safety thanks to generously sized braking system and dual channel ABS fitted as standard.
• Hold brake engaged automatically via the side stand.
• Multifunctional instrument cluster with onboard computer.
• Optional LED daytime running light.
• Either sporty, dynamic or luxurious, elegant in the characteristic BMW Motorrad design language.
• Generously sized stowage space. C 600 Sport with the world premiere FlexCase as an innovative stowage space concept.
• Powered (C 650 GT) or manual (C 600 Sport) windscreen adjustments for the optimal protection against wind and weather.
• Three colour variants for each.
•Extensive equipment and custom accessories of the familiar high BMW Motorrad quality.
The differences between the C 600 Sport and the C 650 GT at a glance
The sporty, dynamic scooter BMW C 600 Sport is characterised by a seat positioned for extremely active riding. This was made possible by the arrangement of the foot boards, seat, and handlebar in an ergonomic triangle. More fastidious needs for touring and long distance capabilities, on the other hand, are fulfilled by the luxurious C 650 GT. The rider and passenger can therefore adopt a more relaxed sitting posture that is highly appreciated especially over long stretches.
The ergonomics designed for even greater passenger capability and comfort can be felt in particular on a more comfortable seat with adjustable backrest for the rider in conjunction with a higher handlebar and comfortable floor boards in lieu of separate footrests for the passenger. In addition, the C 650 GT presents a larger, powered windscreen for even better protection against wind and weather.
•C 600 Sport with dynamic seat position as a result of flatter handlebar, sporty seat design for both one and two persons, and sporty footrests for the passenger; seat height 810 mm.
•C 650 GT with emphatically comfortable seat position as a result of higher handlebar, more comfortable and larger seat with adjustable backrest for the rider, and foot boards for the passenger as well; seat height 780 mm.
•C 600 Sport with windscreen adjustable mechanically to three positions.
•C 650 GT with larger windscreen adjustable electrically over 10 cm for even greater comfort and protection from wind and weather.
Body and design
•C 600 Sport with sporty, spartan panels. The lean tail with the dynamic upswing and emphatic body edges lend it lightness and dynamics.
•C 650 GT with an organic design language emphasising comfort attributes. Generously sized panel parts for outstanding comfort and protection against wind and weather.
Headlights, turn indicators, rear light
•C 600 Sport: front turn indicators integrated in the panelling, twin circular headlights with two side lights on the left and right, LED rear light cluster with single turn indicators
• C 650 GT: front turn indicators integrated in the mirrors, twin circular headlights with side lights between them presenting a vertical light strip of three elements, LED rear light cluster with integrated turn indicators.
•C 600 Sport with world premiere FlexCase and hence variable stowage space concept in the tail under the seat. Despite its sporty, spartan tail section, two helmets can be easily stowed in the parked vehicle.
•C 650 GT with a large stowage space of about 60 litres in the tail for taking two helmets and other utilities.
•C 600 Sport:
Cosmic blue metallic matt
Titanium silver metallic
Sapphire black metallic
•C 650 GT:
Sapphire black metallic
Platinum bronze metallic
Vermilion red metallic
2-cylinder inline engine for powerful, majestic drive.
The all new 2-cylinder inline engine developed by BMW Motorrad for the C 600 Sport and C 650 GT is designed with a 79 mm bore and 66 mm stroke for a displacement of 647 cc. In both models, its rated power output is 44 kW (60 hp) at 7500 rpm, and its max torque of 66 Nm is available at 6000 rpm. The max engine speed is 8500 rpm.
Like all BMW Motorrad powertrains, the engine for the new maxi scooter is also based on an elaborate overall concept and the space saving arrangement of all auxiliary units and the directly integrated CVT (continuously variable transmission). The overriding objective of creating a highly compact scooter powertrain with the optimal installation measurements gave rise to a 2-cylinder inline engine with liquid cooling and an extremely flat cylinder bank inclined to the front through 70°. The deep position of the installed engine not only benefits the vehicle’s centre of gravity, but also presents the low well for the rider’s legs that is characteristic of scooters.
The most powerful and efficient engine of its class.
As the most powerful engine of its class, the powertrain for the C 600 Sport and C 650 GT provides everything needed for dynamic performance figures and outstanding torque curves. Thanks to its design targeting the best possible efficiency, the engine achieves efficient combustion and minimised friction losses at low engine speed levels. This perfected engineering concept makes the 2-cylinder inline engine for the new BMW Motorrad maxi scooters the most efficient powertrain to date in its class.
Throaty sound and high level of smooth running.
The highly compact inline engine with its 90° crank pin offset lends the engine both its characteristics and its throaty sound.
The high level of smooth running is ensured by the balance shafts. These balance shafts lie in the same plane above and below the crankshaft, which drives them via spur gears. This combination of crank pin offset and balance shafts gives rise to a virtually perfect equilibrium of mass and therefore a very low level of vibrations. This also allowed the designers to mount the engine as a stressed member of the frame, and not in rubber mounts, for the optimal vehicle rigidity and hence high riding stability.
Compact cylinder head, electronic fuel injection, and digital engine management.
The four valves per combustion chamber are timed in the classical manner via two overhead cast camshafts driven by a toothed chain and bucket tappets on shims. The toothed chain is guided along two slide rails. The cylinder head presents a highly compact design. The valves present an intake angle of 12° and an exhaust angle of 14°. The compression ratio is 11.6:1. The valve heads measure 31.5 mm across on the intake side, and 27.1 mm across on the exhaust side.
Fuel induction is the responsibility of an electronic fuel injection system in conjunction with two power-closing 38 mm throttle valves and the digital engine management system (BMS-E). This engine management system analyses a large number of influencing variables for a particularly convincing performance with low power consumption and excellent cold start behaviour.
The control basis is provided by the quantity of intake air that is defined indirectly by the throttle valve angle and the engine speed. Using additional engine and ambient parameters (including engine temperature, air temperature, and ambient air pressure), the engine controller calculates individual values for injected quantity and ignition time. The engine is designed for the fuel type lead free premium grade (95 RON). The fuel capacity is 16 litres (4 litre reserve).
The efficient engine design helped to achieve very low fuel consumption and emission values in compliance with the future Euro-4 standard.
Compact overall design with dry sump lubrication.
The engine casing of diecast aluminium is split horizontally at the centre of the crankshaft. Designed as so called open deck elements, the 2-cylinder liners are integrated in the top section of the casing. The target of low installed height also benefited from the use of dry sump lubrication that did away with the oil sump. The lubricant is circulated by a double oil pump with intake and return stage driven by the bottom balance shaft via a spur gear. The oil tank is integrated directly in the engine casing for the most compact possible measurements. An electronic oil level monitor in the cockpit warns the rider when the lubricant has reached the minimum level. In addition, the oil supply can be examined with a dipstick. The total quantity of oil is 3.1 litres with filter change. At the same time, the top balance shaft also serves to vent the crankshaft on the rotating ventilation principle. The whole powertrain weighs just 81 kg.
Efficient cooling under all operating conditions.
Made to BMW Motorrad standards, the refined cooling concept provides for the optimal thermal balance in the 2-cylinder inline engine. In this case, cold coolant passes through the cylinder head in the transverse direction, entering the front of the head on the hotter exhaust side. Here, at the site of the greatest thermal load, this intense cooling quickly conducts away heat for the best temperature compensation. Like the oil pump, the water pump is driven by the bottom balance shaft via the spur gear. The quantity of coolant (52% water, 48% Glysantin) is 2.2 litres.
The water cooler of aluminium with plastic radiator tanks and integrated thermostat utilises the same high performance cooler network as is also fitted in BMW motorcycles. For the optimal centre of gravity and flow properties, it is positioned under the steering head. Thanks to its high efficiency, optimised air feed, and the best possible air passage, a relatively small area proves adequate for a reliable dissipation of heat under all conditions.
In longer stop and go or stationary traffic conditions, an electric fan switches in automatically to cool the running engine.
The temperatures between the engine oil and the liquid coolant are balanced through an oil-water heat exchanger that also reduces the engine’s warmup period to a minimum.
Comfortable CVT and low maintenance secondary drive.
The forces inside the drive unit are transferred via a central output from the crankshaft to an intermediate shaft with torsion damper connected with a primary toothed chain. At the same time, this intermediate shaft operates as the input shaft to the continuously variable transmission (CVT) with automatic centrifugal dry clutch on the output shaft. The CVT is connected rigidly to the crankcase.
Two gear stages arranged directly behind the clutch provide the reduction ratio needed for the secondary drive. The secondary drive to the rear wheel is transferred over a roller chain with 72 links and 525 pitch. This runs fully encapsulated in the oil bath (750 ml SAE 90) and therefore needs very little maintenance.
In this respect, a constant chain tension in all suspension states and a low reaction torque from the drive forces are ensured by a BMW Motorrad patented swingarm lying concentrically to the gear output.
Stainless steel exhaust system with closed loop catalytic converter.
Fitted with a front and rear silencer, the exhaust system is made completely of stainless steel to motorcycle specifications. In this case, the silencer system utilises a complex combination of absorption and resonance damping. Fitted with an oxygen sensor and closed loop catalytic converter integrated in the front silencer, both of these maxi scooters fulfil the emission limits of the future EU4 standard.
Refined suspension geometry for light handling, optimal directional stability, and transparent feedback.
The top priority in developing the suspension for the C 600 Sport and C 650 GT was to combine the best handling qualities and a transparent feedback for the rider with stable directional stability at high speeds. With a wheelbase of 1591 mm, a steering head angle of 25.4°, and trail of 92 mm, the C 600 Sport and C 650 GT present key geometry features that don’t need to shun comparison with motorcycles. In the field, the overall concept behind the two maxi scooters’ suspension systems manifests itself particularly in ease of manoeuvrability, for instance in city traffic, and in fascinating riding stability on country roads and motorways.
Torsionally rigid hybrid structure with tubular steel bridge frame.
The frame of the C 600 Sport and C 650 GT presents a hybrid structure. The main frame of the C 600 Sport and C 650 GT consists of a torsionally rigid tubular steel bridge structure as it is usually found only on motorcycles. For the first time in the history of BMW Motorrad, this tubular steel design is supplemented at the swingarm bearing with a bolted diecast aluminium unit that lends additional rigidity to the whole structure of the vehicle. In addition, the 2-cylinder inline engine functions as a stressed member, for a particularly stable and high precision response.
Torsionally rigid swingarm and swingarm bearing with coaxial centre of rotation.
The rear suspension is based on a single swingarm of diecast aluminium and includes the low maintenance secondary drive. The swingarm consists of a single part and is supplemented with a bolted aluminium side cap providing additional torsional rigidity.
The target of the greatest possible riding stability also benefits in particular from the swingarm bearing that, contrary to the usual practice on scooters of fitting it in the engine casing, is instead fitted in the frame, the usual practice on motorcycles. Also, the swingarm’s centre of rotation is arranged coaxially to the drive shaft as a measure to minimise drive torques and suppress fluctuating states of tension on the secondary chain.
Reclining spring strut, upside down fork, and light alloy wheels.
The asymmetrically arranged spring strut is installed at a reclined angle on the left side of the vehicle, and its mount can be adjusted to diverse loading states. The spring travel is 115 mm. The damper tuning on the C 650 GT provides a particularly high level of comfort in line with the vehicle concept.
The front suspension is provided by an upside down fork with a diameter of 40 mm and a spring travel also of 115 mm. The two fork bridges are forged steel parts. A welded steel structure, the handlebar is bolted directly to the top fork bridge.
On their front, the C 600 Sport and C 650 GT roll on a 3.5 x 15“ five spoke diecast light alloy wheel fitted with a 120/70-15 tyre. The rear wheel measures 4.5 x 15“ and is fitted with a 160/60-15 tyre. Here too, the maxi scooter presents a series of widths and cross sections aligned to customary motorcycle specifications. The 15“ rims safeguard the highest riding stability with the optimal agility and handling.
Powerful braking system with ABS as standard.
The highest level of active safety is provided by the generously sized braking system in conjunction with the BMW Motorrad ABS fitted as standard.
At the front, sustained braking is ensured by a two-rotor disc brake of 270 mm diameter and two double-piston floating callipers with 25.4 mm piston diameter in conjunction with a 12.7 mm handbrake cylinder.
At the rear, this task is the responsibility of a single disc system likewise with 270 mm diameter, double-piston floating calliper with 27 mm piston diameter, and 14 mm handbrake cylinder.
All brake lines are designed as flexible steel elements for a stable pressure point and best possible dosability. The two brake levers can be set to five levels for individual ergonomics adapted to the rider’s needs.
Tipping the scales at only 700 g and with an extremely small installation space, the Bosch 9M type dual channel ABS allows independent regulation of the two braking circuits for the front and rear wheels.
Hold brake engaged automatically via the side stand.
BMW Motorrad developed a particularly innovative solution for the mandatory hold brake on scooters. Whereas the rider normally has to engage this brake with a separate lever, this is engaged automatically on the C 600 Sport and C 650 GT when the side stand is extended. This is connected to a pull cable that engages a second, mechanically actuated rear braking calliper that prevents the vehicle from rolling away. This measure makes sure that the vehicle is parked absolutely safely.
The range of optional equipment ex works for the C 600 Sport and C 650 GT also includes the tyre pressure control RDC. Here, sensors installed inside the rims register the current air pressure and communicate this information to the display field in the instrument cluster.
The foot boards allow the rider to place his feet for greater riding ease and comfort. Like on a motorcycle, the passenger on the C 600 Sport has footrests, while the C 650 GT presents foot boards in this area as well.
Electrical and electronic systems.
High performance electrical system with CAN bus technology.
The electrical system in the C 600 Sport and C 650 GT is based on the established systems fitted in the BMW Motorrad models. The electrical system is based on a CAN bus (controller area network). This networks the instrument cluster, the ABS and engine controller, the electronic immobiliser, and (as optional equipment) the anti-theft alarm system and the tyre pressure control (RDC).
The standard scope also includes a power socket installed in the left storage compartment. For example, this can be used to recharge a mobile phone while it is connected via Bluetooth to the BMW Motorrad communication system, where available, in the rider’s helmet. A strong and stable power supply under all operating conditions is safeguarded by the alternator located on the left tail shaft and delivering 588 W. The battery has a capacity of 12 Ah and is installed in the vehicle’s front section behind the right side panelling. The cable harness on the C 600 Sport and C 650 GT is designed to allow retrofits of all optional electrical equipment ex works and all optional accessories like e.g. heated grips, heated seat, alarm system, tyre pressure control RDC, etc.
Multifunctional instrument cluster with onboard computer.
The instrument cluster on the maxi scooters presents considerably more functions than usual in this vehicle class. It presents a large, easily readable LCD display with integrated engine speed readout and an analogue speedometer with a highly legible scale. The instrument cluster also integrates all indicator lights. The development of this instrument cluster focused primarily on the best legibility and the elimination of reflections on the display. The analogue speedometer and the LCD display are illuminated in easy to read orange. This lighting is deactivated when the daytime running light is activated.
Besides the eight bars representing the fuel level, the instrument cluster also presents as standard useful details on the oil level, distances travelled, and (via the onboard computer) distance covered on the 4-litre fuel reserve, date and time, average fuel consumption and rate, ambient temperature, and service information.
The top part of the display also presents warnings in the form of text and symbols, e.g. when a light source fails. The display also presents the operating state of the optional equipment heated grips and heated seat.
LED lights, optional LED daytime running light, and way home function.
The maxi scooters C 600 Sport and C 650 GT are already fitted as standard with a rear light and LED stowage space lighting. The LED technology is characterised in particular by exceptional reliability, long service life, high luminous efficiency, and low power consumption.
The front lighting on the C 600 Sport consists of one headlight each for low and high beams and two side lights (or alternatively a combination of side light and optional daytime running light).
The C 650 GT likewise presents two headlights, but the side light and optional daytime running light take the form of three LED light elements arranged at the centre.
Both the side lights and the stowage space lighting come with a so called way home function, i.e. the light remains on after the vehicle has been parked.
Whereas LED turn indicators are offered as optional equipment ex works for the C 600 Sport, this feature is fitted as standard on the C 650 GT. In addition, both models can make use of the highline package (optional equipment ex works) that provides the LED daytime running light, a rare treat today for that extra safety on the scooter market.
Heated grips and seat.
For the first time at BMW Motorrad, the optional accessories and optional equipment heated grips and heated seat also feature a so called AUTO level with automatic temperature control in addition to Levels 1 and 2.
When the rider selects the AUTO level, the heaters for the grips and rider’s seat are regulated automatically as a function of the outside temperature and vehicle speed. The heaters switch on automatically from an outside temperature of +8 °C. The heater output first starts very gradually and rises with falling outside temperature. The max heater output on the AUTO level is reached at -15 °C. The heater for the passenger’s seat can be activated at a separate switch by the passenger himself, when he can select Level 1 or 2.
User friendly BMW Motorrad switch units.
The switch fittings are known from BMW motorcycles and are available in various clusters depending on the equipment range. The right side presents functions like start/stop, heated grips (Levels 1, 2, and AUTO with outside temperature control) and heated seats (Levels 1, 2, and AUTO with outside temperature control). The left side integrates the functions for high/low beams, headlight flasher, turn indicators, hazard warning flashers, daytime running light, and horn.
Body and design.
Characteristic design language by BMW Motorrad.
The C 600 Sport and the C 650 GT present the unmistakable design language of BMW Motorrad, setting new standards on this segment in this category as well. Modern and aligned to the future, they are the perfect examples of the BMW Motorrad design philosophy. They are thrilling representatives of a perfectly new interpretation of the maxi scooter. Their design utilises asymmetries and the typical split face as unique attributes that also distinguish and hallmark the BMW Motorrad models.
These two new maxi scooters from BMW Motorrad present a visual appeal that clearly stands out from the competition, for designer impressions communicating sporty dynamics or luxurious elegance.
Visual and technical orientation to BMW motorcycles.
Yet the relationship between the two new maxi scooters and the BMW Motorrad family also becomes apparent on the technical side. For instance, the face is distinguished by a generously sized upside down fork and a two-rotor disc brake, just as on a motorcycle. Meanwhile, the tail proudly bears a dynamically designed single swingarm with generously dimensioned, hollow wheel axle that is characteristic of BMW motorcycles. This dynamic impression is also underscored by the highly visible, reclining spring strut. Yet another design element known from BMW motorcycles has been adopted in the form of the so called bash plates, or the side parts of the front panelling. And also the twin tipped engine spoiler forges a design language link to BMW motorcycles.
C 600 Sport and C 650 GT – two independent characters.
In terms of their technology, the two new maxi scooter models from BMW Motorrad are based on an identical platform, yet certain differences in their design testify to fully independent characters. Whereas the C 600 Sport stresses the sporty, dynamic properties of a maxi scooter, the C 650 GT delivers a fascinating performance above all in comfort and touring capability.
This touring oriented design of the C 650 GT is also reflected in the design. This becomes clear particularly on the generously sized panelling parts on the C 650 GT for outstanding protection against the wind and weather, whereas the C 600 Sport appears in a sporty, spartan dress. On the C 600 Sport, lightness and dynamics is also embodied especially in the lean tail with the dynamic upswing and the emphatic body edges, whereas the organic design language of the C 650 GT highlights comfort attributes.
The designers also found it especially important to express in the formal design the technical closeness of the C 600 Sport and C 650 GT to the BMW Motorrad motorcycle family. Up until now, scooters with their deep drawn leg well invariably adopted a certain L shape with almost vertical body lines. Although this typical leg well is likewise presented on the two new maxi scooters from BMW Motorrad, it resembles more a motorcycle by running diagonally like the tail section and panel body lines. This gives rise to a particularly dynamic play of lines.
The C 600 Sport presents a particularly sporty and emotionally charged look. Its colour contrast panelling parts communicate a decidedly compact design language. Even more strongly than on the C 650 GT, the highly visible spring painted white in the strut lends it its look of technical dynamics.
The differences between the C 600 Sport and C 650 GT can also be found in the ergonomics. For instance, in line with its dynamic claims, the C 600 Sport presents a seat height of 810 mm and, together with the low mounted handlebar, provides a sporty, meditative seated position aligned to the front wheel. On the C 650 GT the seat height is only 780 mm. Aided by the higher handlebar position, the rider can adopt an upright, highly relaxed posture typical of touring.
Generous stowage space on the C 600 Sport with the world premiere FlexCase.
The high touring and long distance capabilities of the C 650 GT are also underscored by the generous stowage space consisting of a spacious storage compartment (about 60 litres) under the seat and two smaller compartments (locked on the left) in the front part of the leg well. The storage compartment with internal lighting in the tail of the C 650 GT can also take two helmets when the vehicle is stationary. In addition, the bulges on the left and right of the tail offer additional stowage space for utilities. The claims to comfort made by the C 650 GT – also for two persons – are likewise corroborated by the generously upholstered seat with the adjustable backrest for the rider.
Although the tail section of the C 600 Sport is essentially shorter and sportier, the BMW Motorrad developers managed to integrate a stowage space concept that can also take two helmets on this model as well. The so called FlexCase was designed specifically for this purpose. This takes the form of a flap in the tail base that can be opened to deepen the available stowage space. This variable space is made possible by the use of a high strength, elastic material based on kevlar and providing a flexible, but dirt and water repellent connection between the flap and the tail base. A world first and patented by BMW Motorrad, this stowage space solution can take two helmets when the vehicle is parked. The FlexCase flap is closed when the vehicle is moving. But it can still take one helmet. A safety switch makes sure that the engine cannot start when the FlexCase flap is open. When the flap is open, this appears as a warning symbol on the instrument cluster. On the C 600 Sport too, the stowage space under the seat is fitted with internal lighting.
On both models, additional stowage space is available in the form of two glove compartments in the front part of the leg well. The one on the left can be locked. The compartments are locked automatically when the vehicle is parked and locked.
For the transport of additional luggage, the C 600 Sport and C 650 GT can be fitted with a luggage rack (optional accessory) that also allows the installation of a top case (likewise optional accessory).
Central unlocking function for seat and fuel filler cap.
The central lock also opens and locks the seat, the front left glove compartment, and the fuel filler cap. The fuel filler is situated for ease of access behind the fuel filler cap under the front end of the seat in the leg well.
Innovative lamp design and the optimal protection against wind and weather.
The differing characters of the two maxi scooters are also apparent when viewed from the front. On the C 650 GT, the front turn indicators are integrated in the mirrors. On the C 600 Sport, they are integrated in the panelling. Each of the mirrors on the C 600 Sport is adjusted manually, whereas on the C 650 GT the mirrors’ carrier plates are adjusted inside the mirror housing. Both vehicles feature twin circular headlights, but on the C 650 GT the side light is arranged between the two headlights as a vertical strip of three light elements. The C 600 Sport has two side lights positioned on the left and right sides. The elegant appearance of the C 650 GT is also reflected in the LED rear light cluster that also integrates the turn indicators. In line with its sporty, dynamic character, the C 600 Sport features single turn indicators.
For the best possible protection against wind and weather and minimised wind noise, the windscreens of both maxi scooters were developed in the wind tunnel. The windscreen on the C 650 GT can be adjusted electrically over 10 cm (C 600 Sport: manually at two setscrews to one of three stages) and presents a larger area than the C 600 Sport. In addition, the C 650 GT features adjustable deflection wings on its panelling that when needed boost the supply of air to the rider. The optional accessories that BMW Motorrad offers for the C 600 Sport also include a tinted windscreen and a shorter, clear or tinted windscreen for an emphatically sporty look.
High quality solutions for leg well and cockpit.
On both the C 600 Sport and the C 650 GT, the foot boards are upgraded with high quality, sturdy stainless steel elements.
The clear and dynamic design language is also continued in the uncluttered cockpit of the C 600 Sport and C 650 GT. Whereas the instrument cluster on the C 600 Sport is set in a cover panel painted a sporty Granite grey metallic matt, the C 650 GT features a refined Magnesium metallic matt.
Organically designed rear silencer.
The stubby rear silencer of the C 600 Sport is of high quality stainless steel with a pentagonal cross section. In line with its sporty, dynamic visual appeal, it openly displays its stainless steel look, whereas the elegant, comfort oriented C 650 GT, although fitted with the same system, presents an additional silencer panel.
Optional equipment and optional accessories for a wide range of individualising options.
BMW Motorrad offers its familiar extensive range for individualising the new C 600 Sport and C 650 GT.
Optional equipment is delivered directly ex works and is integrated in the production process. Optional accessories are installed by the BMW Motorrad dealer. The vehicle can therefore be fitted with options after it has left the factory.
•Anti-theft alarm system.
• Tyre pressure control RDC.
• LED daytime running light.
• LED turn indicators (C 600 Sport only).
Storage space programme.
•Topcase (35 litres).
• Luggage rack.
• Liner for topcase.
• Centre console bag (12 litres).
• Load area net.
Comfort and design.
•Tinted windscreen (C 600 Sport only).
•Clear/tinted sports windscreen (C 600 Sport only).
• Sports seat incl heater (C 600 Sport only).
• Exclusive seat incl heater (C 650 GT only).
• Rain cowl for seat.
• Wind deflector.
• Scooter jacket (fabric, wind, water, cold protection for the rider).
• Aspherical mirror (C 650 GT only).
• Backrest for passenger.
Navigation and communication.
•BMW Motorrad navigator IV.
•Mount for BMW Motorrad navigator IV.
• BMW Motorrad communication system, where available.
• Mobile telephone facility for storage compartment.
• BMW USB charger.
Safety and electrical systems.
•Anti-theft alarm system.
• LED turn indicators (C 600 Sport only).
• Protection pads.
• Motorcycle lock.
• Additional onboard socket.
Other equipment options.
•Akrapovic sports silencer, homologated where available.
• Chrome set (footrests, handlebar weights, foot board inserts).
For its new maxi scooters, BMW Motorrad is also expanding its range of rider’s equipment with attractive products for urban mobility (e.g. AirFlow 2 helmet, Urban jacket, Urban gloves, X 2 sneakers, etc.).
The C 600 Sport and C 650 GT will be on offer in three colour variants.
On the C 600 Sport, Cosmic blue metallic matt underscores the compact, sporty design and presents an exciting contrast of high dynamics to the areas of Granite grey metallic.
Titanium silver metallic lends the C 600 Sport an emphatic technical note, and conveys a particularly light and compact impression against the contrasting areas.
Sapphire black metallic lends the C 600 Sport a powerful, masculine touch, and the combination with the contrasting areas gives rise to an emphatically classical look.
On the C 650 GT, the elegant character of this vehicle is underscored by Sapphire black metallic in conjunction with the fluid design language and the areas of high contrast Magnesium metallic matt.
On the other hand, the C 650 GT with its Platinum bronze metallic presents a unified whole, and the reduced contrasts amplify its particularly supreme look in this homogeneous colour variant.
Vermilion red metallic emphasises the dynamic side of the C 650 GT. One of the classics in the BMW Motorrad colour range, this colour promotes a particularly modern look.
2012 BMW C600 Sport – American Specifications/Technical Details
US MSRP Price: $TBA
Capacity cc 647
Bore/stroke mm 79/66
Output kW/hp 44/60
at speed rpm 7500
Torque Nm 66
at speed rpm 6000
Type Water-cooled 2-cylinder 4 stroke engine
Compression/fuel 11.6:1 / regular lead free (95 RON)
Valve control DOHC (double overhead camshaft), bucket tappets
Valves per cylinder 4
Intake/exhaust Ã˜ mm 31.5/27.1
Throttle valve diameter mm 38
Fuel injection BMS-E
Alternator W 588
Battery V/Ah 12/12
Headlights High/low beams: 12 V /55 W halogen
Rear light LED brake/rear light
Gearbox power transmission
Clutch Centrifugal clutch
Gearbox CVT (continuously variable transmission)
Primary ratio 1.06
Rear wheel drive Chain in oil bath
Frame type Aluminium bridge frame with aluminium rear frame bolted on
Front suspension system Upside down fork
Rear suspension system Cast single swingarm
spring travel front/rear mm 115/115
Trail mm 92
Wheelbase mm 1591
Steering head angle ° 25.4
Brakes front Hydraulically actuated two-rotor disc brake, 270 mm diameter, double piston floating calliper
rear Hydraulically actuated single disc brake, 270 mm diameter, double piston floating calliper, ABS BMW Motorrad ABS (standard)
Wheels Cast aluminium wheels
front 3.50 x 15″
rear 4.50 x 15″
Tyres front 120/70 R15
rear 160/60 R15
Dimensions and weights
Overall length mm 2155
Overall width with/without mirrors mm 877/790
Seat height (without rider) mm 810 (standard)
DIN unladen weight, road ready kg 249
Permitted total weight kg 445
Fuel tank capacity l 16
90 km/h l/100 km 4,5
100 km/h l/100 km 4.8
120 km/h l/100 km 5,6
0-100 km/h s 7.1
Max speed km/h 175
2012 BMW C600 Sport – Canadian Specifications/Technical Details
Canada MSRP Price: $TBA
Engine Type: 2-cylinder, 4-stroke, 8 valve, liquid cooled
Displacement: 647 cc
Output: 60hp at 7500 rpm
Seat Height: 810 mm
Optional Seat Height:
Dry Weight: 237 kg (522 lbs)
Fuel Tank Capacity: 16 l
Consumption (l/100km at 120km/h): 4.8 l
Warranty Coverage: 36 months, unlimited kilometres
Roadside Assistance: 36 months
2012 BMW C600 Sport – UK Specifications/Technical Details
Europe MSRP Price: £TBC
Type 2-Cylinder 4-stroke liquid-cooled engine, 4 valves per cylinder
Bore x stroke 79 mm x 66 mm
Capacity 647 cc
Rated output 44 kW at 7500 rpm
Max. torque 66 Nm at 6000 rpm
Compression ratio 11.6:1
Mixture control / engine management
Emission control Closed-loop 3-way catalytic converter, exhaust standard EU-4
Performance / fuel consumption
Maximum speed 175 Km/h
Fuel consumption per 100 km at constant 90 km/h 4,4 l
Fuel consumption per 100 km at constant 120 km/h 5,6 l
Fuel type Premium grade fuel, unleaded 95 (RON)
Alternator Three-phase generator 588 W
Battery 12 V / 12 Ah, maintenance-free
Clutch Centrifugal Force
Gearbox CVT Gearbox
Drive Chain drive in oil bath
Chassis / brakes
Frame Steel tube construction with aluminium die cast unit
Front wheel location / suspension Upside-down fork 40 mm
Rear wheel location / suspension Single-sided swing arm
Suspension travel front / rear 115mm/115mm
Wheelbase 1591 mm
Castor 92 mm
Steering head angle 64.6 Deg
Wheels Aluminium cast wheels
Rim, Front 3.50 x 15″
Rim, rear 4.50 x 15″
Tyre, front 120/70 ZR 15
Tyre, rear 160/60 ZR15
Brake, front Two-rota disc brake, diameter 270 mm, 2-piston floating caliper
Brake, rear Single disc brake, diameter 270 mm, 2 piston floating caliper
ABS BMW Motorrad ABS
Dimensions / weights
Length 2155 mm
Width (incl. mirrors) 790 (877)
Height (excl. mirrors) 1378 mm
Seat height, unladen weight 810 mm
Inner leg curve, unladen weight 1770 mm
Unladen weight, road ready, fully fueled 249 kg
Dry weight 231 kg
Permitted total weight 445 kg
Payload (with standard equipment) 196 kg
Usable tank volume 16 l
Reserve 4 l
2012 BMW C600 Sport – Australian Specifications/Technical Details
AUS MSRP Price: $NA
Model not available in Australia
