2012 Harley-Davidson FLSTF Softail Fat Boy

Back to 2012 Harley-Davidson Motorcycle Model Review Page

Click photos to enlarge. They make great desktop wallpaper.

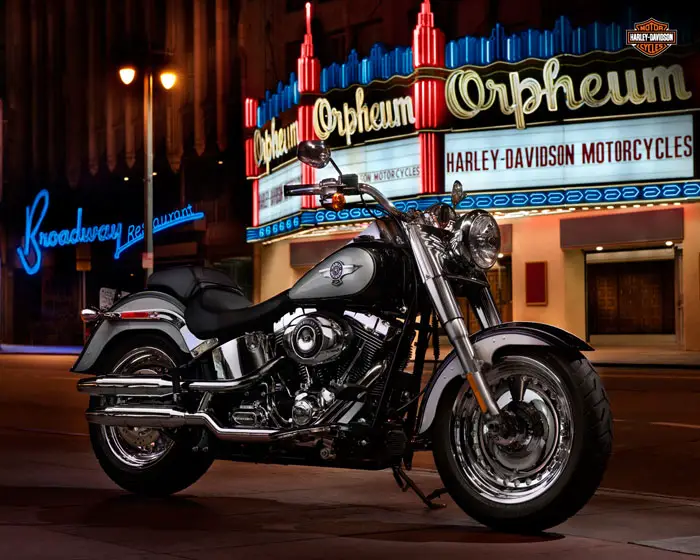

2012 Harley-Davidson FLSTF Softail Fat Boy
2012 Harley-Davidson FLSTF Softail Fat Boy

2012 Harley-Davidson FLSTF Softail Fat Boy
2012 Harley-Davidson FLSTF Softail Fat Boy

2012 Harley-Davidson FLSTF Softail Fat Boy
2012 Harley-Davidson FLSTF Softail Fat Boy

2012 Harley-Davidson FLSTF Softail Fat Boy
2012 Harley-Davidson FLSTF Softail Fat Boy


– 2012 Harley-Davidson FLSTF Softail Fat Boy

2012 Harley-Davidson FLSTF Softail Fat Boy Review

The original fat custom icon with a burly style that’s often imitated but never duplicated

The legendary Fat Boy® motorcycle defined the “fat custom” category and imitators everywhere tried to copy its magic. This original continues to turn heads wherever it rolls, with fat tires, fat bars, a fat fender and a big, powerful, black powder-coated, counter-balanced Twin Cam 96B™ engine. The Fat Boy® model is the very definition of a heavyweight motorcycle, delivering a bold styling statement and a wide, comfortable riding stance. Now, for 2012, this boulevard icon offers a larger readout on the odometer with more information, such as gear and RPM data, plus the new Security Package option with an Anti-lock Braking System and Smart Security System. All this technology works seamlessly into the exquisite styling in a way that only Harley-Davidson can deliver.





2012 Harley-Davidson FLSTF Softail Fat Boy Model Highlights

NEW Rigid-mounted, counter-balanced Twin Cam 103B™ V-Twin engine with Electronic Sequential Port Fuel Injection (ESPFI)
NEW Low profile, 1.25-inch internally-wired handlebar
NEW Paint color options
– Security Package option including factory-installed Harley-Davidson® Smart Security System with hands-free fob and Anti-Lock Braking System (ABS)
– Hand controls with fewer wires
– Odometer trip switch
– Single button hazzard warning
– Large odometer readout with gear and RPM display
– Fuel tank sender for accurate fuel-level readings
– Black powder-coated powertrain with chrome covers
– Chrome over/under shotgun exhaust
– Silver, Bullet Hole Disc Cast Aluminum wheels
– 200 mm rear tire
– Chrome front fork nacelle
– Chrome nostalgic seven-inch ball headlamp
– Chrome oil tank
– Chrome tank console with electronic speedometer
– Chrome bullet-studded seat valance and tank strap
– Chrome 1.25-inch, internally-wired handlebar and Bare Knuckle risers
– Full-size rider footboards
– Two-piece, two-up Softail® seat with removable pillion
– Custom trimmed front fender



2012 Harley-Davidson FLSTF Softail Fat Boy Key Features and Benefits

– 6-Speed Cruise Drive® Transmission
– Horseshoe oil tank
– Five-gallon fuel tank
– Optional Mirror-Chrome Bullet Hole Disc Cast Aluminum wheels
– Optional Original Equipment Custom Color paint program



FAT CUSTOM STYLE

Hearkening to the ‘hardtail’ choppers of the ’60s and ’70s, the Fat Boy® motorcycle keeps that heritage alive more than forty years later. This is the original ‘fat custom’ bike—laid-back and luxurious with an unmistakable profile on the road.
But the nostalgic style isn’t just about the confident stance, chrome and old-school detail. It’s how you look riding it. It’s how it feels. It’s the classic, relaxed riding position. You’re not just cruising. You’re in charge—kicked back on a throne of machined metal surveying your domain.

HIDDEN REAR SHOCKS

If you want a comfortable bike but love that rigid-suspension look, you’ve come to the right bike. We’ve kept all the modern comforts where they belong—below the surface of a rad, vintage-looking bike. You get the classic lines of a vintage ‘hardtail’ frame with the horizontal rear shocks hidden in the guts. It’s a signature rigid look, and you’ll only find it on a Softail® model.

PREMIUM PAINT

Up to two times thicker than the competition, custom quality paint comes standard on all Harley-Davidson® motorcycles. Clearcoat layering up to five mils deep. Bigger metal flakes. Unique effects. Skimping simply is not in our vocabulary.

HAND FINISHED FUEL TANK

All Harley-Davidson® fuel tanks are finished by hand—that’s what makes them stand out from the competition. Their seamless design and unmatched style are unique among all motorcycles on the road. The tanks are one of the first and last things people notice when they lay their eyes on a Harley-Davidson® motorcycle—so we make it worth their time.

FAT FEATURES

Big in all the right places. The 17-inch wheels of silver, bullet-hole, disc-cast aluminum definitely make an impression—especially with rubber 140mm wide in front and a beefy 200mm in back. And check out the chopsticks up front—fat front fork behind the huge, gorgeous headlamp. The handlebars are wide, giant stainless steel with bare-knuckle chrome risers. Plus, the fuel tank medallion boasts a generous slab of mirror chrome finish—noticeable on any stretch of road. It’s a lot of fat in one tight bike. Definitely meaty. Wide. Big-boned. A bruiser. Call it what you want. Just admit that you want it.

FAT CUSTOM TANK DETAILS

This tank makes a statement with its leather tank strap, chrome side badges, and chrome speedometer and ignition switch console. The speedo face boasts a big, bold display for the odometer and an ancillary display for gear and rpm, so all the info you need on the fly is yours at a glance.

SIX-SPEED CRUISE DRIVE®

You want a ride that rumbles—not begs for mercy—when you lean on it a little. The Six-Speed Cruise Drive® transmission provides smooth, quiet shifting and reduces engine speed on the highway, so you get a better match between engine turnover and road speed. It’s a rare ride when a bike responds like this, and a low growl goes a long way when you’re opening up the road ahead.

TWIN CAM 103™ ENGINE POWER

New for 2012: live your ride to the power of 103. The air cooled Twin Cam 103™ Harley Davidson® engine delivers more stump pulling torque, while its Electronic Sequential Port Fuel Injection jetting gives crisp, lively throttle reaction. It’s a performance punch that you’ll appreciate when passing, climbing hills, or rolling with luggage packed or a passenger in back—all under that signature Motor Company rumble. And it comes at lower cruising rpm, so you ride more smoothly, with less engine vibration and better highway fuel economy.

TWIN CAM 103™ ENGINE HERITAGE

The knowledge of what makes an engine truly move a rider runs deep at The Motor Company, and it was put to good use when we created the Twin Cam 103™; engine. We sweated bullets perfecting every cubic inch, pushing design and technology forward. And we did it all without compromising one bit of Harley-Davidson’s unique styling. Evolved, yet carrying on the legacy of the Flathead, Knucklehead, Panhead, Shovelhead, Evolution®, Twin Cam 88®; and Twin Cam 96™ engines that came before. The performance and durability are a direct result of the untold miles logged on the V-Twin since 1909, and the proud heritage that comes from a century’s worth of commitment to life on two wheels.

TWIN CAM 103™ ENGINE INNOVATION

Fire up the Twin Cam 103™ engine and feel the low-end torque unleashed. Thanks to the lightweight piston design, delivery of the added power is more refined than ever. Then put your foot on the shifter and feel how the engine and Six-Speed Cruise Drive® transmission were designed to work together. Six speeds. A strong driveline and strong internal parts. Low routine maintenance. And a low cruising rpm couldn’t feel better.

PURE HARLEY-DAVIDSON STYLING

Feast your eyes on the Twin Cam 103™ engine and there’s no mistaking its roots. This is authentic Harley-Davidson style through and through with an attention to detail you won’t find from any other motorcycle company. Black powder-coated heads and cylinders are highlighted by machined cooling fin tips and chrome rocker covers. It’s a jewel machined out of metal. Pure. Dripping with power. From the classic edge of the cooling fins to the clean lines of cases and covers—the Twin Cam 103™ engine makes an ironclad statement about holding on to what’s right and staying true to what satisfies.

ANTI-LOCK BRAKES (OPTIONAL)

When it comes to the Fat Boy® model with optional ABS, ‘stopping power’ has a double meaning. The components of our ABS are tastefully hidden within the wheel hub, so you’ll still turn heads with clean, streamlined design. More importantly, though, you get certainty in the saddle knowing your bike’s going to behave when you need it. Offered as a part of the ‘Security Package’ (which includes the H-D® Smart Security System).

H-D® SMART SECURITY SYSTEM (OPTIONAL)

The factory installed next-generation security system features a hands-free fob that automatically arms and disarms the vehicle electronic security functions as you approach and walk away from the bike. Stick the fob on your ignition key ring and let it do all the work. It’s this attention to details and security that make Harley-Davidson® motorcycles unique. Offered as a part of the ‘Security Package’ (which includes Anti-Lock Brakes).

ARTFULLY HIDDEN TECHNOLOGY

Harley-Davidson leverages the latest in technology without compromising style and function. That means we hide electronics. The whole wiring harness is skillfully routed behind the jewels of the bike—the tank, engine and all the other eye-popping features you want to see. It’s just another way The Motor Company goes the extra mile to give its bikes that premium, top-of-the-line fit and finish.

INTUITIVE CONTROLS

Hand controls on a Harley-Davidson® motorcycle are incredibly intuitive. The turn signals are self-canceling and, based on the speed and angle of the motorcycle, they know how long to stay on. Engaging the controls quickly becomes second nature so you can focus less on turning off your signal and more on basking in the freedom of the ride.

FAT DUNLOP® TIRES

Fatter is better. Rubber 140mm wide up front mitigates feedback from the street for a smoother ride. And the beefy 200mm rear tire provides a confident feeling of sure contact with the road, and excellent traction under braking. And since they’re from Dunlop®, you know you’re wrapping your premium rollers in quality rubber.

TUNED TO BE RIDDEN

Harley-Davidson® motorcycles are different from any other bike out on the road. There’s a balance to them. The steering, the maneuverability—it’s all in concert. And each Harley-Davidson® model is tuned differently to create a unique riding experience for each individual no matter which bike they swing their leg over. Let’s face it, we didn’t get to where we are by being like everyone else.

FULL-LENGTH RIDER FOOTBOARDS

Your boots were made for riding, in any way you see fit. Our full-length footboards boast a tried and true design that’s stood the test of time. Plenty of foot positions for your taste and comfort. Rubber vibration isolation for a comfortable ride. And heel-toe shifting for confident shifting every time. It takes a few rides, but once you’ve gotten used to the smooth heel-toe rhythm, you’ll never give it up. The toes of your boots won’t take the same beating, either.

ENGINE IDLE TEMPERATURE MANAGEMENT STRATEGY

Our motorcycles are built to be ridden. A lot. So that means that rider comfort is top of mind. Always. With the Engine Idle Temperature Management Strategy (EITMS) feature, the motorcycle automatically cuts fuel and fire from rear cylinder when idling, which helps reduce engine heat felt by rider and passenger. This feature can easily be turned on by your dealer.

SEAT ENGINEERING AND DESIGN

The seat is home for Harley-Davidson® motorcycle riders. They want a seat that has unique style without sacrificing comfort. Because of that, Harley-Davidson invests a lot of time in researching, designing and testing seats so that every bike has just the right saddle.

CHROME LOW PROFILE HANDLEBARS

Practically begging you to reach out and grab your freedom, these low profile fat handlebars are the perfect place to start for both new riders and easy-rider comfort for road-hardened warriors. Newly designed for 2012, they offer reduced reach, giving you more comfort and better control of your cruise.

NARROW SEAT

To go along with the low seat height, we’ve added some ergos to make sure every inch of low pays off in pleasurable riding. We’ve slimmed up the seat itself. With the seat shape, lowdown frame and rigid powertrain, you can be sure you’ll feel a solid, comfortable connection with the bike and road.






2012 Harley-Davidson FLSTF Softail Fat Boy – USA Specifications/Technical Details
US MSRP Price:
Vivid Black $16,349, Solids $16,734, Two-Tones $17,054, Custom Colors $17,224 USD

Dimensions
Length 94.3 in. (2395 mm)
Overall Width 39.0 in. (990 mm)
Overall Height 43.1 in. (1095 mm)
Seat Height:
– Laden2 25.0 in. (635 mm)
– Unladen 27.1 in. (690 mm)
Ground Clearance 5.1 in. (130 mm)
Rake (steering head) 31°
Fork Angle 31°
Trail 5.8 in. (147 mm)
Wheelbase 64.5 in. (1638 mm)

Tires (Dunlop® Harley-Davidson® Series, radial blackwall front and rear):
– Front – D408F 140/75R17 67V
– Rear – D407 200/55R17 78V

Fuel Capacity 5.0 gal. (18.9 L) (warning light at approximately 1.0 gal.)
Oil Capacity (w/filter) 3.5 qts. (3.3 L)
Transmission Capacity 1.0 qt. (.95 L)
Primary Chain
Case Capacity 1.0 qt. (.95 L)

Weight:
– As Shipped 694 lbs. (315.0 kg)
– In Running Order 725 lbs. (329.0 kg)
– Gross Vehicle Weight Rating 1160 lbs. (526.0 kg)
– Gross Axle Weight Rating:
– Front 430 lbs. (195.0 kg)
– Rear 730 lbs. (331.0 kg)

Engine
Engine Air-cooled, Twin Cam 103BTM
Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Bore x Stroke 3.875 in. x 4.38 in. (98.4 mm x 111.1 mm)
Displacement 103 cu. in. (1690 cc)
Compression Ratio 9.6:1
Fuel System3 Electronic Sequential Port Fuel Injection (ESPFI)
Air Cleaner Paper, washable
Lubrication System Pressurized, dry-sump

Drivetrain
Primary Drive Chain, 34/46 ratio
Final Drive Belt, 32/66 ratio
Clutch Multi-plate, wet
Transmission 6-Speed Cruise Drive®
Gear Ratios (overall): U.S.
– 1st 9.311
– 2nd 6.454
– 3rd 4.793
– 4th 3.882
– 5th 3.307
– 6th 2.79

Chassis
Frame Mild steel tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded
Swingarm Mild steel, round tube sections, forged junctions; MIG welded
Front Forks 41.3 mm telescopic, “beer can” covers
Rear Shocks Hidden, horizontal-mounted, coil-over
Wheels4 (Polished Chrome Aluminum Bullet Hole Disc front and rear option):
Silver Cast Aluminum Bullet Hole Disc
– Front 17 in. x 3.5 in. (432 mm x 89 mm)
– Rear 17 in. x 6 in. (432 mm x 152 mm)
Brakes:
– Caliper Type 4-piston front and 2-piston rear
– Rotor Type (diameter x width): Patented, uniform expansion rotors
– Front 11.5 in. x .2 in. (292 mm x 5.1 mm)
– Rear 11.5 in. x .23 in. (292 mm x 5.8 mm)
– Anti-lock Braking System: Available

Suspension Travel:
– Front Wheel 5.1 in. (130 mm)
– Rear Wheel 4.3 in. (109 mm)

Performance
Engine Torque5 (per J1349):
– North America 98.7 ft. lbs. @ 3000 RPM (134 Nm @ 3000 RPM)
Lean Angle (per J1168):
– Right 26.2°
– Left 27°

Fuel Economy6 (EPA urban/highway test) 42 mpg (5.6 L/100 km)

COLOR OPTIONS
Solids
– Vivid Black
– Chrome Yellow
Two-Tones
– Midnight Pearl/Brilliant Silver Pearl
Custom Colors
– Tequila Sunrise/H-D Orange

U.S. MSRP
Vivid Black $16,349
Solids $16,734
Two-Tones $17,054
Custom Colors $17,224

Electric
Battery (per Battery Council International Rating)
Sealed, maintenance-free, 12V, 19-amp/hour, 270 cca
Charging Three-phase, 38-amp system (439W @ 13V, 2000 rpm, 489W max power @ 13V)
Starting 1.2 kW electric with solenoid shift starter motor engagement
Lights (as per country regulation):
– Headlamp (quartz halogen) 55-watt low beam, 60-watt high beam
– Tail/Stop Lights 8W/28W (5W/21W)
– Turn Signal Lights 28W (21W) self-canceling
– Indicator Lamps: High beam, neutral, low oil pressure, turn signals, engine diagnostics, security system7 (optional), 6-speed,
low fuel warnings

Warranty
Warranty8 24 months (unlimited mileage)
Service Interval9 First 1000 miles (1600 km), every 5000 miles (8000 km) thereafter

1 Vehicles depicted may differ from vehicles manufactured and delivered. Specifications and prices listed may differ from specifications and prices of vehicles manufactured and delivered. All product descriptions (including depictions, specifications, dimensions, measurements, ratings and competitive comparisons) are based on available information at the time of publication. Although such descriptions are believed correct, errors and changes can occur and complete accuracy cannot be guaranteed. Harley-Davidson may make changes at any time to prices and specifications, and may change or discontinue models, without notice and without incurring any obligation. Attention: Vehicles in the configurations shown and many of the accessories described in this catalog may not be available for sale or use in some locations. Please check with your dealer for complete product details and the latest information. All models feature 6-speed transmission (V-Rod® models and Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.
2 Measurement reflects 180 lb. (81.7 kg) operator weight.
3 Recommended 91 octane or higher fuel (R+M)/2.
4 Standard and optional wheels may vary by country and region.
5 Values shown are nominal. Performance may vary by country and region.
6 The combined fuel economy numbers were derived using a combination of estimated city and highway values. Fuel economy estimates are derived from US EPA exhaust emission certification data on a sample motorcycle from the corresponding family under ideal laboratory conditions. Your actual fuel economy will vary depending on your personal riding habits, road and driving conditions, vehicle condition and maintenance, tire pressure, vehicle configuration (parts and accessories), and vehicle loading (cargo, rider and passenger weight). Break-in mileage may vary.
7 North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
8 See motorcycle owner’s manual for complete details.
9 Inspections of certain systems and components are required at 2500 mile (4000 km) intervals. See Owner’s Manual for full details.








2012 Harley-Davidson FLSTF Softail Fat Boy – Canadian Specifications/Technical Details
Canada MSRP Price: Vivid Black $17,939, Color Option $18,359, Two-Tone Option $18,709, Custom Color Option $18,899, Wheel Option $780 CDN

Dimensions
Length: 2,396 mm
Seat Height, Laden: 645 mm
Seat Height, Unladen: 690 mm
Ground Clearance: 130 mm
Rake (steering head) (deg): 31
Trail: 147 mm
Wheelbase: 1,635 mm
Tires, Front Specification: 140/75R17 67V
Tires, Rear Specification: 200/55R17 78V
Fuel Capacity 3: 18.9 l
Oil Capacity (w/filter): 3.3 l
Weight, As Shipped: 313 kg
Weight, In Running Order: 330 kg
Luggage Capacity -Volume: N/A
Luggage Capacity -Weight: N/A

Engine
Engine 1: Air-cooled, Twin Cam 103B™
Bore: 98.4 mm
Stroke: 111.1 mm
Displacement: 1,690 cc
Compression Ratio: 9.6:1
Fuel System: Electronic Sequential Port Fuel Injection (ESPFI)

Drivetrain
Primary Drive: Chain, 34/46 ratio
Gear Ratios (overall) 1st: 9.311
Gear Ratios (overall) 2nd: 6.454
Gear Ratios (overall) 3rd: 4.793
Gear Ratios (overall) 4th: 3.882
Gear Ratios (overall) 5th: 3.307
Gear Ratios (overall) 6th: 2.79

Chassis
Exhaust: Chrome, over/under shotgun exhaust with dual mufflers
Wheels, Optional Style Type: Mirror Polished Chrome, Bullet Hole Disc Cast Aluminum (front and rear)
Wheels, Front Type: Silver, Bullet Hole Disc Cast Aluminum
Wheels, Rear Type: Silver, Bullet Hole Disc Cast Aluminum
Brakes, Caliper Type: 4-piston front and 2-piston rear
Parking Brake: N/A

Performance
Engine Torque Testing Method: J1349
Engine Torque 2: 134 Nm
Engine Torque (rpm): 3,000
Lean Angle, Right (deg.): 26.2
Lean Angle, Left (deg.): 27
Fuel Economy: Combined City/Hwy: 5.6 l/100 km

Electric
Lights (as per country regulation), Indicator LampsHigh beam, neutral, low oil pressure, turn signals, engine diagnostics, security system (optional), 6-speed, low fuel warnings

Gauges
Tank-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, RPM/gear display, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, 6-speed indicator light

1: Measurement reflects 180 lb. (81.7 kg) operator weight.
2: Recommended 91 octane or higher fuel (R+M)/2.
3: Values shown are nominal. Performance may vary by country and region.
4: Standard and optional fuel systems may vary by country.
5: Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
6: Standard and optional wheels may vary by country and region.
7: North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
8: See motorcycle owner’s manual for complete details.








2012 Harley-Davidson FLSTF Softail Fat Boy – Press Release 1

MORE HARLEY-DAVIDSON MODELS WITH TWIN CAM 103™ POWER IN 2012

V-Rod® 10th Anniversary Edition and Dyna® Switchback Bagger Join the Model Line

MILWAUKEE (July 20, 2011) – Harley-Davidson offers more Big Twin performance for 2012 as its Twin Cam 103™ powertrain is standard equipment on Softail® and Touring motorcycle models and most Dyna® motorcycle models. Harley-Davidson will offer two new models for 2012. The V-Rod® 10th Anniversary Edition celebrates a decade of power-cruiser performance, while the new Dyna® Switchback is a convertible custom-touring motorcycle with detachable hard saddlebags and windshield. In addition, the Night Rod Special has significant updates for 2012 with refreshed bodywork and optimized rider ergonomics. Harley-Davidson Custom Vehicle Operations (CVO)TM rolls out the gleaming new CVO Road Glide® Custom, a limited-production, high-performance touring masterpiece.

Harley-Davidson believes every motorcycle it sells can be a custom of one. Harley-Davidson H-D1™ is a comprehensive offering of customization tools for the Harley-Davidson motorcycle owner. H-D1 tools include Harley-Davidson Genuine Motor Accessories listings in print and on-line catalogs, Fit Shop and consultation services at Harley-Davidson dealerships, and factory customization and Bike Builder tools on www.harley-davidson.com. H-D1 offers almost unlimited opportunities to optimize fit, function, style and performance and turn a Harley into a motorcycle that is truly personalized to its owner.

Harley- Davidson heads into 2012 with 32 models, each born of experience that spans generations and a passion for riding that will never diminish.

Highlights of the 2012 Harley-Davidson line include:

The Twin Cam 103™ engine powers all 2012 Dyna®, Softail® and Touring models with the exception of the Dyna Street Bob® and Dyna Super Glide® Custom. This engine produces up to 100 ft lbs. peak torque, an increase of approximately 6 percent over the Twin Cam 96 engine it replaces as standard power for many of these models. The Twin Cam 103 is equipped with automatic compression release. It features identifying badges on the derby cover, timer cover and air cleaner trim ring.

A Security Package that pairs Anti-lock Braking System (ABS) with Smart Security System with proximity-based, hands-free security fob is available for all 2012 V-Rod®, Dyna®, Softail®, Touring and CVO™ models. The Security Package is standard equipment on CVO™ models and on the Road Glide® Ultra, the Electra Glide® Ultra Limited, and the Road King® Classic. The Security Package is a factory-installed option for all other models.

The Night Rod® Special is updated with new tapered tail section, lighter-weight wheels, an inverted front fork and improved ergonomics. Harley-Davidson celebrates a decade of power cruising with the V-Rod® 10th Anniversary Edition motorcycle, finished in Brilliant Silver Pearl bodywork that evokes the anodized aluminum bodywork of the original V-Rod model that introduced the liquid-cooled Revolution V-Twin engine in 2002. All V-Rod models will carry V-Rod 10th Anniversary badges.

The new Dyna Switchback combines hard saddlebags and a windshield with the eager handling and Twin Cam 103 performance of the Dyna chassis. It’s a custom-touring bike ready for a long weekend trip, until the detachable bags and windshield are removed. Then in seconds the Switchback becomes a custom street cruiser with a gleaming headlamp nacelle, five-spoke cast-aluminum wheels and a mini-ape handlebar. This convertible concept makes the versatile Switchback two motorcycles in one.

All Harley-Davidson Softail models get the performance boost of the Twin Cam 103 engine for 2012. The Fat Boy and Fat Boy Lo have a new reduced-reach handlebar for more-comfortable ergonomics. A lower, narrower seat shape places the Fat Boy rider in a new “in the bike” position. The Softail Deluxe and Heritage Softail Classic will be available with a new optional “tubeless” Chrome Aluminum Profile Laced wheel option for ease of tire replacement and repair.

The Twin Cam 103 powertrain gives all Harley-Davidson Touring models assertive power for passing. On Touring models, the Twin Cam 103 is equipped with an oil cooler. All Touring models except the Ultra Limited will offer a new “tubeless” Chrome Aluminum Profile Laced wheel option.

The Harley-Davidson Sportster® line appeals to a broad range of riders with six 2012 models ranging from the race-inspired XR1200X™ to the accessible SuperLow® to Dark Custom roadsters like the Iron 883™, Nightster® and Forty-Eight®. The Sportster® 1200 Custom can be personalized for fit, function and style with H-D1 factory customization, a process that allows customers to use the Bike Builder tool on harley-davidson.com to build the motorcycle from a selection of options that are installed as the bike is assembled by Harley-Davidson Motor Company or are installed by a dealer after the motorcycle is delivered. New 1200 Custom color options have been added to Bike Builder for 2012.

The new CVO Road Glide Custom is one of four limited-production 2012 models from Harley-Davidson Custom Vehicle Operations (CVO)TM, each turned out with bold paint, gleaming chrome, and the most-powerful V-Twin engines offered in production Harley-Davidson motorcycles. CVO Road Glide Custom is a hot-rod bagger with a frame-mounted fairing topped with a smoked Wind Splitter windshield, a high-output, amplified Harman/Kardon® Advanced Audio system, and a color-matched, low-profile fuel tank console.


About Michael Le Pard 10151 Articles
"Mr. Totalmotorcycle". Owner and Founder of Total Motorcycle, the World’s Largest Motorcycle Site with over 425 million readers since 1999. Total Motorcycle is my pride and joy and being able to reach 425 million people has been incredible and I could not have done it without the support of my visitors, readers and members...thank you so much! We are all making a difference to millions of riders worldwide.

Be the first to comment

Leave a Reply
