2012 Harley-Davidson FLSTSE3 CVO Softail Convertible Review

A touring machine with the soul of a cruiser. Master the road in custom comfort or strip down to cruise the boulevard cool and clean.

The Harley-Davidson® CVO™ Softail® Convertible is a limited-production custom motorcycle that can be configured for all-day touring, two-up cruising or solo profiling by adding or detaching key components, which can be easily removed or installed without tools.

The Softail® rear suspension mimics the clean lines of a vintage hardtail frame but offers the comfort of modern suspension that is hidden under the chassis.

The Harley-Davidson® CVO™ Softail® Convertible is a limited-production custom motorcycle that can be configured for all-day touring, two-up cruising or solo profiling by adding or detaching key components, which can be easily removed or installed without tools.

The Softail® rear suspension mimics the clean lines of a vintage hardtail frame but offers the comfort of modern suspension that is hidden under the chassis. The rigid powertrain allows tight packaging of the engine and frame and creates a solid connection between the rider and the power that moves the motorcycle.

2012 CVO Softail Convertible: Detachable compact fairing, saddlebags, passenger pillion and backrest make it possible to transform the CVO Softail Convertible from touring to cruising format in minutes. For 2012, a redesigned windshield significantly reduces turbulence to the rider and integrates a Road Tech™ zumo 660 GPS Navigator with an MP3 player. Turn-by-turn voice commands play over the two-speaker audio system. The detachable leather saddlebags match the seat and passenger backrest in either distressed brown leather or black leather with reptile inserts. A welded mini-ape handlebar adds a custom touch. Electronic cruise control, keyless ignition and an Anti-lock Braking System (ABS) provide touring functionality. Three new color combinations are available.



EXCLUSIVE CVO™ ENHANCEMENTS

All the quality. All the legacy of the Harley-Davidson® name. Plus custom touches and performance that distinguish you from every other bike on the road. Sure there’s a little vanity. Premium custom paint. Big, tricked-out wheels. The perfect storm of engineering and style you’ll only find on a custom machine. And you’ll spoil yourself with the accessories—from comfort to electronics to chrome. But the real signature of a Harley-Davidson® Custom Vehicle Operations™ motorcycle is the explosive power and sleek detailing of the huge Screamin’ Eagle® engine. It’s custom-built, not just for anyone, but for true connoisseurs of the road.

CHROME WELDED MINI ‘APE-HANGER’ HANDLEBAR

Grab hold of the 1 ¼-inch chrome mini ‘ape-hanger’ handlebars and put your fists 8 inches up in the wind. The 90-degree welds scream garage custom and the internal wiring preserves a clean, premium look. Detach the fairing and extras to cut an even more dramatic figure and bring old-school chopper flavor to your top-of-the line custom cruiser.

CUSTOM STINGER CHROME WHEELS

These wheels are gorgeous in every way. Bold 18-inch wheels in front and back look great against that slammed bike profile. And the five-spoke, Stinger design is done up in fully polished mirrored chrome for a profile that’s sharp, airy and distinct. The iconic Bar & Shield wheel weights and floating brake rotors are chromed out in true custom fashion.

HAND FINISHED FUEL TANK

Harley-Davidson® fuel tanks are finished by hand—that’s what makes them stand out from the competition. Their seamless design and unmatched style are unique among all motorcycles on the road. The tanks are one of the first and last things people notice when they lay their eyes on a Harley-Davidson® motorcycle—so we make it worth their time.

DETACHABLE LEATHER SADDLEBAGS

These detachable bags take the convertible nature of this beast even further. Leave them off to cruise clean and cargo-free, or easily mount them for luxurious long-haul packing and protection (they’re big enough to hold a half-shell helmet and offer sealing against the elements). Combining smooth, sleek styling with the latest convenience features, these premium leather bags come with reptile print inserts, or—for the Satin Pewter finish—in distressed brown leather that matches the seat.

DETACHABLE PASSENGER PILLION

Reptile print inserts bring the style. The backrest pad brings the comfort. And the all-weather leather brings the quality. Best of all, it’s easy to install when you want to take someone for a ride. Or quickly detach for stripped-back solo cruising. Together with the detachable fairing and saddlebags, it’s like having two bikes in one. (The Satin Pewter color-combo’s seating comes in distressed brown leather styling that matches the saddlebags.)

DIGITAL SPEEDO AND ANALOG TACH

Unique to the CVO Softail Convertible model, this high-tech gauge delivers a speedometer that toggles between mph and km/h and a unique perimeter-sweeping tachometer. Its digital, backlit 5-inch face makes for easy readouts, and the design pops with spun metal accents.

HIGH-IMPACT PAINT AND GRAPHICS

Individually-crafted and hand-finished high-impact paint and airbrushed graphics come standard on all Harley-Davidson® CVO™ motorcycles. The Crimson Red Sunglo scheme blazes with Scarlet Crystal graphics while the Satin Pewter and Abyss Blue both bristle with hand air-brushed skulls in the catacomb graphics. And for that extra mile of comfort and style, the Satin Pewter comes with distressed brown leather seat, pillion, backrest and saddlebags.

SCREAMIN’ EAGLE® TWIN CAM 110B™ ENGINE HERITAGE

The knowledge of what makes an engine truly move a rider runs deep at The Motor Company, and it was put to good use when we created the Screamin’ Eagle® Twin Cam 110B™ counter-balanced engine. We sweated bullets perfecting every cubic inch, pushing design and technology forward.

And we did it all without compromising one bit of Harley-Davidson’s unique styling. Evolved, yet carrying on the legacy of the Flathead, Knucklehead, Panhead, Shovelhead, Evolution® and Twin Cam 88® engines that came before. The performance and durability are a direct result of the untold miles logged on the V-Twin since 1909, and the proud heritage that comes from a century’s worth of commitment to life on two wheels.

PURE HARLEY-DAVIDSON STYLING

Feast your eyes on the Twin Cam 110B™ counter-balanced engine and there’s no mistaking its roots. This is authentic Harley-Davidson® style through and through with an attention to detail you won’t find from any other motorcycle company. Granite powder-coated heads and cylinders feature machined cooling fin tips and are highlighted by chrome rocker covers. Exclusive to Custom Vehicle Operations™, the granite powertrain and 110 badging are unapologetically distinguished. It’s a jewel machined out of metal. Pure. Dripping with power.

From the classic edge of the cooling fins to the clean lines of cases and covers—the Twin Cam 110B™ engine makes an ironclad statement to holding on to what’s right and staying true to what satisfies the rider.

SIX-SPEED CRUISE DRIVE®

You want a ride that rumbles—not begs for mercy—when you lean on it a little. The Six-Speed Cruise Drive® transmission provides smooth, quiet shifting and reduces engine speed on the highway, so you get a better match between engine turnover and road speed. It’s a rare ride when a bike responds like this, and a low growl goes a long way when you’re opening up the road ahead.

HYDRAULIC CLUTCH

Performance gets the custom treatment on Custom Vehicle Operations™ motorcycles. The addition of a high-performance clutch with hydraulic actuation helps make sure you’re getting a smooth, confident feel with just the right amount of effort and a hands-off reliability that’s only fitting. And you’ll love the confidence and control it lends when harnessing those 110 cubic inches of Screamin’ Eagle® power.

‘VENTILATOR’ INTAKE WITH SCREAMIN’ EAGLE® 110 INSERT

Everything about the Screamin’ Eagle® Twin Cam 110™ Engine is a testament to the premium styling and performance you get with a limited Custom Vehicle Operations™ motorcycle. Right smack between the engine jugs rests the high-flow ‘ventilator’ intake with high-flow filter element, back plate, alligator-styled Screamin’ Eagle badge and protective rain sock. Your bike will breathe easy while the increased air flow boosts the raw power. Unique and exclusive. That is what Custom Vehicle Operations is all about.

SCREAMIN’ EAGLE® TWIN CAM 110B™ ENGINE INNOVATION

Fire up the Twin Cam 110B™ counter-balanced engine and feel the low-end torque unleashed for a smooth ride. The colossal 110 cubic inches provide seemingly endless torque with adrenaline-pumping pull through all six gears. Boasting the largest-displacement V-Twin engine by Harley-Davidson, the Twin Cam 110B™ produces 105 ft. lbs. of torque at 2750 rpm. Six speeds. A strong driveline and strong internal parts. And a low cruising rpm that couldn’t feel better.

ELECTRONIC CRUISE CONTROL

Introducing the first-ever factory cruise control on a Harley-Davidson® Softail®. It’s just another way the Convertible rides the line between cruising style and touring comfort. You’ll get the convenience of cruise control without the cables cluttering up your handlebar. Our electronic throttle control technology makes it possible to have the best of both worlds.

ARTFULLY HIDDEN TECHNOLOGY

Harley-Davidson leverages the latest in technology without compromising style and function. That means we hide electronics. The whole wiring harness is skillfully routed behind the jewels of the bike—the tank, engine and all the other eye-popping features you want to see. It’s just another way The Motor Company goes the extra mile to give its bikes that premium, top-of-the-line fit and finish.

INTUITIVE CONTROLS

Hand controls on a Harley-Davidson® motorcycle are incredibly intuitive. The turn signals are self-canceling and, based on the speed and angle of the motorcycle, they know how long to stay on. Engaging the controls quickly becomes second nature so you can focus less on turning off your signal and more on basking in the freedom of the ride.

NEW INTEGRATED ROAD TECH ZuMO® 660 NAVIGATION SYSTEM

You may know where you’re headed, but this system helps you get more out of every mile. Designed by bikers for bikers, this widescreen motorcycle nav system comes preloaded with City Navigator® NT street maps and markers for H-D® dealers, motels, restaurants, fuel, ATMs and anything else you might need out on the road. Its integrated into the instrument display and offers an easy-read format on a large-scale 4.3-inch touchscreen that’s readable day or night, with a glove-friendly interface that makes using it as easy as shifting gears.

INTEGRATED MP3 PLAYER

With its seamlessly-integrated MP3 player, the Garmin Zumo Navigation system gives you 4GB of memory for thousands of your favorite songs at your fingertips. And since the system automatically pauses your tunes so that you can hear its turn-by-turn voice directions clearly, the only thing you’ll get lost in is the music. Crank it up!

PREMIUM SOUND SYSTEM

Your tunes in that Zumo-integrated MP3 player deserve a suitably booming system. With its 20W per channel amplifier driving its 3 ½–inch two-way speakers, the CVO Softail Convertible’s system definitely delivers the rock in your roll. The amp, speakers, and volume control are housed artfully inside the inner fairing for a slick, clean look—a perfect compliment to the crisp, blanketing sound. Riding free just wouldn’t be the same without the right soundtrack. Now, it’s yours to write.

KEYLESS IGNITION SYSTEM WITH SECURITY SYSTEM

Talk about feeling connected to your machine. For anyone else, it’s just a good-looking pile of metal. But it knows you. The ignition switch is gone and you don’t even need a key to start your bike. The system features a hands-free fob that automatically arms the vehicle as you walk away from the bike. And when you get back, the system is disabled before you can swing your leg over and flip the switch to start it. It’s all automatic. It just happens for you. And since the bike takes care of itself, we replaced the ignition switch with an eye-catching, back-lit medallion that glows red with the distinctive Custom Vehicle Operations™ logo.

ANTI-LOCK BRAKES

When it comes to the CVO Softail Convertible, ‘stopping power’ has a double meaning. Standard on this Custom Vehicle Operations™ motorcycle, the components of our ABS are tastefully hidden within the front and rear headlight cover, so you’ll still turn heads with a clean, streamlined design. More importantly, though, you get certainty in the saddle knowing your bike’s going to respond and stop smoothly when you need it to.

TUNED TO BE RIDDEN

Harley-Davidson® motorcycles are different than any other bike out on the road. There’s a balance to them. The steering, the maneuverability—it’s all in concert. And each Harley-Davidson® model is tuned differently to create a unique riding experience for each individual no matter which bike they swing their leg over. Let’s face it, we didn’t get to where we are by being like everyone else.

DETACHABLE PASSENGER SEAT

Though you get your dream bike, your passenger might argue they’re the lucky one. They’ll be seen soaking up miles in touring comfort, complete with a padded backrest—not to mention a chauffeur. And when it’s time for you to go alone, just quickly detach the passenger pillion, backrest and upright and hit the throttle—don’t worry, underneath you’ll find stylish chrome and rubber trim strips for a clean solo look.

FULL-LENGTH FOOTBOARDS

Your boots were made for riding, in any way you see fit. Our full-length footboards boast a tried and true design that’s stood the test of time. You can rock plenty of foot positions with the Rumble-style boards for your taste and comfort. Plus, rubber vibration isolation offers a smooth ride every time.

EXTENDED JIFFY LEG STAND

The CVO™ Softail® Convertible model is the ultimate bike for riders of all sizes. We’ve even added a longer side stand to make it easy for you to extend and tuck away, no matter your inseam. Polished and chrome-plated, it adds style and convenience. So when you roll up to a roadhouse, you’ll be able to slide off and settle in without even breaking your stride.

CUSTOM SEAT

The perfect saddle for riders craving that low-down slammed West Coast style. At a sunken 24.4 inches, this seat is one of the lowest you’ll find on a Harley-Davidson® motorcycle. And the slim nose makes it even easier to get your feet flat on the ground. Riders of all sizes can sink down in the saddle and confidently stalk the boulevard in comfort. As for style, the Satin Pewter scheme’s seat is distressed brown leather that matches the saddlebags, pillion and backrest for rugged but luxurious looks, while black reptile print inserts give the Abyss Blue and Crimson Red Sunglo combos a touch of classic detail.

DETACHABLE FAIRING

The CVO Softail Convertible model is all about options. We’ve redesigned the fairing for 2012, making it taller and wider for enhanced wind protection—it helps you beat the elements over the long haul but detaches easily if you want to cruise in the wind. The windshield-mounted Zumo™ Road Tech 660’s voice directions will keep you on track wherever you’re going, or you can put it to a more entertaining use: booming your favorite road tunes from its integrated MP3 player through the built-in speakers and amp.



Harley-Davidson Custom Vehicle Operations (CVO)TM emphasizes exclusive styling and inspiring performance with four limited-production motorcycle models for 2012. Decked out with bold paint, gleaming chrome, high-output audio and the most-powerful V-Twin engines offered in production Harley-Davidson motorcycles, each CVO model is a rolling object of desire for the discerning motorcyclist.

Each 2012 CVO model is powered by the fuel-injected Twin Cam 110™ V-Twin, the largest-displacement engine offered in a Harley-Davidson motorcycle, rated at up to 122 ft. lbs. of torque. This engine is only available from the factory in CVO models. CVO motorcycles are customized using premium accessories and paint treatments combined with numerous items from the Harley-Davidson Genuine Motor Accessories catalog. The CVO program is often used to introduce new custom components and techniques before they are offered as individual accessories. Harley-Davidson CVO motorcycles are backed by a two-year, unlimited mileage warranty.


CVO models return for 2012 with new paint schemes and features.









2012 Harley-Davidson FLSTSE3 CVO Softail Convertible Model Highlights

NEW Three exclusive paint schemes:

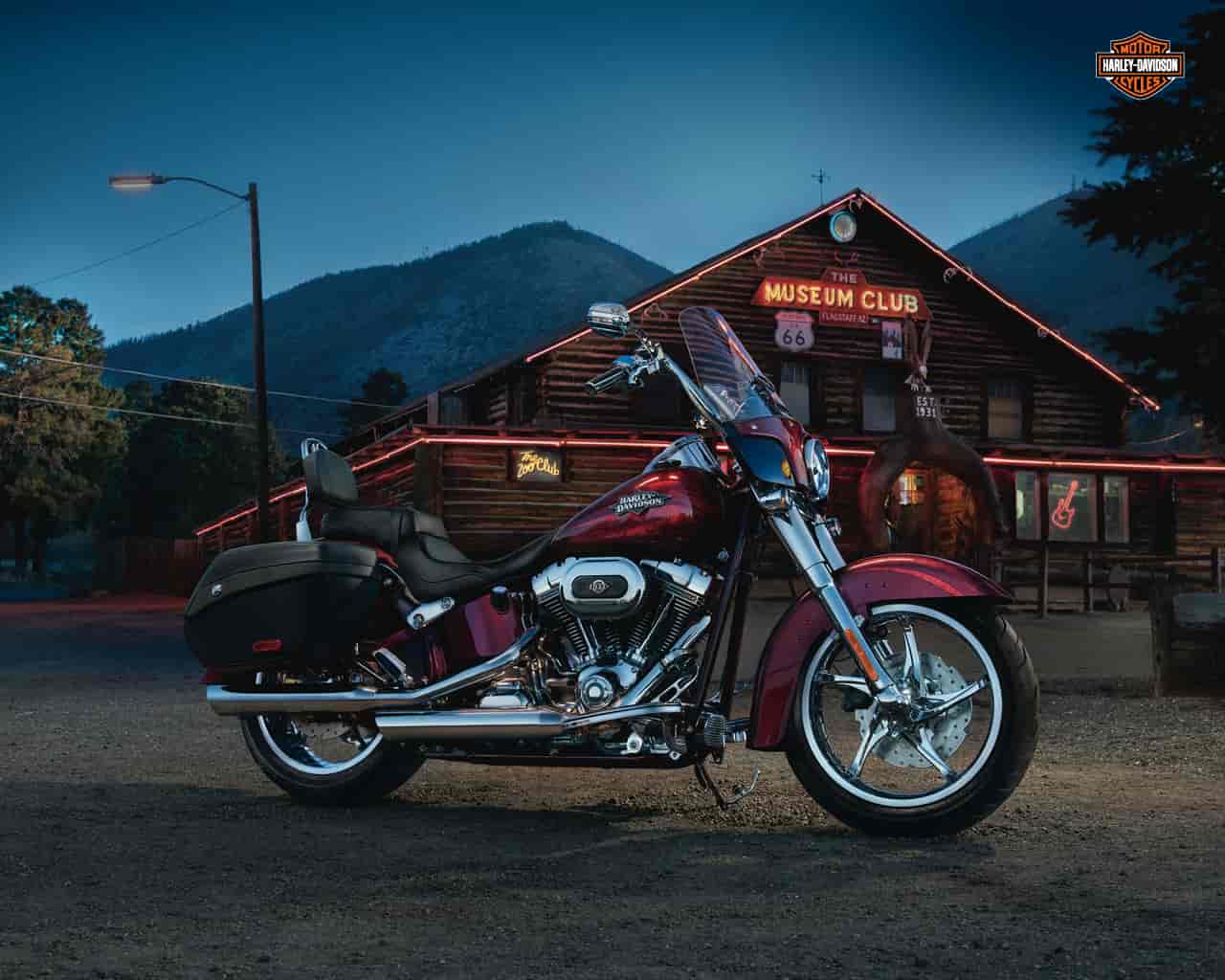

– Crimson Red Sunglo with Scarlet Crystal Graphics

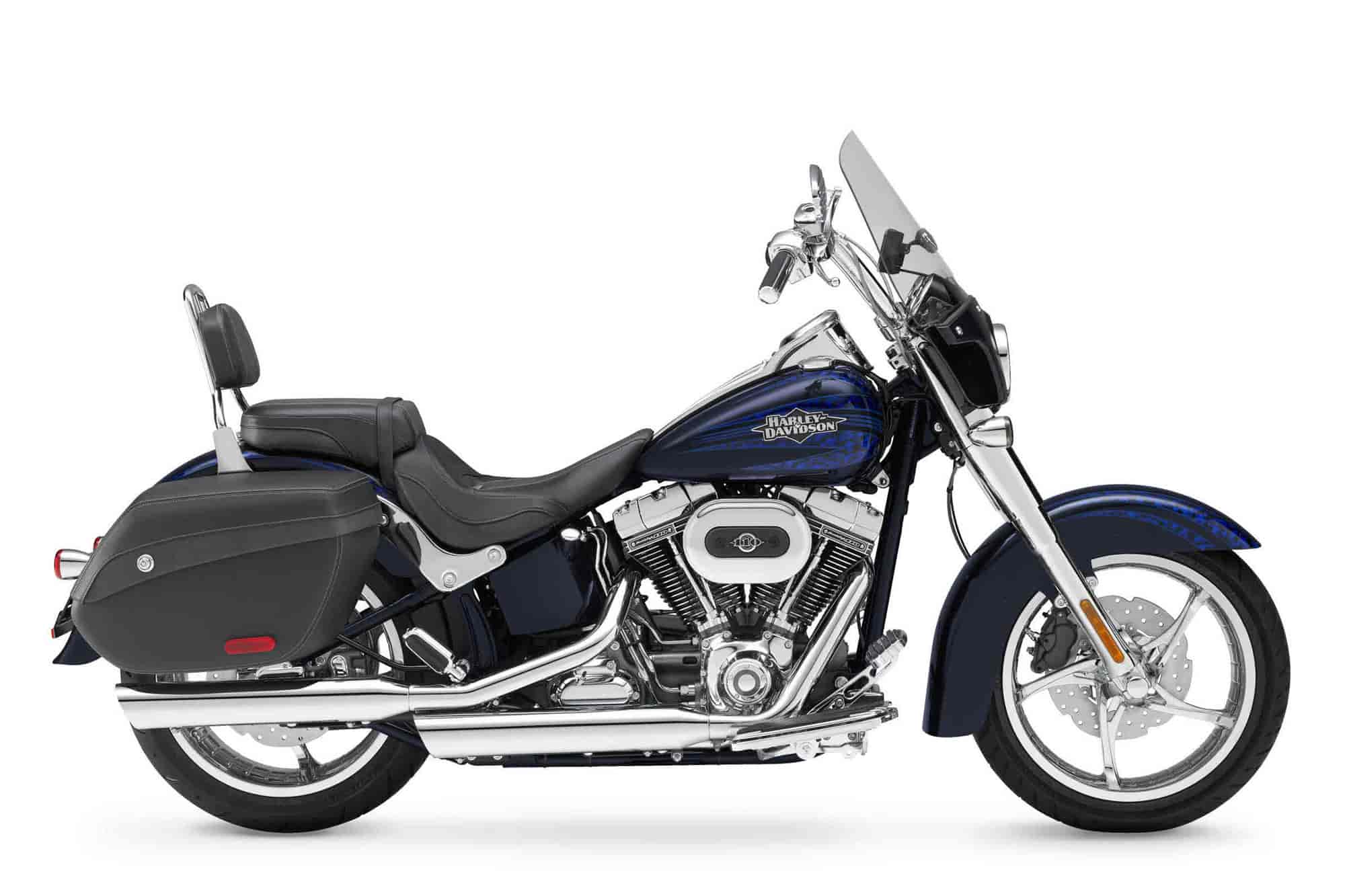

– Abyss Blue with Catacomb Graphics

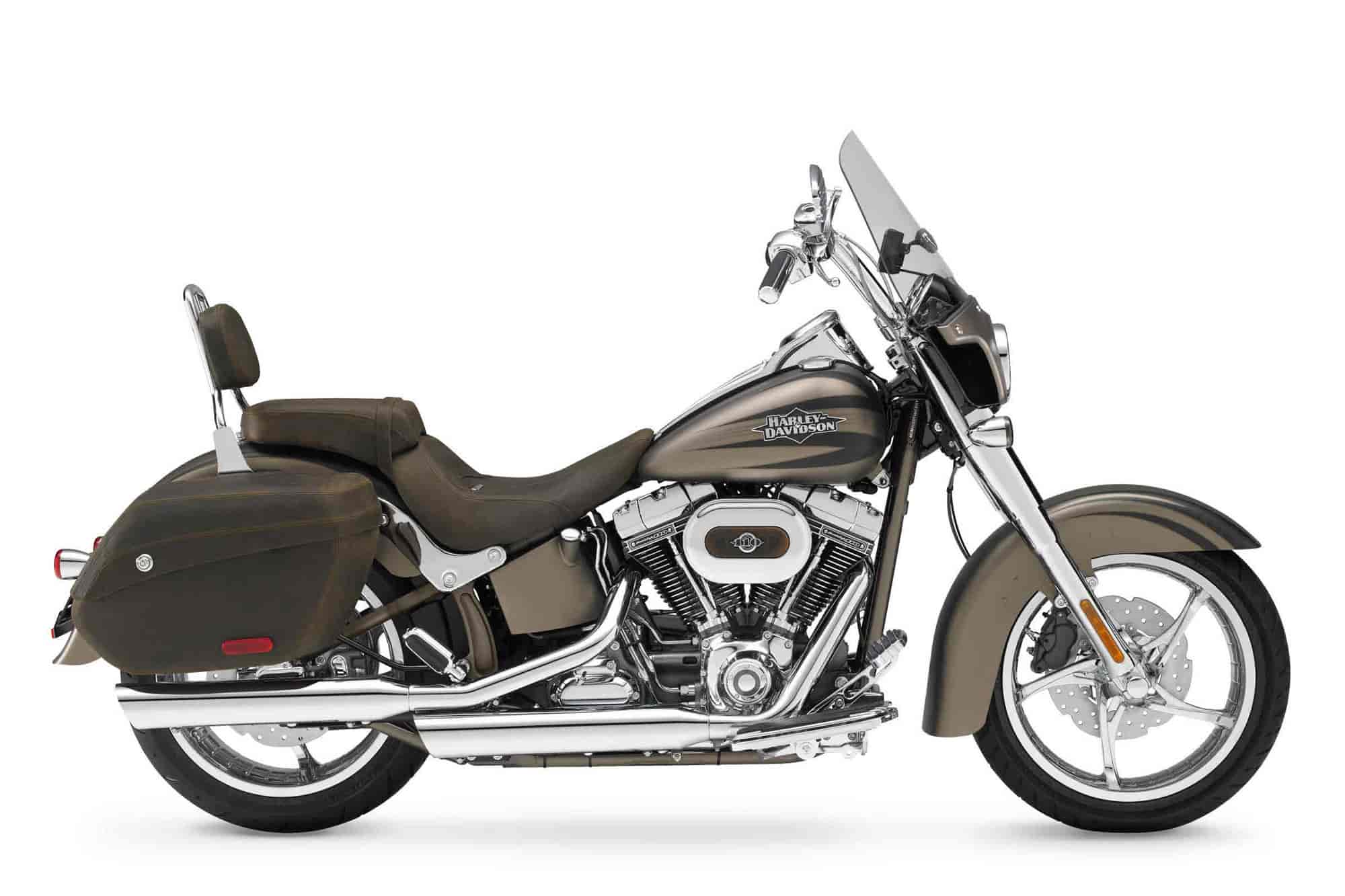

– Satin Pewter with Catacomb Graphics
NEW Detachable fairing with improved wind protection
NEW Garmin® 660 with integrated MP3 player
NEW Detachable, lockable, sealing Leather saddlebags with distressed brown leather (satin pewter only) or reptile inserts
NEW Custom leather seat, removable passenger pillion, and detachable stylized passenger upright and backrest pad with distressed brown leather (satin pewter only) or reptile inserts
– Electronic throttle control with cruise control standard
– Anti-lock Braking System (ABS) standard
– Chrome, 1.25-inch internally-wired welded mini-ape handlebar
– Keyless ignition system with CVO™ backlit medallion on the tank console
– Extended jiffy leg
– Mirror Chrome Aluminum Stinger Custom wheels, 18-inch, with matching Stinger chrome sprocket and Stinger floating brake rotors
– Digital speedometer and analog tachometer with gray satin tint aluminum face
– High-flow Ventilator engine air intake with leather on insert and rain sock
– Color-coordinated frame and swingarm, frame inserts, and horseshoe oil tank
– Screamin’ Eagle® Twin Cam 110B™ Granite powder-coated powertrain with 110 Screamin’ Eagle® identifiers on cylinder heads
– Rumble Collection grips, rider floor boards, passenger peg, shifter pegs, brake pedal pad and mirrors





2012 Harley-Davidson FLSTSE3 CVO Softail Convertible Key Features and Benefits

– Chrome Accessories
– Clutch line and brake line clamps
– Shorty chrome dual-exhaust with slashdown mufflers and heat shields
– Headlight trim ring, nacelle and back plate
– Front sliders and upper fork slider covers
– Wheel spacers
– Handlebar risers and caps
– Shifter, rear brake lever and forward control mounts
– Voltage regulator
– Rear brake master cylinder cover
– Switch housings
– Upper belt guard and debris deflector
– Sprocket bolt covers
– Valve stem caps
– Front and rear axle nut covers
– Pivot shaft covers
– Black high-torque 1.4kW starter
– High-performance clutch with hydraulic actuation
– Harley-Davidson® Smart Security System














2012 Harley-Davidson FLSTSE3 CVO Softail Convertible – USA Specifications/Technical Details
US MSRP Price:
$29,699 USD

Dimensions
Length 94.9 in. (2410 mm)
Overall Width 35.8 in. (909 mm)
Overall Height 52.7 in. (1290 mm)
Seat Height:
– Laden2 24.4 in. (620 mm)
– Unladen 26.2 in. (665 mm)
Ground Clearance 4.3 in. (109 mm)
Rake (steering head) 32°
Fork Angle 31°
Trail 5.8 in. (147 mm)
Wheelbase 64.2 in. (1631 mm)

Tires (Dunlop® Harley-Davidson® Series, radial blackwall front and rear):
– Front – D408 130/70R18 63V
– Rear – D407 200/50R18 76V
Fuel Capacity 5.0 gal. (18.9 L) (warning light at approximately 1.0 gal.)
Oil Capacity (w/filter) 3.0 qts. (2.8 L)
Transmission Capacity 1.0 qt. (.95 L)
Primary Chain
Case Capacity 1.0 qt. (1.3 L)

Weight:
– As Shipped 761 lbs. (345.2 kg)
– In Running Order 788 lbs. (357.4 kg)
– Gross Vehicle Weight Rating 1160 lbs. (526.2 kg)
– Gross Axle Weight Rating:
– Front 430 lbs. (195.0 kg)
– Rear 730 lbs. (331.1 kg)

Engine
Engine Air-cooled, Twin Cam 110B™
Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two-valves per cylinder
Bore x Stroke 4 in. x 4.38 in. (101.6 mm x 111.3 mm)
Displacement 110 cu. in. (1802 cc)
Compression Ratio 9.15:1
Fuel System3 Electronic Sequential Port Fuel Injection (ESPFI)
Air Cleaner Ventilator intake with chrome cover, fiberglass media, washable exposed element with rain sock
Lubrication System Pressurized, dry-sump

Drivetrain
Primary Drive Chain, 34/46 ratio
Final Drive Belt, 32/66 ratio
Clutch Hydraulically actuated, 9-plate wet, with high-performance spring
Transmission 6-Speed Cruise Drive®
Gear Ratios (overall): U.S.
– 1st 9.31 1
– 2nd 6.454
– 3rd 4.793
– 4th 3.882
– 5th 3.307
– 6th 2.79

Chassis
Frame Mild steel, tubular frame; rectangular section backbone; stamped, cast and forged junctions; MIG welded; color coordinated with vehicle
Swingarm Mild steel tube sections; forged junctions; MIG welded; color coordinated with vehicle
Front Forks 41.3 mm telescopic, chrome upper fork-slider covers
Rear Shocks Hidden, horizontal-mounted, coil-over
Wheels4: Mirror Chrome Stinger™ Custom Wheels
– Front 18 in. x 3.5 in. (457 mm x 89 mm)
– Rear 18 in. x 6 in. (457 mm x 152 mm)

Brakes:
– Caliper Type 4-piston fixed front; 2-piston floating rear
– Rotor Type (diameter x width): Single floating Stinger™ waved rotor
– Front 11.5 in. x .2 in. (292 mm x 5 mm)
– Rear 11.5 in. x .23 in. (292 mm x 6 mm)
– Anti-lock Braking System: Standard

Suspension Travel:
– Front Wheel 5.1 in. (130 mm)
– Rear Wheel 3.3 in. (84 mm)

Performance
Engine Torque5 (per J1349):
– North America 105 ft. lbs. @ 2750 RPM (142.359 Nm @ 2750 RPM)
Lean Angle (per J1168):
– Right 26°
– Left 26°

Fuel Economy6 (EPA urban/highway test) 45 mpg (5.2 L/100 km)

COLOR OPTIONS
Custom Colors
– Crimson Red Sunglo with Scarlet Crystal graphics
– Abyss Blue with Catacomb graphics
– Satin Pewter with Catacomb graphics

PRICING
U.S. MSRP $29,699

Electric
Battery (per Battery Council International Rating)
Sealed, maintenance-free, 12V, 19-amp/hour, 315 cca
Charging Three-phase, 38-amp system (439W @ 13V, 2000 RPM, 489W max power @ 13V)
Starting 1.4kW electric with solenoid shift starter motor engagement

Lights (as per country regulation):
– Headlamp (quartz halogen) 55-watt low beam, 60-watt high beam
– Rear Tail/Stop Lights 8W/28W self-canceling
– Front Signal Lights 8W/28W self-canceling
– Indicator Lamps: High-beam, neutral, low oil pressure, turn signals, engine diagnostics, security system7, 6-speed, low fuel
warning, cruise control, ABS

Warranty
Warranty8 24 months (unlimited mileage)
Service Interval9 First 1000 miles (1600 km), every 5000 miles (8000 km) thereafter

1 Vehicles depicted may differ from vehicles manufactured and delivered. Specifications and prices listed may differ from specifications and prices of vehicles manufactured and delivered. All product descriptions (including depictions, specifications, dimensions, measurements, ratings and competitive comparisons) are based on available information at the time of publication.
Although such descriptions are believed correct, errors and changes can occur and complete accuracy cannot be guaranteed. Harley-Davidson may make changes at any time to prices and specifications, and may change or discontinue models, without notice and without incurring any obligation. Attention: Vehicles in the configurations shown and many of the accessories described in this catalog may not be available for sale or use in some locations. Please check with your dealer for complete product details and the latest information. All models feature 6-speed transmission (V-Rod® models and Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.
2 Measurement reflects 180 lb. (81.7 kg) operator weight.
3 Recommended 91 octane or higher fuel (R+M)/2.
4 Standard and optional wheels may vary by country and region.
5 Values shown are nominal. Performance may vary by country and region.
6 The combined fuel economy numbers were derived using a combination of estimated city and highway values. Fuel economy estimates are derived from US EPA exhaust emission certification data on a sample motorcycle from the corresponding family under ideal laboratory conditions. Your actual fuel economy will vary depending on your personal riding habits, road and driving conditions, vehicle condition and maintenance, tire pressure, vehicle configuration (parts and accessories), and vehicle loading (cargo, rider and passenger weight). Break-in mileage may vary.
7 North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
8 See motorcycle owner’s manual for complete details.
9 Inspections of certain systems and components are required at 2500 mile (4000 km) intervals. See Owner’s Manual for full details.












2012 Harley-Davidson FLSTSE3 CVO Softail Convertible – Canadian Specifications/Technical Details
Canada MSRP Price: CVO Custom Color $32,589 CDN

Dimensions
Length: 2,410 mm
Seat Height, Laden: 620 mm
Seat Height, Unladen: 665 mm
Ground Clearance: 109 mm
Rake (steering head) (deg): 32
Trail: 147 mm
Wheelbase: 1,631 mm
Tires, Front Specification: 130/70R18 63V
Tires, Rear Specification: 200/50R18 76V
Fuel Capacity 3: 18.9 l
Oil Capacity (w/filter): 2.8 l
Weight, As Shipped: 345.19 kg
Weight, In Running Order: 357.437 kg
Luggage Capacity -Volume: N/A
Luggage Capacity -Weight: N/A

Engine
Engine 1: Air-cooled, Twin Cam 110B™
Bore: 101.6 mm
Stroke: 111.3 mm
Displacement: 1,802 cc
Compression Ratio: 9.15:1
Fuel SystemElectronic Sequential Port Fuel Injection (ESPFI)

Drivetrain
Primary Drive: Chain, 34/46 ratio
Gear Ratios (overall) 1st: 9.311
Gear Ratios (overall) 2nd: 6.454
Gear Ratios (overall) 3rd: 4.793
Gear Ratios (overall) 4th: 3.882
Gear Ratios (overall) 5th: 3.307
Gear Ratios (overall) 6th: 2.79

Chassis
Exhaust: Crimson Red Sunglo w/ Scarlet Crystal Graphics
Wheels, Optional Style Type: N/A
Wheels, Front Type: Chrome Stinger™ Cast Aluminum
Wheels, Rear Type: Chrome Stinger™ Cast Aluminum
Brakes, Caliper Type: 4-piston fixed front; 2-piston floating rear
Parking Brake: N/A

Performance
Engine Torque Testing Method: J1349
Engine Torque 2: 149 Nm
Engine Torque (rpm): 3,000
Lean Angle, Right (deg.): 26
Lean Angle, Left (deg.): 26
Fuel Economy: Combined City/Hwy: N/A

Electric
Lights (as per country regulation), Indicator LampsHigh-beam, neutral, low oil pressure, turn signals, engine diagnostics, security system, 6-speed, low fuel warning, cruise control, ABS

Gauges
New- Garmin 660 GPS Navigation with integrated MP3 player

1: Measurement reflects 180 lb. (81.7 kg) operator weight.
2: Recommended 91 octane or higher fuel (R+M)/2.
3: Values shown are nominal. Performance may vary by country and region.
4: Standard and optional fuel systems may vary by country.
5: Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
6: Standard and optional wheels may vary by country and region.
7: North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
8: See motorcycle owner’s manual for complete details.












2012 Harley-Davidson FLSTSE3 CVO Softail Convertible – Press Release 1

2012 CVO BIKES OFFER STUNNING STYLE AND THRILLING PERFORMANCE

Four Models Include New CVO Road Glide Custom; Upgraded Infotainment on All Bikes

MILWAUKEE (July 20, 2011) – Harley-Davidson Custom Vehicle Operations (CVO)TM emphasizes exclusive styling and inspiring performance with four limited-production motorcycle models for 2012. Decked out with bold paint, gleaming chrome, high-output audio and the most-powerful V-Twin engines offered in production Harley-Davidson motorcycles, each CVO model is a rolling object of desire for the discerning motorcyclist.

Each 2012 CVO model is powered by the fuel-injected Twin Cam 110™ V-Twin, the largest-displacement engine offered in a Harley-Davidson motorcycle, rated at up to 122 ft. lbs. of torque. This engine is only available from the factory in CVO models. CVO motorcycles are customized using premium accessories and paint treatments combined with numerous items from the Harley-Davidson Genuine Motor Accessories catalog. The CVO program is often used to introduce new custom components and techniques before they are offered as individual accessories. Harley-Davidson CVO motorcycles are backed by a two-year, unlimited mileage warranty.

Harley-Davidson is offering an all-new CVO model for 2012:

2012 CVO Road Glide Custom: This hot-rod bagger combines a distinctive shark-nose, frame-mounted fairing with a road-hugging, slammed profile for a look that’s sure to turn heads. A high-output, amplified Harman/Kardon Advanced Audio radio features CD/AM/FM/WB and delivers 100 watts per channel to five-by-seven-inch fairing-mount speakers and two-inch dash-mount tweeters. An included 8GB Apple iPod nano connects via an interface and holder located in the right-side saddlebag. Exclusive custom features include a smoked Wind Splitter windshield; a two-piece custom seat with removable pillion and color-coordinated stitching and cover; and a color-matched, low-profile fuel tank console with illuminated CVO graphic insert. A 19-inch Contrast Chrome Agitator Custom front wheel leads this beauty down the road.

Three CVO models return for 2012 with new paint schemes and features:

2012 CVO Street Glide: A high-performance bagger with a fork-mounted bat-wing fairing, the CVO Street Glide has enhanced audio performance with a two-amp/eight-speaker system that includes speakers in the fairing, fairing lowers, and now also in the saddlebag lids. Also new is a low-profile solo touring seat with an embossed insert pattern, detachable passenger pillion and backrest pad, and Diamond Cut Charcoal engine cover inserts and instrument faces. Three new color combinations are available.

2012 CVO Softail Convertible: Detachable compact fairing, saddlebags, passenger pillion and backrest make it possible to transform the CVO Softail Convertible from touring to cruising format in minutes. For 2012, a redesigned windshield significantly reduces turbulence to the rider and integrates a Road Tech™ zumo 660 GPS Navigator with an MP3 player. Turn-by-turn voice commands play over the two-speaker audio system. The detachable leather saddlebags match the seat and passenger backrest in either distressed brown leather or black leather with reptile inserts. A welded mini-ape handlebar adds a custom touch. Electronic cruise control, keyless ignition and an Anti-lock Braking System (ABS) provide touring functionality. Three new color combinations are available.

2012 CVO™ Ultra Classic® Electra Glide®: This ultimate long-haul touring motorcycle is ready to take on the most-challenging touring assignments with style. New features for 2012 start with BOOM!™ Audio High Performance BOOM! Bagger™ Speakers plus new BOOM!™ Audio Bass Booster Ports in the Tour-Pak bottom liner. These are all powered by an amplifier tuned to match the dynamics of the speakers and the motorcycle environment. An 8GB Apple iPod nano and iPod interface completes the audio package. The CVO Ultra rolls on new Mirror Chrome Chisel Custom wheels with matching brake rotors, and the King Tour-Pak features new chrome LED brake/tail lamps. The suspended, dual-control heated, two-up seat and adjustable passenger backrest have an H-D Bar & Shield monogram and pebbled pattern texture. Electronic Throttle Control (ETC), cruise control, and ABS are standard equipment. Three new color combinations are available.







2012 Harley-Davidson FLSTSE3 CVO Softail Convertible – Press Release 2

MORE HARLEY-DAVIDSON MODELS WITH TWIN CAM 103™ POWER IN 2012

V-Rod® 10th Anniversary Edition and Dyna® Switchback Bagger Join the Model Line

MILWAUKEE (July 20, 2011) – Harley-Davidson offers more Big Twin performance for 2012 as its Twin Cam 103™ powertrain is standard equipment on Softail® and Touring motorcycle models and most Dyna® motorcycle models. Harley-Davidson will offer two new models for 2012. The V-Rod® 10th Anniversary Edition celebrates a decade of power-cruiser performance, while the new Dyna® Switchback is a convertible custom-touring motorcycle with detachable hard saddlebags and windshield. In addition, the Night Rod Special has significant updates for 2012 with refreshed bodywork and optimized rider ergonomics. Harley-Davidson Custom Vehicle Operations (CVO)TM rolls out the gleaming new CVO Road Glide® Custom, a limited-production, high-performance touring masterpiece.

Harley-Davidson believes every motorcycle it sells can be a custom of one. Harley-Davidson H-D1™ is a comprehensive offering of customization tools for the Harley-Davidson motorcycle owner. H-D1 tools include Harley-Davidson Genuine Motor Accessories listings in print and on-line catalogs, Fit Shop and consultation services at Harley-Davidson dealerships, and factory customization and Bike Builder tools on www.harley-davidson.com. H-D1 offers almost unlimited opportunities to optimize fit, function, style and performance and turn a Harley into a motorcycle that is truly personalized to its owner.

Harley- Davidson heads into 2012 with 32 models, each born of experience that spans generations and a passion for riding that will never diminish.

Highlights of the 2012 Harley-Davidson line include:

The Twin Cam 103™ engine powers all 2012 Dyna®, Softail® and Touring models with the exception of the Dyna Street Bob® and Dyna Super Glide® Custom. This engine produces up to 100 ft lbs. peak torque, an increase of approximately 6 percent over the Twin Cam 96 engine it replaces as standard power for many of these models. The Twin Cam 103 is equipped with automatic compression release. It features identifying badges on the derby cover, timer cover and air cleaner trim ring.

A Security Package that pairs Anti-lock Braking System (ABS) with Smart Security System with proximity-based, hands-free security fob is available for all 2012 V-Rod®, Dyna®, Softail®, Touring and CVO™ models. The Security Package is standard equipment on CVO™ models and on the Road Glide® Ultra, the Electra Glide® Ultra Limited, and the Road King® Classic. The Security Package is a factory-installed option for all other models.

The Night Rod® Special is updated with new tapered tail section, lighter-weight wheels, an inverted front fork and improved ergonomics. Harley-Davidson celebrates a decade of power cruising with the V-Rod® 10th Anniversary Edition motorcycle, finished in Brilliant Silver Pearl bodywork that evokes the anodized aluminum bodywork of the original V-Rod model that introduced the liquid-cooled Revolution V-Twin engine in 2002. All V-Rod models will carry V-Rod 10th Anniversary badges.

The new Dyna Switchback combines hard saddlebags and a windshield with the eager handling and Twin Cam 103 performance of the Dyna chassis. It’s a custom-touring bike ready for a long weekend trip, until the detachable bags and windshield are removed. Then in seconds the Switchback becomes a custom street cruiser with a gleaming headlamp nacelle, five-spoke cast-aluminum wheels and a mini-ape handlebar. This convertible concept makes the versatile Switchback two motorcycles in one.

All Harley-Davidson Softail models get the performance boost of the Twin Cam 103 engine for 2012. The Fat Boy and Fat Boy Lo have a new reduced-reach handlebar for more-comfortable ergonomics. A lower, narrower seat shape places the Fat Boy rider in a new “in the bike” position. The Softail Deluxe and Heritage Softail Classic will be available with a new optional “tubeless” Chrome Aluminum Profile Laced wheel option for ease of tire replacement and repair.

The Twin Cam 103 powertrain gives all Harley-Davidson Touring models assertive power for passing. On Touring models, the Twin Cam 103 is equipped with an oil cooler. All Touring models except the Ultra Limited will offer a new “tubeless” Chrome Aluminum Profile Laced wheel option.

The Harley-Davidson Sportster® line appeals to a broad range of riders with six 2012 models ranging from the race-inspired XR1200X™ to the accessible SuperLow® to Dark Custom roadsters like the Iron 883™, Nightster® and Forty-Eight®. The Sportster® 1200 Custom can be personalized for fit, function and style with H-D1 factory customization, a process that allows customers to use the Bike Builder tool on harley-davidson.com to build the motorcycle from a selection of options that are installed as the bike is assembled by Harley-Davidson Motor Company or are installed by a dealer after the motorcycle is delivered. New 1200 Custom color options have been added to Bike Builder for 2012.

The new CVO Road Glide Custom is one of four limited-production 2012 models from Harley-Davidson Custom Vehicle Operations (CVO)TM, each turned out with bold paint, gleaming chrome, and the most-powerful V-Twin engines offered in production Harley-Davidson motorcycles. CVO Road Glide Custom is a hot-rod bagger with a frame-mounted fairing topped with a smoked Wind Splitter windshield, a high-output, amplified Harman/Kardon® Advanced Audio system, and a color-matched, low-profile fuel tank console.


About Michael Le Pard 11051 Articles
"Mr. Totalmotorcycle". Owner and Founder of Total Motorcycle, the World’s Largest Motorcycle Site with over 425 million readers since 1999. Total Motorcycle is my pride and joy and being able to reach 425 million people has been incredible and I could not have done it without the support of my visitors, readers and members...thank you so much! We are all making a difference to millions of riders worldwide.

Be the first to comment

Leave a Reply
