2013 Yamaha YZ250F Review

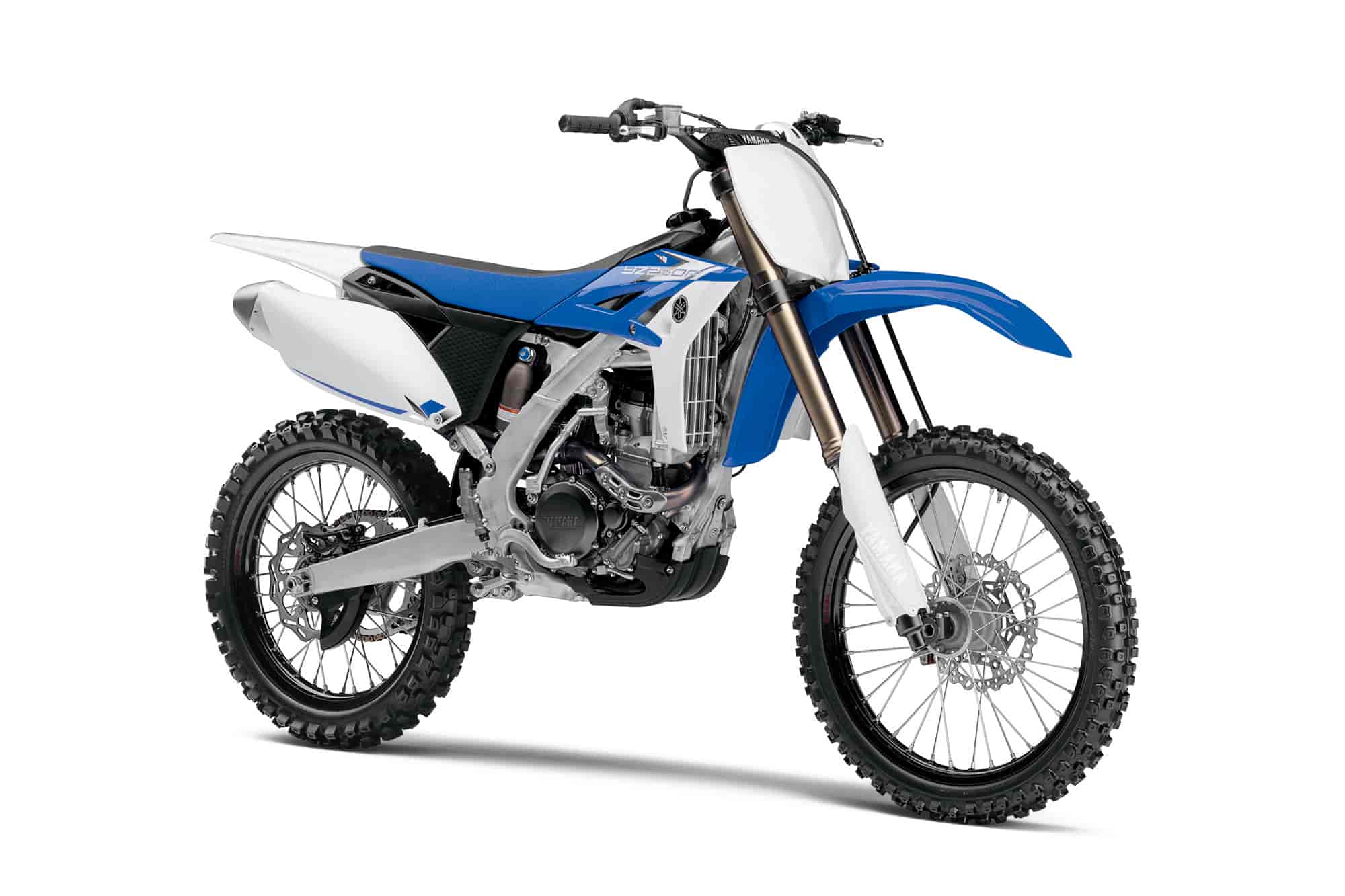

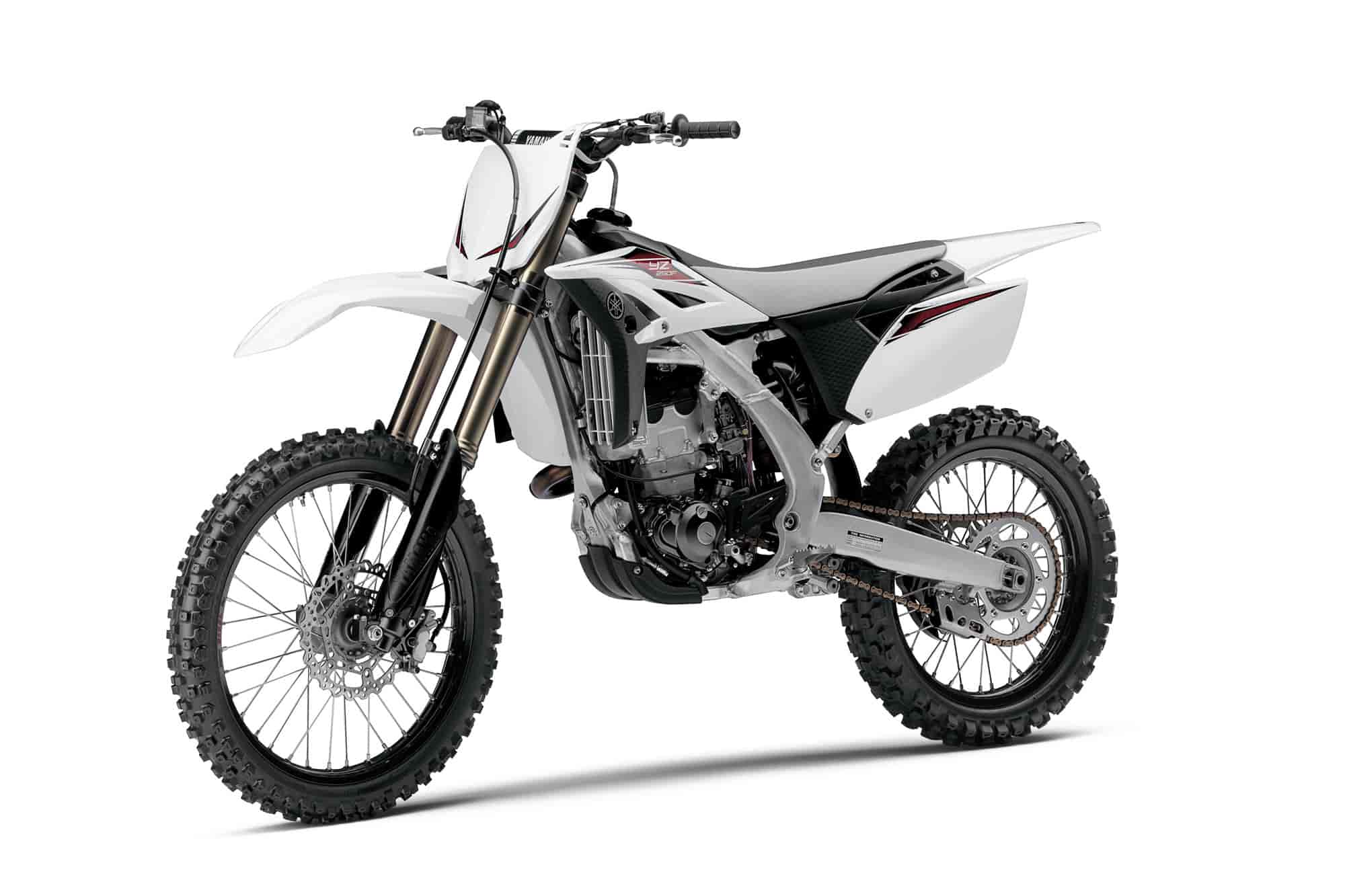

2013 Yamaha YZ250F
The YZ250F is one of the lightest bikes in its class and the best handling 250cc motocross bike ever built by Yamaha.
Ask any motocross rider where races are won and lost and odds are they will tell you “it’s all in the corners”. A light, nimble handling bike can pick its lines and stock to them, enabling its rider to push harder for longer. The back to back CMRC championship winning 2013 YZ250F is proof. Despite not having fuel injection, the 2013 Yamaha YZ250F is still one of the best choices in the “lites” class.
An absolute pleasure to ride.
The 2013 YZ250F delivers unparalleled power and handling.
Its engine is one of the most reliable in the class with a proven history of incredible durability. The Kayaba suspension front and rear is considered by many to be the best in class. While its Bilateral Beam frame and overall chassis balance make the YZ250F an excellent choice for racers and weekend warriors alike who can appreciate precise cornering, great suspension, predictable handling and a winning heritage.
YZ250F = Light weight intuitive handling.
The 2013 Yamaha YZ250F features the premier bilateral beam frame and superior race ready suspension components for one of the best handling packages on the track with inspires confidence so you can corner, jump and handle the roughest tracks on the planet. All backed by legendary Yamaha durability so you can ride for years to come!
2013 Yamaha YZ250F Key Features
Ultra durable 250cc power plant
Compact & light “Bilateral Beam” frame
48mm inverted “Speed Sensitive System” fork
The optimized engine pumps out power in the 8,000 to 12,000 rpm range with outstanding throttle response, thanks to crankshaft webs, vibrationreducing counterbalancer, connecting rod, and low-friction piston rings, as well as a new piston, piston pin, and clip assembly that’s over 8% lighter overall than before. To take full advantage of these advancements, there’s also CDI mapping and a big 39mm carb with free breathing air cleaner cage. Added to the frame and suspension refinements, this latest engine gives YZ250F amazing balance – a powerful, light-handling machine with performance that’s accessible to all levels of riders.
The Bilateral Beam frame has a rigidity balance for superior cornering performance as well as great stability on rough, high-speed straights. Beefy front suspension components plus rear shock internals and rigidity in the swingarm axle block area give this machine a serious handling advantage with light, quick steering.
The styling emphasizes the bike’s lightweight and nimble handling character. The sharp, horizontal lines set the bike apart with a clean, aggressive look.
KYB® suspension is tuned to work with the Bilateral Beam frame for unmatched handling.
There’s no disputing the YZ250F’s unmatched four-stroke prowess – it was the 1st four-stroke 250 motocross bike on the market, the 1st to win an international race, the 1st to win an AMA® Supercross,® and the 1st to take an AMA® U.S. Supercross Championship® title, as well as the first to win an AMA® National race.
2013 Yamaha YZ250F Features and Benefits
Liquid-cooled, 250cc, DOHC, 5-valve (titanium), 4-stroke engine features a 13,500-rpm redline. This engine is super durable and a proven performer. It is one of the most reliable engines in its class.
•The 13.5:1 compression ratio provides fast, controlled combustion and excellent engine performance.
•Optimized 5-valve (3-intake & 2-exhaust) combustion chamber design provides the most efficient intake and exhaust flow for maximum power.
•Titanium valves decrease weight by more than 40% over a conventional steel valve train and reduce reciprocating mass (weight) for faster throttle response.
•”Load reduced” valve springs reduce the amount of force required to open the valves and thereby minimizes power losses associated with friction and improves torque in the low and mid ranges.
•Special chromium nitride coating on the tips of the intake valve stems reduces wear.
•Ceramic composite cylinder bore is a “liner less” design with the ceramic coating sprayed directly on the aluminum block to create the “sleeve” the piston travels in. The benefits include reduced weight (no heavy iron liner), reduced friction, extended cylinder life and excellent heat dissipation for consistent power delivery.
•Cylinder design features cutaways that allow the air trapped under the piston to enter a side chamber (or cutaway) to reduce horsepower-robbing “pumping losses.”
•Lightweight engine crankcases also utilize special cutaways to reduce “pumping losses.” The crankcase cutaways match the cutaways in the cylinder for maximum efficiency.
•Short skirt forged piston reduces weight and mechanical vibration, while offering excellent durability. The light weight design means fast throttle response.
•Engine counterbalance offsets the vibration produced by the crankshaft and influences the amount of engine vibration a rider feels, especially in the handlebar. Less vibration means less rider fatigue.
•Lightweight magnesium cylinder head cover.
•Dry sump lubrication system uses a remote oil tank reservoir positioned in front of the engine. This compact oil tank features a partition in the centre of the tank that improves the air-oil separation function. This tank is positioned low in the chassis which centralizes mass and lowers the centre of gravity for exceptional handling and a light feeling.
•Oil volume in the engine has been optimized to reduce weight and “oil drag” related power losses.
•5-speed transmission features “involute splines” on the transmission axles to ensure smooth shifting and instant hook-up under power.
•Multi-plate wet clutch provides an easy clutch lever pull.
•Lightweight, “quick-access” outer clutch cover provides fast, easy access for clutch maintenance.
•Compact automatic cam chain tensioner reduces maintenance and mechanical engine noise
•Keihin FCR-MX39 flat-slide carburetor with throttle position sensor (TPS) and an accelerator pump for excellent throttle response. The carb bore has been increased from 37mm (2011) to 39mm for improved engine performance and less intake airflow resistance. The diameter of the intake boot has also been increased to match the new carb.
•Air box design features a straight design “boot” between the air box and the carb for optimum air flow. The air filter holder / guide has been designed to reduce air flow resistance too.
•Washable, dual-stage, foam air filter.
•No fuss auto decompression system means fast, easy starting. The YZ250F restarts in any gear.
•Convenient, handlebar-mounted hot start lever ensures fast starts when the engine is hot.
•CD (capacitor discharge) ignition system delivers a strong, precise spark and monitors engine rpm to insure optimal timing for fast, strong response at all rpms.
•Direct ignition system means the ignition coil is integrated into spark plug cap to reduce weight and complexity.
•Compact, lightweight, single core, dual radiators provide outstanding cooling efficiency. The location of the rads has been optimized for maximum airflow and protection in the event of a crash, plus they help reduce the center of gravity and centralize mass too. Each rad has 10 cores.
•Lightweight titanium exhaust header pipe minimizes weight, improves performance and allows hassle-free replacement of the oil filter.
•The lightweight exhaust system utilizes a 4-stage expansion format that improves the cylinder filling induced by the exhaust pulse effect, resulting in excellent power characteristics.
•Lightweight aluminum muffler assembly features an internal diffuser pipe and noise reducing “punched hole pipe” to achieve maximum performance with reduced noise levels. The muffler can be repacked to maintain peak performance. The sound “deadening” material extends into the tapered end cone of the muffler for a further reduction in noise.
•Works-style race-spec “barrel adjuster” for on-the-fly clutch lever free play adjustments.
•Compact “Bilateral Beam” aluminum frame centralizes mass for exceptional handling and cornering. The frame consists of forged, extruded and panel aluminum parts. The top or main frame rails utilize 3 internal box sections for superior strength. The longitudinal and torsional rigidity balance of the frame has been optimized for precise cornering and a light, agile feel. The benefit is fast, easy cornering … one of the most important keys to winning races.
•The front and upper rear engine mounting brackets strengthen the engine’s function as a stressed member of the chassis.
•The head pipe (steering head), wheelbase, caster and trail dimensions are optimized to accentuate the engine and frame characteristics. The benefit is incredible turning ability and quick, yet stable handling.
•Removable rear sub frame is constructed of square-section, lightweight aluminum pipe. Its detachable design allows easy access when servicing rear suspension components.
•Lightweight, tapered aluminum swingarm is produced using “hydro forming”, a special method that uses high pressure water to form shapes. The swingarm design provides great overall “balance” with the frame for precise cornering, excellent traction and a light handling feel.
•Light yet strong cast aluminum upper and forged aluminum lower triple clamps. The new cast upper clamp features a 50% increase in rigidity for improved handling. Fork offset is 22mm.
•48mm, adjustable, inverted, Kayaba, “Speed Sensitive System” cartridge fork features a twin-chamber design, meaning the damper unit is in a separate structure which prevents aerated fork oil from entering the inner damper assembly and degrading its damping abilities. Since the inner damper is pressurized, it also prevents air bubbles forming in the oil.
•Front fork adjustments include: 20-way compression damping and 20-way rebound damping. Optional fork springs are available through Genuine Yamaha parts.
•The 48mm inverted KYB fork also features a Transfer Control Valve (TCV) system. The TCV enhances the damping force of the inner damper from mid stroke to full stroke and improves bottoming characteristics. The benefit of TCV is more precise control throughout the full stroke. The TCV is located on the upside of the spring and its function is controlled by piston speed, not piston position … hence the term “Speed Sensitive System fork”.
•Front wheel travel is 300mm or 11.8″
•Large “wrap-around” plastic fork protectors provide excellent lower fork tube protection. The “self-supporting” design reduces friction for smoother fork operation.
•Monocross link rear suspension system features a fully adjustable Kayaba, piggyback shock which features separate adjusters for high- and low-speed compression damping. Adjustments include: spring preload, 20-way rebound damping, 20-way low-speed compression damping and 2 turns of high speed compression damping.
•The shock uses a 16mm diameter piston rod. Kashima coating is used in the shock body and sub tank to reduce friction and improve suspension performance during a long moto. The Kayaba shock utilizes a full rebound oil lock system for excellent suspension function and great ride quality.
•Rear wheel travel is 317mm (12.5″).
•250mm floating front wave-style disc reduces weight and improves heat dissipation. It is squeezed by a compact Nissin twin piston caliper.
•245mm rear disc brake features a lightweight “wave-style” disc and a single piston Nissin caliper.
•Compact, lightweight rear master cylinder is an integrated design (fluid reservoir is integrated into the top of the master cylinder) for strong stopping power with excellent feel and control.
•Adjustable handlebar clamps offer a total of 4 different handlebar positions with an adjustment range of 30mm, to suit a wide variety of riders.
•Eye catching, compact body work enhances the lightweight feel and look of the YZ250F. This “minimal” bodywork is a flat design, allowing fast, easy rider movements. The ergonomics provide a natural and roomy riding position. The bodywork has been designed to maintain it good looks throughout the life of the machine.
•The lightweight, plastic resin 6.4 litre fuel tank compliments the chassis and its location helps to centralization mass. Its compact design allows excellent rider mobility.
•The seat surface texture has been designed to give a grip when needed, yet still allow easy rider movements. The seat cover resists clogging with dirt or mud to ensure long lasting good looks.
•Lightweight, 21″ front and 19″ rear Excel rims provide exceptional durability and help reduce unsprung weight for optimal suspension performance and handling.
•Rear wheel assembly uses a large 25mm diameter axle and the rear hub features a second bearing on the sprocket side for increased rigidity and durability.
•Lightweight Sun Star rear sprocket.
Additional Features :
•Rugged polypropylene engine and integrated water pump protector plate reduces weight.
•”Shorty” adjustable front brake lever. Adjustment range is 5.5mm.
•Heavy duty plastic rear caliper and lower rear disc protectors.
•Lightweight, extra wide foot pegs provide excellent grip
•Lightweight header pipe heat shield.
•Serrated rear brake pedal for extra grip
•Folding gear shifter tip
•Stainless steel inner clutch cable provides excellent strength and durability.
•Lightweight chain guide / support helps reduce chance of chain derailment and also helps protect the rear sprocket.
•Heavy duty DID 520 drive chain
•E10 friendly fuel system components
2013 Yamaha YZ250F – USA Specifications/Technical Details
US MSRP Price: $7,290 (Team Yamaha Blue/White) Available from July 2012, $7,290 (White & Red) Available from July 2012
Type 250cc liquid-cooled DOHC 4-stroke; 5 titanium valves
Bore x Stroke 77.0mm x 53.6mm
Compression Ratio 13.5:1
Fuel Delivery Keihin® FCR MX39
Transmission Constant-mesh 5-speed; multiplate wet clutch
Final Drive Chain Drive
Suspension / Front KYB® Speed-Sensitive System, inverted fork: fully adjustable, 11.8-in travel
Suspension / Rear KYB® Fully adjustable single shock; 12.5-in travel
Brakes / Front Hydraulic single disc brake, 250mm
Brakes / Rear Hydraulic single disc brake, 245mm
Tires / Front 80/100-21
Tires / Rear 100/90-19
Length 85.4 in
Width 32.5 in
Height 51.4 in
Seat Height 39.0 in
Wheelbase 58.1 in
Ground Clearance 14.9 in
Fuel Capacity 1.6 gal
Wet Weight*** 227 lb
Warranty 30 Day (Limited Factory Warranty)
*Prices and specifications subject to change without notice. Please read your Owner’s Manual and all labels before operation.
**Fuel economy estimates are based on US EPA exhaust emission certification data obtained by Yamaha. Your actual mileage will vary depending on road
conditions, how you ride and maintain your vehicle, accessories, cargo, and operator/passenger weight.
***Wet weight includes the vehicle with all standard equipment and all fluids, including oil, coolant (as applicable) and a full tank of fuel.
2013 Yamaha YZ250F – Canadian Specifications/Technical Details
Canada MSRP Price: $7,999 CDN
Engine 4-stroke, liquid-cooled, DOHC, 5-valve (titanium), single
Bore and Stroke 77 x 53.6 mm
Compression Ratio 13.5:1
Fuel Delivery Keihin FCR-MX39 flat slide w/throttle position sensor
Lubrication Dry sump
Ignition / Starting CDI / Kick
Final Drive Chain
Suspension (Front) Adj. 48mm, inverted fork / 300mm (11.8″) travel
Suspension (Rear) Fully adj. Monocross / 317mm (12.5″) travel
Brakes (Front) 250mm, floating disc
Brakes (Rear) 245mm, disc
Tires (Front) 80/100-21
Tires (Rear) 100/90-19
Length 2,170mm (85.4″)
Width 825mm (32.5″)
Height 1,307mm (51.4″)
Wheelbase 1,477mm (58.1″)
Ground Clearance 378mm (14.9″)
Seat Height 992mm (39.1″)
Fuel Capacity 6.4 litres (1.4 imp. gallons)
Wet Weight 103 kg (227 lb)
Colour(s) Yamaha Blue
± Fuel economy estimates are based on US EPA exhaust emission certification data obtained by Yamaha and converted into Canadian measurements. Your actual mileage will vary depending on road condition, how you ride, maintain your vehicle, accessories, cargo and operator/passenger weight.
Specifications, appearance, and price of product are subject to change without notice.
* MSRP does not include freight, PDI (Pre Delivery Inspection), pre-rigging (boats), or taxes. Dealer may sell for less. See your local dealer for out the door pricing.
2013 Yamaha YZ250F – UK/Europe Specifications/Technical Details
UK/European MSRP Price: £ See dealer for Pricing.
More information to follow shortly
2013 Yamaha YZ250F – Australian Specifications/Technical Details
AU MSRP Price: $TBA AUD
More information to follow shortly
Specifications, features and prices to change by manufacturer without notice. All information correct as of posted date.
