2014 Yamaha Roadliner S

Back to 2014 Yamaha Motorcycle Model Review Page

Click photos to enlarge. Our big, clean bike pics make great desktop wallpaper.

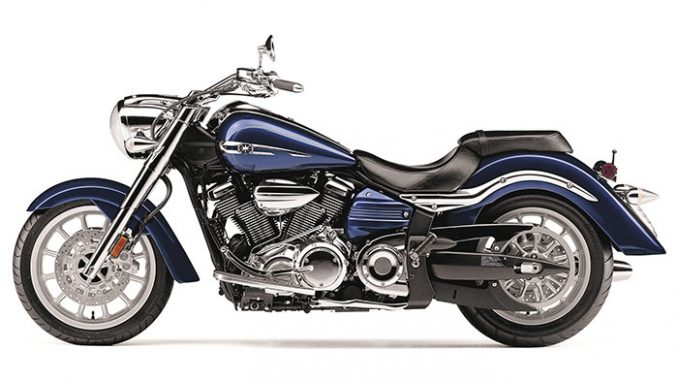

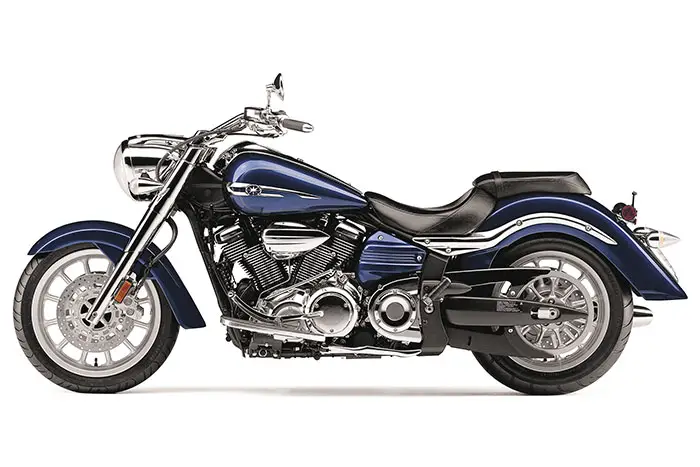

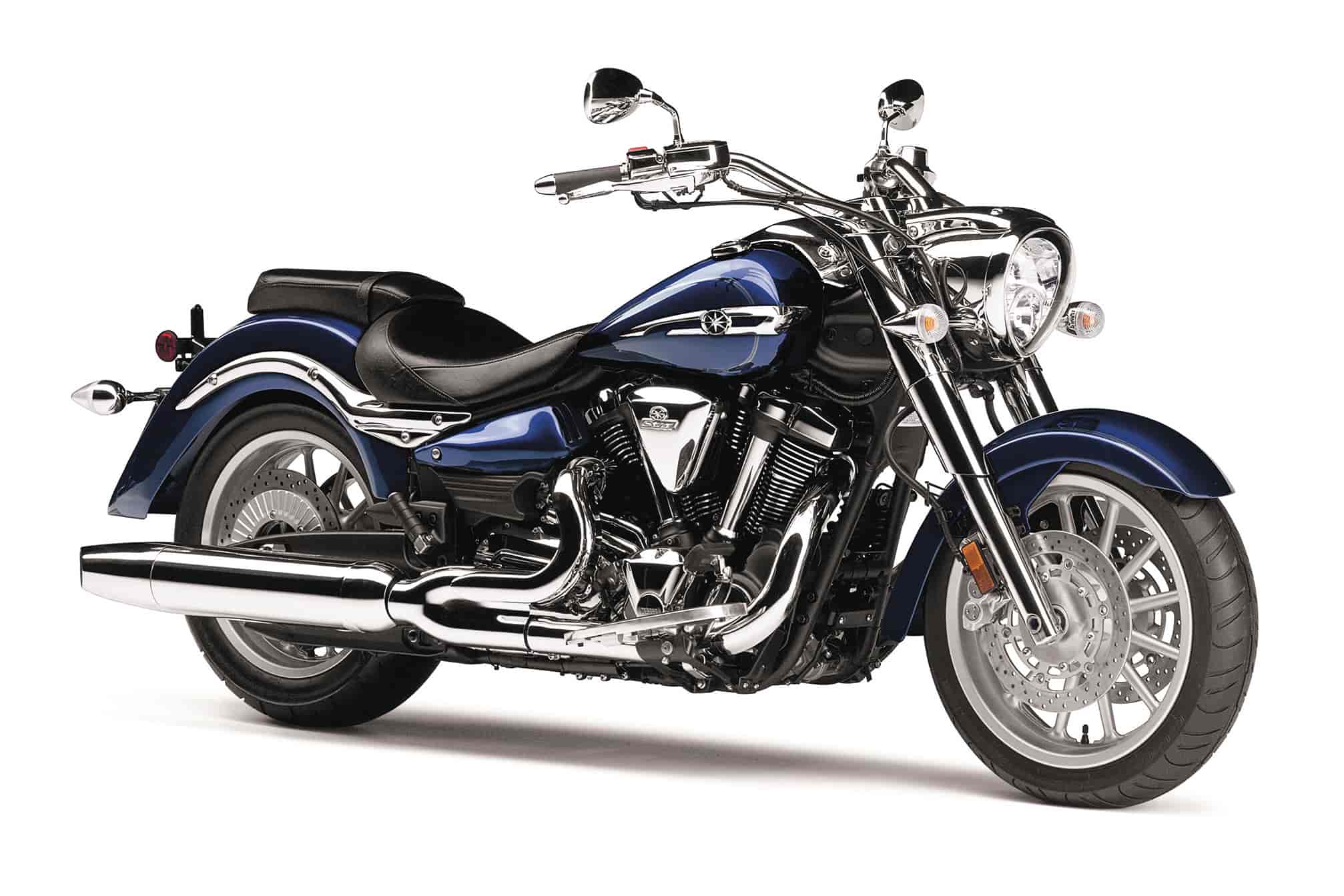

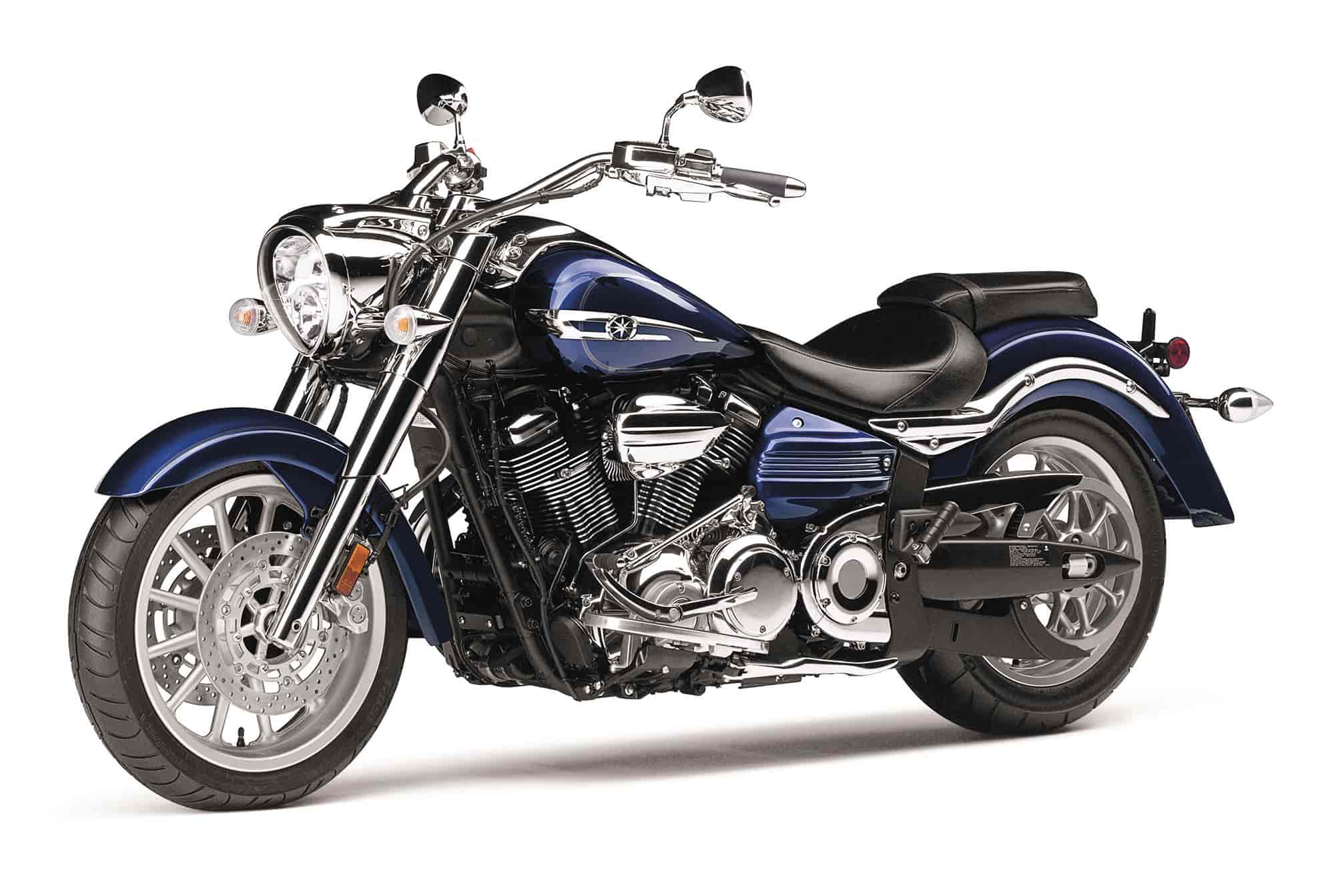

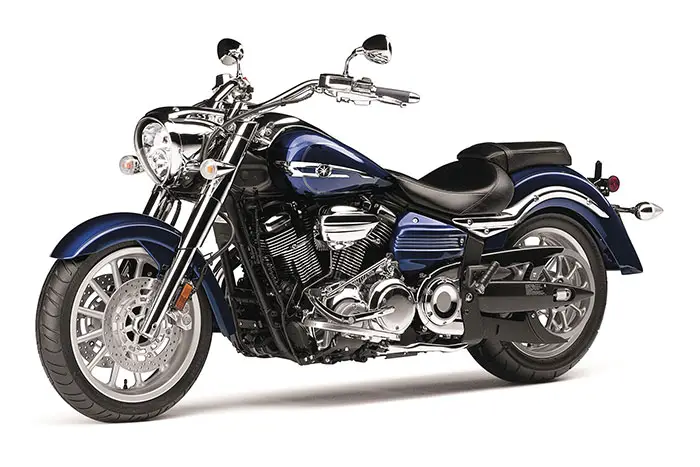

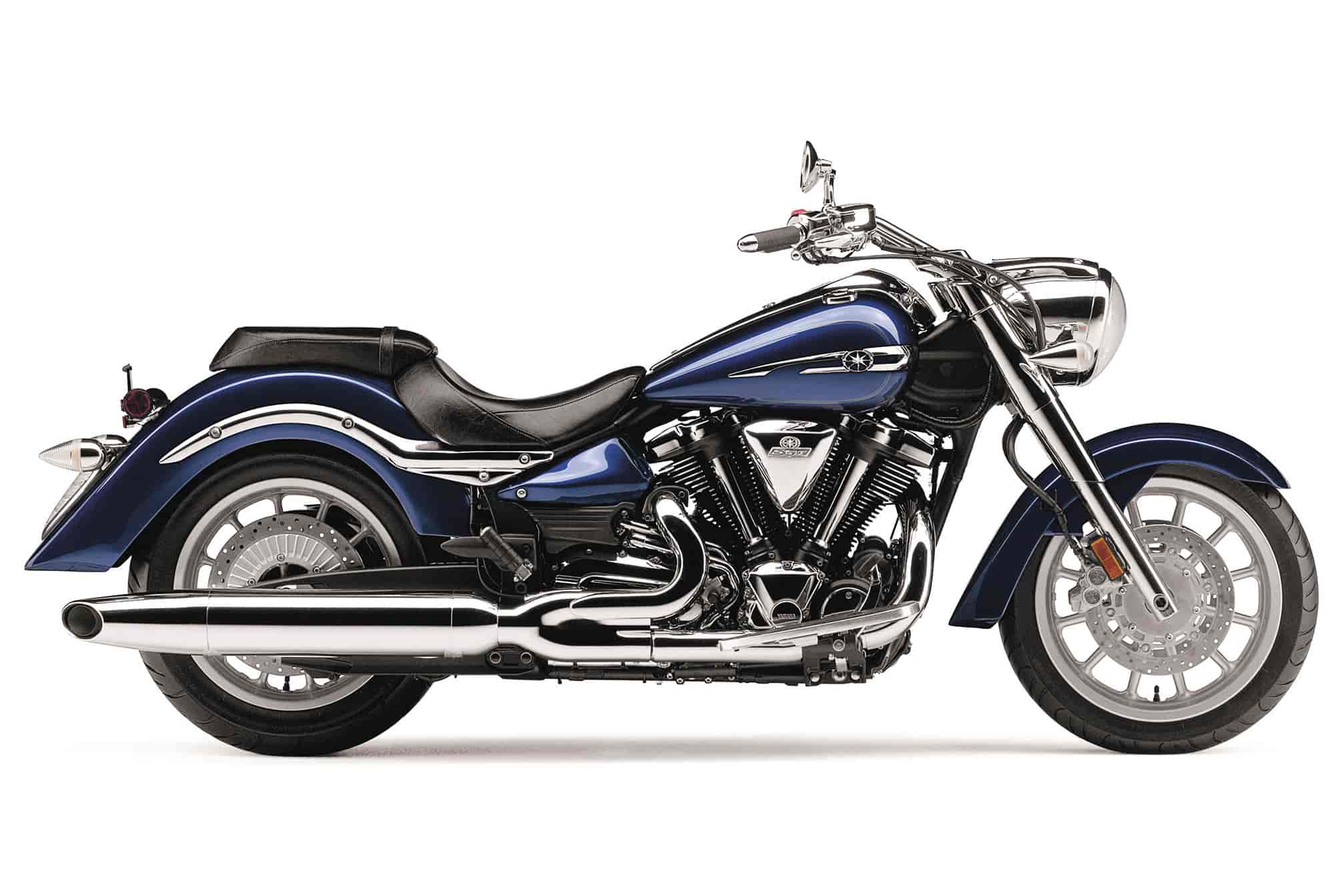

2014 Yamaha Roadliner S
2014 Yamaha Roadliner S

2014 Yamaha Roadliner S
2014 Yamaha Roadliner S

2014 Yamaha Roadliner S
2014 Yamaha Roadliner S

2014 Yamaha Roadliner S
2014 Yamaha Roadliner S



2014 Yamaha Roadliner S Review

2014 Yamaha Roadliner S

For those who think big.

Our biggest V-twin is also our boldest, with a highly advanced fuel injected engine producing peak torque at only 2250 rpm. And an aluminum frame for the kind of solid, precise handling nothing else in its class can touch. The 2014 Yamaha Roadliner S gets chrome switchgear, front brake and clutch master cylinders and levers, belt guard, fork and fork covers, handlebar clamps, shifter, front pully cover, various engine covers, rear fender stay and polished wheels.

The “Roadliner S”… a machine designed to stir the senses. From the “Neo Streamline” styling, to the emotional pulse feeling of the massive V-twin engine, the Roadliner is designed to be a harmonious blend of power and beauty.




2014 Yamaha Roadliner S Total Motorcycle Key Features

1. The Roadliner S gets chrome switchgear, front brake and clutch master cylinders and levers, belt guard, fork and fork covers, handlebar clamps, shifter, front pulley cover, various engine covers, and rear fender stay.

2. Powerful and beautiful 113-cubic-inch (1854cc) air-cooled, pushrod V-twin produces great thrust at any speed.

3. Twin-bore downdraft electronic fuel injection provides optimum engine efficiency and throttle response in the widest possible range of conditions

4. Neo-streamline design gives the Roadliner S a completely distinctive look.

5. Long and low aluminum frame provides great looks and light handling unlike any other full-size cruiser.

6. A sculpted seat makes the Roadliner S an excellent place to sit on long rides.

7. The Roadliner S achieves fuel economy up to an estimated 42 mpg* with a fuel tank that holds 4.5 gallons of gas.

8. The Star® Accessories Catalog is packed full of high-quality parts that invite Star owners to fully express their individuality.

Power
High-performance, 1854cc air-cooled, long-stroke, OHV, 4 valves per cylinder, 48°, V-twin powerplant produces massive torque and class leading acceleration.

Performance
Four-valve cylinder heads provide optimal breathing efficiency for great power delivery at all rpms. The two spark plugs per cylinder means faster, more complete combustion for maximum power output.







2014 Yamaha Roadliner S Total Motorcycle Features and Benefits

ENGINE

• High-performance, 1854cc air-cooled, long-stroke, OHV, 4 valves per cylinder, 48°, V-twin powerplant produces massive torque and class leading acceleration.
• Traditional pushrod valve actuation keeps engine height down for a lower centre of gravity and ensures more uniform heat dissipation due to absence of a cam chain case. A lower centre of gravity helps to ensure light, easy handling.
• Four-valve cylinder heads provide optimal breathing efficiency for great power delivery at all rpms. The two spark plugs per cylinder means faster, more complete combustion for maximum power output.
• Cylinder head design utilizes a pent roof combustion chamber design and features a oil passage near the exhaust valve seat to improve cooling and durability. The heads also feature engine mounting points on each side of the head for increased chassis rigidity for exceptional handling.
• Large size valves increase engine horsepower and torque. The intake valves are 36mm in diameter while the exhaust valves are 31mm.
• Specially designed valve train includes short design intake and exhaust rocker arms that reduce inertia during higher-rpm use.
• High performance spec twin, crankcase-mounted, high-lift cams ensure strong torque and class leading acceleration while also lowering the centre of gravity.
• Hydraulic valve lifters driven by the twin camshafts deliver exceptional performance and significantly reduce maintenance and tune-up requirements.
• 100mm diameter pistons are both durable and lightweight. Yamaha’s exclusive “controlled forged construction” keeps the pistons light for faster response and to accommodate higher-rpm performance with reduced vibration and less reciprocating mass. The pistons feature an Alumite coating to reduce friction.
• The dry sump oil lubrication system has been optimized to ensure maximum lubrication and cooling . Special oil nozzles direct oil at the bottom of the pistons to cool and lubricate them.
• Special”dual chamber” crankcase design. The front section is for the crank assembly while the rear is for the transmission. Two, 3-rotor high capacity oil pumps optimizes oil flow in each of the two main sections of the engine.
• Ceramic composite-plated cylinders provide uniform heat dissipation, reduce weight and reduce friction.
• Cooling fin thickness and depth is optimized for maximum heat dissipation, thereby eliminating the need for liquid cooling, while maintaining that traditional, stylish air-cooled engine appearance.
• Optimized “damper-less” crankshaft allows the rider to feel the directness of the engine’s power. For each rotation of the rear wheel, in 5th gear, the crank spins 3.14 times providing an outstanding rear wheel driving force feeling to the rider.
• Compact design dual engine counter balancers reduce vibration for exceptional rider and passenger comfort.
• 3-axis crankcase layout means the crankshaft, main axle and drive shaft are specially arranged to minimize the size of the engine cases and centralize mass.
• 43mm, twin-bore, downdraft throttle body fuel injection (FI) with throttle position sensor (TPS) ensures great throttle response and maximum power throughout the rev range. This system is a “closed loop” system, since it utilizes an oxygen sensor in the exhaust to monitor the concentration of oxygen and adjust the FI system if necessary. The benefits of fuel injection include chokeless operation, increased fuel economy, instant throttle response and reduced emissions.
• The 12-hole, 2-directional Mikuni fuel injectors produce a wide spray pattern for complete cylinder filling. This special spray pattern combined with the dual spark plug head ensures complete combustion for maximum power. An Idle Speed Control (ISC) has been adopted to ensure stable idling performance.
• High capacity electronic fuel pump is located in the sub tank under the seat.
• State-of-the-art Electronic Control Unit (ECU) ensures precisely metered fuel delivery and optimal ignition spark control using 3D transistorized coil ignition mapping for each cylinder.
• Maintenance-free transistor controlled ignition (T.C.I.) provides a hot spark for sure starts and strong engine performance.
• 3.5 liter dual inlet air filter box is located under the tank. There are intake ducts at the front and rear of the air box for maximum breathing efficiency. This design not only maximizes air flow but also reduces weight. A viscous paper type air filter is used.
• Air Induction System (AIS) injects fresh oxygen at the exhaust port to insure complete combustion thereby reducing harmful exhaust emissions (HC & CO) while a special air cut valve reduces backfiring when decelerating or coasting off throttle.
• High-performance, 2-into-1-exhaust system features large diameter header pipes for maximum flow. The single muffler contains a 3-way honey comb matrix catalyizer to reduce harmful exhaust emissions. The stylish muffler helps to boost torque and horsepower while producing a throaty, V-twin growl.
• The exhaust system also features a lightweight titanium EXUP exhaust power valve most commonly found on high performance sport bikes. The EXUP system not only provides crisp throttle response and eliminates ‘flat spots” but also improves acceleration and reduces fuel consumption and harmful emissions.
• Dry sump lubrication system means a more compact engine design since the oil tank is not part of the engine, which lowers the centre of gravity for great handling and a light feel. A handy, spin-on oil filter means fast, easy oil changes.
• Frame mounted oil cooler is a first on a Yamaha cruiser. The cooler maintains consistent oil temperatures for optimum cooling and lubrication of this massive V-twin powerplant.
• Smooth-shifting, 5-speed transmission features optimized gear ratios for both strong acceleration and relaxed highway cruising.
• 2-piece heel-and-toe shifter adds versatility and enhances the overall cruising experience. The 2-piece design allows the rider to individually adjust front and rear portions to suit foot size or remove the rear section if not desired.
• “Assist and slipper clutch” features a heavy duty 10 plate hydraulically operated wet clutch that reduces clutch lever pull / effort at the handlebar by 20%, for reduced hand fatigue and improved rider comfort. This clutch also features a back torque limiter function (also known as a slipper clutch). The slipper function helps to reduce the sharp effects of engine braking when downshifting. The end result is an easier to use clutch and smoother down shifting for an enhanced cruising / touring experience. This clutch is operated by hydraulic master cylinder instead of a cable. The hydraulic clutch design is low maintenance, self-adjusting and very stylish.
• Low-maintenance belt drive system not only significantly reduces maintenance but is also clean and quiet. A belt drive system uses less power than a shaft drive and reduces unsprung weight for great rear suspension performance.



CHASSIS/SUSPENSION
• Aluminum, die cast, double-cradle frame reduces weight, while balancing strength and rigidity. The critical head pipe area features box type construction for additional strength. The frame not provides excellent handling characteristics but also compliments the beautiful flowing lines of the rest of the chassis and bodywork. The engine is stressed member for added rigidity.
• Lightweight C.F. die cast aluminum swingarm offers superb rigidity and ensures excellent stability and handling. The C.F. die casting process allows for beautiful shapes that are both strong and light. This swingarm is a fashion statement in aluminum and compliments the rest of the Roadliner’s eye catching styling.
• Rigid 46mm front fork offers 130mm (5.1″) of wheel travel for exceptionally stable handling and great ride comfort. The fork features “slash cut” large diameter chromed fork shrouds to enhance the “neo- streamliner” styling.
• Beefy, cast aluminum, top and bottom triple clamps help increase fork rigidity and reduce weight.
• Link rear suspension features a spring preload adjustable single rear shock delivering outstanding ride comfort and precise handling. The shock is horizontally positioned under the engine for a lower center of gravity and is hidden to provide that classic “hardtail” look. Rear wheel travel is 110mm (4.3″).
• Link rear suspension features a spring preload adjustable single rear shock delivering outstanding ride comfort and precise handling. The shock is horizontally positioned under the engine for a lower center of gravity and is hidden to provide that classic “hardtail” look. Rear wheel travel is 110mm (4.3″).
• Powerful dual 298mm floating front discs are squeezed by ultra rigid, 4-piston, monoblock calipers providing sport-bike spec stopping power.These brakes also provide great lever feel and feedback.
• Huge 320mm rear disc brake is squeezed by a single piston caliper mounted below the swingarm for a lower center of gravity and that customized “hidden look”.
• Lightweight, polished 12 spoke cast aluminum mag wheels reduce weight and enhance handling and styling. The front wheel is MT 4.00×18 while the rear wheel is a MT 5.50×17. Both are fitted with tubeless radial tires that provide excellent traction and reduced rolling resistance.
• Two-piece seat design features a wide, flat profile for excellent rider comfort. The passenger seat features a small lip at the rear of the seat providing a secure feeling for the passenger.
• 51w /55w high efficiency Irradiation headlight. This is a 2 bulb design, one for low beam and one for high beam. The unique headlight body compliments the “neo-streamline” styling.
• Steel fenders front and rear can be easily customized or painted to suit personal preferences.
• Flangeless teardrop style fuel tank offers 14 liters of capacity. This is the first flangeless tank used on a Yamaha cruiser. There are no welds visible, providing that custom look. The total fuel capacity is 17 liters thanks to a 3 liter sub tank located low in the frame below the seat. A high pressure electric fuel pump with quick connect fittings provides fuel to the FI system.
• 3-D fuel tank emblems.
• Large 1.25″ diameter handlebars. All electrical wires are hidden inside the handlebars for that clean custom look. Selected meter functions can be controlled by buttons on the back of RHS switch gear.
• Stylish fuel tank mounted instrument panel. The speedo has a unique classic clock styling motif. Just below the large analogue speedo is an analogue tach and fuel gauge. Other functions include digital odometer, dual tripmeters, fuel reserve trip counter and clock. Background illumination can be adjusted to suit personal preferences.
• Teardrop shaped rider floorboards with floating rubber inserts reduce vibration.


DETAILS
• Industry-leading, Star Family fit and finish creates a machine as stunning as it is powerful.
• Extra wide, chromed brake and clutch levers provide that quality feel and look.
• Highly visible, clear look LED taillight
• Self-canceling turn signals (15 seconds or 150 meters) with stylish clear lenses
• Low-fuel warning light
• Low maintenance sealed battery
• Fork lock integrated into main ignition switch for extra convenience
• Many chromed accents including: forks, handlebar switches, levers, engine covers etc.


Additional Features:

• A sculpted seat makes the Roadliner S an excellent place to sit on long rides. Improves long range comfort.
• Position beams within the main headlight housing provide great visibility.
• Left-thumb operated high-beam switch, and right-thumb activated accessory driving light switch for great visibility.
• Classic clock-style instrumentation complement Roadliner S’s neo-retro look and contains analog speedometer, tachometer and fuel gauge, along with twin digital tripmeters, low fuel trip meter, and odometer.
• Bright multireflector headlight, LED taillight and amber turn signals behind clear lenses give a custom look.
• Sidebags detach easily for cleaning.










2014 Yamaha Roadliner S – Total Motorcycle USA Specifications/Technical Details
US MSRP Price: $14,990 (Deep Blue) Available from August 2013


Engine
Type 113-cubic-inch (1854cc) air-cooled 48° V-twin; pushrod OHV, 4 valves/cylinder
Bore x Stroke 100mm x 118mm
Compression Ratio 9.48:1
Fuel Delivery Twin-Bore electronic fuel injection;throttle position sensor
Ignition TCI: Transistor Controlled Ignition
Transmission 5-speed; multiplate wet clutch
Final Drive Belt

Chassis
Frame Aluminum
Suspension / Front 46mm telescopic fork; 5.1-in travel
Suspension / Rear Single shock; 4.3-in travel
Brakes / Front Dual hydraulic disc, 298mm
Brakes / Rear Hydraulic disc, 320mm
Tires / Front 130/70-18M/C 63H
Tires / Rear 190/60-17M/C 78H
Wheels 12-spoke cast

Dimensions
Length 102.0 in
Width 41.5 in
Height 43.3 in
Seat Height 27.8 in
Wheelbase 67.5 in
Ground Clearance 6.1 in
Fuel Capacity 4.5 gal
Fuel Economy** 42 mpg
Wet Weight*** 750 lb

Other
Warranty 1 Year (Limited Factory Warranty)








2014 Yamaha Roadliner S – Total Motorcycle Canadian Specifications/Technical Details
Canada MSRP Price: $15,999.00 CDN

ENGINE
Air-cooled, OHV, 8-valves, 48°, V-twin w/EFI
DISPLACEMENT
1,854cc
BORE AND STROKE
100 x 118 mm
COMPRESSION RATIO
9.5:1
MAXIMUM TORQUE
17 kg-m (123 ft-lb) @ 2,250 rpm
FUEL DELIVERY
Dual 43mm cross bore downdraft throttle body FI
ESTIMATED FUEL CONSUMPTION*
18kpl / 51mpg (Imp.)
IGNITION / STARTING
TCI / Electric
TRANSMISSION
5-speed
FINAL DRIVE
Belt

CHASSIS
SUSPENSION (FRONT)
46mm fork
SUSPENSION (REAR)
Adjustable link single shock
BRAKES (FRONT)
Dual 298mm discs / 4-piston
BRAKES (REAR)
320mm disc / single piston
TIRES (FRONT)
130/70R18 (radial)
TIRES (REAR)
190/60R17 (radial)

CRITICAL DATA
LENGTH
2,580mm (101.6″)
WIDTH
1,055mm (41.5″)
HEIGHT
1,105mm (43.5″)
WHEELBASE
1,715mm (67.5″)
RAKE / TRAIL
31° / 152 mm (6″)
GROUND CLEARANCE
155 mm (6.1″)
SEAT HEIGHT
705 mm (27.8″)
FUEL CAPACITY
17 litres (3.7 imp.gallons)
WET WEIGHT
340kg (750 lb)
COLOUR(S)
Purplish Metallic Blue








2014 Yamaha Roadliner S – Total Motorcycle UK/Europe Specifications/Technical Details
UK/European MSRP Price: £NA.

Details to follow shortly.




2014 Yamaha Roadliner S – Total Motorcycle Australian Specifications/Technical Details
AU MSRP Price: See dealer for pricing AUD

Details to follow shortly.



Specifications, features and prices to change by manufacturer without notice. All information correct as of posted date.
