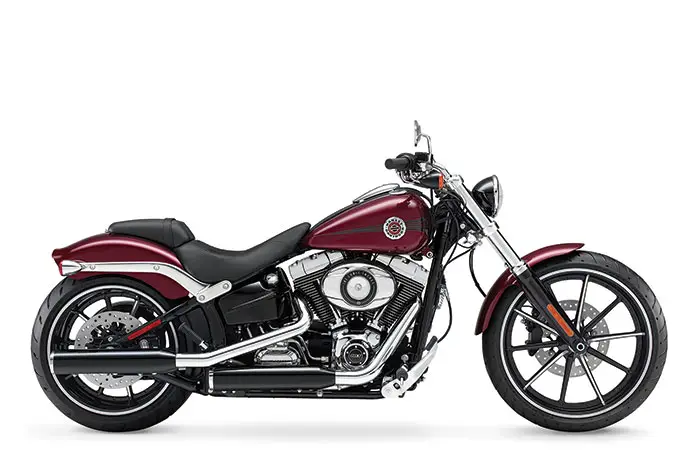

2015 Harley-Davidson FXSB Breakout

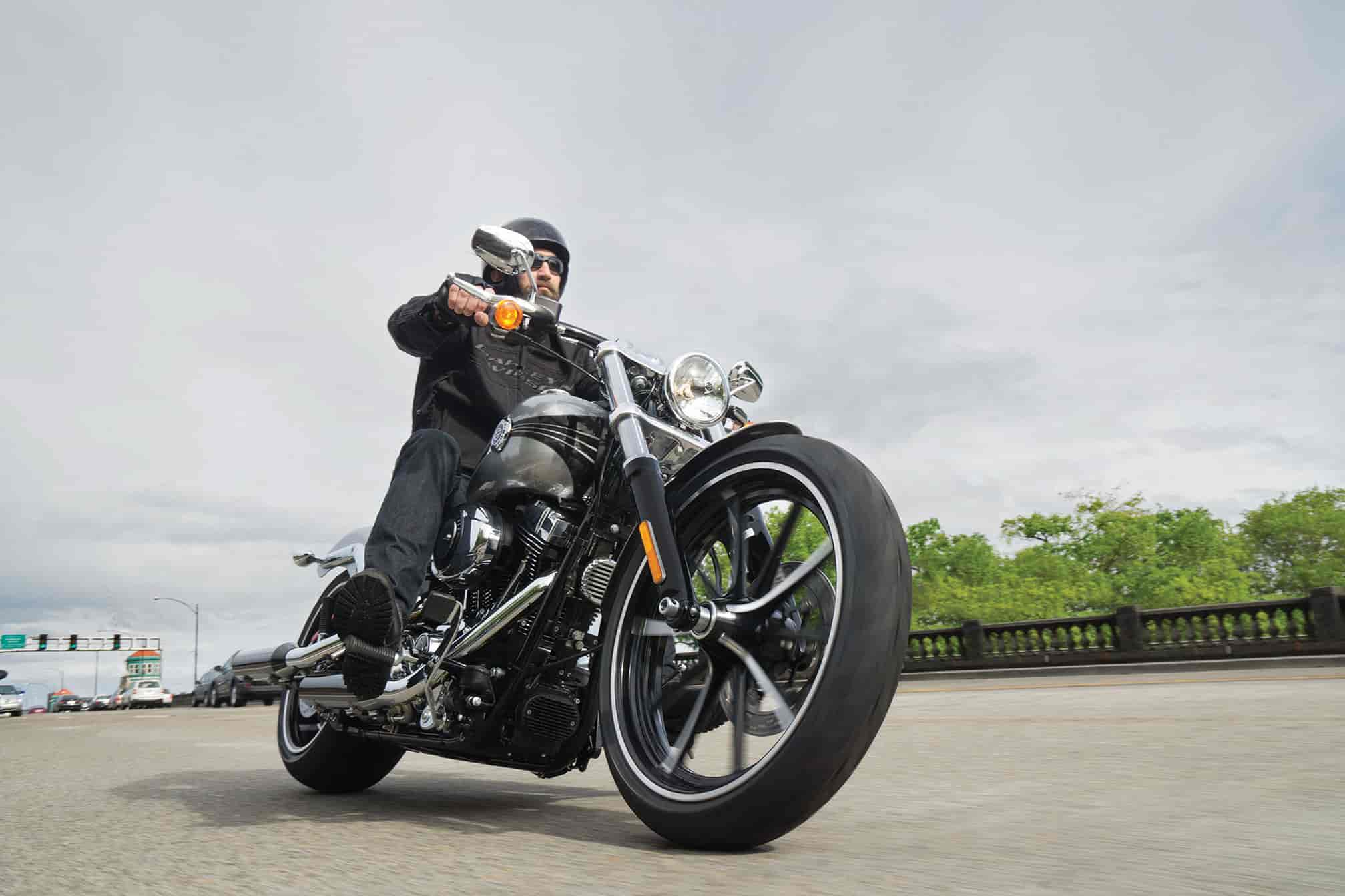

2015 Harley-Davidson FXSB Breakout

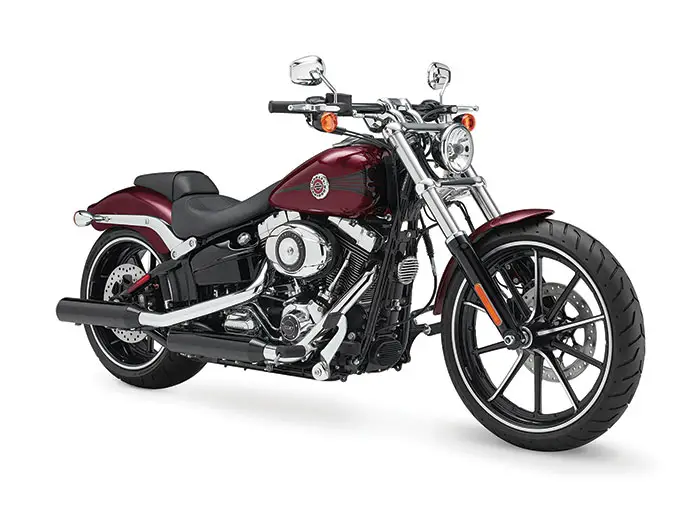

2015 Harley-Davidson FXSB Breakout

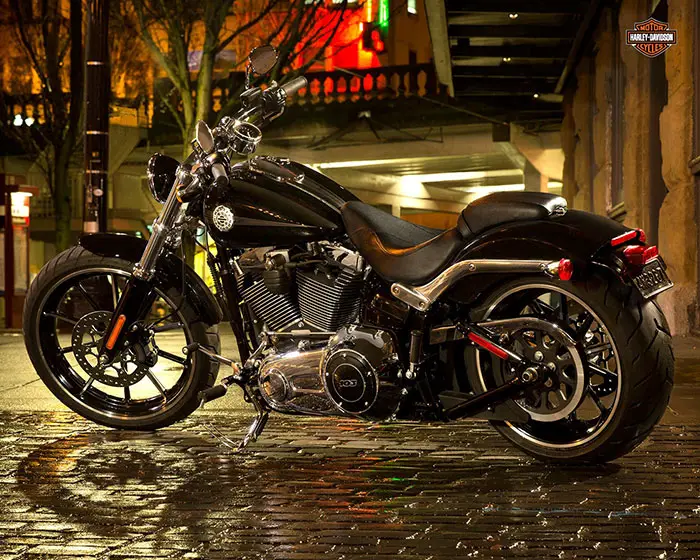

2015 Harley-Davidson FXSB Breakout

2015 Harley-Davidson FXSB Breakout
2015 Harley-Davidson FXSB Breakout

2015 Harley-Davidson FXSB Breakout
2015 Harley-Davidson FXSB Breakout

2015 Harley-Davidson FXSB Breakout
2015 Harley-Davidson FXSB Breakout



2015 Harley-Davidson FXSB Breakout Review

2015 Harley-Davidson FXSB Breakout on Totalmotorcycle.com

Big wheels, big paint and classic drag-bike attitude meet premium modern refinement in this attention-grabbing performance cruiser…

The Harley-Davidson® Breakout® motorcycle is a long and low-slung Softail® model with distinctive finishes and specific components. The Breakout® model features a wide rear tire visually balanced with thick forks and chopped fenders, while a shaved tank console and a drag handlebar keep the profile low. A Twin Cam 103B™ powertrain and other components are trimmed in gleaming chrome and gloss black paint.

The Softail® chassis mimics the clean lines of a vintage hardtail frame, but utilizes rear suspension control provided by coil-over shock absorbers mounted horizontally and out of sight within the frame rails. The rigid-mounted, counter-balanced powertrain creates a solid connection between the rider and the power that moves the motorcycle, enhancing the emotional experience of riding.

Rigid-mounted, air-cooled, 1690 cc Twin Cam 103B™ counter-balanced engine with Electronic Sequential Port Fuel Injection (ESPFI), Automatic Compression Release (ACR), rated at 95.2 ft. lbs. peak torque at 3000 rpm
6-Speed Cruise Drive® transmission
Optional Smart Security System with proximity-based, hands-free security fob





2015 Harley-Davidson FXSB Breakout www.Totalmotorcycle.com Key Features

NEW Braking system
– New handlebar master cylinder and front caliper
– New high-stiffness 4-piston fixed caliper with larger pistons and premium piston coating
– Larger 300 mm rotor with higher effective radius
NEW Paint color options including Custom and Hard Candy Custom™ colors
• Standard Anti-lock Braking System (ABS)
• Twin Cam 103B™ powertrain finished in Black powder-coat with chrome covers
• Gloss Black single-rib cast aluminum oil tank
• Staggered, straight cut chrome mufflers with Gloss Black muffler shields
• Gloss Black Gasser Cast Aluminum wheels
• Chopped front and rear fenders
• Polished forged aluminum rear fender supports
• Wide front end with Gloss Black fork lowers and headlamp bucket
• 1.25-inch Gloss Black drag-style handlebar on pull-back riser
• Four-inch riser-mounted speedometer
• Chrome-plated low-profile console
• Black two-piece, two-up seat with removable pillion
• Side-mounted license plate and combination stop/turn/tail light
• Glass-filled fuel tank medallions





2015 Harley-Davidson FXSB Breakout Totalmotorcycle.com Features and Benefits

Side-mounted License Plate

We keep the look of the Breakout® model’s signature rear clean and minimal with this side-mounted bracket, so nothing gets in the way of the showing off that big rear tire and tight fender.

Hard Candy Custom™ Paint

Hard Candy Custom™ paint is a large metal flake finish that’s more than just paint job, it’s a shining declaration of independence—bright, bold and unique. You can push the long, low custom look of the Breakout® motorcycle even farther with optional Hard Candy Custom™ Quicksilver Flake paint. This is true, old school metal flake paint laid down with the elbow grease it takes to hand sand layer upon layer of clear coat. And, in case you didn’t notice the name, the color is CHROME. You just might blow out a few onlookers’ retinas if the sun hits it just right when you roll by.

Breakout to the New

Don’t just break the mold—forge your own with the latest chapter in Harley-Davidson’s legacy of freedom. A premium custom cruiser inspired by the classic Gasser drag bikes of the ’50s and ’60s, the Softail® Breakout® model rolls with modern power, top-of-the-line treatments and lots of low-down menace. Big wheels, big paint, big chrome, all wrapped in a refined style—the Breakout® model is a true attention-grabber with a ride that’s been painstakingly engineered for fun whether you’re winding mountain roads or cruising the strip. It may be low-profile, but the Breakout® motorcycle always makes a big, bold statement.

Low Muscular Profile

With its big, bold stance, the Breakout® motorcycle makes a powerful impact even standing still. Its pure, clean lines, low-slung profile, stretched stance, big wheels and chopped fenders all shout premium custom, solid power and “look at me” attitude, even as its performance makes it your choice who gets to stare and for how long before you disappear.

Premium Craftsmanship

From wheel to wheel, we designed the Breakout® model with a hard eye for excellence: we forged it from top quality materials and crafted it with a dedication to perfection—from paint scheme and chromed-out styling to its slammed design, balanced ride and engine performance, we sweated every single fit, finish and tolerance of this perfect beast, because when you rule the road, there’s no place for second best.

Premium Finish and 3-D Tank Medallion

The Breakout® model’s power definitely includes its visual impact. That bold Hard Candy Custom™ Quicksilver Flake, Radioactive Green, Superior Blue, Mysterious Red Sunglo, Charcoal Pearl and Vivid Black treatment is an aggressive mix of gleam and darkness, while that exclusive gear-shaped glass-inlaid, cloisonné-and-chrome style tank medallion has a molten, liquid look that catches eyes and declares your ride as the next chapter in the Softail® family heritage.

Powerful Front End

The Breakout® model comes on strong with thick, wide forks, chopped fender and that wide-standing big 21-inch, 3 1/2-in wide Gasser wheel raked out there, classic dragster-style. This solid, muscular road stance is matched by neutral and balanced handling, so your ride is as smooth and clean as your looks are mean.

Fat Rear Tire profile

Big is the name of the game for the Breakout® model, and they don’t come bigger than this massive 18-inch, 240mm rear tire. It’s the widest tire we’ve ever put on a product motorcycle and, wrapped around that Gasser rim, it’s the perfect embodiment of the classic drag-bike heritage pumping through this ride.

Gasser wheels

Exclusively designed for the Breakout® motorcycle, these rims call back to the Gasser dragsters of the ’50s and ’60s while defining the next generation of custom style. Big and bold with their alternating spokes, these wheels shout strength and durability, while their alternating glossy Vivid Black and machined finishes on every other spoke deliver eye-catching visual impact.

Chopped Fenders

Low, tight and cut down to the legal limit, the Breakout® model’s fenders add to its stretched and slammed custom style. We chopped them to the legal limit to show off those huge muscular tires and Gasser rims. Plus, the fender supports are one-piece forged aluminum, polished and chromed for the ultimate in strength, weight-reduction and looks.

Slammed Console

It’s not just slammed, it’s the tightest console we’ve ever smacked onto a tank. And with its integrated decorative vent and electrical lines, its sleek profile adds a distinctive touch of ultra clean custom style to the Breakout® motorcycle’s aggressive stance.

Riser-mounted Speedo

All this power and style doesn’t come at the expense of comfort and convenience. Feast your eyes on this 4-inch digital speedometer, mounted on risers to be close to your field of vision. It offers speed readout, along with fuel gauge and gear indicator

Six-Speed Cruise Drive® Transmission

You want a ride that rumbles—not begs for mercy—when you lean on it a little. The Six-Speed Cruise Drive® transmission provides smooth, quiet shifting and reduces engine speed on the highway, so you get a better match between engine turnover and road speed. It’s a rare ride when a bike responds like this, and a low growl goes a long way when you’re opening up the road ahead.

Twin Cam 103™ Engine Heritage

The knowledge of what makes an engine truly move a rider runs deep at The Motor Company, and it was put to good use when we created the Twin Cam 103™ engine. We sweated bullets perfecting every cubic inch, pushing design and technology forward. And we did it all without compromising one bit of Harley-Davidson’s unique styling. Evolved, yet carrying on the legacy of the Flathead, Knucklehead, Panhead, Shovelhead, Evolution® and Twin Cam 88® and Twin Cam 96® engines that came before. The performance and durability are a direct result of the untold miles logged on the V-Twin since 1909 and the proud heritage that comes from a century’s worth of commitment to life on two wheels.

Twin Cam 103™ Engine Innovation

Fire up the Twin Cam 103™ engine and feel the low-end torque unleashed. Thanks to the lightweight piston design, delivery of the added power is more refined than ever. Then put your foot on the shifter and feel how the engine and Six-Speed Cruise Drive® transmission were designed to work together. Six speeds. A strong driveline and strong internal parts. Low routine maintenance. And a low cruising rpm couldn’t feel better.

win Cam 103™ Engine Power

Live your ride to the power of Twin Cam 103™. The air cooled Twin Cam 103™ Harley Davidson® engine delivers more stump-pulling torque, while its Electronic Sequential Port Fuel Injection jetting gives crisp, lively throttle reaction. It’s a performance punch you’ll appreciate when passing, climbing hills, or just catching eyes as you cruise by—all under that signature Motor Company rumble. And it comes at lower cruising rpm, so you ride more smoothly, with less engine vibration and better highway fuel economy.

Black and Chrome Engine Styling

Feast your eyes on the Twin Cam 103™ engine and there’s no mistaking its roots. From the classic edge of the cooling fins to the clean lines of cases and covers, this is authentic Harley-Davidson style through and through with an attention to detail you won’t find from any other motorcycle company. And true to the rest of the Softail® Breakout® model’s style, its engine treatment is also a masterpiece of machine art—the Vivid Black and Chrome finishes create a stark, sharply defined pattern of gleaming light and dark: glossy black muffler covers and oil tank cover, gleaming chrome pipes and rocker covers.

H-D® Smart Security System

The factory-installed next-generation security system features a hands-free fob that automatically arms and disarms the vehicle’s electronic security functions as you approach and walk away from the bike. Stick the fob on your ignition key ring and let it do all the work. It’s this attention to detail and security that make Harley-Davidson® motorcycles unique.

Anti-Lock Brakes

You may be cruising with swagger, but you know safety counts. This sophisticated, factory-installed ABS gives ‘stopping power’ a double meaning. You’ll turn heads with clean, streamlined design. But more importantly, you get certainty in the saddle knowing your bike’s going to behave when you need it.

3-in-1 Stop/Turn/Tail Lights

These chromed 3-in-1 lamps complement the Breakout® model’s overall stylish, powerful profile while their state-of-the-art technology packs tail lights, turn and stop signal technology into each sleek, minimalist bullet.

New Front Brake System

A new front brake system on the Softail® models this year delivers a 40 percent reduction in the amount of lever force required at peak braking. The handlebar master and front cylinders have been restyled. There’s a new 4-piston fixed caliper with 32 and 34 mm pistons, premium caliper piston coating to minimize initial displacement and a larger 300 mm rotor. It all adds up to more stopping power with less effort.

Balanced Suspension & Handling

The Breakout® model may be a big bold bike with a powerful stretched stance, but it’s definitely not just for show. We carefully balanced and damped its suspension to give it a neutral feel—even with those big, wide tires—and engineered it for lightness, for an excellent power-to-weight ratio. The bottom line? A smooth, fun ride whether roaring from stoplight to stoplight or winding along country roads.

Drag-Style Handlebar

Designed exclusively for the Breakout® model, these low and wide handle bars put you in an aggressive reach-forward riding position. And we routed their wiring internally, keeping a minimalist look that goes with the overall clean custom styling.

Low Seat and Pillion

This two-piece saddle doesn’t just look good, it feels great. Whether you’re riding with a passenger or not, you’ll roll and stop with confidence as the low bucket holds you slung close to your ride with the road in easy reach of your boots. And when you’re riding solo, that detachable rear-pillion also gives lower-back support for even more comfort, mile after mile.








2015 Harley-Davidson FXSB Breakout – www.Totalmotorcycle.com American Specifications/Technical Details
USA MSRP Price:
Vivid Black $18,599; Color Option $18,999; Custom Color Option $19,549; Hard Candy Color Option $19,799 USD

PRICING 6
Vivid Black $18,599
Color Option $18,999
Custom Color Option $19,549
Hard Candy Color Option $19,799
Security Option $395
ABS Option STD
California Emissions $200
Freight $390

DIMENSIONS
Length 96.3 in.
Seat Height, Laden 7 24.7 in.
Seat Height, Unladen 7 26 in.
Ground Clearance 4.7 in.
Rake (steering head) (deg) 35
Trail 5.7 in.
Wheelbase 67.3 in.
Tires, Front Specification 130/60B21 63H
Tires, Rear Specification 240/40R18 79V
Fuel Capacity 5 gal.
Oil Capacity (w/filter) 3.5 qt.
Weight, As Shipped 681 lb.
Weight, In Running Order 710 lb.

ENGINE
Engine 1 Air-cooled, Twin Cam 103B™
Bore 3.87 in.
Stroke 4.374 in.
Displacement 103.1 cu in
Compression Ratio 9.6:1
Fuel System 3 Electronic Sequential Port Fuel Injection (ESPFI)

DRIVETRAIN
Primary Drive Chain, 34/46 ratio
Gear Ratios (overall) 1st 9.311
Gear Ratios (overall) 2nd 6.454
Gear Ratios (overall) 3rd 4.793
Gear Ratios (overall) 4th 3.882
Gear Ratios (overall) 5th 3.307
Gear Ratios (overall) 6th 2.79

CHASSIS
Exhaust Staggered, straight cut chrome mufflers with gloss black muffler shields
Wheels, Front Type 9 Gasser Cast Aluminum
Wheels, Rear Type Gasser Cast Aluminum
Brakes, Caliper Type 4-piston fixed front; 2-piston floating rear

PERFORMANCE
Engine Torque Testing Method J1349
Engine Torque 2 95.2 ft-lb
Engine Torque (rpm) 3,000
Lean Angle, Right (deg.) 23.4
Lean Angle, Left (deg.) 23.4
Fuel Economy: Combined City/Hwy 5 42 mpg

ELECTRIC
Lights (as per country regulation), Indicator Lamps 8 High beam, neutral, low oil pressure, turn signals, engine diagnostics, security system (optional), 6-speed, low fuel warnings
Gauges Clean tank console with a riser mounted speedometer

Recommended 91 octane or higher fuel (R+M)/2.
Values shown are nominal. Performance may vary by country and region.
Standard and optional fuel systems may vary by country.
See motorcycle owner’s manual for complete details.
Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
Prices listed are the Manufacturer’s Suggested Retail Prices. Options such as color are available at additional cost. Prices exclude dealer setup, taxes, title and licensing and are subject to change. Dealer prices may vary.
Measurement reflects 180 lb. (81.7 kg) operator weight.
North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
Standard and optional wheels may vary by country and region.








2015 Harley-Davidson FXSB Breakout – www.Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: Vivid Black $ 22,779; Color Option $ 23,269; Custom Color Option $ 23,939; Hard Candy Custom $ 24,239 CDN

PRICING
Vivid Black $ 22,779
Color Option $ 23,269
Custom Color Option $ 23,939
Hard Candy Custom $ 24,239
Security Option $ 490
ABS Option STD

DIMENSIONS
Length 2,445 mm
Seat Height, Laden 6 627 mm
Seat Height, Unladen 6 660 mm
Ground Clearance 120 mm
Rake (steering head) (deg) 37
Trail 146 mm
Wheelbase 1,710 mm
Tires, Front Specification 130/60B21 63H
Tires, Rear Specification 240/40R18 79V
Fuel Capacity 18.9 l
Oil Capacity (w/filter) 3.3 l
Weight, As Shipped 308 kg
Weight, In Running Order 322 kg

ENGINE
Engine 1 Air-cooled, Twin Cam 103B™
Bore 98.4 mm
Stroke 111.1 mm
Displacement 1,690 cc
Compression Ratio 9.6:1
Fuel System 3 Electronic Sequential Port Fuel Injection (ESPFI)

DRIVETRAIN
Primary Drive Chain, 34/46 ratio
Gear Ratios (overall) 1st 9.311
Gear Ratios (overall) 2nd 6.454
Gear Ratios (overall) 3rd 4.793
Gear Ratios (overall) 4th 3.882
Gear Ratios (overall) 5th 3.307
Gear Ratios (overall) 6th 2.79

CHASSIS
Exhaust Staggered, straight cut chrome mufflers with Gloss Black muffler shields
Wheels, Front Type Black, 10-Spoke Cast Aluminum
Wheels, Rear Type 8 Black, 10-Spoke Cast Aluminum
Brakes, Caliper Type 4-piston fixed front; 2-piston floating rear

PERFORMANCE
Engine Torque Testing Method J1349
Engine Torque 2 129 Nm
Engine Torque (rpm) 3,000
Lean Angle, Right (deg.) 23.4
Lean Angle, Left (deg.) 23.4
Fuel Economy: Combined City/Hwy 5 5.6 l/100 km

ELECTRIC
Lights (as per country regulation), Indicator Lamps 7 High beam, neutral, low oil pressure, turn signals, engine diagnostics, security system, 6-speed, low fuel warnings, ABS

Recommended 91 octane or higher fuel (R+M)/2.
Values shown are nominal. Performance may vary by country and region.
Standard and optional fuel systems may vary by country.
See motorcycle owner’s manual for complete details.
Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
Measurement reflects 180 lb. (81.7 kg) operator weight.
North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
Standard and optional wheels may vary by country and region.

Specifications and appearance are subject to change without prior notice.
