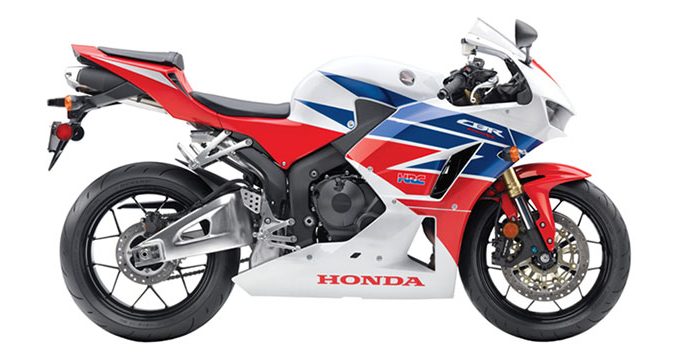

2015 Honda CBR600RRA
2015 Honda CBR600RRA



2015 Honda CBR600RRA Review

2015 Honda CBR600RRA on www.Totalmotorcycle.com

CBR600RRA – Track or street..,

A modern sportbike can be an uncompromising thing. Tuned for maximum performance, things like comfort, ease of use and everyday practicality tend to go out the window. Not so with the CBR600RR, from the beginning these very traits were carefully included in the overall concept. There’s no arguing the CBR600RRA’s performance credentials have been at the front of the battle for 600 class race supremacy since its introduction; in fact, it is 3-time consecutive winner of the Canadian National Championship. But perhaps even more impressive than its long list of race and championship wins is its reputation on the street as a completely functional everyday bike with excellent durability. Perhaps it’s this reputation for durability that lead to the CBR600’s engine being selected as the basis the Moto 2 World Championship racing machines. The addition of race spec ABS on the “A” version has only added to the CBR600RRA’s appeal. No wonder its fans are legion.







2015 Honda CBR600RRA www.Totalmotorcycle.com Key Features

•Superior power-to-weight ratio for outstanding acceleration and handling.
•The Intake Air Control Valve (IACV) minimizes torque reaction and smoothes response to small throttle changes through gradual reductions of air and fuel intake when the throttle is opened and closed.
•Smooth-shifting close-ratio six-speed transmission is closely matched to the engine’s powerband.
•The Showa Big Piston fork features a larger damping volume to effectively reduce the hydraulic pressure generated as the fork legs compress and extend. The result is more precise action during the initial stroke and smoother damping action for improved handling, enhanced front-end feedback, and a more solid feel during hard braking.





2015 Honda CBR600RRA www.Totalmotorcycle.com Features and Benefits

Engine/Drivetrain

Superior power-to-weight ratio for outstanding acceleration and handling..
Liquid-cooled DOHC 16-valve 599 cc four-stroke inline four-cylinder engine features oversquare bore and stroke of 67 mm x 42.5 mm..
High-revving engine redlines at 15,000 rpm..
Oil jets beneath the piston provide additional friction reduction and cooling..
Iridium-tip sparkplugs improve fuel combustion and performance..
The Dual Stage Fuel Injection (DSFI) system features 40 mm throttle bodies and two injectors per cylinder — one upper and one lower — controlled by an electronic control system (ECU) that senses rpm and throttle opening. Lower injector enhances rideability while upper injector improves top-end horsepower..
Denso 12-hole injectors deliver finely atomized fuel mixture for optimum combustion efficiency and power..
The Intake Air Control Valve (IACV) minimizes torque reaction and smoothes response to small throttle changes through gradual reductions of air and fuel intake when the throttle is opened and closed..
Auto enrichment system is integrated into programmed fuel injection (PGM-FI) module, eliminating the need for a manual choke..
Non-resonance knock sensor maintains optimum spark advance while constantly monitoring combustion performance during mid- to high-speed operation..
Two-stage ram-air system provides high volume of cool air to the airbox for linear power delivery and incredible engine performance..
Cylinder head features angled valve insets to improve airflow..
Cylinder head features two springs per intake valve and one spring per exhaust valve for optimum high-rpm valve operation and durability..
Direct shim-under-bucket valve actuation ensures high-rpm performance and durability..
Lightweight forged-aluminum pistons incorporate special shot peening for added toughness..
Lightweight magnesium head cover..
Lightweight stainless steel four-into-one exhaust features an inline-exhaust valve to control exhaust pressure for maximum performance..
Double-pivot tensioner for cam-chain durability..
Right-side starter gears allow increased lean angle..
Smooth-shifting close-ratio six-speed transmission is closely matched to the engine’s powerband..
MotoGP-style centre-up exhaust system..



Chassis/Suspension

Fine Die-Cast (FDC) frame uses four large castings for light weight..
The Showa Big Piston fork features a larger damping volume to effectively reduce the hydraulic pressure generated as the fork legs compress and extend. The result is more precise action during the initial stroke and smoother damping action for improved handling, enhanced front-end feedback, and a more solid feel during hard braking..
Unit Pro-Link rear suspension system is patterned after RC213V MotoGP racer. In this two-piece shock system, the upper shock mount is contained within the swingarm rather than the frame. With no top frame mount for the shock, this unique system reduces negative suspension energy from being transmitted into the frame, allowing optimum frame rigidity and improved rideability out of corners..
Small and light Honda Electronic Steering Damper (HESD) enhances stability..
The CBR600RRA comes with the world’s first electronically-controlled Combined ABS for sportbikes. This innovative system combines the benefits of anti-lock brakes and linked front and rear brakes to improve both braking control and safety — all without interfering with cornering ability or other aspects of sport performance. The system measures rider input on both the front brake lever and rear brake pedal (plus data from other sensors), then using sophisticated electronics and two separate power units, generates up to the maximum braking force on both wheels while also preventing wheel lockup. An innovative stroke simulator helps to maintain the same sort of feel at the brake lever and pedal as you’re used to. Combine this with the small size and weight of the components, and you have one amazing system. Full braking performance immediately available, giving you that extra peace of mind..
Braking system features twin four-piston radial-mounted front calipers, dual 310 mm front discs and a single 220 mm rear disc for optimum stopping power..
Vertical-piston master-cylinder system produces superior leverage ratio at the front brake lever for higher braking efficiency with excellent feel and controllability. This layout permits the use of a longer brake lever, which means more braking force with less effort from the rider..



Additional Features

Slim turn-signal indicators and fairing design..
Industry-leading ergonomic design features maximum rider comfort for minimum fatigue in all riding conditions..
Centrally mounted fuel tank is positioned low in the frame, increasing mass centralization and allowing a more compact design..
Plastic tank shell cover protects tank and airbox..
Line-beam headlights feature three-piece reflector design utilizing two H7 bulbs for optimum light distribution and a unique compact design..
Instrumentation is very compact and features LCD panel with tachometer, odometer, twin tripmeters speedometer, fuel gauge and clock..
Attractive 12-spoke aluminum-alloy wheels feature race-spec 3.5 x 17-inch front and 5.5 x 17-inch rear dimensions..
One-piece fan assembly for maximum cooling efficiency..
Maintenance-free battery..
Optional seat cowl..
Compact rear cowl storage compartment for U-type locking devices (lock not included) under the passenger seat..
Pivoting, aerodynamic mirrors..
Integrated ignition-switch/fork lock for added security..
Convenient push-to-cancel turn-signal switch..
1 year, unlimited mileage, freely transferable warranty..












2015 Honda CBR600RRA – www.Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $ USD











2015 Honda CBR600RRA – www.Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $ CDN

Engine Type
Liquid-cooled inline-four

Displacement
599 cc

Bore & Stroke
67 mm x 42.5 mm

Compression Ratio
12.2:1

Valve Train
Chain-driven DOHC, 4 valves per cylinder

Fuel Delivery
Dual Stage Fuel Injection

Transmission
Close-ratio six-speed

Final Drive
O-ring-sealed chain

Front Suspension
41 mm inverted Big Piston fork with full adjustability; 110 mm (4.3″) travel

Rear Suspension
Unit Pro-Link HMAS single shock with full adjustability; 129 mm (5.1 in.) travel

Tires
120/70ZR – 17 radial front; 180/55ZR – 17 radial rear

Brakes
Front dual 310 mm discs with radial-mounted four-piston calipers; rear 220 mm disc with single-piston caliper. Electronically controlled Combined ABS

Seat Height
840 mm (32.3 in.)

Wheelbase
1,370 mm (53.9 in.)

Curb Weight
196 kg (434 lb) including required fluids and full tank of gas – ready to ride

Fuel Capacity
18 litres

Colour
Tricolour

Warranty
12 months, unlimited mileage, freely transferable warranty









2015 Honda CBR600RRA – www.Totalmotorcycle.com European/UK Specifications/Technical Details
UK/European MSRP Price: £ GBP (On The Road).



All specifications are provisional and subject to change without notice.

# Please note that the figures provided are results obtained by Honda under standardised testing conditions prescribed by WMTC. Tests are conducted on a rolling road using a standard version of the vehicle with only one rider and no additional optional equipment. Actual fuel consumption may vary depending on how you ride, how you maintain your vehicle, weather, road conditions, tire pressure, installation of accessories, cargo, rider and passenger weight, and other factors.
