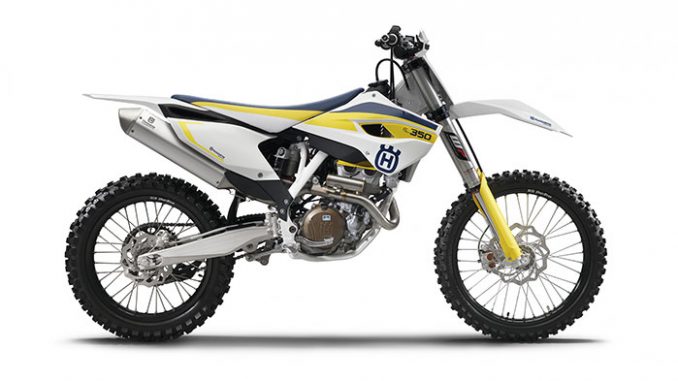

2015 Husqvarna FC350 Review
2015 Husqvarna FC350 on Totalmotorcycle.com
Balance and precision…
With top-level performance guaranteed by the lightweight agility of a 250 and the hard-hitting power of a 450, the FC 350 carves through turns effortlessly and powers down straights aggressively. Standard equipment such as the electric start system and the handlebar-mounted map switch highlight the FC 350’s technological edge over the competition.
2015 Husqvarna FC350 Totalmotorcycle.com Features and Benefits
With peak power of 54 horsepower in a package of roughly the same dimensions as the FC 250 engine, the FC 350 offers 450-class performance with 250-class size. Superb engineering and manufacturing expertise combine to make the impressive engine that powers the FC 350 to the top of the power output charts. The titanium valves are ultra-lightweight, weighing only 22.4g and have a diameter of 36.3mm each on the intake side, and 22.7g with a diameter of 29.1mm on the exhaust side. Combined with the Diamond Like Carbon (DLC) coated followers, the FC 350 engine is capable of reaching a 13,000 rpm ceiling. The yellow valve cover tops-off a technological marvel. The handlebar mounted map switch is a standard feature and allows the rider to switch between maps while riding, adjusting power delivery and engine performance according to rider fatigue and track conditions.
ENGINE MANAGEMENT SYSTEM
The electronic fuel injection and 44mm throttle body of the Keihin Engine Management System on the 4-stroke models, combine to offer amazing power delivery and efficiency at all engine speeds. The injector was positioned on the bottom of the inlet tract for optimal air-fuel mixture, resulting in crisp throttle response and class-leading power. Great attention was dedicated to ensuring that cleaning and washing the bike will not damage the electronics. The wire harness, lead wire, and high quality sealed critical connectors ensure that a jet wash poses no threat. The throttle position sensor (TPS) is also water resistant and protected.
CRANKSHAFT, CONROD AND PISTON
The plain big end bearing and two force-fitted shells that run directly on the crank pin are lubricated by the engine’s pressure lubrication in order to maintain durability and long service intervals (100 hours before changing con rod, con rod bearing and crank pin). The FC 350’s power output and engine characteristics require the highest quality components, therefore the entire crankshaft, together with the con rod, is produced by industry leader Pankl. The CP-Carrillo forged box-type piston combines maximum performance and reliability with minimum weight, only 270g. The compression ratio is 13.65:1.
All 4-strokes feature a reliable electric-start-only system. The electric starter is a great advantage in every situation, especially in the event of a fall or in a difficult location on track. The increase in weight has been kept to a minimum by eliminating the mounting and components of the kick-starter.

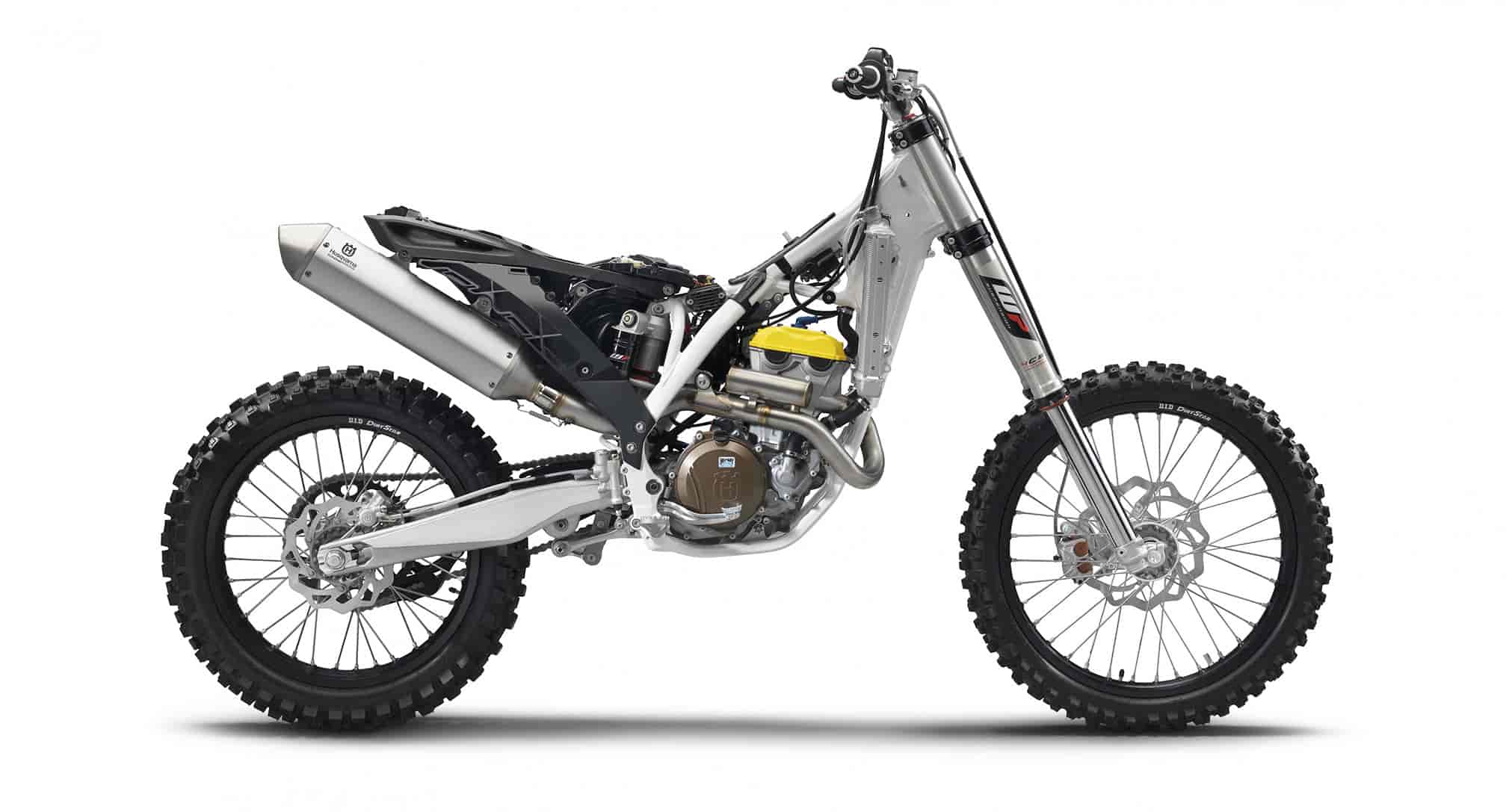

The engineers in Research and Development had clear objectives in terms of torsional rigidity, longitudinal stiffness and weight. The goal was to give the rider optimal feedback and complete confidence in every situation. This was achieved by designing the lightweight chromium molybdenum frame with precise longitudinal flex that helps absorb impacts from the rear wheel, working together with the suspension for better comfort and greater feedback. The torsional rigidity enhances turn-in, sharp handling and stability even on the roughest terrain, giving the rider complete confidence in finding his lines and increasing his pace lap after lap. WP Performance Systems produces every frame to exacting standards in an ultra-advanced production plant. The production process involves hydro-forming and robot welding for maximum precision and consistent quality that is reflected in the supreme performance of every Husqvarna motorcycle.
The lightweight polyamide rear subframe has been reinforced with an additional screw on the airbox side that improves the fitment between the left subframe arm and the airbox. The improved seal guarantees better performance and durability. The three-piece composite subframe, made of high strength polyamide with a precision injection moulded production process, has been designed to offer stiffness while flexing more than an aluminium subframe, complementing the flex characteristics of the frame in order to offer optimum rider feedback and feeling in all conditions. The lightweight design offers engineers unlimited opportunities in integrating features such as all the electronics and the airbox.
The single component construction of the aluminium swingarm eliminates welding, providing more reliability, stability and safety, as well as superior quality and consistent behaviour over time compared to other construction processes. The specific flex engineered into the swingarm makes the most of the Husqvarna engine characteristics in terms of traction and power.
The lightweight wheels are complemented by new Dunlop MX52 Motocross tyres that feature a new “block-within-a-block” design for more progressive cornering. The new Dunlop rubber has been developed to offer superior grip in a wider variety of terrain.
WP has developed a closed cartridge 4CS fork specifically for Motocross. The new four chamber fork has improved damping characteristics and is also lighter than the previous closed cartridge fork. As with all 4CS forks by WP, the clicker settings can be easily and quickly adjusted via the dials on the top of the fork tubes. The red dial on the right alters rebound damping, while the white dial on the left is for compression damping. WP suspension stands for top quality and offers the best performance levels. Precision engineering, quality materials and advanced production processes are an integral part of the WP forks on the Husqvarna model range.
The high performance Husqvarna DCC (Dual Compression Control) rear shock made by WP has a revised setup and has been re-valved to match the geometry changes of the new rear link. The new shock features a 4mm increase in stroke thanks to the new link geometry, for better handling and damping characteristics.
The rear link has been revised and now features a higher starting rate, and therefore a less progressive curve, that provides better control in all circumstances. Further advancements in production processes have seen an improvement in quality and a reduction in weight of the triangle and pull rod of approximately 40g.
22MM FRONT AXLE
In the overall optimisation of the chassis, the MY15 Motocross bikes feature a new 22mm front axle with specific fork shoes in place of the previous 26mm axle. The new axle is lighter, and the shoes have shorter offset and increased trail, for more stability and better front-end feel.
New Neken handlebar, with the same bend as the previous model year, with Husqvarna bar pad mated to Husqvarna grips for excellent control of the bike.
The distinctive yellow fork protectors have been redesigned and no longer wrap around the fork leg. The new design allows for improved access to the fork leg for better maintenance and cleaning, while also being easier to replace.
Exceptional stopping power is guaranteed by the latest generation Brembo brakes, featuring floating calipers in combination with 260mm wave discs at the front and 220mm wave discs at the rear. The perfectly placed controls allow for optimal feel and balance under extreme conditions.
The seat features a new seat cover material that improves grip and durability. The sturdy material is also harder than the previous cover, making the entire seat firmer, improving comfort and feeling.
2015 Husqvarna FC350 – www.Totalmotorcycle.com International Specifications/Technical Details
MSRP Price: See dealer for pricing.
Single-cylinder, 4-stroke, spark-ignition engine, liquid-cooled
5-speed, claw shifted
Forced oil lubrication with 2 Eaton pumps
Secondary gear ratio
Liquid cooling system, continuous circulation of cooling liquid with water pump
Wet multi-disc clutch CSS / Brembo hydraulics
Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment
Central tube frame made of chrome molybdenum steel tubing
WP Suspension Up Side Down 4CS
WP Monoshock with linkage
Suspension travel Front
Suspension travel Rear
Brake system Front
Disc brake with four-pot brake caliper
Brake system Rear
Disc brake with one-pot brake caliper, floating brake discs
Brake discs – diameter Front
Brake discs – diameter Rear
Steering head angle
Ground clearance (unloaded)
Seat height (unloaded)
Total fuel tank capacity approx.
7.5 l Unleaded premium fuel (95 RON)
Weight without fuel approx.
Specifications and appearance are subject to change without prior notice.
