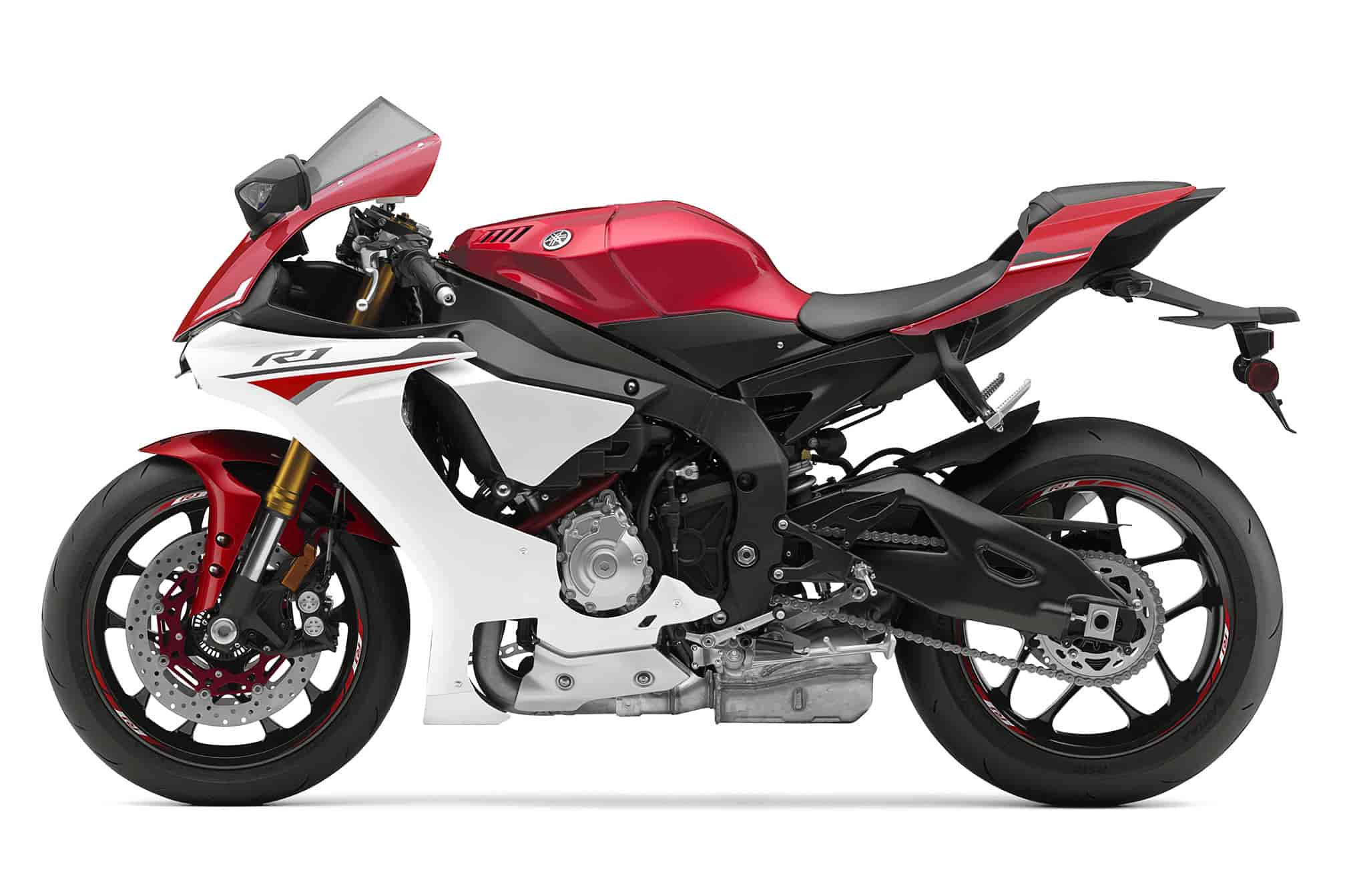

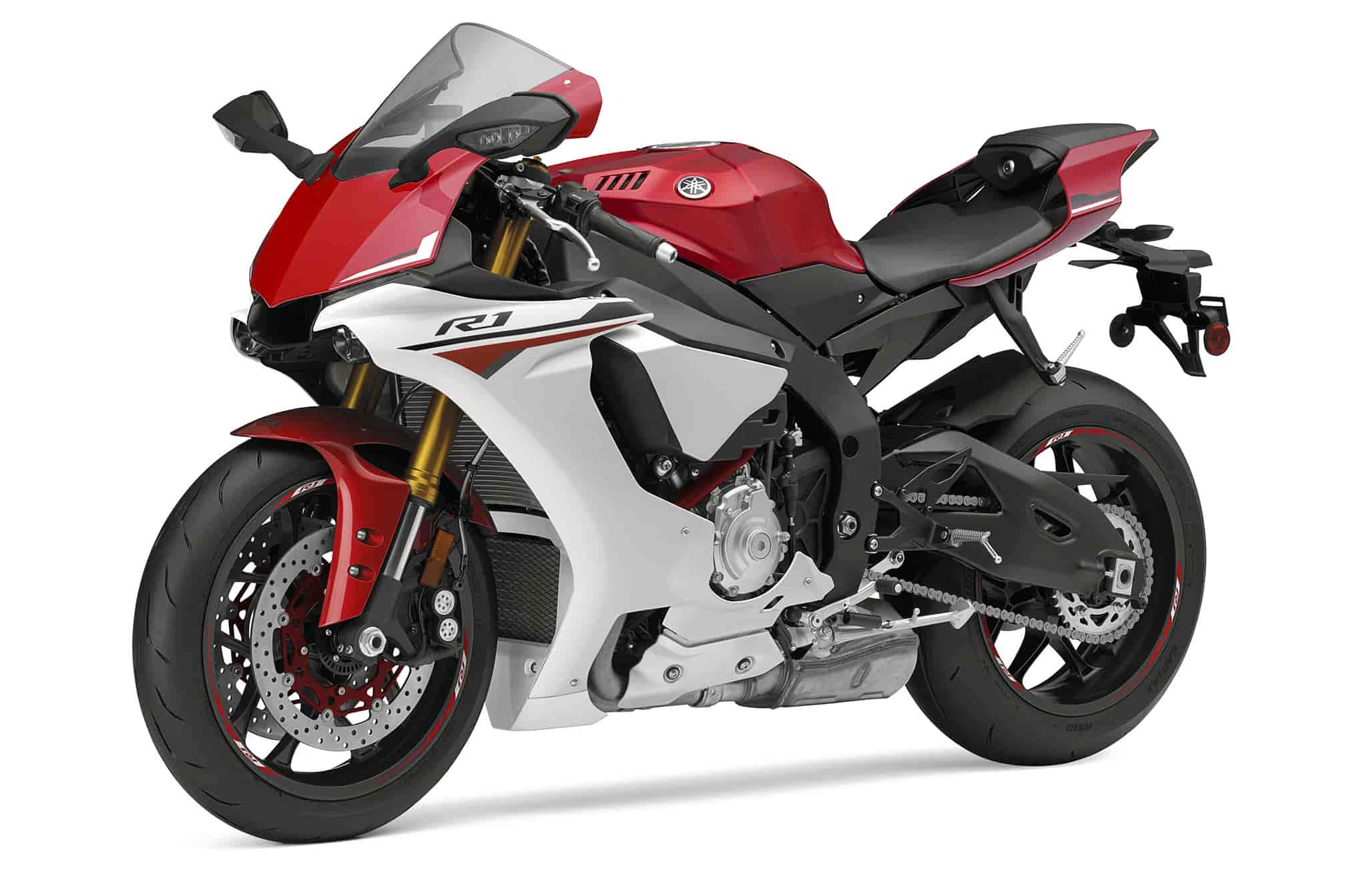

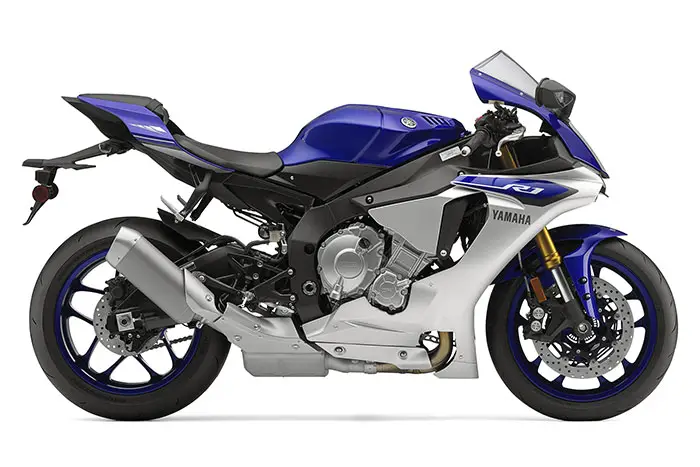

2015 Yamaha YZF-R1 Review
2015 Yamaha YZF-R1 on www.Totalmotorcycle.com
The completely new R1 – MotoGP technology and performance for you!
Completely new from the track up.
Introducing the most MotoGP inspired R1 ever. From the advanced Rider Active electronics package, to the powerful crossplane crankshaft engine, the line between Supersport bike and factory MotoGP has never been more blurred.
Everything except the name has changed. MotoGP, the highest form of motorcycle racing in the world, is our proving ground. The technology Yamaha has pioneered and proven on MotoGP circuits around the world can now be enjoyed by racers and riders alike. The all new R1 provides racers and enthusiast sport riders with a taste of what it would be like to ride the championship winning Yamaha M1. A showcase of Yamaha’s technology leadership, the all new R1 raises the bar with its uncompromised performance and handling.
All new Yamaha YZF-R1. We R1
Packed with MotoGP YZR-M1 technology, the next generation R1 is here. With a new crossplane engine, short wheelbase chassis and high-tech electronics, it’s ready to connect to your body and take your riding to a new level.
Developed without compromise using YZR-M1 MotoGP technology, the R1 was born for the track. 200PS, 199kg and 1,405mm wheelbase give an insight into its capabilities. But it’s what you can’t see that makes this focused superbike so special.
Its central nervous system is a 6-axis Inertial Measurement Unit that constantly senses chassis motion in 3D, creating controllability over traction, slides, front wheel lift, braking and launches. Yamaha R1. We R1.
2015 Yamaha YZF-R1 www.Totalmotorcycle.com Key Features
/// Key Highlights
• All new more powerful engine (horsepower & torque)
• Cross plane crankshaft, titanium “fracture split” con rods, new pistons & offset cylinder
• Larger valves & high tech “Finger Follower” rocker arms for high RPM use
• Twin injector 45mm throttle body FI & new higher capacity air box
• Mid ship 4 into 2 into 1 exhaust system with EXUP & titanium header pipes & muffler
• Magnesium wheels, oil pan, cylinder head cover & crankcase covers
• Yamaha Ride Control: PWR / TCS / SCS / LIF / LCS / QSS plus YCC-T & YCC-I
• Compact and lightweight aluminum Deltabox chassis & swingarm
• ABS & Unified Brake system, with larger 320mm front discs
• MotoGP M1 race bike inspired body design
• TFT multifunction instrument / display
• LED headlights, position lights & turn signals
2015 Yamaha YZF-R1 www.Totalmotorcycle.com Features and Benefits
• All new, ultra-lightweight, compact, 998cc, DOHC, 16-valve (4-valves / cyl.), liquid-cooled, in-line four-cylinder engine with “cross plane” style crankshaft.
• The key components of this cutting edge engine design are the “cross plane” crankshaft and an uneven firing order. Both of these features are used on Yamaha’s race winning M1 MotoGP racer. The R1 cross plane crankshaft locates the center two rods at a 90 degree plane from the outer cylinders. This means instead of the crank pins aligned on the same plane (a straight line drawn through the center of the crankshaft), they align on 2 planes in the form of a cross … or “cross plane”. Working in conjunction with the cross plane crank is an uneven firing order. This R1 engine fires 1,3,2,4 cylinders and the firing intervals are uneven at 270 / 180/ 90 /180 degrees. What all this means to the rider is the most linear torque possible and amazing throttle control. This engine design allows a whole new level of rider – machine communication. One of the most important benefits is the outstanding cornering performance that increased engine control allows.
• The key engineering goal for the new R1 is increased power with excellent controllability. Horsepower increases have gained through increased intake air volume, reduced internal friction and weight reductions. The new R1 is a “rider’s machine”.
• New, 4-valve cylinder head design features new compact pent roof combustion chambers that utilize lightweight titanium valves on the intake side. The 4-valve design optimizes breathing efficiency and overall engine performance. Combustion chamber volume is carefully monitored to ensure exact volume for maximum power.
• New, larger valves for 2015. Titanium intake valves are 33mm in diameter (’14 = 31mm) while the steel exhaust valves are 26.5 mm in diameter (’14 = 25mm). The lightweight titanium intake valves reduce reciprocating weight allowing for higher rpms without the concern of valve float.
• New intake port shape provides maximum filling efficiency. The port shape, valve placement and combustion chamber shape induce a tumbling effect of the inbound fuel – air charge that increases combustion speed, power and torque.
• 13:1 compression ratio
• All new “finger follower rocker arms” are used. This system reduces friction, allows greater valve lift and provides super accurate control of valve opening and closing at high rpms. The sliding area of the rocker arms feature a DLC (diamond like coating) to reduce friction and wear. Valve adjustment pads sit under the rocker arm.
• Valve adjustment intervals are every 40,000 kms.
• Newly designed high performance intake & exhaust cams work in conjunction with the new finger follower rocker arm system.
• New design, lightweight, closed deck aluminum cylinder features a ceramic coating applied directly to the liner-less aluminum block to ensure uniform heat dissipation reduced friction and reduced weight. Closed deck design allows the cylinders to be spaced more closely together, providing a narrower engine. Cylinder is a stand-alone design (not integrated into the upper crank case).
• Offset cylinder / crank design offsets the cylinder block relative to the crankshaft (to the exhaust side) to reduce frictional losses between the pistons and the cylinder wall during the power stroke for improved power output.
• New, short skirt, forged aluminum pistons offer light weight, fast throttle response and great reliability. The piston features a box shaped “bridge box ” on the underside for increased rigidity and a special Deflic coating to further reduce friction. Ring expansion tension is optimized to reduce frictional losses. New piston oil coolers spray oil at the underside of the piston to reduce piston temperatures.
• New, narrower cross plane crankshaft design. Crankshaft is over 25 mm (1″) narrower than the ’14 version. Crank inertial moment has been engineered to achieve linear throttle response, strong acceleration and excellent cornering exit control. To achieve excellence response when accelerating, the inertial moment of the crankshaft has been set at a level approximately 20% less than the ’14 YZF-R1.
• All new, super light, fracture split titanium connecting rods feature a nutless design. The lower end “cap” of the rod is made from the same piece of material as the upper portion and is cracked away in a process known as “fracture splitting”. This process ensures true big end roundness and greater precision in con rod dimensions. Lightweight design (60% lighter than a conventional steel con rod) reduces horsepower losses and provides faster throttle response. These fracture split “Ti” rods are a world’s first to be used on a production motorcycle.
• New single axis balancer shaft is used to reduce engine vibration.
• Compact ACM (alternator) is mounted directly to the crankshaft. The compact ACM uses rare earth magnets which produce more power for a given size than conventional magnets, therefore reducing size and weight.
• Newly designed, Mikuni fuel injection system features twin injectors (one set of primary & one set of secondary injectors). This twin injector system is also used on our M1 MotoGP race bike and the R6. One set of injectors (primary) are located in the 45mm throttle bodies while the secondary injectors are located in the air box very near the computer controlled intake funnels. The primary injectors utilize 12-holes to maximize the fuel atomization process. The secondary injectors, located inside the air box, begin to function at mid rpms onwards to supply more fuel as required and also use 12-hole injectors.
• Dual oxygen sensors (located just before the muffler box) make this a “closed loop” type FI system, which feeds back info to the ECU so adjustments can be constantly made to the fuel-air mixture for improved performance and reduced emissions.
• The benefits of fuel injection include excellent throttle response, great fuel economy, reduced emissions, stable idling and no choke start up.
• YCC-T: Yamaha Chip Control Throttle electronically controls the throttle valves for outstanding response and improved throttle control at all rpms. The YCC-T is used to provide super precise control of the intake air volume for smoother torque character.
• YCC-I: Yamaha’s Chip Controlled Intake means the intake funnels / stacks vary in length (2 positions) depending on engine rpm. An electronic servo motor varies the funnel length from the tall position at low to mid rpms to the shorter setting for improved high rpm power. The revolutionary YCC-I provides the best of both worlds… solid low rpm torque and power combined with an amazing high rpm rush. It takes only 0.3 of a second for the funnels to move from the tall to the short position.
• Maintenance-free transistor controlled ignition (TCI) provides a hot spark for sure starts and strong engine performance.
• New design, compact 6-speed transmission features optimized gear ratios for maximum performance. The “stacked” 3-axis gearbox / clutch design centralizes mass and keeps overall engine size shorter front to back. The stacked design gives the engineers the freedom to place the engine in the “sweet spot” of the frame for optimum weight balance for awesome handling.
• New, more compact multi-plate slipper and assist clutch assembly (back limiter clutch) reduces rear wheel hop when making down shifts under hard braking. Key benefit is reduced lap times and smoother control. New clutch design is 19% lighter and 7% smaller in diameter than the ’14 model.
• “Ram Air” system force feeds outside air via a duct located between the new LED headlights into the intake system, pressurizing the air box and improving intake efficiency at higher speeds. As speed increases, the air pressurizes the air box, helping the engine to develop maximum power.
• New, larger computer optimized large capacity 10.5 litre air box maximizes performance. New M1 inspired intake duct with solenoid valve reduces intake noise and improves high rpm power. A viscous type, high flow air filter is utilized.
• All new, mid ship design 4 into 2 into 1 exhaust system features lightweight titanium header pipes and muffler. This new design maximizes power, reduces weight, it also centralizes mass and lowers the centre of gravity for fast, light, agile handling. This system also contains dual 3-way honeycomb catalyzers which reduce harmful CO and HC exhaust emissions.
• New exhaust valve device is located in the under engine chamber and it features two separate exhaust flow routes depending on rpm. By controlling the exhaust routing in selected rpm ranges, it has been possible to build a compact muffler that achieves both outstanding power output and torque characteristics while still providing sufficient silencing performance.
• Yamaha’s EXUP System (Yamaha’s Exhaust Ultimate Power Valve) controls the exhaust pressure waves for optimum intake and exhaust efficiency. It also helps prevent the “blow back” phenomenon caused by valve overlap and helps reduces “flat spots” in the power band while reducing emissions at the same time.
• New, high-efficiency curved radiator features dual ring-type fans for maximum cooling efficiency. This curved rad design provides more airflow than conventional flat rad designs.
• New, air-cooled oil cooler sits below the main rad to maintain stable lubricant temperatures.
• Water pump is located on the outside of the crankcase to reduce crankcase width.
• Optimized wet sump lubrication system features new oil routing to the big end rod bearings.
• New, lightweight, deep bottom magnesium oil pan.
• Convenient spin-on type oil filter is used.
• New lightweight magnesium cylinder head cover & crankcase covers secured by new lightweight aluminum bolts.
• High performance direct ignition coils (ignition coil is built into the spark plug cap) reduce weight while iridium spark plugs and high-output magneto deliver increased spark energy.
/// ELECTRONIC RIDER AIDS:
Many of the following rider assist aids are derived from Yamaha’s MotoGP race efforts and help make the new R1 more controllable and more enjoyable to ride. We call them Yamaha Ride Control or YRC.
• At the heart of the electronic rider assist aids are the IMU or Inertial Measurement Unit and ECU or Electronic Control Unit. The IMU detects three directions of acceleration and angular velocity (total of six directions). Additionally the IMU detects primary position by the G-sensor when the ignition switch is turned on. The IMU calculates each signal and finds the vehicle position and behavior (lean angle, slide speed, pitching rate, etc.), and then in conjunction with the ECU it uses this information to control each of the YRC systems.
•PWR: Power Delivery Model is Yamaha’s variable throttle control that enables the rider to adjust the performance characteristics of the engine based on riding preferences or conditions. There are 4-power settings available from an enhanced race setting to a slippery condition setting with softer power characteristics.
• TCS: Traction control system with lean angle sensor features 9 adjustment settings plus an off setting for a total of 10 settings. The system uses front and rear wheel sensors to detect slip and then adjusts / regulates power via the ECU / IMU to control rear wheel traction. In addition to detecting difference in speed between the front and rear wheels, this new system uses input on the degree of bank / lean angle to adjust the degree of TCS intervention to an optimum level in relation to the riding conditions in real-time. As the banking angle increases, the amount of TCS intervention also increases. When the TCS is off, SCS, LIF and LCS systems will automatically shut off as well.
• SCS: Slide Control System controls engine power when side slip is detected. It adjusts power output to an optimum level to control side slide. There are 3 settings plus off.
• LIF: Lift Control System (a.k.a. anti-wheelie control) reduces time loss due to wheelies during closed course competition. This system reduces front end lift during starts and acceleration. When the IMU and other sensors detect lift, engine output is adjusted to the optimum level to maintain string acceleration without lift. There are 2 settings plus off.
• LCS: Launch Control System is adopted to help ensure fast, strong, controllable starts in closed course competition situations. When the LCS is activated, it keeps engine rpm limited to approx. 10,000 rpm and maintains an optimum level of engine power in conjunction with inputs from the TCS and LIF systems, allowing the rider to concentrate on clutch engagement and the other competitors, reducing stress associated with race starts.
• QSS: Quick Shift System provides smooth, fast upshifts even at full throttle. When the switch on the shift lever rod detects motion, it adjusts engine output and momentarily cancels out the drive torque to promote faster gear shifts. There are 2 settings plus off.

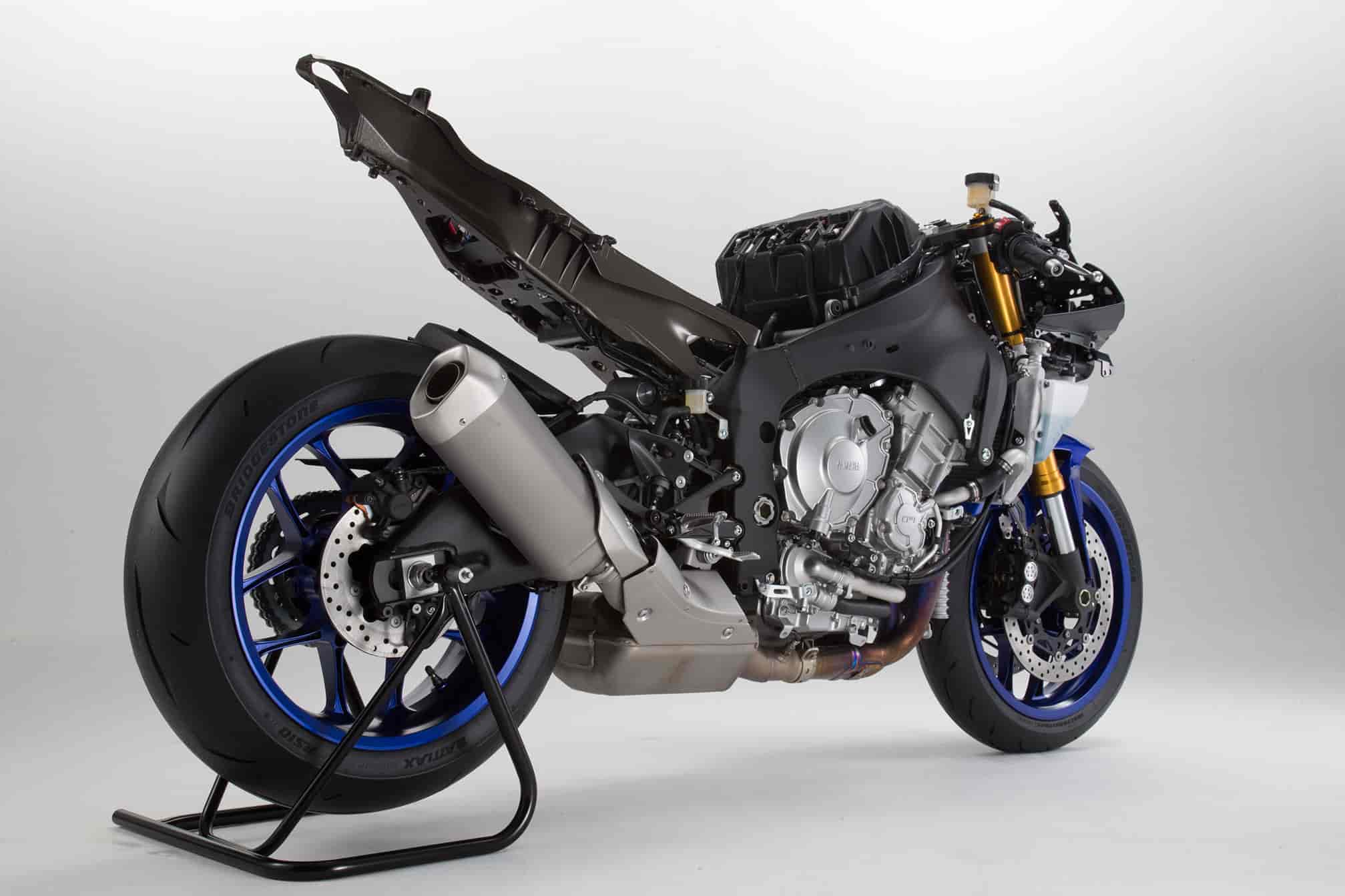

• All new Aluminum Deltabox frame has been designed to offer an optimized rigidity balance to maximize handling performance. This frame offers lightweight and a balance of strength, rigidity and tuned flex. This is a gravity cast frame. The engine is stressed member with rigid mounts. The chassis is designed for optimized overall rigidity balance in the longitudinal, lateral and torsional directions. The result is excellent high-speed stability, cornering characteristics, traction / drive characteristics exiting a corner and greater freedom in choosing a line to run through a turn. The frame design is left-right
asymmetrical. • Detachable magnesium cast rear subframe reduces weight. The detachable design allows rear shock access and is less costly to repair if accidentally damaged.
• Lightweight aluminum “upward truss-type” swingarm provides great torsional rigidity for excellent rear wheel traction and control. Swingarm length is 570mm, 15 mm shorter than the ’14 model and provides excellent control of the effects of chain tensioning during hard acceleration.
• Wheel base is a compact 1,405mm (55.3″), 10mm shorter than the ’14 version
• This Deltabox chassis offers an incredible 56 degree lean angle.
• New, fully adjustable KYB 43mm inverted fork provides good cushioning feel and a solid feeling of front-end contact with the road. Adjustments include 9 turns of spring preload, 17 -way rebound and 7-way compression damping. Front wheel travel is 120mm (4.7″). The adjustable design allows the rider to tailor suspension settings to match rider weight and road /track conditions to maximize handling and suspension performance.
• MotoGP M1 inspired, gravity cast aluminum upper triple clamp reduces weight and improves styling.
• Bottom link Monocross rear suspension utilizes a fully adjustable KYB piggyback-style rear shock. Adjustments include spring preload, 17-way rebound and 10-way slow speed compression damping and 3-way high speed compression damping. The bottom link design lowers the centre of gravity for excellent handling. Overall shock length can be adjusted by 5 mm. The adjustable design allows the rider to tailor suspension settings to match rider weight and track or road conditions to maximize handling and suspension performance. Rear wheel travel is 120mm (4.7″).
• New electric steering damper
• All new, radial mount, 4-piston monoblock calipers with aluminum pistons squeeze fully floating 320mm dual front rotors. The result is incredible braking performance with excellent control and lever feedback. Other features include; Nissin radial master cylinder, stainless steel mess brake lines and new front brake lever.
• Single piston slide-type Nissin rear caliper with aluminum piston squeezes a lightweight 220mm rotor.
• Both front and rear brakes are linked via Yamaha’s Unified Braking System (UBS) and feature our latest anti-lock brake (ABS) technology.
• All new, lightweight, die cast magnesium 10-spoke mag wheels. These wheels save over 1 kg of weight Vs last year’s model and contribute to excellent suspension and handling performance. They feature a smooth exterior finish without centre ribs and an electrostatic paint process. Front rim size is MT3.50 x 17 while the rear is MT6.00 x17.
• New, lightweight 17 litre aluminum fuel tank provides excellent knee grip for hard braking and easy manoeuvrability. Elongated shape helps to centralize mass and reduces the variance in riding feel as the fuel load (weight) changes. This new tank is 1.6 kg (3.5 lbs.) lighter than last year’s model.
• New, eye caching front fairing and windscreen provide a striking YZR-M1 race bike image. The wind tunnel designed windshield offers excellent aerodynamics and features a “screw less” design for a cleaner, more trick appearance. Air resistance has been reduced by 8% compared to the ’14 model.
• New LED headlights and high intensity LED position lights create a “face” never seen before on a motorcycle and provide a very stylish and unique look to the new R1.
• Fully digital instrument panel with TFT liquid crystal display. The instrument panel offers a striking rider-machine “interface.” Displays have been concentrated into a single 4.2-inch screen that adopts a fully transmissive Thin Film Transistor (TFT) liquid crystal display that reduces reflections and glare. White or black backgrounds can be selected and it features auto brightness adjustment based on available ambient light. Two modes are available street and track. Street functions include; speedo, bar style tach, odometer, dual tripmeters, gear position, intake air temp, coolant temp, instant & average fuel efficiency, clock, fuel consumed, peak rpm , and YRC setting info. In the track mode functions include; bar style tach (starts at 8,000 rpm), lap number, lap timer, stop watch, gear position, speed and YRC setting info.
/// Additional Features
• Immobilizer ignition system is designed to reduce the possibility of “ride away” theft. This system must recognize the “coded ignition key” in order for the unit to start. If the system does not recognize the coded chip in the ignition key, it will not allow the ignition system, fuel pump or starter motor to function.
• LED front turn signals integrated into mirrors.
• LED rear turn signals and LED tail light
• New larger 25mm hollow front axle (’14 = 22mm)
• Extensive use of hollow bolts and lightweight fasteners help trim overall weight.
• Lightweight 520 series “O” ring drive chain.
• Low maintenance, lightweight, sealed battery.
/// Optional Equipment:
The new CCU or Communication Control Unit is a plug & play data logger with GPS based information. It is an option on the above R1 and standard equipment on the YZF-R1M premium model. Please see the R1M info for more details on the CUU and its functions.
The YZF-R1 offers a significant level of power and performance. It is not intended for novice or inexperienced riders. All information is subject to change without notice.
2015 Yamaha YZF-R1 – www.Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $16,490 – Raven – Available from February 2015; $16,490 – Team Yamaha Blue/Matte Silver – Available from February 2015; $16,490 – Rapid Red/Pearl White – Available from February 2015
Engine Type 998cc, liquid-cooled inline 4 cylinder DOHC 16 valves
Bore x Stroke 79.00 x 50.9mm
Compression Ratio 13.0:1
Fuel Delivery Fuel Injection with YCC-T and YCC-I
Ignition TCI: Transistor Controlled Ignition
Transmission 6-speed w/multiplate slipper clutch
Final Drive O-ring chain
Suspension / Front 43mm KYB® inverted fork; fully adjustable; 4.7-in travel
Suspension / Rear KYB® Single shock w/piggyback reservoir, 4-way adjustable; 4.7- in travel
Brakes / Front Dual 320mm hydraulic disc; 4-piston caliper, UBS ABS
Brakes / Rear 220mm disc; UBS ABS
Tires / Front 120/70ZR17M/C
Tires / Rear 190/55ZR17M/C
Length 80.9 in
Width 27.2 in
Height 45.3 in
Seat Height 33.7 in
Wheelbase 55.9 in
Rake (Caster Angle) 24.0°
Trail 4.0 in
Fuel Capacity 4.5 gal
Fuel Economy** N/A
Wet Weight*** 439 lb/ CA model 441 lb
Warranty 1 Year (Limited Factory Warranty)
2015 Yamaha YZF-R1 – www.Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $18,999 CDN
Liquid-cooled, DOHC, 16-valves (4-valves / cyl), in-line four
BORE AND STROKE
79 x 50.9mm
11.5 kg-m (83.2 ft-lbs.) @ 11,500 rpm
YCC-T, YCC-I, PWR, TCS, LCS, LIF, SCS, QSS
Mikuni 45mm throttle body FI
IGNITION / STARTING
TCI / Electric
520 series “O” ring chain
Fully adj. 43mm inverted fork / 120 mm (4.7″) wheel travel
Fully adj. bottom link Monocross / 120mm (4.7″) wheel travel
Dual 320mm discs / 4-piston calipers / ABS & Unified
220mm disc / single piston caliper / ABS & Unified
/// CRITICAL DATA
2,055 mm (80.9″)
690 mm (27.2″)
1,150 mm (45.3″)
RAKE / TRAIL
24° / 102mm
130 mm (5.1″)
855 mm (33.7″)
17 litres (3.7 Imp. gal.)
2015 Yamaha YZF-R1 – Totalmotorcycle.com European/UK Specifications/Technical Details
UK/European MSRP Price: See Dealer for Pricing in GBP (On The Road) (including 20% VAT)
Engine type liquid-cooled, 4-stroke, DOHC, forward-inclined parallel 4-cylinder, 4-valves
Bore x stroke 79.0 mm x 50.9 mm
Compression ratio 13.0 : 1
Maximum power 147.1 kW (200.0PS) @ 13,500 rpm
Limited power version 78.1 kW (106.2PS) @ 10,000 rpm
Maximum Torque 112.4 Nm (11.5 kg-m) @ 11,500 rpm
Lubrication system Wet sump
Clutch Type Wet, Multiple Disc
Carburettor Fuel Injection
Ignition system TCI (digital)
Starter system Electric
Transmission system Constant Mesh, 6-speed
Final transmission Chain
Front suspension system Telescopic forks, Ã˜ 43 mm
Front travel 120 mm
Caster Angle 24º
Trail 102 mm
Rear suspension system Swingarm, (link suspension)
Rear Travel 120 mm
Front brake Hydraulic dual disc, Ã˜ 320 mm
Rear brake Hydraulic single disc, Ã˜ 220 mm
Front tyre 120/70 ZR17M/C (58W)
Rear tyre 190/55 ZR17M/C (75W)
Overall length 2,055 mm
Overall width 690 mm
Overall height 1,150 mm
Seat height 855 mm
Wheel base 1,405 mm
Minimum ground clearance 130 mm
Wet weight (including full oil and fuel tank) 199 kg
Fuel tank capacity 17 litres
Oil tank capacity 3.9 litres
