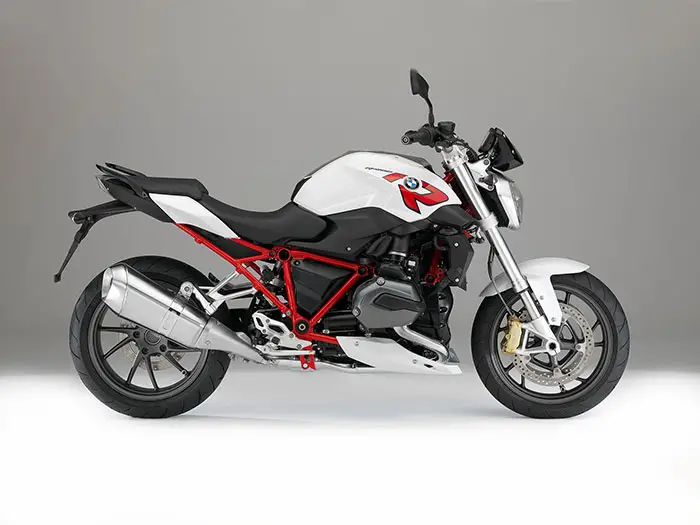

2016 BMW R1200R
2016 BMW R1200R

2016 BMW R1200R
2016 BMW R1200R

2016 BMW R1200R
2016 BMW R1200R

2016 BMW R1200R
2016 BMW R1200R

2016 BMW R1200R
2016 BMW R1200R



2016 BMW R1200R Review

2016 BMW R1200R on www.Totalmotorcycle.com

From design concept to the new R 1200 R….

The new R1200R marks the status quo in terms of aesthetic appeal, dynamic performance and design. When our developers put forward their visions in the BMW Concept Roadster, this bike was their greatest source of inspiration. And that’s no surprise – after all, the new R1200R is a powerful all-rounder that combines comfort, athletic flair and design in an entirely unique way.

Ground-breaking design.

Compact, tight, muscular – the bike’s new design sets it clearly apart from its predecessor. The upside down telescopic fork based on the pattern of the S1000RR not only gives this powerhouse a striking appearance but also ensures stability and precise handling. With the sharply drawn lines along the fuel tank and the seamless transition across the seat to the rear, this roadster has a look that perfectly matches the way it rides.

Individual style.

The new R1200R is available in three striking paint finishes, two options that enhance the aesthetic appeal of the roadster and one option that is pure performance. Showcasing its dynamic flair, the R1200R is available in a athletic Light White with engine spoiler in the matching body colour along with a painted frame in striking Racing Red. The second colour option is stylish and exclusive, Thunder Grey Metallic with a golden fork (only available with the optional Dynamic ESA). The final colour option is considered timeless, even classic in Cordoba Blue

Cutting-edge technology.

The R1200R is ahead of its time in terms of technology, too. A total of 125 hp provides supreme propulsion in the new R1200R. Together with the riding modes that can be accessed at the press of a button, the optionally available traction control (DTC) puts this power effectively onto the asphalt. The rider has everything in view and under control thanks to the redesigned and expanded instrument panel. This sits on a bridge made of high-end aluminium in the cockpit.

Outstanding individual flair.

The range of fittings available for the R1200R is especially impressive: tank rucksack, BMW Navigator V and four different windshields are the perfect preparation for a big tour, while the latest generation of the optional Dynamic ESA further increases riding dynamics in the R1200R. Innovative features such as the preparation for the navigation unit with multi-controller, Shift Assistant Pro and Keyless Ride turn a sports-style roadster into a genuine all-rounder. There are also a range of painstaking details such as the milled hand lever and rider footrests or the crash bar in electropolished stainless steel which strike a perfect balance between functional tuning and visual customisation.

The roadster revolution is beginning.




2016 BMW R1200R www.Totalmotorcycle.com Key Features

•Classic flat-twin boxer engine with 92 kW (125 hp) at 7,750 rpm and 125 Nm (92 lb-ft) at 6,500 rpm.
•Dynamic-looking, compelling roadster design.
•Torsionally rigid tubular steel bridge frame with engine as self-supporting element.
•Classic wheel suspension concept using upside-down telescopic fork at the front and EVO Paralever at the rear.
•New intake air duct and central radiator for ultra-compact front silhouette.
•Upright seating position with front bias for a dynamic riding sensation combined with excellent seating comfort for longer tours.
•Restyled exhaust system in pentagonal design.
•Automatic Stability Control (ASC).
•“Rain” and “Road” riding modes.
• Riding mode Pro offering two additional riding modes, “Dynamic” and “User”, for optimum adaptation to prevailing riding conditions as an ex-works option.
•Dynamic Traction Control (DTC) as part of the Riding mode Pro option.
•Latest-generation Dynamic ESA (Electronic Suspension Adjustment) as an option for optimum riding dynamics in any situation.
•Powerful braking system with radial four-piston callipers and ABS.
•Lightweight 10-spoke cast wheels.
•Gear Shift Assistant Pro for fast, clutchless shifting as an ex-works option.
•Sophisticated instrument cluster offering a wide array of functions and wealth of information.
•Keyless Ride for supreme ease of use as an ex-works option.
•Innovative colour scheme with three individual characters: Basic colour, “Style 1” and “Style 2”.
•Extensive range of optional extras and special accessories available ex-works.







2016 BMW R1200R www.Totalmotorcycle.com Features and Benefits

The new BMW R 1200 R – the boxer roadster for the keen rider.
BMW Motorrad and the roadster with the flat-twin boxer engine – it’s a partnership that has kept enthusiasts enthralled ever since the arrival of the R 32 some 91 years ago, during which time the roadster has come to symbolise the ultimate in unadulterated motorcycling pleasure. And especially so when the propulsive power stems from the classic boxer engine with its inimitable character and glorious sound. From cruising along serenely, to powering down country roads, to touring with a passenger and luggage, the boxer-engined roadster models from BMW Motorrad have always made for the ideal partner. The new R 1200 R upholds this tradition of comfort, dynamism and touring capability, at the same time as putting a new slant on the alluring blend.

Meatier and mightier boxer engine for dynamic riding pleasure.
The flat-twin boxer engine on the new R 1200 R is the same DOHC drive unit that already powers the R 1200 GS and R 1200 GS Adventure as well as the R 1200 RT and the new R 1200 RS. It produces 92 kW (125 hp) at 7,750 rpm and develops its peak torque of 125 Nm (92 lb-ft) at 6,500 rpm. Compared to the engine on its predecessor, not only has torque been increased substantially throughout the rev range, but delivery is now more uniform too. The exhaust gases are routed through a 2-in-1 exhaust system with a dynamic-looking, steeply angled rear silencer. A modified airbox and newly shaped air intake snorkels, as well as a centrally positioned radiator, all lend themselves to the slender front silhouette to which all roadsters aspire.

ABS, ASC and two riding modes as standard. Riding mode Pro with Dynamic Traction Control (DTC) as an optional extra.
For optimum adaptation to the rider’s individual needs, the new R 1200 R already comes equipped as standard with the two riding modes “Rain” and “Road”. Besides ABS, the standard specification also includes Automatic Stability Control (ASC) for increased handling safety when accelerating. And when specified with the optional Riding mode Pro feature, the new R 1200 R also adds Dynamic Traction Control (DTC) with banking detection as well as two extra riding modes – “Dynamic” and “User” – to its technical repertoire.

Tubular steel bridge frame with the engine as a self-supporting element. Wheel suspension using upside-down telescopic fork and EVO Paralever.
A new tubular steel bridge frame incorporating the flat-twin engine as a self-supporting element was purpose-developed for the new R 1200 R. With an upside-down telescopic fork at the front and EVO Paralever at the rear, the wheel suspension remains true to classical roadster principles that have been updated in typical BMW Motorrad fashion. Excellent steering precision, directional accuracy, handling and braking rigidity were all top priorities when configuring the chassis – and all while never losing sight of the overriding objective for the new R 1200 R of creating an exceptionally dynamic roadster for the keen rider, whose design language is derived from the S 1000 RR superbike.

Latest-generation Dynamic ESA (Electronic Suspension Adjustment) for ideal riding dynamics in any situation.
Opting for the latest generation of the electronically controlled suspension Dynamic ESA (Electronic Suspension Adjustment) takes the dynamic riding experience to even greater heights. With its two damping settings “Road” and “Dynamic”, Dynamic ESA enables the rider to enjoy unprecedented levels of handling safety, performance and comfort, as the damping is automatically adapted to the prevailing riding conditions to suit the riding situation and the manoeuvres being carried out.

Multifunctional instrument cluster with analogue speedometer, onboard computer and a wealth of information.
Even the instrumentation of the new R 1200 R takes a quantum leap into a new roadster era. The speed is displayed in traditional fashion by an analogue speedometer, but there is also a TFT display for showing a wide array of information.

Dynamic proportions for a pared-down roadster look. Three colour and finish variants, each with their own character.
The BMW Motorrad boxer roadsters have always enjoyed a reputation for being the perfect companions for everyday use. The new BMW R 1200 R fuses these all-round credentials with both significantly sharper performance and a contemporary, pared-down roadster look. The dynamic proportions, with the low-set front and the light, almost delicate-looking tail jutting up at the rear, give the bike a slight wedge shape and leave no doubt as to its sporting prowess, along with its many other talents. Three colour and finish variants each underline the powerful character of the new R 1200 R, but in their own individual way. This results in a choice of three decidedly different styling variants: the basic colour in Cordoba blue non-metallic, the “Style 1” variant in Light white non-metallic with frame in Racing red, and the “Style 2” variant in Thunder grey metallic with frame in Agate grey metallic matt.









2016 BMW R1200R – www.Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $14095 (including ABS) USD

Engine
Type Air/liquid-cooled 4-stroke flat twin engine, four valves per cylinder, double overhead camshaft, wet sump lubrication
Bore x stroke 101 mm x 73 mm
Capacity 1,170 cc
Rated output 125 hp (92 kW) at 7,750 rpm
Max. torque 92 lb-ft (125 Nm) at 6,500 rpm
Compression ratio 12.5 : 1
Mixture control / engine management Electronic fuel injection with ride-by-wire throttle system
Emission control Closed-loop 3-way catalytic converter, emission standard EU-3
Performance / fuel consumption
Maximum speed Over 125 mph
Fuel consumption per 100 km at constant 90 km/h 60 mpg at a constant 55 mph (3.9 l)
Fuel type Premium Unleaded
Electrical system
Alternator Three-phase 508 W generator
Battery 12 V / 12 Ah, maintenance-free
Power transmission
Clutch Multi-plate wet clutch, hydraulically operated
Gearbox Constant-mesh 6-speed gearbox with helical cut gears
Drive Shaft drive 2.82:1
Chassis / brakes
Frame Tubular steel bridge frame, engine self-supporting
Front wheel location / suspension Upside-down telescopic fork, Ø 45 mm
Rear wheel location / suspension Cast aluminum single-sided swing arm with BMW EVO Paralever; WAD strut (travel-related damping), spring pre-load hydraulically adjustable (continuously variable) at handwheel, rebound damping adjustable
Suspension travel front / rear 5.5″ / 5.5″ (140 mm / 140 mm)
Wheelbase 59.7″ (1,515 mm)
Castor 4.9″ (125.6 mm)
Steering head angle 62.3°
Wheels Cast aluminum wheels
Rim, front 3.50 x 17″
Rim, rear 5.50 x 17″
Tyres, front 120/70 ZR 17
Tyres, rear 180/55 ZR 17
Brake, front Dual floating disc brakes, 4-piston fixed calipers, diameter 320 mm
Brake, rear Single disc brake, diameter 276 mm, dual-piston floating caliper
ABS BMW Motorrad Integral ABS (part-integral, can be switched off)
Dimensions / weights
Length 85.3″ (2,165 mm)
Width (incl. mirrors) 34.7″ (880 mm)
Height (excl. mirrors) 51.2″ (1,300 mm)
Seat height, unladen weight 31.1″ (790 mm) Standard; variable seat heights available between 29.9″ (760 mm) and 33.1″ (840 mm) (available as accessories and/or factory options, see an authorized BMW Motorrad dealer)
Inner leg curve, unladen weight 70.1″ (1,780 mm) Standard; variable inner leg curve (inseam) between 67.7″ (1,720 mm) and 73.8″ (1,875 mm) (seats available as accessories and/or factory options, see an authorized BMW Motorrad dealer)
Unladen weight, road ready, fully fuelled 1) 508 lbs (231 kg)
Permitted total weight 990 lbs (450 kg)
Payload (with standard equipment) 483 lbs (219 kg)
Usable tank volume 4.7 gal (18 l)
Reserve Approx. 1 gal (4.0 l)
” Technical data relate to the unladen weight (DIN)
” 1) According to guideline 93/93/EWG with all fluids, fuelled with at least 90% of usable tank volume









2016 BMW R1200R – www.Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $ See Dealer for pricing in CDN

Engine
Type Air/liquid-cooled four stroke flat twin engine, double overhead camshaft, one balance shaft
Bore x stroke 101 mm x 73 mm
Capacity 1,170 cc
Rated output 92 kW (125 hp) at 7,750 rpm
Max. torque 125 Nm at 6,500 rpm
Compression ratio 12.5 : 1
Mixture control / engine management Electronic intake pipe injection
Emission control Closed-loop 3-way catalytic converter, emission standard EU-3
Performance / fuel consumption
Maximum speed over 200 km/h
Fuel type Unleaded super, octane number 95 (RON)
Electrical system
Alternator three-phase alternator 508 W (nominal power)
Battery 12 V / 12 Ah, maintenance-free
Power transmission
Clutch oil lubricated clutch, hydraulically operated
Gearbox Constant mesh 6-speed gearbox with helical gear teeth
Drive Shaft drive
Chassis / brakes
Frame Two-section frame, front- and bolted on rear frame, load-bearing engine
Front wheel location / suspension Telescopic Upside-Down fork; stanchion diameter 45 mm
Rear wheel location / suspension Cast aluminium single-sided swing arm with BMW Motorrad Paralever; WAD strut (travel-related damping), spring pre-load hydraulically adjustable (continuously variable) at handwheel, rebound damping adjustable at handwheel
Suspension travel front / rear 140 mm / 140 mm
Wheelbase 1.515 mm
Castor 125,6 mm
Steering head angle 62.3°
Wheels Cast aluminium wheels
Rim, front 3,50 x 17″
Rim, rear 5,50 x 17″
Tyres, front 120/70 ZR 17
Tyres, rear 180/55 ZR 17
Brake, front Dual disc brake, floating brake discs, diameter 320 mm, 4-piston radial calipers
Brake, rear Single disc brake, diameter 276 mm, double-piston floating caliper
ABS BMW Motorrad Integral ABS (part-integral), disengageable
Dimensions / weights
Length 2.165 mm
Width (incl. mirrors) 880 mm
Height (excl. mirrors) 1.300 mm
Seat height, unladen weight 790 mm (rider seat low*/high* 760 / 820 mm) *OE
Inner leg curve, unladen weight 1780 mm (rider seat* low*/high* 1720 / 1835 mm) *OE
Unladen weight, road ready, fully fuelled 1) 231 kg
Permitted total weight 450 kg
Payload (with standard equipment) 219 kg
Usable tank volume 18 l
Reserve approx. 4 l
” Technical data relate to the unladen weight (DIN)
” 1) According to Directive 93/93/EEC with all fluids, fuelled to at least 90% of usable fuel tank







2016 BMW R1200R – www.Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: £ See Dealer for pricing in GBP (On The Road inc 20% Vat)

Engine
Type Air/liquid-cooled, twin-cylinder four-stroke boxer engine with double overhead spur-gear-driven camshaft and balance shaft
DOHC cylinder head with four valves per cylinder, cylinders built into crankcase
Bore x stroke 101 mm x 73 mm
Capacity 1,170 cc
Rated output 92 kW (125 hp) at 7,750 rpm
Max. torque 125 Nm at 6,500 rpm
Compression ratio 12.5 : 1
Mixture control / engine management Digital engine management with electronic fuel injection, electronic throttle valve control (fly by wire)
Emission control Regulated three-way catalytic converter with oxygen sensor
Performance / fuel consumption
Maximum speed Over 200 km/h
Fuel type Premium unleaded, 95 octane (RON)
Electrical system
Alternator Three-phase alternator 508 W (nominal power)
Battery 12 V / 12 Ah, maintenance-free
Power transmission
Clutch Wet eight-disc clutch with anti-hopping function, hydraulically operated
Gearbox Built-in six-speed helical gearbox
Drive Shaft drive
Chassis / brakes
Frame Two-section frame, front- and bolted on rear frame, load-bearing engine
Front wheel location / suspension Upside-down telescopic fork. diameter 45 mm travel 140mm, silver-anodized
Rear wheel location / suspension BMW Motorrad EVO Paralever: Spring preload steplessly and hydraulically adjustable via handwheel, rebound damping adjustable, WAD travel-related damping strut
Suspension travel front / rear 140 mm / 140 mm
Wheelbase 1.515 mm
Castor 125.6 mm
Steering head angle 62.3°
Wheels Cast aluminium wheels
Rim, front 3.50 x 17″
Rim, rear 5.50 x 17″
Tyres, front 120/70 ZR 17
Tyres, rear 180/55 ZR 17
Brake, front Double-disc with four-piston radial brake calipers, diameter 320 mm
Brake, rear Single disc brake with double-piston floating caliper, diameter 276 mm
ABS BMW Motorrad Integral ABS (partially-integral), switchable
Dimensions / weights
Length 2.165 mm
Width (incl. mirrors) 880 mm
Height (excl. mirrors) 1.300 mm
Seat height, unladen weight 790 mm (rider seat low*/high* 760 / 820 mm) *OE
Inner leg curve, unladen weight 1780 mm (rider seat* low*/high* 1720 / 1835 mm) *OE
Unladen weight, road ready, fully fuelled 1) 231 kg
Permitted total weight 450 kg
Payload (with standard equipment) 219 kg
Usable tank volume 18 litres
Reserve approx. 4 litres
” Technical data relate to the unladen weight (DIN)
” 1) According to Directive 93/93/EEC with all fluids, fuelled to at least 90% of usable fuel tank




Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
