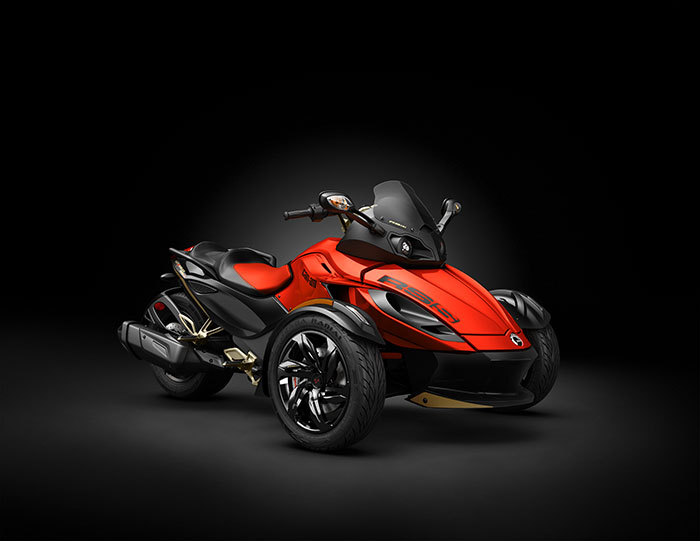

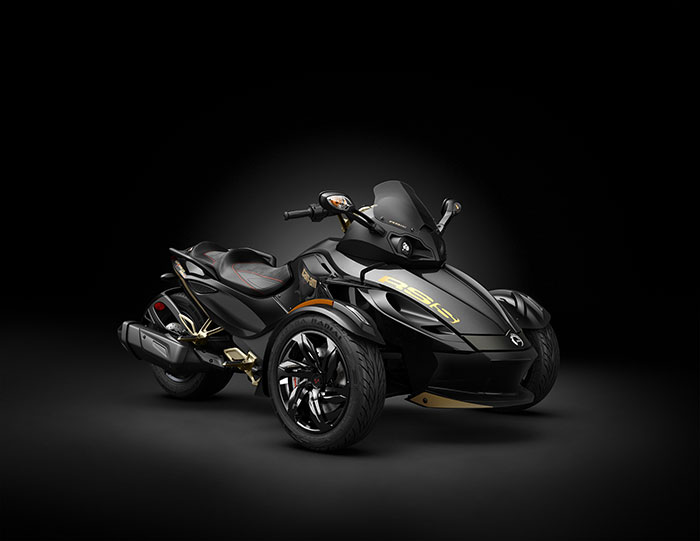

2016 Can-Am Spyder RSS
2016 Can-Am Spyder RSS

2016 Can-Am Spyder RSS
2016 Can-Am Spyder RSS

2016 Can-Am Spyder RSS
2016 Can-Am Spyder RSS

2016 Can-Am Spyder RSS
2016 Can-Am Spyder RSS



2016 Can-Am Spyder RSS Review

2016 Can-Am Spyder RSS on www.Totalmotorcycle.com

PERFORMANCE WITH ATTITUDE

Take style to the next level with the Spyder RS-S with a premium sport appearance package including machined wheels, two-tone coloration and more – it screams performance.

Performance and attitude go to the next level with high performance FOX PODIUM shocks and striking sports styling.





STANDARD FEATURES

Rotax 998 cc V-Twin engine
Vehicle Stability System with ABS, traction control and stability control
Gas-charged, aluminum FOX PODIUM front shocks
with sport-tuned handling
12 gal (44 L) of storage
6 twin-spoke, Metallic Silver front wheels
Dynamic Power Steering
High-performance Brembo braking system
Multi-function LCD / Analog gauge
Anti-theft system
Sport windshield

TRANSMISSIONS AND COLOR AVAILABLE:
5-speed manual with reverse (SM5)





Spyder RSS-S Features:

ALL Spyder RSS FEATURES PLUS:
Sport-tuned Vehicle Stability System
Black Chrome 6 blades-spoke front wheels
Refined front fenders with integrated LED lights
Premium color digital gauge
Cruise control
Two-tone coloration with RS-S graphics
Gold wheat colored parts
Painted A-arm and front spoiler
Red suede seat with Black vinyl details
Deep Black gloss rear wheel

TRANSMISSIONS AND COLORS AVAILABLE:
5-speed manual with reverse (SM5)
5-speed semi-automatic with reverse (SE5)


2016 Can-Am Spyder RSS www.Totalmotorcycle.com Key Features

Rotax 998cc V-Twin Engine

Manual 5-Speed Transmission with Reverse

VSS: Traction Control, Stability Control and Anti-Lock Brakes

FOX PODIUM Shocks

High-Performance Brembo Braking System

Semi-Automatic or Manual 5-Speed Transmission with Reverse

Sport-Tuned Vehicle Stability System

Cruise Control

Premium Colour Digital Gauge







2016 Can-Am Spyder RSS www.Totalmotorcycle.com Features and Benefits

ROTAX 998 V-TWIN ENGINE

POWER AND PERFORMANCE

With 998 cc, the powerful Rotax V-Twin engine delivers crisp acceleration and plenty of torque. Its electronic throttle delivers instant response and optimum fuel economy.



5-SPEED TRANSMISSION

RESPONSIVE

Choose between a semi-automatic or manual 5-speed transmission, both with reverse. The semi-automatic uses paddle shifters for fast, smooth shifts without a clutch lever or foot shifter. The manual transmission’s fluid motion is the result of the gearbox being created specifically for Can-Am Spyder.



VEHICLE STABILITY SYSTEM

SPORT-TUNED STABILITY

Developed in partnership with BOSCH and inspired by automotive technologies, the Vehicle Stability System integrates anti-lock brakes, traction control, and stability control for confidence taking on the open road. The Spyder RS-S version is sport-tuned for a more permissive ride in twisties.


DYNAMIC POWER STEERING

EASY TO
MANEUVER

The electronically-controlled power steering system provides a varying amount of assistance depending on the speed of the vehicle – so it’s always easy to maneuver and steer.


FOX PODIUM SHOCKS

PERFORMANCE, COMFORT AND CONTROL

Sport-tuned gas-charged front shocks feature anodized-aluminum bodies and threaded preload adjustments.


BREMBO BRAKING SYSTEM

SERIOUS STOPPING POWER

Higher-performance brakes specifically designed for Can-Am Spyder from the world leader in braking technology ensure excellent stopping power and consistent performance every time.


2016-Spyder-RS-S-Design-Features-442×472

DESIGN ELEMENTS

GOOD LOOKS AND BETTER GRIP

Takes the look of the Spyder RS to another level with Black Chrome front wheels, low-profile tires, premium fenders with integrated LED light pipes and a black suede and red vinyl seat with embossed Can-Am logo.


CRUISE CONTROL

RELAX
AND ENJOY

Automatically set a comfortable pace so you can just sit back and enjoy the scenery.


PREMIUM COLOR DIGITAL GAUGE

YOUR ESSENTIALS, IN FULL COLOR

A vivid, full-colour digital screen allows quick access to key vehicle information such as speed, trip distance, and RPMs.


SPORT WINDSHIELD

SUPER SLEEK

The low profile design contributes to the vehicle’s
performance look.











2016 Can-Am Spyder RSS – www.Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $18349 USD

/ ENGINE /
Type …………………………………… Rotax® 998 cc V-twin, liquid-cooled with
electronic fuel injection and electronic throttle control
Bore & stroke . …………………..3.82 x 2.68 in. (97 x 68 mm)
Power ………………………………..100 hp (74.5 kW) @ 7500 RPM
Torque ………………………………80 lb-ft. (108 Nm) @ 5000 RPM
/ CHASSIS /
Front suspension …………….Double A-arms with anti-roll bar
Front shocks type / Travel ..Gas-charged FOX† PODIUM† shocks / 5.1 in. (129 mm)
Rear suspension . …………….. Swing arm
Rear shock type / Travel ..SACHS† shock absorber / 6 in. (152 mm)
Electronic brake ……………… Foot-operated, hydraulic 3-wheel brake
distribution system
Front brakes …………………….. 270 mm discs with Brembo† 4-piston fixed calipers
Rear brake …………………………270 mm disc, 1-piston floating caliper
with integrated parking brake
Parking brake ……………………Manual
Front tires …………………………MC165 / 55R15 55H
Rear tire …………………………….MC225 / 50R15 76H
Aluminum front rims ……….6 twin-spoke Metallic Silver, 15 x 5 in. (381 x 127 mm)
Aluminum rear rim …………..Metallic Silver, 15 x 7 in. (381 x 178 mm)
/ FEATURES /
Instrumentation ………………Multi-function LCD / Analog gauge: Digital speedometer,
tachometer, odometer, trip & hour meters, gear position,
temperature, engine lights, electronic fuel gauge, clock
Running lights ………………….2 halogen headlamps (50-W)
Windshield ……………………….Sport
Trims and parts ………………..Metallic Silver: Rider and passenger footpegs, footpeg
support, handlebar, rear sprocket wheel, front and
rear shock springs, exhaust tip and heat shield
/ SAFETY & SECURITY /
SCS ……………………………………Stability Control System
TCS ……………………………………Traction Control System
ABS ……………………………………Anti-lock Braking System
DPS™ ………………………………….Dynamic Power Steering
Anti-theft system . ……………Digitally Encoded Security
System (D.E.S.S.™)
/ DIMENSIONS /
L x W x H ………………………… 105 x 59.3 x 45.1 in.
(2,667 x 1,506 x 1,145 mm)
Wheelbase ……………………….67.5 in. (1,714 mm)
Seat height ……………………….29 in. (737 mm)
Ground clearance …………..4.5 in. (115 mm)
Dry weight ……………………….798 lb (362 kg)
Storage capacity …………….12 gal (44 L)
Maximum vehicle load ….440 lb (200 kg)
Fuel capacity ……………………6.6 gal (25 L)
Reserve …………………………….1 gal (3.8 L) approx.
Fuel type …………………………..Premium unleaded
/ WARRANTY /
Factory ……………………………… 2-year BRP Limited Warranty
with 2-year roadside assistance
Extended …………………………..B.E.S.T. available from
12 to 36 months









2016 Can-Am Spyder RSS – www.Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $20599 CDN

/ ENGINE /
Type …………………………………… Rotax® 998 cc V-twin, liquid-cooled with
electronic fuel injection and electronic throttle control
Bore & stroke . …………………..3.82 x 2.68 in. (97 x 68 mm)
Power ………………………………..100 hp (74.5 kW) @ 7500 RPM
Torque ………………………………80 lb-ft. (108 Nm) @ 5000 RPM
/ CHASSIS /
Front suspension …………….Double A-arms with anti-roll bar
Front shocks type / Travel ..Gas-charged FOX† PODIUM† shocks / 5.1 in. (129 mm)
Rear suspension . …………….. Swing arm
Rear shock type / Travel ..SACHS† shock absorber / 6 in. (152 mm)
Electronic brake ……………… Foot-operated, hydraulic 3-wheel brake
distribution system
Front brakes …………………….. 270 mm discs with Brembo† 4-piston fixed calipers
Rear brake …………………………270 mm disc, 1-piston floating caliper
with integrated parking brake
Parking brake ……………………Manual
Front tires …………………………MC165 / 55R15 55H
Rear tire …………………………….MC225 / 50R15 76H
Aluminum front rims ……….6 twin-spoke Metallic Silver, 15 x 5 in. (381 x 127 mm)
Aluminum rear rim …………..Metallic Silver, 15 x 7 in. (381 x 178 mm)
/ FEATURES /
Instrumentation ………………Multi-function LCD / Analog gauge: Digital speedometer,
tachometer, odometer, trip & hour meters, gear position,
temperature, engine lights, electronic fuel gauge, clock
Running lights ………………….2 halogen headlamps (50-W)
Windshield ……………………….Sport
Trims and parts ………………..Metallic Silver: Rider and passenger footpegs, footpeg
support, handlebar, rear sprocket wheel, front and
rear shock springs, exhaust tip and heat shield
/ SAFETY & SECURITY /
SCS ……………………………………Stability Control System
TCS ……………………………………Traction Control System
ABS ……………………………………Anti-lock Braking System
DPS™ ………………………………….Dynamic Power Steering
Anti-theft system . ……………Digitally Encoded Security
System (D.E.S.S.™)
/ DIMENSIONS /
L x W x H ………………………… 105 x 59.3 x 45.1 in.
(2,667 x 1,506 x 1,145 mm)
Wheelbase ……………………….67.5 in. (1,714 mm)
Seat height ……………………….29 in. (737 mm)
Ground clearance …………..4.5 in. (115 mm)
Dry weight ……………………….798 lb (362 kg)
Storage capacity …………….12 gal (44 L)
Maximum vehicle load ….440 lb (200 kg)
Fuel capacity ……………………6.6 gal (25 L)
Reserve …………………………….1 gal (3.8 L) approx.
Fuel type …………………………..Premium unleaded
/ WARRANTY /
Factory ……………………………… 2-year BRP Limited Warranty
with 2-year roadside assistance
Extended …………………………..B.E.S.T. available from
12 to 36 months







2016 Can-Am Spyder RSS – www.Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: Starting from £14099 GBP (On The Road inc 20% Vat)

Engine
Type Rotax® 998-cc V-Twin, liquid-cooled with electronic
fuel injection and electronic throttle control
Bore and Stroke 97 x 68 mm (3.82 x 2.68 in.)
Power 100 hp (74.5 kW) @ 7500 RPM
Torque 108 Nm (80 lb.-ft.) @ 5000 RPM
CHASSIS
Front Suspension Double A-arm with anti-roll bar
Front Shocks Type / Travel FOX‡ PODIUM‡ shocks / 142 mm (5.5 in.)
Rear Suspension Swing arm
Rear Shock Type / Travel SACHS monoshock / 152 mm (6 in.)
Electronic Brake
Distribution System Foot-operated, hydraulic 3-wheel brake
Front Brakes 270 mm (10.6 in.) discs with Brembo‡ 4-piston
fixed callipers
Rear Brake Single 270 mm (10.6 in.) disc with Brembo
single-piston floating calliper
Parking Brake Manual
Front Tires 165 / 55 R15
Rear Tire 225 / 50 R15
Aluminum Front Rims 6 twin-spoke Metallic Silver,
15 x 5 in. (381 x 127 mm)
Aluminum Rear Rim Metallic Silver, 15 x 7 in. (381 x 178 mm)
FEATURES
Multifunction Gauge LCD / Analogue, digital speedometer, tachometer,
odometer, trip & hour meters, gear position,
temperature, engine lights, electronic fuel gauge, clock
Running Lights 2 halogen headlamps (50 W)
Windshield Sport
Trims and Parts Metallic Silver:
Rider and passenger footpegs and footpeg support
parts, handlebar, rear sprocket wheel, front and rear
shocks springs, exhaust tip and heat shield
Transmission Options 5-speed manual with reverse (SM5)
5-speed semi-automatic with reverse (SE5)
SAFETY AND SECURITY
SCS Stability Control System
TCS Traction Control System
ABS Anti-lock Braking System
DPSTM Dynamic Power Steering
Anti-theft System Digitally Encoded Security
System (D.E.S.S.TM)
DIMENSIONS
L x W x H 2,667 x 1,506 x 1,145 mm
(105 x 59.3 x 45.1 in.)
Wheelbase 1,714 mm (67.5 in.)
Seat Height 737 mm (29 in.)
Ground Clearance 115 mm (4.5 in.)
Dry Weight 362 kg (798 lb.)
Storage Capacity 44L (12 US gal.)
Maximum Vehicle Load 200 kg (440 lb.)
Fuel Tank 25L (6.6 US gal.)

*Starting at MSRP is the manufactured suggested price and excludes delivery, setup, tax, title, license, and additional fees and expenses. Bikes may be shown with optional accessories. Final sale price determined by an authorized dealer. Specifications and MSRP are subject to change.

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
