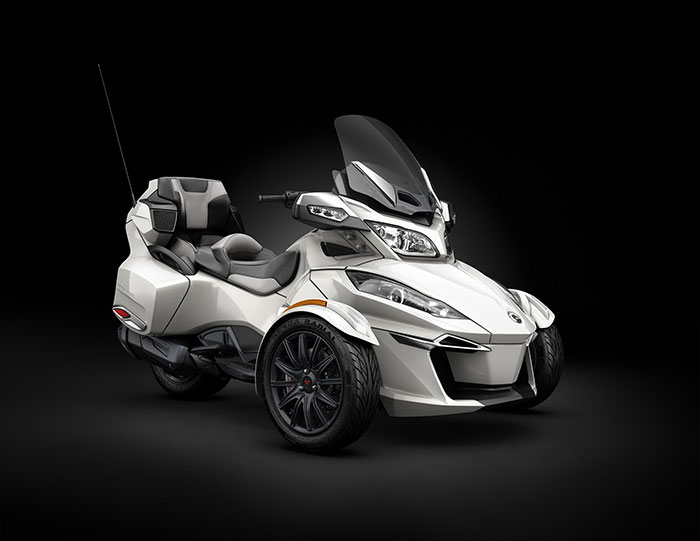

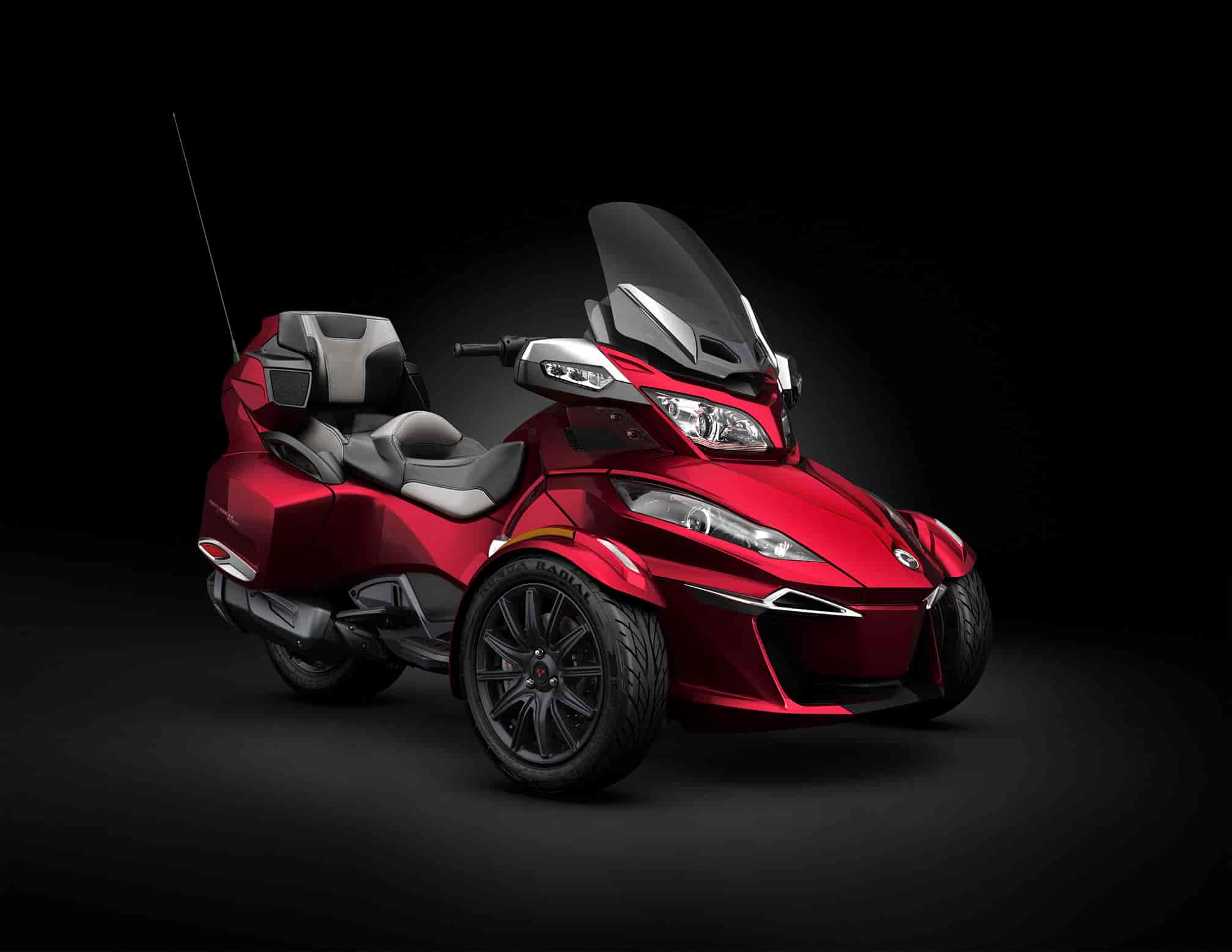

2016 Can-Am Spyder RTS Review

2016 Can-Am Spyder RTS on www.Totalmotorcycle.com

SUPERIOR COMFORT WITH ATTITUDE…

Equipped with custom parts, unique wheels and fenders, footboards, and a shift-on-the-fly rear air suspension.

As the ultimate touring vehicle, the Spyder RT-S goes the extra mile with adjustable rear air suspension, rider footboards and more.

2016 Can-Am Spyder RTS www.Totalmotorcycle.com Key Features

SPYDER RT STANDARD FEATURES

Rotax 1330 ACE in-line 3 cylinders, high torque engine
Vehicle Stability System with ABS, traction control and stability control
ECO mode smart assist
Ultra comfort touring saddle and driver backrest ready
Adjustable passenger footboards
41 gal (155 L) of storage
12-spoke, Metallic Silver front wheels
AM / FM audio system with USB port and
plug (Jack 1/8) for cell and MP3 player
Anti-theft system
Dynamic Power Steering
Premium color digital gauge
Comfort features like electronic cruise control, heated
rider handgrips, adjustable electric windshield and more

SPYDER RT-S ALL SPYDER RT FEATURES PLUS:
Adjustable rear air suspension
Rider footboards (with SE6 transmission only)
12-spoke, Carbon Black Satin front wheels
Refined front fenders with integrated LED lights
Fog lamps and accent lights
Carbon Black and Satin Chrome parts
Heated passenger grips with control
Front cargo light and liner
Secondary gauges (fuel information, engine temperature)

SPYDER RT-S SPECIAL SERIES SPYDER RT ALL SPYDER RT-S FEATURES PLUS:
Embossed Special Series signature seat
Unique Special Series signature trims
Special Series short tinted electric windshield
12-spoke, Black Chrome front wheels
Exclusive Triple Black coloration and graphics

SPYDER RT LIMITED ALL SPYDER RT-S FEATURES PLUS:
12-spoke, Chrome front wheels
Chrome parts
Garmin† Zumo 660 GPS with Bluetooth† wireless technology
Embroidered Limited seat
Front cargo rolling travel bag

ROTAX 1330 ACE HIGH TORQUE ENGINE

Produces high-torque response in every gear
Triple in-line cylinder engine with signature quality sound
Compression ratio: 12:1

6-SPEED TRANSMISSION
Delivers smooth ride, thanks to the hydraulic clutch
activation system with electronic control
Cruise comfortably in sixth gear at 3,300 rpm
Gear ratios:
1st gear: 37 / 15 = 2.47
2nd gear: 32 / 17 = 1.88
3rd gear: 35 / 23 = 1.52
4th gear: 33 / 26 = 1.27
5th gear: 30 / 28 = 1.07
6th gear: 29 / 32 = 0.91
Reverse: -32 / 13 = -2.46
GREATER FUEL EFFICIENCY
Up to 252 miles (406 km), tested at constant
speed of 62 mph (100 km/h)*
HEAT MANAGEMENT SYSTEM
Radiators in front of the A-arms
Reverse fan mode blowing hot air away from the rider
LOW VEHICLE MAINTENANCE
Oil change at every 9,300 miles (15,000 km)
No valve adjustment required

2016 Can-Am Spyder RTS www.Totalmotorcycle.com Features and Benefits

ROTAX 1330 ACE ENGINE

POWERFUL AND EFFICIENT

The Rotax 1330 ACE engine is an in-line triple-cylinder configuration for maximum torque in every gear, to deliver excellent roll-on acceleration and throttle response. It’s also efficient, with the ability to ride up to 252 miles (406 km) on a single tank*. Plus, it’s extremely low maintenance.

*Tested at constant speed. Fuel mileage may vary depending personal riding habits, weather conditions, trip length, vehicle condition, vehicle configuration and other conditions. Break-in mileage may vary.

6-SPEED TRANSMISSION

SMOOTH OPERATOR

This 6-speed transmission offers the perfect balance of comfort and fuel economy thanks to a sophisticated hydraulic clutch system. Cruise comfortably at low RPMs with your choice of manual or semi-automatic transmission. Both include reverse. The semi-automatic version uses thumb and index finger paddle shifting.

VEHICLE STABILITY SYSTEM

OPTIMUM CONTROL

Developed in partnership with BOSCH and inspired by automotive technologies, the Vehicle Stability System integrates anti-lock brakes, traction control, and stability control for confidence taking on the open road.

REAR AIR SUSPENSION

COMFORT ON THE FLY

Easily select the best ride for passengers, trailers and riding style from the handlebars. The air shock has five settings you can adjust while riding. It works with plush SACHS shocks for comfort on even bumpy backcountry roads.

ECO MODE SMART ASSIST

SHIFT TO SAVE

Optimize your shifting behaviour with the ECO Mode Smart Assist. A gauge light
indicates the best time to shift to reduce your fuel consumption on long trips.

RT LUXURY FEATURES

CHANGE WITH THE WEATHER

Activate the cruise control, then sit back and enjoy the scenery. Thermal rider grips keep your hands warm, while an electric adjustable windshield enables you to quickly react to changing weather conditions.

AUDIO SYSTEM

ON-ROAD ENTERTAINMENT

Enjoy the full benefits of an AM/FM audio system and weather band that is also satellite-radio-ready. Rear speakers with independent audio control let you spoil your passenger even more.

DESIGN ELEMENTS

EXTRA ATTITUDE

An intense look from low-profile tires wrapped around 12-spoke carbon black satin wheels, and premium front fenders with integrated LED light pipes. The Spyder RT-S model also includes a host of Satin Chrome accents and two-tone black/charcoal seat for a striking look.

PREMIUM COLOR DIGITAL GAUGE

YOUR ESSENTIALS, IN FULL COLOR

A vivid, full-colour digital screen allows quick access to key vehicle information such as speed, trip distance, and RPMs. It’s flanked by secondary gauges for fuel and engine temperature.

PASSENGER COMFORT FEATURES

PAMPERED
PARTNER

The Y-frame design creates peace-of-mind, while the ergonomic backrest, adjustable footboards, heated grips and individual audio control pamper them over the long haul.

RIDER FOOTBOARDS

VARY YOUR POSITION

You get more foot positions with these vibration-damping driver footboards, a real benefit on long rides. (with SE6 Transmission Only)

LIGHTING

HIGH STYLE, HIGH VISIBILITY

Fog lamps flanking the hood and LED light pipes on the premium front fenders increase visibility and style.

PREMIUM FRONT CARGO

ILLUMINATE AND PROTECT

A light and felt insert add a nice finishing touch to the trademark Spyder front cargo compartment.

2016 Can-Am Spyder RTS – www.Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $26799 USD

/ ENGINE /
Type . . . . . . . . . . . . . . . . . . . . . Rotax® 1330 ACE™ in-line 3 cylinders, liquid-cooled with
electronic fuel injection and electronic throttle control
Bore & stroke . . . . . . . . . . . . .3.31 x 3.14 in. (84 x 80 mm)
Power . . . . . . . . . . . . . . . . . . . .115 hp (86 kW) @ 7250 RPM
Torque . . . . . . . . . . . . . . . . . . .96 lb-ft. (130 Nm) @ 5000 RPM
/ CHASSIS /
Front suspension . . . . . . . . .Double A-arms with anti-roll bar
Front shocks type / Travel .SACHS† Big-Bore shock absorbers / 6.9 in. (174 mm)
Rear suspension . . . . . . . . . . Swing arm
Rear shock type / Travel .SACHS shock absorber with pneumatic
preload adjustment / 6 in. (152 mm)
Electronic brake . . . . . . . . . . Foot-operated, hydraulic 3-wheel brake
distribution system
Front brakes . . . . . . . . . . . . . 270 mm discs with Brembo† 4-piston fixed calipers
Rear brake . . . . . . . . . . . . . . .270 mm disc, 1-piston floating caliper with
integrated parking brake
Parking brake . . . . . . . . . . . .Electrically actuated
Front tires . . . . . . . . . . . . . . . .MC165 / 55R15 55H
Rear tire . . . . . . . . . . . . . . . . . .MC225 / 50R15 76H
Aluminum front rims . . . . .12-spoke Metallic Silver, 15 x 5 in. (381 x 127 mm)
Aluminum rear rim . . . . . . .Metallic Silver, 15 x 7 in. (381 x 178 mm)
/ FEATURES /
Instrumentation . . . . . . . . . .Premium color digital gauge: Digital speedometer,
tachometer, odometer, trip & hour meters, gear position,
ECO™ mode smart assist, temperature, engine lights,
electronic fuel gauge, clock
Running lights . . . . . . . . . . . .2 halogen headlamps (55-W)
Windshield . . . . . . . . . . . . . . .Touring – Electric adjustment
Wind deflectors . . . . . . . . . .Standard
Cruise control . . . . . . . . . . . .Electronic
Seat . . . . . . . . . . . . . . . . . . . . . .Ultra comfortable with lumbar support
and passenger backrest
Rider heated grips . . . . . . .Standard
Audio system . . . . . . . . . . . .AM / FM audio system with USB port and 4 speakers
Power outlet . . . . . . . . . . . . .USB plug
RT-622 and Freedom . . . . .Towing capacity of 400 lb (181 kg)
trailer capability
Trims and parts . . . . . . . . . .Metallic Silver: Rider footpegs, adjustable passenger
footboards and footpeg support, handlebar, rear sprocket
wheel, front and rear shock springs, exhaust tip
and heat shield
/ SAFETY & SECURITY /
SCS . . . . . . . . . . . . . . . . . . . . . .Stability Control System
TCS . . . . . . . . . . . . . . . . . . . . . .Traction Control System
ABS . . . . . . . . . . . . . . . . . . . . . .Anti-lock Braking System
DPS™ . . . . . . . . . . . . . . . . . . . . .Dynamic Power Steering
Anti-theft system . . . . . . . .Digitally Encoded Security
System (D.E.S.S.™)
/ DIMENSIONS /
L x W x H . . . . . . . . . . . . . . . . 105 x 61.9 x 59.4 in. (2,667 x 1,572 x 1,510 mm)
Wheelbase . . . . . . . . . . . . . . .67.5 in. (1,714 mm)
Seat height . . . . . . . . . . . . . . .30.4 in. (772 mm)
Ground clearance . . . . . . . .4.5 in. (115 mm)
Dry weight . . . . . . . . . . . . . . .1,012 lb (459 kg)
Storage capacity . . . . . . . . .41 gal (155 L)
Maximum vehicle load . . .494 lb (224 kg)
Fuel capacity . . . . . . . . . . . . .6.9 gal (26 L)
Reserve . . . . . . . . . . . . . . . . . .1 gal (3.8 L) approx.
Fuel type . . . . . . . . . . . . . . . . .Premium unleaded
/ WARRANTY /
Factory . . . . . . . . . . . . . . . . . . 2-year BRP Limited Warranty
with 2-year roadside assistance
Extended . . . . . . . . . . . . . . . .B.E.S.T. available from
12 to 36 months

2016 Can-Am Spyder RTS – www.Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $30099 CDN

/ ENGINE /
Type . . . . . . . . . . . . . . . . . . . . . Rotax® 1330 ACE™ in-line 3 cylinders, liquid-cooled with
electronic fuel injection and electronic throttle control
Bore & stroke . . . . . . . . . . . . .3.31 x 3.14 in. (84 x 80 mm)
Power . . . . . . . . . . . . . . . . . . . .115 hp (86 kW) @ 7250 RPM
Torque . . . . . . . . . . . . . . . . . . .96 lb-ft. (130 Nm) @ 5000 RPM
/ CHASSIS /
Front suspension . . . . . . . . .Double A-arms with anti-roll bar
Front shocks type / Travel .SACHS† Big-Bore shock absorbers / 6.9 in. (174 mm)
Rear suspension . . . . . . . . . . Swing arm
Rear shock type / Travel .SACHS shock absorber with pneumatic
preload adjustment / 6 in. (152 mm)
Electronic brake . . . . . . . . . . Foot-operated, hydraulic 3-wheel brake
distribution system
Front brakes . . . . . . . . . . . . . 270 mm discs with Brembo† 4-piston fixed calipers
Rear brake . . . . . . . . . . . . . . .270 mm disc, 1-piston floating caliper with
integrated parking brake
Parking brake . . . . . . . . . . . .Electrically actuated
Front tires . . . . . . . . . . . . . . . .MC165 / 55R15 55H
Rear tire . . . . . . . . . . . . . . . . . .MC225 / 50R15 76H
Aluminum front rims . . . . .12-spoke Metallic Silver, 15 x 5 in. (381 x 127 mm)
Aluminum rear rim . . . . . . .Metallic Silver, 15 x 7 in. (381 x 178 mm)
/ FEATURES /
Instrumentation . . . . . . . . . .Premium color digital gauge: Digital speedometer,
tachometer, odometer, trip & hour meters, gear position,
ECO™ mode smart assist, temperature, engine lights,
electronic fuel gauge, clock
Running lights . . . . . . . . . . . .2 halogen headlamps (55-W)
Windshield . . . . . . . . . . . . . . .Touring – Electric adjustment
Wind deflectors . . . . . . . . . .Standard
Cruise control . . . . . . . . . . . .Electronic
Seat . . . . . . . . . . . . . . . . . . . . . .Ultra comfortable with lumbar support
and passenger backrest
Rider heated grips . . . . . . .Standard
Audio system . . . . . . . . . . . .AM / FM audio system with USB port and 4 speakers
Power outlet . . . . . . . . . . . . .USB plug
RT-622 and Freedom . . . . .Towing capacity of 400 lb (181 kg)
trailer capability
Trims and parts . . . . . . . . . .Metallic Silver: Rider footpegs, adjustable passenger
footboards and footpeg support, handlebar, rear sprocket
wheel, front and rear shock springs, exhaust tip
and heat shield
/ SAFETY & SECURITY /
SCS . . . . . . . . . . . . . . . . . . . . . .Stability Control System
TCS . . . . . . . . . . . . . . . . . . . . . .Traction Control System
ABS . . . . . . . . . . . . . . . . . . . . . .Anti-lock Braking System
DPS™ . . . . . . . . . . . . . . . . . . . . .Dynamic Power Steering
Anti-theft system . . . . . . . .Digitally Encoded Security
System (D.E.S.S.™)
/ DIMENSIONS /
L x W x H . . . . . . . . . . . . . . . . 105 x 61.9 x 59.4 in. (2,667 x 1,572 x 1,510 mm)
Wheelbase . . . . . . . . . . . . . . .67.5 in. (1,714 mm)
Seat height . . . . . . . . . . . . . . .30.4 in. (772 mm)
Ground clearance . . . . . . . .4.5 in. (115 mm)
Dry weight . . . . . . . . . . . . . . .1,012 lb (459 kg)
Storage capacity . . . . . . . . .41 gal (155 L)
Maximum vehicle load . . .494 lb (224 kg)
Fuel capacity . . . . . . . . . . . . .6.9 gal (26 L)
Reserve . . . . . . . . . . . . . . . . . .1 gal (3.8 L) approx.
Fuel type . . . . . . . . . . . . . . . . .Premium unleaded
/ WARRANTY /
Factory . . . . . . . . . . . . . . . . . . 2-year BRP Limited Warranty
with 2-year roadside assistance
Extended . . . . . . . . . . . . . . . .B.E.S.T. available from
12 to 36 months

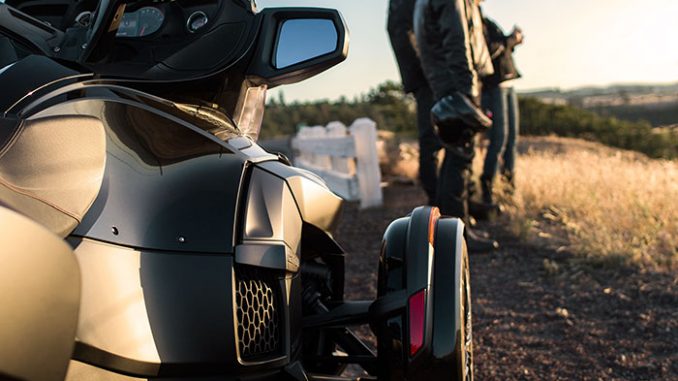

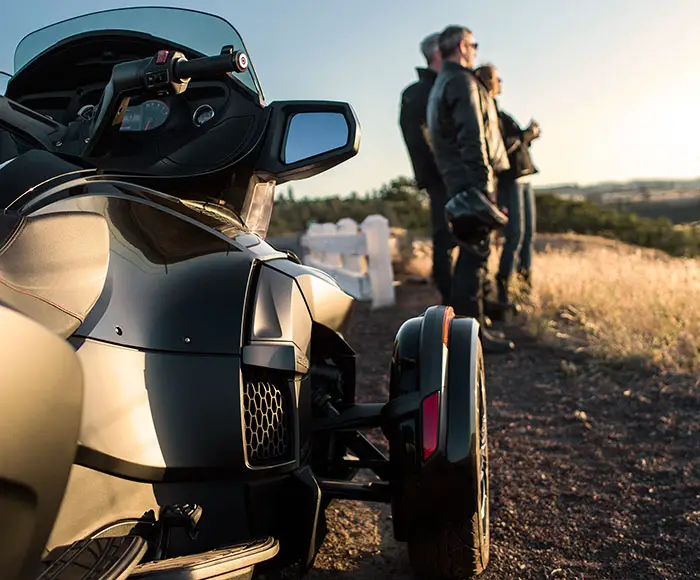

2016 Can-Am Spyder RTS – www.Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: Starting from £24199 GBP (On The Road inc 20% Vat)

/ ENGINE /
Type . . . . . . . . . . . . . . . . . . . . . Rotax® 1330 ACE™ in-line 3 cylinders, liquid-cooled with
electronic fuel injection and electronic throttle control
Bore & stroke . . . . . . . . . . . .3.31 x 3.14 in. (84 x 80 mm)
Power. . . . . . . . . . . . . . . . . . . .115 hp (86 kW) @ 7250 RPM
Torque. . . . . . . . . . . . . . . . . . .96 lb-ft. (130 Nm) @ 5000 RPM
/ CHASSIS /
Front suspension. . . . . . . . .Double A-arms with anti-roll bar
Front shocks type / Travel .SACHS† Big-Bore shock absorbers / 6.9 in. (174 mm)
Rear suspension . . . . . . . . . Swing arm
Rear shock type / Travel. . SACHS shock absorber with pneumatic
preload adjustment / 6 in. (152 mm)
Electronic brake. . . . . . . . . . Foot-operated, hydraulic 3-wheel brake distribution system
Front brakes . . . . . . . . . . . . . 270 mm discs with Brembo† 4-piston fi xed calipers
Rear brake . . . . . . . . . . . . . . .270 mm disc, 1-piston fl oating caliper with
integrated parking brake
Parking brake . . . . . . . . . . . .Electrically actuated
Front tyres . . . . . . . . . . . . . . .MC165 / 55R15 55H
Rear tyre. . . . . . . . . . . . . . . . .MC225 / 50R15 76H
Aluminium front rims. . . . .12-spoke Metallic Silver, 15 x 5 in. (381 x 127 mm)
Aluminium rear rim. . . . . . .Metallic Silver, 15 x 7 in. (381 x 178 mm)
/ FEATURES /
Instrumentation. . . . . . . . . . Premium colour digital gauge: Digital speedometer,
tachometer, odometer, trip & hour meters, gear position,
ECO™ mode smart assist, temperature, engine lights,
electronic fuel gauge, clock
Running lights. . . . . . . . . . . .2 halogen headlamps (55-W)
Windshield. . . . . . . . . . . . . . .Touring – Electric adjustment
Wind defl ectors. . . . . . . . . .Standard
Cruise control . . . . . . . . . . . .Electronic
Seat. . . . . . . . . . . . . . . . . . . . . .Ultra comfortable with lumbar support
and passenger backrest
Rider heated grips . . . . . . .Standard
Audio system . . . . . . . . . . . .AM / FM audio system with USB port and 4 speakers
Power outlet . . . . . . . . . . . . .USB plug
Trims and parts . . . . . . . . . . Metallic Silver: Rider footpegs, adjustable passenger
footboards and footpeg support, handlebar, rear sprocket
wheel, front and rear shock springs, exhaust tip
and heat shield
/ SAFETY & SECURITY /
SCS. . . . . . . . . . . . . . . . . . . . . .Stability Control System
TCS . . . . . . . . . . . . . . . . . . . . . .Traction Control System
ABS. . . . . . . . . . . . . . . . . . . . . .Anti-lock Braking System
DPS™ . . . . . . . . . . . . . . . . . . . . .Dynamic Power Steering
Anti-theft system . . . . . . . .Digitally Encoded Security
System (D.E.S.S.™)
/ DIMENSIONS /
L x W x H . . . . . . . . . . . . . . . . 105 x 61.9 x 59.4 in.
(2,667 x 1,572 x 1,510 mm)
Wheelbase. . . . . . . . . . . . . . .67.5 in. (1,714 mm)
Seat height. . . . . . . . . . . . . . .30.4 in. (772 mm)
Ground clearance . . . . . . . .4.5 in. (115 mm)
Dry weight . . . . . . . . . . . . . . .1,012 lb (459 kg)
Storage capacity. . . . . . . . .41 US gal (155 L)
Maximum vehicle load . . .494 lb (224 kg)
Fuel capacity. . . . . . . . . . . . .6.9 US gal (26 L)
Reserve. . . . . . . . . . . . . . . . . .1 US gal (3.8 L) approx.
Fuel type. . . . . . . . . . . . . . . . .Premium unleaded
/ WARRANTY /
Factory . . . . . . . . . . . . . . . . . . 2-year BRP Limited Warranty
with 2-year roadside assistance

*Starting at MSRP is the manufactured suggested price and excludes delivery, setup, tax, title, license, and additional fees and expenses. Bikes may be shown with optional accessories. Final sale price determined by an authorized dealer. Specifications and MSRP are subject to change.

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
