2016 Honda CBR600RR

Back to 2016 Honda Motorcycle Model Review Page

Click photos to enlarge. Our big, clean bike pics make great desktop wallpaper.

2016 Honda CBR600RR
2016 Honda CBR600RR

2016 Honda CBR600RR
2016 Honda CBR600RR

2016 Honda CBR600RR
2016 Honda CBR600RR



2016 Honda CBR600RR Review

2016 Honda CBR600RR on www.Totalmotorcycle.com

Built to Carve…

Motorcycling has always been about that perfect bond between rider and machine. Of course there’s the wind and the elements, but most of all it’s about the balance, about how involved your entire body is with every aspect of riding. And when you find the perfect bike, it moves with you just like it was an extension of yourself.

The Honda CBR600RR is that machine. Proven on the track, it fits like a glove, and is as responsive and instinctive as snapping your fingers. Happy to cut fast laps on a track day, it’s comfortable enough to use as a weekday commuter or a weekend canyon bike.

First of all, there’s its size: compact, light, a tribute to Honda’s understanding of mass centralization, the four-cylinder engine revs like nothing you’ve ever ridden, unless you’ve ridden a MotoGP racer. The chassis (an aluminum twin-spar design) is the basis of the CBR600RR’s laser-sharp handling. Brakes? You can choose between its conventional triple-disc setup or opt for a special version with Honda’s revolutionary Combined Anti-Lock Braking System (C-ABS), the first ever on a production Supersport motorcycle. And it just plain looks right too, especially this year with a new Black/White option that looks like a tri-color Honda wing, but fades to grey.

Honda’s new CBR600RR has moved the Super Sport game on. Its razor-sharp handling, pinpoint accuracy and incredible power delivery are certain to make a difference to your ride.



Raw power tamed in an instant – And if it looks fast, it’s because it is fast!

The 599cc, liquid-cooled four-cylinder engine not only drives incredibly hard to its redline, but is also flexible, punching out strong mid-range torque. Its remapped Programmed Dual Sequential Fuel Injection system (PGM-DSFI) delivers even sharper throttle response and feel, while the IACV (Intake Air Control Valve) now works at all rpm, for much greater sensitivity and control. It’s as if your right hand is directly hard-wired into this engine.



Racing DNA

In 2003, the Honda CBR600RR entered the World Super Sports arena and instantly changed the game.

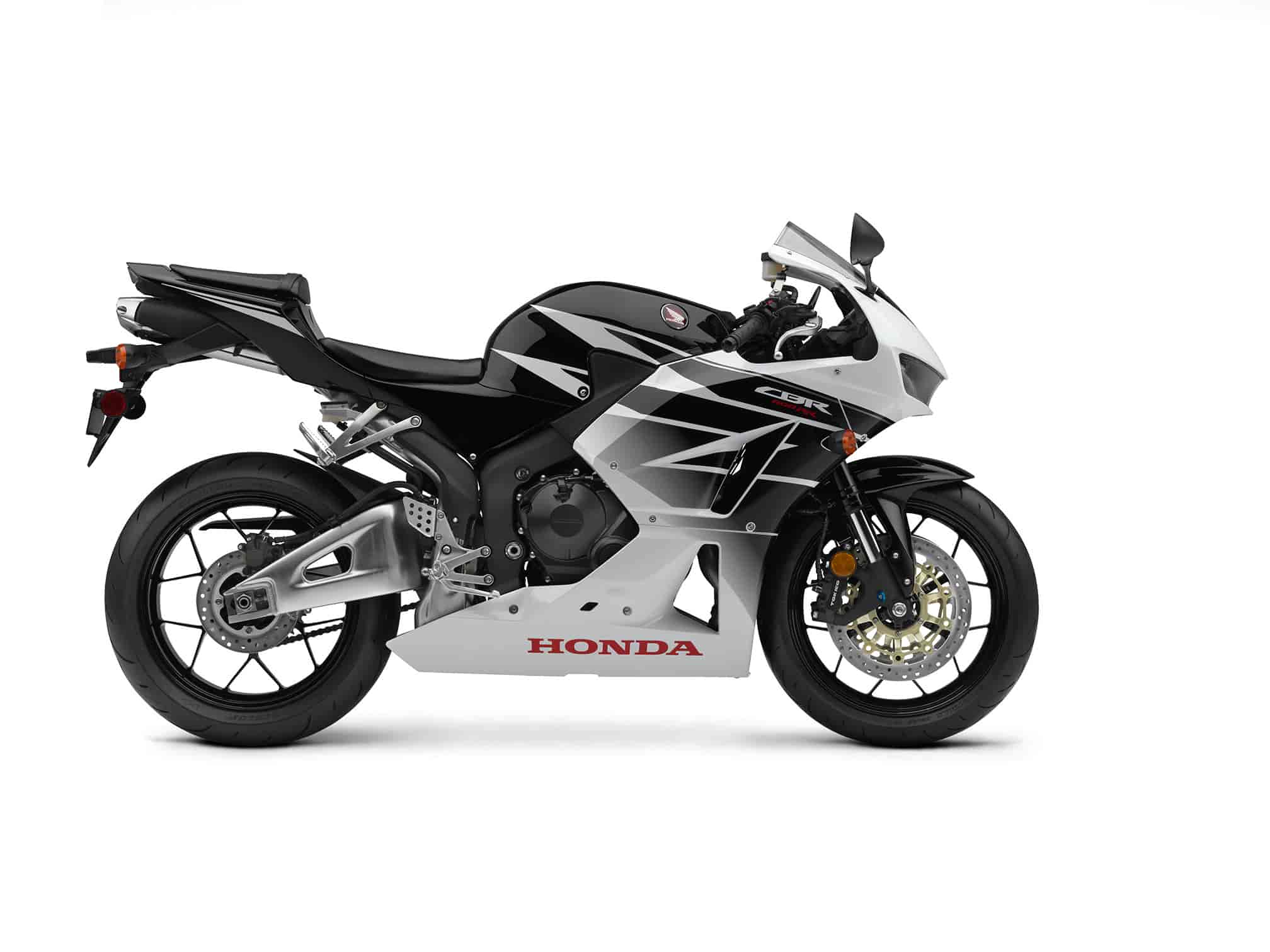

Side on, right-facing black CBR600RR.

The CBR600RR has the look of a focused track machine.



It has been the Super Sports weapon of choice for 10 years, taking 7 World Championship titles and 9 Manufacturer’s World titles. We take our learnings from the track and apply them to our production bikes, and the 2013 CBR600RR is no exception.


Racing lines


Beautifully clean, the CBR600RR’s aerodynamic package is derived from Honda’s MotoGP race machines, with clear references to the current RC213V. Its lines echo the design of the factory race machine. It not only reduces drag but also improves stability and provides excellent wind protection. Speed, distilled.




Race-Winning Heritage

With over 700 total MotoGP victories, Honda’s winning heritage stands far above any other manufacturer, just as Honda’s motorcycles stand out on the street. Our superior engineering and technology put our GP bikes in the winners’ circle and give you the performance you need for the street.


Honda Electronic Steering Damper (HESD)

The compact HESD helps maintain predictable high-speed handling and low-speed maneuverability. Way more sophisticated than a simple fixed-rate damper, it’s one of the keys to the CBR600RR’s extraordinary handling.


Revolutionary Brakes

The CBR600RR’s Combined Anti-Lock Braking System (C-ABS) is the first of its kind on a Supersport machine. Even the most critical motorcycle testers rave about how well they work. Find out what the experts have to say about this revolutionary feature.







2016 Honda CBR600RR www.Totalmotorcycle.com Key Features

Live for this moment

You can see the Honda RC213V MotoGP racer’s DNA all over the new CBR600RR…

The aggressive fairing, twin line-beam headlights, minimalist tail unit and centre-up exhaust. But what makes the CBR600RR truly special is how it performs. When the twist of the throttle is timed to perfection and the engine screams in harmony with your soul. When all of the sounds of the world are nothing but a whisper on the wind around you. When machine and rider are one. Live for this moment.



A precise fit for a precise machine

Fine-tune your CBR600RR.

Looking for that extra something that will add more to the ride? To enhance your machine’s appeal even further, there is a selection of Honda Genuine Accessories available to ensure your motorcycle suits your style and every need.







Strong, tough, carbon-fibre front fender provides a superior finish for a superior machine.











Designed to perform

A larger tinted, sport windscreen creates a quiet bubble around you when riding at higher speeds.

All Honda Genuine Accessories are built to our exact specification – ensuring a precision fit, superior function and integrated design.





The Honda Difference.

The CBR600RR is a perfect example of typical Honda industry-leading innovation. Combining tons of power, refined, responsive handling and light weight with amazing styling, it’s equally at home carving your favorite canyon as it is collecting wins on World Supersport podiums. That’s the CBR600RR—the ultimate middleweight sportbike experience.

Features & Options
•599cc liquid-cooled inline four-cylinder
•Honda Electronic Steering Damper









2016 Honda CBR600RR www.Totalmotorcycle.com Features and Benefits

12-Spoke Wheels

With their consistent rigidity and balance, these sharp-looking 12-spoke cast aluminum wheels work with the fork and enhance suspension feedback to deliver real handling improvements.



Radial Mounted Front-Brake Calipers

The CBR600RR uses radial-mounted monoblock front-brake calipers. This construction makes the caliper stiffer, and that means you get better brake feel for more linear, powerful stopping. Each caliper also uses four chromium-plated aluminum pistons for smooth, friction-free operation.



Honda Multi-Action System (HMAS) Inverted Fork

The HMAS cartridge fork features an exclusive internal piston construction. The innovative design employs smaller-diameter pistons to keep oil velocity high for improved damping characteristics and an expanded range of adjustability. The result: you get more precise suspension performance, especially over smaller surface irregularities.



Dual-Stage Ram Air

A nose-mounted, two-stage ram air system provides a high volume of cool air to the air box for linear power delivery and superb engine performance.



Dual-Stage Fuel Injection

Two sets of injectors per cylinder ensure both low- and high-rpm performance. You get near-instantaneous high-rpm response, along with great low-rpm metering and clean running.



Honda Electronic Steering Damper

Most steering dampers only sense handlebar-deflection speed. The Honda Electronic Steering Damper (HESD) is way more sophisticated. It also detects vehicle speed, and adjusts damping proportionally. That helps maintain low-speed maneuverability while providing excellent, predictable high-speed handling.



Centrally Located Fuel Tank

The CBR600RR’s 4.8-gallon fuel tank is positioned in the center of the chassis and low in the frame. This allows for a more compact design, but even more important helps centralize the bike’s mass. Increased mass centralization means the CBR is more responsive to rider input, especially when leaning the bike into a turn or standing it up at the exit.



Unit Pro-Link® Suspension

By eliminating the frame-mounted top shock mount; Unit Pro-Link® isolates the chassis from bumps, resulting in more precise handling and better traction. Developed on Honda’s championship-winning MotoGP bikes, it’s a perfect example of the CBR’s superior engineering.



Electronic Combined Anti-Lock Braking (C-ABS)

The available electronically controlled C-ABS distributes brake force over both wheels, helping to maintain braking confidence in less-than-ideal conditions. The system electronically measures rider input on the brake lever and pedal, and applies only the front or rear brake in some cases or combines both brakes in other situations.










2016 Honda CBR600RR – www.Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $11,490 USD

ENGINE
Engine Type 599cc Liquid-Cooled Inline Four-Cylinder The nose-mounted, two-stage ram air system force-feeds cool air into the engine for linear power delivery and incredible high-rpm performance.
Bore And Stroke 67mm x 42.5mm
Induction Dual Stage Fuel Injection (DSFI) with 40mm throttle bodies, Denso 12-hole injectors Dual-stage fuel injection ensures spot-on throttle response at higher revs with superb low-rpm metering and cleaner burning.
Ignition Computer-controlled digital transistorized with 3-D mapping Iridium-tip spark plugs help improve fuel combustion and performance, while a non-resonance knock sensor maintains optimum spark advance.
Compression Ratio 12.2:1
Valve Train DOHC; four valves per cylinder


DRIVE TRAIN
Transmission Close-ratio six-speed Track-bred transmission features a close-ratio six-speed gearbox engineered to match the engine?s high-revving powerband.
Final Drive #525 O-ring chain


CHASSIS / SUSPENSION / BRAKES
Front Suspension 41mm inverted Big Piston Fork with spring preload, rebound and compression damping adjustability; TBD inches travel
Rear Suspension Unit Pro-Link® HMAS™ single shock with spring preload, rebound and compression damping adjustability; 5.1 inches travel The exclusive, MotoGP-honed Unit Pro-Link rear suspension and featherweight aluminum frame combine to deliver ultra-responsive, scalpel-sharp cornering.
Front Brake Dual radial-mounted four-piston calipers with full-floating 310mm discs With its all-new, super-trick electronic Combined ABS, the CBR boasts the most advanced braking system on a production supersport machine.
Rear Brake Single-caliper 220mm disc With its all-new, super-trick electronic Combined ABS, the CBR boasts the most advanced braking system on a production supersport machine.
Front Tire 120/70ZR-17 radial
Rear Tire 180/55ZR-17 radial


DIMENSIONS
Rake 23.5° (Caster Angle)
Trail 97.7mm (3.9 inches)
Wheelbase 53.9 inches
Seat Height 32.3 inches
Curb Weight 410 pounds (Includes all standard equipment, required fluids and a full tank of fuel-ready to ride) At 410 pounds wet (i.e., full tank of fuel, engine oil, etc.), the standard-model CBR weighs in as one of the lightest middleweights going.
Fuel Capacity 4.8 gallons
Miles Per Gallon TBD*


OTHER
Model Id CBR600RR
Emissions Meets current EPA standards. California version meets current CARB standards and may differ slightly due to emissions equipment.
Available Colors Black/White


FACTORY WARRANTY INFORMATION
One Year Transferable, unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan.
Note *Honda’s fuel economy estimates are based on EPA exhaust emission measurement test procedures and are intended for comparison purposes only. Your actual mileage will vary depending on how you ride, how you maintain your vehicle, weather, road conditions, tire pressure, installation of accessories, cargo, rider and passenger weight, and other factors.
















2016 Honda CBR600RR – www.Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $ CDN

See CBR600RR ABS version.
















2016 Honda CBR600RR – www.Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: £9,799 GBP (On The Road inc 20% Vat)

Engine
Bore × Stroke (mm) 67 x 42.5
Carburation PGM-DSFI electronic fuel injection
Compression Ratio 12.2:1
Engine Displacement (cm³) 599
Engine Type Liquid-cooled 4-stroke 16-valve DOHC inline-4
Ignition System Capacitor Discharge (CDI)
Max. Power Output 88kW/13,500rpm
Max. Torque 66 Nm/11,250 rpm
Starter Electric

Wheels
Brakes Front 310 x 4.3mm dual hydraulic disc with radial-mount 4-piston calipers, floating rotors and sintered metal pads
Brakes Rear 220 x 5mm hydraulic disc with single-piston caliper and sintered metal pads
Suspension Front 41mm fully adjustable interted Showa Big Piston fork, 120mm travel
Suspension Rear Unit Pro-Link with gas-charged remote reservoir damper, adjustable spring preload and compression and rebound damping, 130mm axle travel
Wheels Front Hollow section 12 spoke cast aluminium
Wheels Rear Hollow section 12 spoke cast aluminium

Dimensions and Weights
Battery Capacity (VAh) 12V-8.6Ah
Caster Angle 23.5°
Dimensions (L×W×H) (mm) 2029 x 684 x 1115
Frame type Diamond; fine Die-Cast aluminium
Fuel Capacity (Litres) 18.1 litres
Fuel Consumption 56.5 mpg (WMTC mode)
Ground Clearance (mm) 137
Headlights 55/55W (H4 valve)
Kerb Weight (kg) 196
Seat Height (mm) 823
Trail (mm) 96.3
Wheelbase (mm) 1373

Transmission
Clutch Wet, multiplate with coil springs
Final Drive #525 O-ring sealed chain
Gearbox 6-speed





Specifications, features, illustrations and equipment shown are believed to be correct – however, accuracy cannot be guaranteed. Honda Canada Inc. reserves the right to make changes at any time, without notice or obligation, in colours, specifications, accessories, materials and models. Some vehicles are shown with optional equipment. Some vehicles shown are U.S. or European models. Canadian specifications and models may vary.

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
