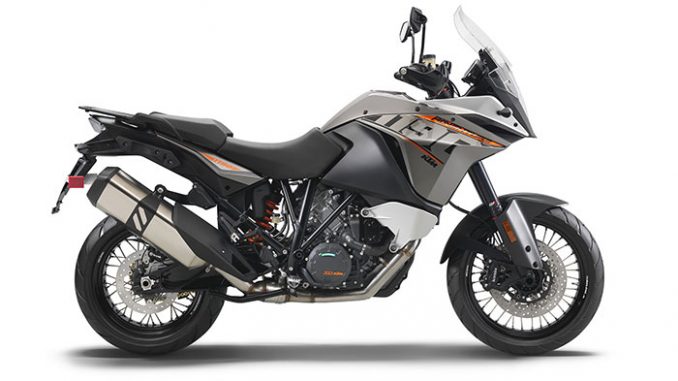

2016 KTM 1190 Adventure
2016 KTM 1190 Adventure

2016 KTM 1190 Adventure
2016 KTM 1190 Adventure



2016 KTM 1190 Adventure Review

2016 KTM 1190 Adventure on www.Totalmotorcycle.com

Sporty Domination of Travel Enduro on the Street…

KTM already set standards in the travel segment with the new 1190 Adventure in its first model year. Already in 2014, the 1190 Adventure, together with its “R” sister model, has been turned into what is currently the world’s safest motorcycle – yet still with undiluted riding pleasure. It was the first motorcycle, offering Bosch’s new MSC (Motorcycle Stability Control). MSC enhances the existing package consisting of lean-sensitive traction control and ABS featuring a combined braking function with a world first: the first ever lean-sensitive cornering ABS. As ever, it sets standards in the travel segment: 150 hp with a weight of only 230 kg fully tanked combine to produce a power-to-weight ratio previously unheard of in this class and therefore delivering unrivalled ride dynamics. At the same time, the powerful, economical and cultivated engine enables either particularly relaxed and comfortable riding or, if required, super-sporty propulsion – with every conceivable level in between. The chassis combines lightness with outstanding geometry and fantastic suspension, allow undreamed of riding pleasure in all conditions and whatever speed you desire, from very relaxed to very, very fast.


2016 KTM 1190 Adventure www.Totalmotorcycle.com Key Features

See Below



2016 KTM 1190 Adventure www.Totalmotorcycle.com Features and Benefits

Best possible overview: VDO display


Cockpit
State-of-the-art instrument cluster from automotive supplier VDO: central permanent LCD for displaying all riding conditions (plus speedo and rev counter with adjustable gearshift light), another LCD on the left for displaying the adjustable features:
» Favourites page
» MSC ride modes
» Riding conditions page for additional info, e.g. outside/oil temperature, on-board voltage, various trips, average speed, average and current fuel consumption, range, distance to next service


Mode switch
Different modes for the various assistance systems can be selected using a mode switch on the left side of the handlebar. It’s very simple and intuitive: “up” and “down” through the menu selection, select the desired menu item with the left button, confirm it with the right, job done!





Chassis


Chassis
With its ultra-lightweight yet extremely stable tubular space frame, the high strength, die-cast, open-lattice swingarm and high quality suspension components from WP Suspension, the KTM 1190 Adventure meets all requirements for stability and controllability. Spoked wheels – tubeless, 19-inch up front; 17-inch at the rear – fat tires and employment of appropriate suspension travel optimise its talents on the asphalt. Unrivalled braking from world market leader Brembo and assistance systems (MSC with MTC and lean-sensitive C-ABS), developed in close collaboration with Bosch, round off the package and help the 1190 Adventure into a clear lead straight from the start in terms of ride dynamics and safety. Top-quality components from high-class suppliers are assembled to create the 1190 Adventure’s chassis. They combine the pure riding pleasure typical for KTM with the best possible feedback and maximum safety.


Tubeless spoked wheels
Wire-spoked wheels for tubeless tires featuring airtight rim beds patented by KTM. The rims on the 1190 Adventure combine all the benefits of a tubeless tire (easy fitting and dynamic advantages due to no inner tube) with the stability and robustness of a wire-spoked wheel. This set-up makes the Adventure’s rims substantially more resilient than all the competition’s cast and spoked wheels – an added bonus, especially in hard offroad riding.


Tyres
New standards demand new tools: The 1190 Adventure is the first ever travel enduro to roll on state-of-the-art, extremely grippy and durable tires sized at 120/70 ZR 19 and 170/60 ZR 17.








2016 KTM 1190 Adventure – www.Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $ See dealer for pricing in USD

Engine
” Design
2-cylinder, 4-stroke, V 75°
” Displacement
1195 cm³
” Bore
105 mm
” Stroke
69 mm
” Power in KW
110 kW
” Starter
Electric starter
” Lubrication
Forced oil lubrication with 3 oil pumps
” Transmission
6-speed
” Primary drive
40:76
” Secondary gear ratio
17:42
” Cooling
Liquid cooled
” Clutch
PASC (TM) slipper clutch, hydraulically actuated
” EMS
Keihin EMS with RBW, twin ignition
Chassis
” Frame design
Chromium-Molybdenum steel trellis frame, powder coated
” Front suspension
WP-EDS USD Ø 48 mm
” Rear suspension
WP-EDS Monoshock
” Suspension travel (front)
190 mm
” Suspension travel (rear)
190 mm
” Front brake
2 x Brembo four-piston radial fixed calliper, brake discs, floating
” Rear brake
Brembo twin-piston fixed calliper, brake disc
” Front brake disc diameter
320 mm
” Rear brake disc diameter
267 mm
” ABS
Bosch 9ME combined ABS (incl. cornering ABS and offroad mode, disengageable)
” Chain
X-Ring 5/8 x 5/16″
” Steering head angle
64 °
” Wheelbase
1560 ± 15 mm
” Ground clearance
220 mm
” Seat height
860 mm
” Tank capacity (approx.)
23 l








2016 KTM 1190 Adventure – www.Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $ See dealer for pricing in CDN

Engine
” Design
2-cylinder, 4-stroke, V 75°
” Displacement
1195 cm³
” Bore
105 mm
” Stroke
69 mm
” Power in KW
110 kW
” Starter
Electric starter
” Lubrication
Forced oil lubrication with 3 oil pumps
” Transmission
6-speed
” Primary drive
40:76
” Secondary gear ratio
17:42
” Cooling
Liquid cooled
” Clutch
PASC (TM) slipper clutch, hydraulically actuated
” EMS
Keihin EMS with RBW, twin ignition
Chassis
” Frame design
Chromium-Molybdenum steel trellis frame, powder coated
” Front suspension
WP-EDS USD Ø 48 mm
” Rear suspension
WP-EDS Monoshock
” Suspension travel (front)
190 mm
” Suspension travel (rear)
190 mm
” Front brake
2 x Brembo four-piston radial fixed calliper, brake discs, floating
” Rear brake
Brembo twin-piston fixed calliper, brake disc
” Front brake disc diameter
320 mm
” Rear brake disc diameter
267 mm
” ABS
Bosch 9ME combined ABS (incl. cornering ABS and offroad mode, disengageable)
” Chain
X-Ring 5/8 x 5/16″
” Steering head angle
64 °
” Wheelbase
1560 ± 15 mm
” Ground clearance
220 mm
” Seat height
860 mm
” Tank capacity (approx.)
23 l






2016 KTM 1190 Adventure – www.Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: £13999 GBP (On The Road inc 20% Vat)

Engine
” Design
2-cylinder, 4-stroke, V 75°
” Displacement
1195 cm³
” Bore
105 mm
” Stroke
69 mm
” Power in KW
110 kW
” Starter
Electric starter
” Lubrication
Forced oil lubrication with 3 oil pumps
” Transmission
6-speed
” Primary drive
40:76
” Secondary gear ratio
17:42
” Cooling
Liquid cooled
” Clutch
PASC (TM) slipper clutch, hydraulically actuated
” EMS
Keihin EMS with RBW, twin ignition
Chassis
” Frame design
Chromium-Molybdenum steel trellis frame, powder coated
” Front suspension
WP-EDS USD Ø 48 mm
” Rear suspension
WP-EDS Monoshock
” Suspension travel (front)
190 mm
” Suspension travel (rear)
190 mm
” Front brake
2 x Brembo four-piston radial fixed calliper, brake discs, floating
” Rear brake
Brembo twin-piston fixed calliper, brake disc
” Front brake disc diameter
320 mm
” Rear brake disc diameter
267 mm
” ABS
Bosch 9ME combined ABS (incl. cornering ABS and offroad mode, disengageable)
” Chain
X-Ring 5/8 x 5/16″
” Steering head angle
64 °
” Wheelbase
1560 ± 15 mm
” Ground clearance
220 mm
” Seat height
860 mm
” Tank capacity (approx.)
23 l



*Starting at MSRP is the manufactured suggested price and excludes delivery, setup, tax, title, license, and additional fees and expenses. Bikes may be shown with optional accessories. Final sale price determined by an authorized dealer. Specifications and MSRP are subject to change.

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
