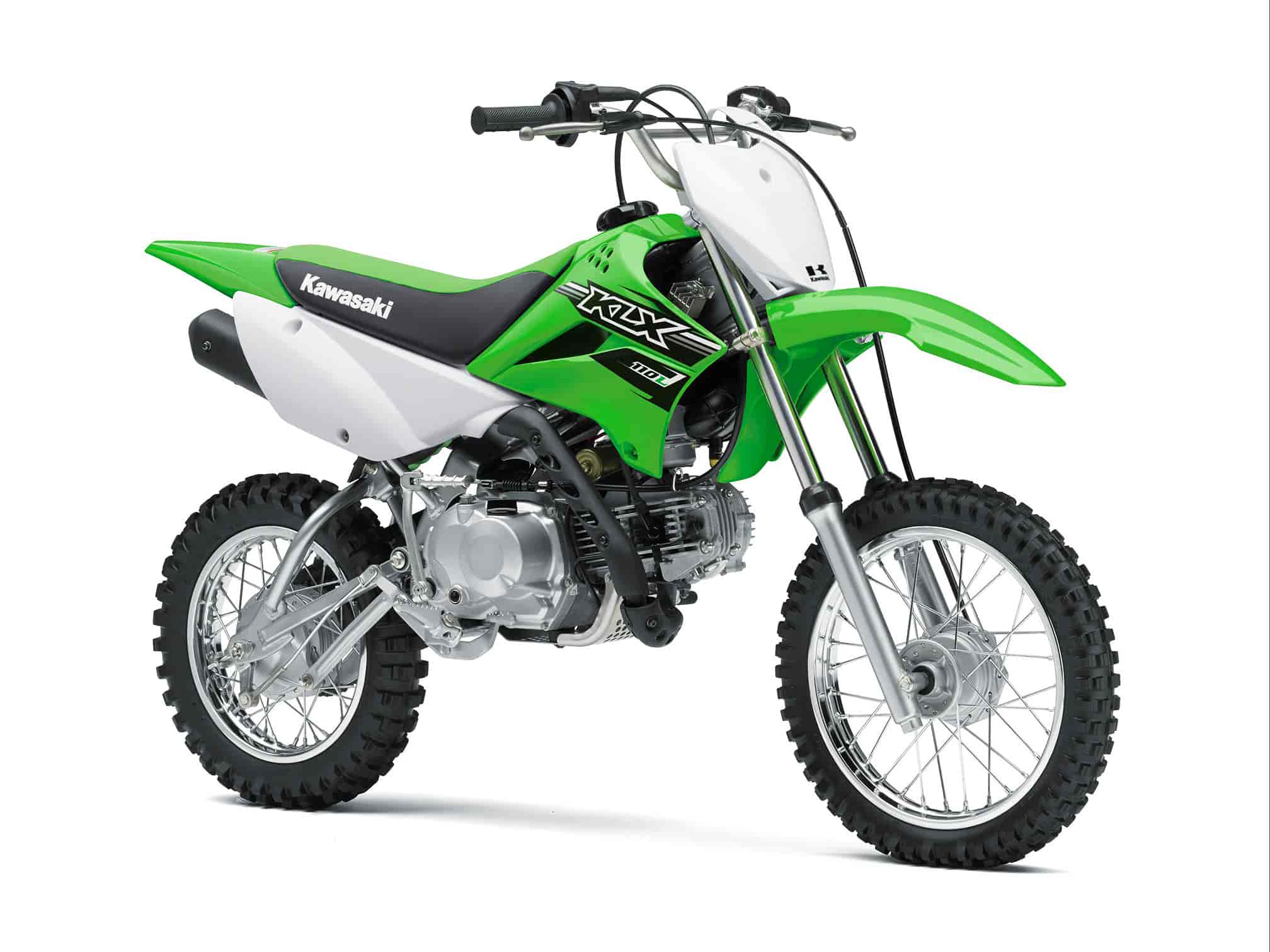

2016 Kawasaki KLX110L Review

2016 Kawasaki KLX110L on www.Totalmotorcycle.com


Whether you use it as a starter bike for your kids, in-the-pits transportation or for mischievous mini-moto action, the KLX110/110L are versatile off-road machines that the whole family can enjoy. You have the option to choose the best t with the 26.8-inch seat height of the KLX110 or the taller 28.7-inch seat height of the KLX110L.

The KLX110 motorcycle is perfect for a younger rider’s first experience in the dirt. A high-tensile steel frame, 30mm telescopic fork, and single rear shock provide easy handling and maximum longevity. It also incorporates an automatic centrifugal clutch system that allows easy shifting through the gears, helping the rider maintain focus on the terrain and to make the most of the 112cc single-cylinder, four-stroke engine.

There’s an electric start for new riders, with an “off” switch right alongside it. The start button is located on the left-hand grip to allow throttle use during start-up, and traditional kickstarter as a back up.

Stepping up to the KLX110L motorcycle, it offers a natural progression as a rider grows in stature and experience. The bike has a taller seat height (28.7” compared to 26.8” for the KLX110), longer suspension travel and an extra 1.9” of ground clearance. It also provides a manual clutch for a more exciting experience, but there’s an electric start (with kickstarter back up) to get the fun started quickly.

Color: Lime Green


KLX110: $2,299

KLX110L: $2,499




2016 Kawasaki KLX110L www.Totalmotorcycle.com Key Features

The biggest challenge in enjoying the KLX110 or KLX110L’s amazing off-road capabilities is figuring out who’s going to ride it first – because its compact dimensions, simple-to-use features, and choice of 2 models were designed for a wide range of beginning riders aged 13 and up.

The KLX®110L motorcycle is the bigger brother to the KLX110 off-road motorcycle. It features a taller seat height and a manual clutch.

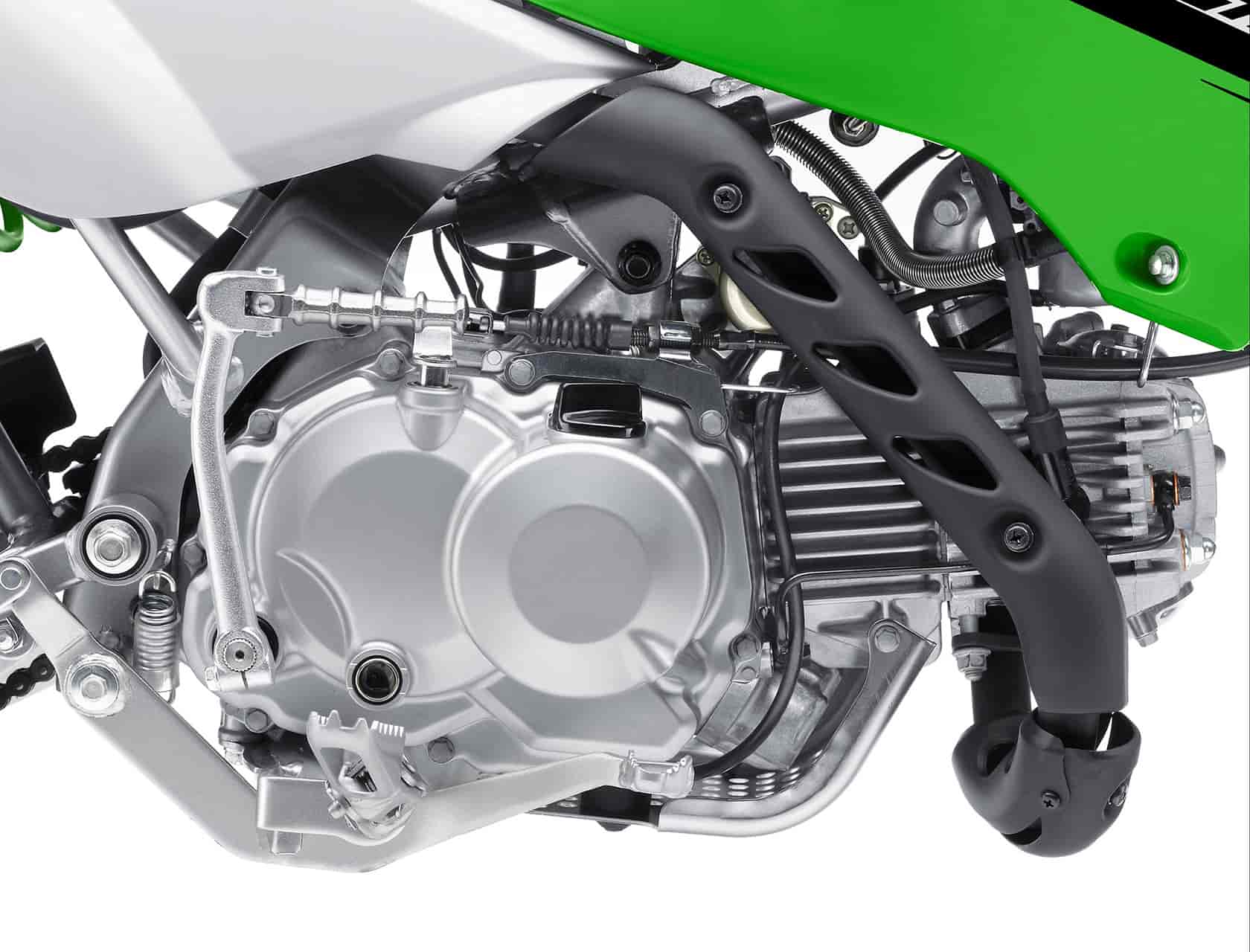

•112cc air-cooled, four-stroke engine provides smooth power and rock solid reliability

•Four-speed transmission with manual clutch to learn big bike shifting techniques

•28.7-inch seat height

•Sporty styling featuring Lime Green bodywork provides race-inspired good looks



2016 Kawasaki KLX110L www.Totalmotorcycle.com Features and Benefits


With a push-button electric start, fun is just the press-of-a-button away. But a kick starter ensures a reliable backup. The KLX110/110L will only start in neutral, ensuring the rider is ready to go before the engine springs to life. A screw-type throttle limiter can be used to help control speed while new riders are learning the basics.


The KLX110 is equipped with a 4-speed transmission and a resilient centrifugal clutch so entry-level riders can learn to shift without the distraction of operating a clutch lever. The larger KLX110L has a manual clutch to add performance while the rider develops their skills.


The 30mm telescopic fork of the KLX110L has 5.5 inches of travel and the rear shock has 5.2 inches of travel while the KLX110 is equipped with 4.3 inches of travel for both the front fork and rear shock. Both suspension packages are tuned for optimal handling and are well balanced to offer great bump absorption and bottoming resistance.


2016 Kawasaki KLX110L – www.Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $2499 USD

4-stroke, 1-cylinder, SOHC, Air-cooled
Bore x Stroke
53.0 x 50.6mm
Compression ratio
Fuel System
Keihin PB18
Final Drive
Front Suspension / Wheel Travel
30mm hydraulic telescopic fork / 5.5 in
Rear Suspension / Wheel Travel
Swingarm w/single hydraulic shock / 5.2 in
Front Tire Size
Rear Tire Size
Front Brakes
Mechanical Drum
Rear Brakes
Mechanical Drum
Frame Type
Backbone frame, high-tensile steel
24.2° / 1.9 in
Overall Length
61.4 in
Overall Width
25.6 in
Overall Height
39.0 in
Ground Clearance
10.4 in
Seat Height
28.7 in
Curb Weight
167.5 lb**
Fuel Capacity
1.0 gal
42.3 in
Color Choices
Lime Green
6 Months
Kawasaki Protection Plus™ (optional)
12, 24, or 36 months





2016 Kawasaki KLX110L – www.Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $2799 CDN

Displacement 112cc
Type 4-stroke, Single
Bore and stroke 53.0 x 50.6 mm
Cooling Air
Compression ratio 9.5:1
Valve system SOHC, 2 valves
Fuel system Keihin PB18 carburetor
Ignition Digital DC-CDI
Lubrication Forced lubrication (wet sump)
Starting Electric & Primary Kick
Front: type Drum (90 mm)
Rear: type Drum (110 mm)
Overall length 1,560 mm (61.4 in.)
Overall width 650 mm (25.6 in.)
Overall height 990 mm (39.0 in.)
Wheelbase 1,075 mm (42.3 in.)
Ground clearance 265 mm (10.4 in.)
Seat height 730 mm (28.7 in.)
Curb mass** 76 kg (167.6 lbs.)
Fuel capacity 3.8 litres (0.8 gal.)
Transmission 4-speed, constant mesh, return shift
Final drive Chain
Primary reduction ratio 3.409 (75/22)
Gear ratio: 1st 3.000 (36/12)
Gear ratio: 2nd 1.938 (31/16)
Gear ratio: 3rd 1.350 (27/20)
Gear ratio: 4th 1.087 (25/23)
Final reduction ratio 2.923 (38/13)
Clutch Wet multi-disc
Type High-tensile steel backbone
Wheel travel: front 140 mm (5.5 in.)
Tire: front 2.50-14 4PR
Wheel travel: rear 132 mm (5.2 in.)
Tire: rear 3.00-12 4PR
Caster (rake) 24.2°
Trail 47 mm (1.9 in.)
Steering angle (left/right) 45° / 45°
Maximum Power‡ 5.4 kW {7.3 PS} @ 7,500 rpm
Maximum Torque‡ 8.0 N·m {0.82 kgƒ·m} @ 4,000 rpm
Suspension, front 30 mm telescopic fork
Suspension, rear Single shock
Warranty 6 months warranty








2016 Kawasaki KLX110L – www.Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: £ GBP (On The Road inc 20% Vat)


*Starting at MSRP is the manufactured suggested price and excludes delivery, setup, tax, title, license, and additional fees and expenses. Bikes may be shown with optional accessories. Final sale price determined by an authorized dealer. Specifications and MSRP are subject to change.

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
