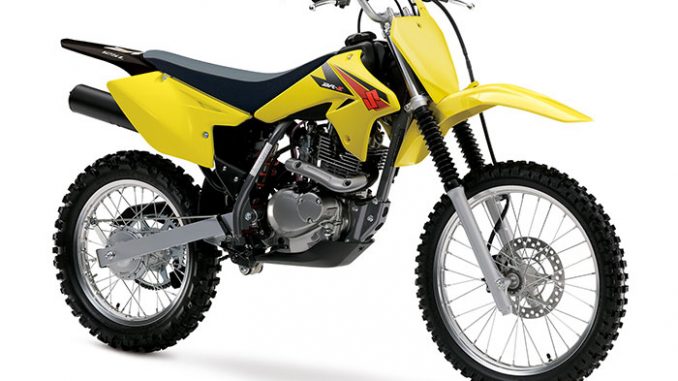

2016 Suzuki DR-Z125L
2016 Suzuki DR-Z125L

2016 Suzuki DR-Z125L
2016 Suzuki DR-Z125L



2016 Suzuki DR-Z125L Review

2016 Suzuki DR-Z125L on www.Totalmotorcycle.com

Rev up…

The 2016 DR-Z125L comes stocked with all the necessities for long, exciting rides. A larger 19-inch front tire and 16-inch rear tire as well as a front disk brake provide a longer lifespan of usefulness. Styled to reflect the RM-Z models, this DR-Z promotes a more race-oriented look while the sharp handling and strong low-to-mid end power provide the get-up-and-go that defines off-road bikes. The looks are a testament that you can’t judge a book by its cover because the DR-Z125L is a simple package packed with loads of fun.




2016 Suzuki DR-Z125L www.Totalmotorcycle.com Key Features

When you’ve got a DR-Z, the whole world looks a little different. You start seeing trails, desert, and single-track everywhere you look. Even a rainy day just means more mud to play in. Expect loads of torque across a wide powerband with high-rpm muscle to spare.

WHAT’S NEW FOR 2016

The DR-Z125L features new colour graphics, along with new colour surfaces: Black Front Brake Hose Guide, Grey Seat Surface, Yellow Frame Covers

Key Features
32 inch seat height.

Lightweight aluminum rims for reduced weight provide agile handling and improved suspension performance




2016 Suzuki DR-Z125L www.Totalmotorcycle.com Features and Benefits

ENGINE FEATURES
Compact 124cc 4-stroke, SOHC, single-cylinder, air-cooled engine provides a strong low-to-mid range power range that can be easily handled.

Precise digital CDI ignition system with an ignition-timing map tuned to optimize the engine’s power characteristics.

MIKUNI VM20SS carburetor contributes to excellent throttle response.

Suzuki Composite Electrochemical Material (SCEM) – plated cylinder for durability, lightweight and superior heat transfer.



TRANSMISSION FEATURES
Five-speed transmission with link-type gearshift system for precise operation and positive feel.

Easy pull, rack & pinion manual clutch lets the rider control take-offs and power delivery.



CHASSIS FEATURES
Lightweight, high rigidity steel pipe frame and rear beam-style swingarm are designed specifically to create a compact, fully-sized off road machine.

Lightweight aluminum rims (19-inch front/16-inch rear) for reduced weight contributing to agile handling and improved suspension performance.

The seat and bodywork design provides a seamless surface for easy maneuverability.

Appropriate 32 inch seat height lets the bike fit a variety of riders.

Strong braking performance provided by lightweight front disc and rear drum brakes.

Telescopic front forks and link-type rear suspension provides long wheel travel and smooth, progressive action that creates an enjoyable, comfortable ride.

The rear shock absorber spring preload is fully adjustable for a wide range of riding conditions and rider weight.

A lightweight plastic skid plate helps protect the bottom of the engine.

Bright Suzuki Factory Yellow bodywork with matching race-inspired graphics.










2016 Suzuki DR-Z125L – www.Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $3199 USD

Engine 124cc, 4-stroke, air-cooled, single cylinder, OHC
Bore x Stroke 57.0 mm (2.24 in) x 48.8 mm (1.92 in)
Compression Ratio 9.5 : 1
Fuel System MIKUNI VM20SS, single carburetor
Starter Primary Kick
Lubrication Wet sump
DRIVE TRAIN
Transmission 5-speed constant mesh
Final Drive DID 428HG, 130 links
CHASSIS
Suspension Front Telescopic, coil spring, oil damped
Suspension Rear Link type, coil spring, oil damped
Brakes Front Disc brake, single rotor
Brakes Rear Drum brake
Tires Front 70/100-19 42M, tube type
Tires Rear 90/100-16 52M, tube type
Fuel Tank Capacity 1.1 US – Including Reserve
Color Champion Yellow / Solid Black
ELECTRICAL
Ignition Electronic ignition (CDI)
Headlight N/A
Tail light N/A
DIMENSIONS AND CURB WEIGHT
Overall Length 1885 mm (74.2 in)
Overall Width 770 mm (30.3 in)
Overall Height 1110 mm (43.7 in)
Wheelbase 1270 mm (50.0 in)
Seat Height 805 mm (32.0 in)
Curb Weight 89 kg (196 lbs)
WARRANTY
Warranty 6-month limited warranty*
Extensions *Extensions available through Suzuki Extended Protection (SEP)









2016 Suzuki DR-Z125L – www.Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $3499 CDN

ENGINE
Ignition Electronic ignition (CDI)
Engine 124cc, 4-stroke, air-cooled, OHC
Bore Stroke 2.244.60 in x 1.921 in
Compression Ratio 9.5 : 1
Fuel System MIKUNI VM20SS
Starter Primary Kick
Lubrication Wet sump
Chassis
Suspension Front Telescopic, coil spring, oil damped
Suspension Rear Link type, coil spring, oil damped
Brakes Front Disc brake
Brakes Rear Drum brake
Tires Front 70/100-19 42M, tube type
Tires Rear 90/100-16 52M, tube type
Fuel Tank Capacity 4.8L (1.3 US gal)
Color Champion Yellow/Solid Black
DimensionsandCurbWeight
Overall Length 1885 mm (74.2 in)
Overall Width 770 mm (30.3 in)
Overall Height 1110 mm (43.7 in)
Wheelbase 1270 mm (50.0 in)
Ground Clearance 290 mm (11.4 in)
Seat Height 805 mm (32.0 in)
Curb Weight 89 kg (196 lbs)
DriveTrain
Transmission 5-speed constant mesh
Final Drive DID 428HG, 130 links
Warranty
Warranty 12 Month unlimited mileage limited warranty






2016 Suzuki DR-Z125L – www.Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: £ GBP (On The Road inc 20% Vat)

NA

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
