2016 Suzuki DR-Z400S

Back to the 2016 Suzuki Motorcycle Model Review Page

Click photos to enlarge. Our big, clean bike pics make great desktop wallpaper.

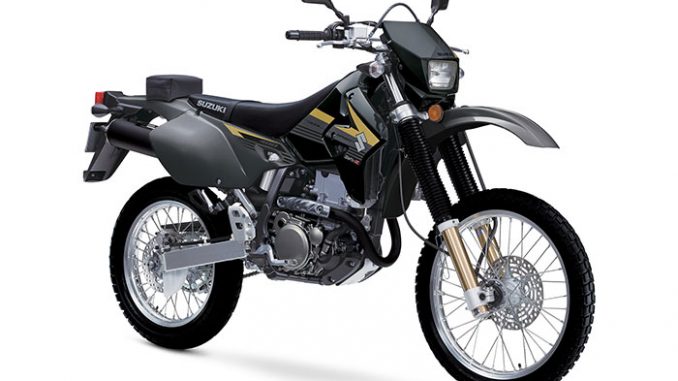

2016 Suzuki DR-Z400S
2016 Suzuki DR-Z400S

2016 Suzuki DR-Z400S
2016 Suzuki DR-Z400S



2016 Suzuki DR-Z400S Review

2016 Suzuki DR-Z400S on www.Totalmotorcycle.com

Just Go For It!

The 2016 DR-Z400S is ideal for taking a ride down your favorite off-road trail. You’ll be impressed with the amount of torque coming from the 398cc liquid-cooled power plant as well as the crisp handling from the adjustable suspension. This bike is completely street legal with an electric start and easy-to-read instrument cluster. Whether you’re on the highway or in a tight twisty forest trail, the Suzuki DR-Z400S can’t be beat.

The DR-Z400S is ideal for taking a ride down your favorite off-road trail. You’ll be impressed with the amount of torque coming from the 398cc liquid-cooled powerplant as well as the crisp handling from the adjustable suspension. This bike is completely street legal with an electric start and easy-to-read instrument cluster. Whether you’re on the highway or in a tight twisty forest trail, the Suzuki DR-Z400S can’t be beat.

Like the off road DR-Z400E it is based on, the DR-Z400S breaks new ground in off road/dual-sport riding by offering the broad, tractable power and torque of an advanced and a compact, light and agile chassis. Fully street-legal, the nimble handling and excellent 4-stroke engine for tackling runs also make the DR-Z400S a downright pleasure to ride on highway and city adventures.





2016 Suzuki DR-Z400S www.Totalmotorcycle.com Key Features

Choose your own adventure. For those who love carving corners and the call of the wild, our DualSport machines deliver comfort on the street, control off the beaten path, and full command everywhere in between. Get ready for an ideal combination of lightweight agility and crisp handling.




2016 Suzuki DR-Z400S www.Totalmotorcycle.com Features and Benefits

ENGINE FEATURES
A compact design, 398cc, DOHC, liquid-cooled, dry-sump engine produces strong low-RPM power. Its compact 4-valve cylinder head features large 36mm intake valves and 29mm exhaust valves help produce broad, tractable power and torque ready for any terrain.

Suzuki Composite Electrochemical Materials (SCEM) cylinder is durable, lightweight and provides superior heat transfer.

Digitally mapped DC-CDI system monitors throttle position/engine rpm and adjusts ignition timing to maintain efficient combustion.

Forged aluminum piston is 10 percent lighter than a cast piston and receives additional oil-cooling through a crankcase oil jet.

A Mikuni™ 36mm carburetor is fed by a 6-liter air box to achieve smooth throttle response. The left side cover has quick-release fasteners for easy access to the air filter.

Magnesium-alloy clutch, magneto and cam covers contribute to the bike’s low weight.

A compact 5-speed transmission utilizes a cable-operated clutch with separate outer cover for simplified clutch maintenance.



CHASSIS FEATURES
A narrow frame combines thin chrome-moly steel tubes for exceptional torsional rigidity with minimal weight. The backbone tube, front down tube and steering head gussets form the dry-sump engine oil tank. A bolt-on aluminum sub-frame helps reduce weight and simplify maintenance.

Long travel (11.3 in), 49mm cartridge-style forks with protective rubber boots, feature adjustable compression/rebound damping and adjustable spring preload for smooth performance on all types of on/off-road terrain.

Rear shock absorber features 11.6 in of travel, compression damping/preload adjustments and connects to a lightweight aluminum swingarm through a progressive linkage system.

Sure stopping power is supplied by a 250mm front disc with a dual-piston caliper and a 220mm rear disc brake with a single-piston caliper.



ELECTRICAL FEATURES
Electric start system provides convenient operation and features a lightweight starter motor and a compact 6.5 amp maintenance-free battery.

Compact digital instrument cluster with speedometer, odometer, and twin-trip meters with addition/subtraction capability, clock, timer and stopwatch functions.

On-road legal lighting with bright 60/55 watt H4 halogen headlight, compact tail/stoplight, lightweight, rubber-mounted turn signals and horn.



ADDITIONAL FEATURES
A pouch on the rear fender carries the tool kit and owner’s manual.

Special design mirrors rotate to avoid damage in case of impact.

Genuine Suzuki Accessories include a low profile seat, cargo rack, hand guard set and more.

12-month limited warranty









2016 Suzuki DR-Z400S – www.Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $6599 USD

Engine
Engine 398cc, 4-stroke, liquid-cooled, single cylinder, DOHC
Bore x Stroke 90.0 mm x 62.6 mm (3.54 in x 2.44 in)
Compression Ratio 11.3 : 1
Fuel System MIKUNI BSR36, single carburetor
Starter Electric
Lubrication Semi-dry sump
Drive Train
Transmission 5-speed constant mesh
Final Drive Chain, RK520KZ0, 112 links
Chassis
Suspension Front Telescopic, coil spring, oil damped
Suspension Rear Link type, coil spring, oil damped
Brakes Front Disc brake, single floating rotor
Brakes Rear Disc brake, single rotor
Tires Front 80/100-21 M/C 51P, tube type
Tires Rear 120/90-18 M/C 65P, tube type
Fuel Tank Capacity 10.0 L (2.6 US gal) / 9.5 L (2.5 US Gal) California model
Color Solid Special White No.2 and Solid Iron Gray
Electrical
Ignition Electronic ignition (CDI)
Headlight 12V 60/55W (H4)
Tail light 12V 21/5W
Dimensions and Curb Weight
Overall Length 2310 mm (90.9 in)
Overall Width 875 mm (34.4 in)
Overall Height 1230 mm (48.4 in)
Wheelbase 1485 mm (58.5 in)
Ground Clearance 300 mm (11.8 in)
Seat Height 935 mm (36.8 in)
Curb Weight 144 kg (317 lbs)
Warranty
Warranty 12-month, unlimited mileage, limited warranty*
Extensions * Extensions available through Suzuki Extended Protection (SEP)











2016 Suzuki DR-Z400S – www.Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $7299 CDN

ENGINE
Type 4-stroke, liquid-cooled, single cylinder, DOHC
Displacement 398cc
Bore x Stroke 90.0mm x 62.6mm (3.5in x2.5in)
Compression Ratio 11.3 : 1
Transmission 5-speed constant mesh
CHASSIS
Overall Length 2310 mm (90.9 in)
Overall Width 875 mm (34.4 in)
Overall Height 1230 mm (48.4 in)
Wheelbase 1485 mm (58.5 in)
Ground Clearance 300 mm (11.8 in)
Seat Height 935 mm (36.8 in)
Curb Mass 144 kg (317 lbs)
Suspension Front Telescopic, coil Spring, oil damped
Suspension Rear Link type, coil spring, oil damped
Brakes Front Disc
Brakes Rear Disc
Tires Front 80/100-21 M/C 51P, tube type
Tires Rear 120/90-18 M/C 65P, tube type
Ignition Type Electronic ignition (CDI)
Fuel Tank 10.0L (2.6 US gal)
WARRANTY
Standard Warranty 12 Month unlimited mileage limited warranty









2016 Suzuki DR-Z400S – www.Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: £ GBP (On The Road inc 20% Vat)

NA

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
