2016 Suzuki GSX-S750 ABS

Back to the 2016 Suzuki Motorcycle Model Review Page

Click photos to enlarge. Our big, clean bike pics make great desktop wallpaper.

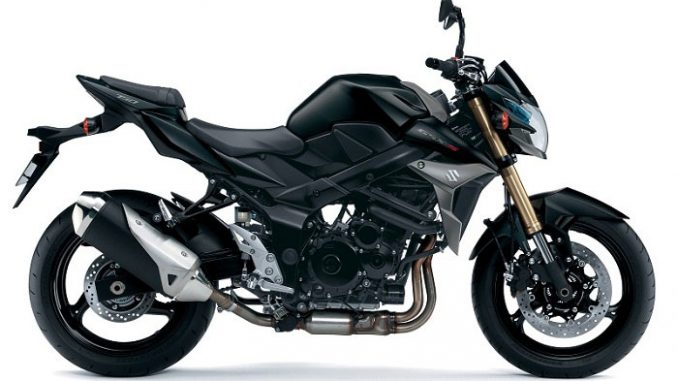

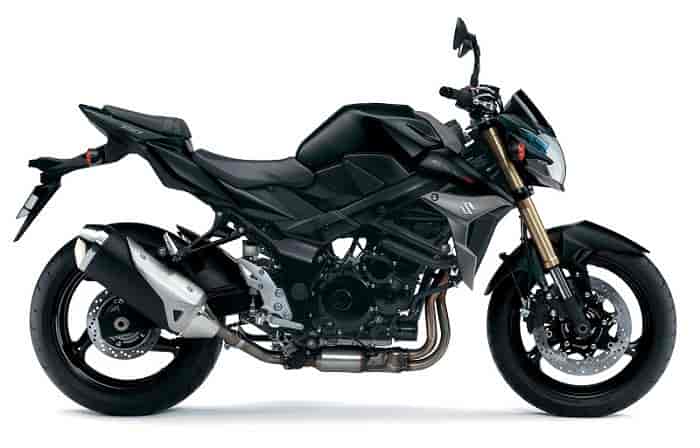

2016 Suzuki GSX-S750 ABS
2016 Suzuki GSX-S750 ABS

2016 Suzuki GSX-S750 ABS
2016 Suzuki GSX-S750 ABS



2016 Suzuki GSX-S750 ABS Review

2016 Suzuki GSX-S750 ABS on www.Totalmotorcycle.com

BORN ON THE TRACK. RAISED ON THE STREET…

Experience the futuristic combination of leading technology, cutting edge style and outstanding performance. Designed with the competitive spirit of the GSX-R750, the 2016 GSX-S750 has the power plant of the GSX-R750 with comfort and versatile riding in its sights. With a powerful 749cm3 four cylinder fuel-injection engine combined with 145mm of ground clearance and ABS brakes, no road will ever hold you back from full throttle excitement. Freedom calls, the open road awaits; take strong hold of your GSX-S750.

*The ABS is a supplemental device for brake operation, not a device for shortening stopping distance. Always remember to reduce speed sufficiently before approaching curves.





2016 Suzuki GSX-S750 ABS www.Totalmotorcycle.com Key Features

Frame design combines the advantages of a compact tubular girder streetbike frame and a twin-spar sportbike frame to deliver a dynamic ride.

Carefully sculpted bodywork with highlights including a vented front fender, molded mirrors, chiseled fuel tank, textured tank side panels, and an angular tail section with integrated LED taillight.

The light and compact Anti-Lock brake system (ABS)* system monitors the wheel speed as much as 50 times per wheel rotation and matches the stopping power to the available traction.
*The ABS is a supplemental device for brake operation, not a device for shortening stopping distance. Always remember to reduce speed sufficiently before approaching curves.







2016 Suzuki GSX-S750 ABS www.Totalmotorcycle.com Features and Benefits

ENGINE FEATURES
Powerful 749 cm3 4-cylinder fuel-injected engine is tuned to deliver adynamic wave of smooth torque and strong acceleration and sensation

Throttle bodies with Suzuki Dual Throttle Valve (SDTV) system contribute to cylinder charging efficiency and combustion efficiency for better throttle response and torque at the low to mid rpm range.

Automatic Idle Speed Control (ISC) improves cold starting and stabilizes engine idle while also reducing cold-start emissions.

Iridium type spark plugs provide a more condensed and hotter spark yet last longer.

Effective engine management and emission control systems together allow the GSX-S750A to meet the latest emission standards.

Suzuki Pulsed-secondary AIR-injection (PAIR) system injects fresh air into the exhaust ports to react with unburned hydrocarbons and reduce CO2 emissions.

Suzuki Exhaust Tuning (SET) servo-controlled butterfly valve helps enhance torque, response and acceleration, especially at low-to-mid rpm range.



CHASSIS FEATURES
Inverted KYB front forks feature a design developed in racing and that is mandatory on a serious, high-performance machine.

Link-type rear suspension, with a single rear shock absorber working through a progressive linkage. Spring preload is 7-way adjustable.

Dual front brakes with fully-floating 310mm discs and dual-piston calipers. 240mm rear disc brake with single-piston caliper.

Antilock Brake System (ABS)*, with a compact control unit monitors wheel speed, and matches stopping power to available traction (GSX-S750A only).



ADDITIONAL FEATURES
Light and open radiator side panels mated with aggressive front bodywork side pieces.

Distinctive triangle-shaped muffler with a form-fitting brushed stainless steel heat shield.

Brightness-controllable instrument cluster, featuring a prominent analog tachometer and a large, digital LCD speedometer readout. The LCD display also includes a gear-position indicator, coolant temperature gauge, fuel gauge, selectable odometer/dual-tripmeter/fuel consumption meter and a clock.

Bright and distinctively shaped headlight with a 60/55W halogen bulb. Integrated dual position lights.

A compartment underneath the removable passenger seat can carry a U-shaped lock or can be used to store small items.

A selection of Suzuki Genuine Accessories is available for riders who want to customize their GSX-S750A and make it uniquely their own










2016 Suzuki GSX-S750 ABS – www.Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $ USD











2016 Suzuki GSX-S750 ABS – www.Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $8849 CDN

ENGINE
Type 4-stroke, 4-cylinder, liquid-cooled, DOHC
Displacement 749 cm3 (45.7 cu. in)
Bore x Stroke 72.0 mm x 46.0 mm
Compression Ratio 12.3 : 1
Transmission 6-speed constant mesh
CHASSIS
Overall Length 2115 mm (83.3 in)
Overall Width 785 mm (30.9 in)
Overall Height 1060 mm (41.7 in)
Wheelbase 1450 mm (57.1 in)
Ground Clearance 145 mm (5.7 in)
Seat Height 815 mm (32.1 in)
Curb Mass 213 kg (470 lbs)
SuspensionFront Inverted telescopic, coil Spring, oil damped
Suspension Rear Signle-shock, link type, coil spring, oil damped
BrakesFront Disc, twin
Brakes Rear Disc
TiresFront 120/70ZR17M/C (58W), tubeless
Tires Rear 180/55ZR17M/C (73W), tubeless
Ignition Type Electronic ignition (Transistorized)
Fuel Tank 17.5L (4.6 US gal)
WARRANTY
Standard Warranty 12 Month unlimited mileage limited warranty






2016 Suzuki GSX-S750 ABS – www.Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: £ GBP (On The Road inc 20% Vat)




Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
