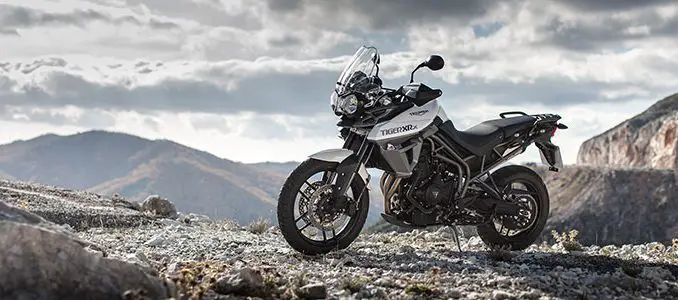

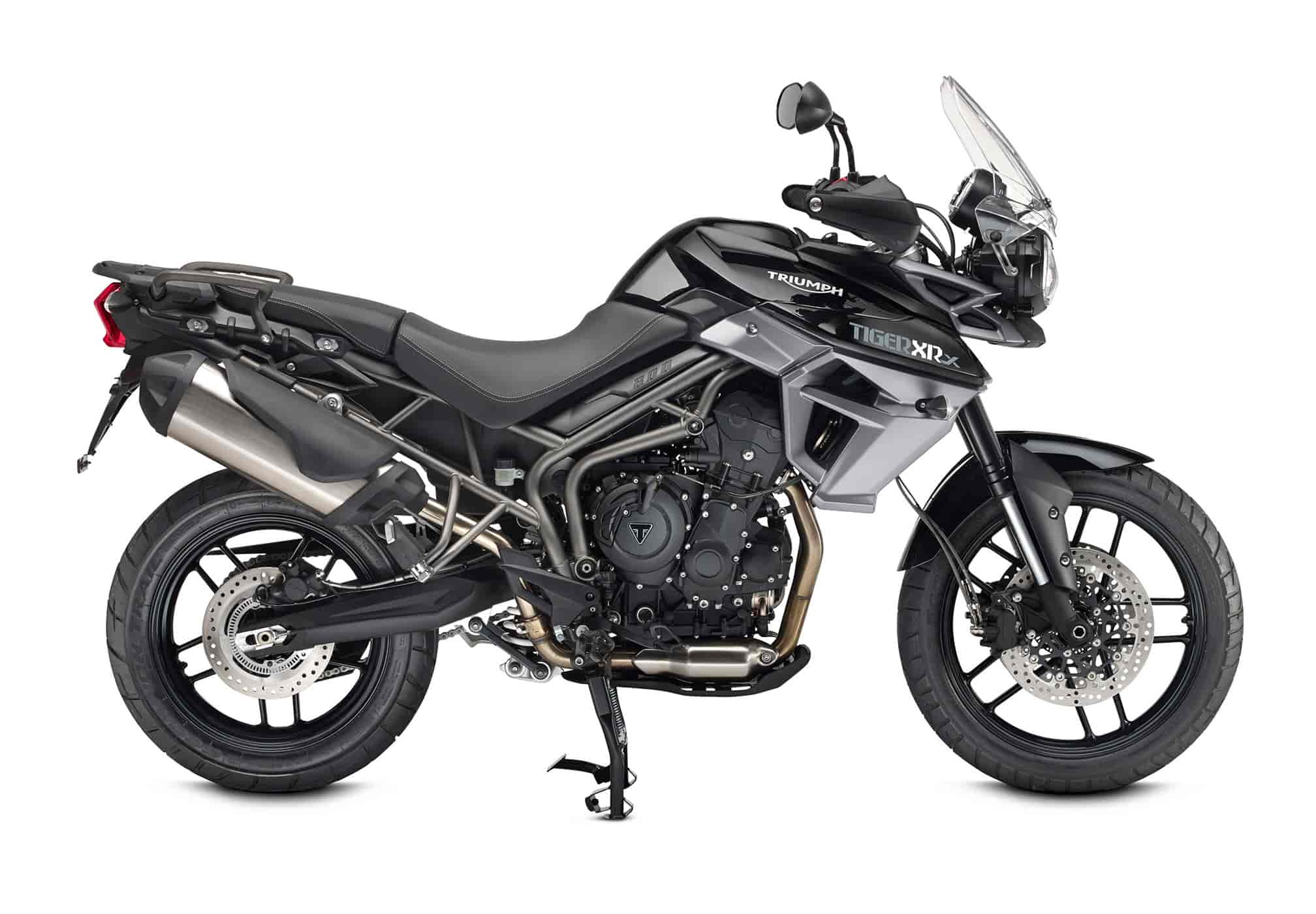

2016 Triumph Tiger 800 XRX

Back to 2016 Triumph Motorcycle Model Review Page

Click photos to enlarge. Our big, clean bike pics make great desktop wallpaper.

2016 Triumph Tiger 800 XRX
2016 Triumph Tiger 800 XRX

2016 Triumph Tiger 800 XRX
2016 Triumph Tiger 800 XRX

2016 Triumph Tiger 800 XRX
2016 Triumph Tiger 800 XRX

2016 Triumph Tiger 800 XRX
2016 Triumph Tiger 800 XRX

2016 Triumph Tiger 800 XRX
2016 Triumph Tiger 800 XRX



2016 Triumph Tiger 800 XRX Review

2016 Triumph Tiger 800 XRX on www.Totalmotorcycle.com

Maximum Response…

Whatever the road, whatever the distance, whatever the challenge, the new Tiger 800 range has been built to excel. Featuring a host of rider focused technology such as the standard fitment of Triumph Traction Control and switchable ABS, the new Tiger with its powerful and more fuel efficient 95PS triple engine is up for any task.

With the Tiger 800 XRX, the legendary Triumph handling gets even more rewarding. The addition of electronic Riding Modes allows you to tailor your Tiger to perfectly suit your riding style. Including ROAD, OFF-ROAD and programmable RIDER MODE, they adapt the throttle map, ABS sensitivity and Triumph Traction Control parameters to give maximum response no matter what the condition.

Featuring a superb level of comfort both for rider and passenger, thanks to the comfort seats with 3D mesh technology, and enhanced wind protection, courtesy of the adjustable windshield and hand guards, the new Tiger XRx will tempt you into embarking on an exciting trip. The standard Cruise Control enhances your riding pleasure over long distances, while the advanced Trip Computer displays all the information of your journey. The second power socket and centre stand add another level of practicality.

The all new Tiger 800 is a dynamic Adventure motorcycle designed to deliver whatever you want no matter how you ride. On road or off, the new Tiger’s manners, riding position, handling and responsive engine give the rider everything required to enjoy every ride.

The Tiger 800 XR is focussed to the world of road riding and is available in two versions, the XR and XRx. Both models have high levels of standard equipment in a with the XRx bringing more technology to the segment. Traction control and switchable ABS is as standard on all models delivering improved rider safety

Delivering a seamless flow of torque across the rev range, the Tiger 800 is as perfectly suited to long distance rides as it is to tackling the tough stuff. The second generation 800cc engine now features a ride-by-wire throttle system which provides smoother power delivery, better response, and lower emissions. The result is a 17% improvement in fuel efficiency that coupled with the capacious 19l fuel tank means you can ride longer

Available in two different flavours, the touring focused XR range (XR / XRx / XRx Low / XRT) and the off-road biased XC range, (XC / XCx / XCx Low / XCA) there is a Tiger 800 to suit everyone.





2016 Triumph Tiger 800 XRX www.Totalmotorcycle.com Key Features

Standard Tiger 800 XR Equipment
•Adjustable brake and clutch levers
•Adjustable handlebar position
•Adjustable seat height
•Auxiliary socket
•Hazard light switch on instrument panel
•Immobiliser
•Switchable ABS
•Traction control

Additional to Tiger 800 XR
•Adjustable screen
•Auto cancel indicators
•Auxiliary socket
•Centre stand
•Comfort rider and passenger seat
•Cruise control
•Hand guards
•Riding modes
•Standard power sockets








2016 Triumph Tiger 800 XRX www.Totalmotorcycle.com Features and Benefits

Technology


Trip Computer


The LCD screen displays time, ambient temperature, fuel gauge, gear indicator, odometer and journey distance.

The Tiger 800 XRx and XCx models add more functionality with extended information including: journey time, average speed, average fuel consumption, range to empty and instantaneous fuel consumption.


Electronic Riding Modes

Switch from road to off-road to rider programmable modes on the fly – and overcome the weather, the road and whatever nature can throw at you.

The Tiger 800 range offers three different Riding Modes that allow the adjustment of the throttle maps, ABS and TTC to suit different road conditions. Select either ROAD or OFF-ROAD mode and the throttle maps, ABS, and Triumph Traction Control are automatically set.

RIDER MODE allows you to configure these settings independently to suit your own personal riding style. In RIDER MODE, the throttle maps can be switched between RAIN, ROAD, SPORT, and OFF-ROAD settings.


Traction Control

Every Tiger 800 features first-in-class standard fitment of Triumph Traction Control (TTC) that prevents the unexpected spinning of the rear wheel and cuts the engine torque to avoid the loss of lateral grip.

The XCX and XRX feature advanced Traction Control with three settings: 1. ROAD: optimised for road use, allowing minimal rear wheel slip 2. OFF ROAD: allows increased rear wheel slip (XCX, XRX only) 3. OFF: disables the traction control setting


Controls

The Tiger 800 models feature Cruise Control as standard, making long journeys more comfortable and helping fuel efficiency.




Engine


Triple Engine

Delivering a seamless flow of torque across the rev range, the Tiger 800 is as perfectly suited to long-distance rides as it is to tackling the tough stuff. The second generation 800cc engine now features a ride-by-wire throttle system which provides smoother power delivery , better response and lower emissions.


Fuel Efficiency

The new Tiger 800 has a 17% improvement in fuel efficiency that, coupled with the capacious 19L fuel tank, means you can ride longer.


Gear Box

The gearbox selector mechanism is derived directly from the class leading Daytona, for quicker smoother shifts.



Accessories


Hand guards

Manufactured from durable moulded nylon, Triumph Hand Guards now have improved wind resistance and finger clearance. Tested in a wind tunnel for optimum performance.


Handlebar Risers

Offering a height adjustment distance of 30mm, these Handlebar Risers replace original parts to ensure improved ergonomics for taller riders


Heated Grips

Designed specifically for the ride Tiger 800, these internally wired Heated Grips featuring dual temperature heat settings selectable through bar mounted dual colour push button controls.


LED Fog Lights

High performance dual Fog Lamp Kit featuring high power Philips Altilin LEDs, drilled and brushed marine grade aluminium shields and an integrated tubular mounting rail. Fully waterproof illuminated push button for ease of use in the worst of conditions.


Low Seat

Low Comfort Rider Seat unit to offer optimum comfort and style. Approximately 20mm lower compared to the standard part, features twin fabric cover, contrasting stitch detail and Triumph branding to ensure it looks as good as it feels.


Panniers

These fully weatherproof panniers are made from a 1.5mm thick aluminium structure, with the enhanced protection of polymer corner reinforcements. Each Pannier has a capacity of 37 litres, attaching to bespoke mounting frames, using a quick release mechanism.



Find Your Tiger

THE XR RANGE

The new Tiger 800 XR models offer a dynamic adventure bike range that truly deliver on the road. Powered by a 95PS 800cc triple, with the first in class inclusion of switchable ABS and Triumph Traction Control, the 800 XR range offers an agile, purposeful option for those seeking a perfect day to day riding tool, or a long distance adventure companion. With cast wheels, 19-inch at the front, and a chassis tuned for outstanding road manners, the XR models are highly capable of delivering riding fun and long distance comfort.


THE XC RANGE

The new Tiger 800 XC models offer those with serious off-road intent the perfect all-purpose machines capable of going the distance. The responsive chassis and torque-laden engine is matched to the perfect blend of technology, equipment and style, resulting in a bike that can tackle the most arduous of journeys with ease. With premium WP suspension as standard, 21” spoked wheel at the front and 17” at the rear, and increased rider focussed technology including the standard fitment of traction control and switchable ABS, the Tiger 800 XC is no ordinary adventure bike.










2016 Triumph Tiger 800 XRX – www.Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $12700 USD

Type Liquid-cooled, 12 valve, DOHC, in-line 3-cylinderCapacity 800cc
Bore/Stroke 74.1 mm / 61.9 mm
Compression 11.3:1
Max Power EC 95 Hp (70 kW) 9,250 rpm
Max Torque EC 58.3 FT-lbs (79 Nm) 7,850 rpm
System Multipoint sequential electronic fuel injection
Exhaust Stainless steel 3 into 1, high level stainless steel silencer
Final drive O ring chain
Clutch Wet, multi-plateGearbox 6-speedFrame Tubular steel trellis frame
Swingarm Twin-sided, cast aluminium alloyFront Wheels Cast aluminium alloy 10-spoke 19 x 2.5 inRear Wheels Cast aluminium alloy 10-spoke 17 x 4.25 inFront Tires 100/90-19Rear Tires 150/70 R17
Front Suspension Showa 43 mm upside down forks, 180 mm travel
Rear Suspension Showa monoshock with hydraulically adjustable preload, 170 mm rear wheel travel
Brakes Front Twin 308 mm floating discs, Nissin 2-piston sliding calipers, Switchable ABSBrakes Rear Single 255 mm disc, Nissin single piston sliding caliper, Switchable ABS
Instrument Display and Functions LCD multifunctional instrument pack with digital speedometer, trip computer, analogue tachometer, gear position indicator, fuel gauge, service indicator, ambient temperature, three rider modes (Road/Offroad/Rider configurable) and clock.
Width Handlebars 31.3 in (795 mm)
Height Without Mirror 53.1 in (1350 mm)
Seat Height 31.9 – 32.7 in (810 – 830 mm). Low seat version available: 29.9 – 30.7 in (760 – 780 mm)
Wheelbase 60.2 in (1530 mm)
Rake 23.9 º
Trail 3.6 in (92.4 mm)
Dry Weight 421 lbs (191 Kg)
Tank Capacity 5.0 US gallon
Urban * 48.7 US MPG
Constant Speed 56mph/90kph 64.5 US MPG
Constant Speed 75mph/120kph 44.6 US MPG









2016 Triumph Tiger 800 XRX – www.Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $14100 CDN

Type Liquid-cooled, 12 valve, DOHC, in-line 3-cylinderCapacity 800cc
Bore/Stroke 74.1 mm / 61.9 mm
Compression 11.3:1
Max Power EC 95 Hp (70 kW) 9,250 rpm
Max Torque EC 58.3 FT-lbs (79 Nm) 7,850 rpm
System Multipoint sequential electronic fuel injection
Exhaust Stainless steel 3 into 1, high level stainless steel silencer
Final drive O ring chain
Clutch Wet, multi-plateGearbox 6-speedFrame Tubular steel trellis frame
Swingarm Twin-sided, cast aluminium alloyFront Wheels Cast aluminium alloy 10-spoke 19 x 2.5 inRear Wheels Cast aluminium alloy 10-spoke 17 x 4.25 inFront Tires 100/90-19Rear Tires 150/70 R17
Front Suspension Showa 43 mm upside down forks, 180 mm travel
Rear Suspension Showa monoshock with hydraulically adjustable preload, 170 mm rear wheel travel
Brakes Front Twin 308 mm floating discs, Nissin 2-piston sliding calipers, Switchable ABSBrakes Rear Single 255 mm disc, Nissin single piston sliding caliper, Switchable ABS
Instrument Display and Functions LCD multifunctional instrument pack with digital speedometer, trip computer, analogue tachometer, gear position indicator, fuel gauge, service indicator, ambient temperature, three rider modes (Road/Offroad/Rider configurable) and clock.
Width Handlebars 795 mm (31.3 in)
Height Without Mirror 1350 mm (53.1 in)
Seat Height 810 – 830 mm (31.9 – 32.7 in). Low seat version available: 760 – 780 mm (29.9 – 30.7 in)
Wheelbase 1530 mm (60.2 in)
Rake 23.9 º
Trail 92.4 mm (3.6 in)
Dry Weight 191 Kg (421 lbs)
Tank Capacity 19 L (5.0 US gallon)

Tank Capacity 5.0 US gallon
Urban * * 4.8 L/100 km (48.7 US MPG)
Constant Speed 56mph/90kph 3.6 L/100 km (64.5 US MPG)
Constant Speed 75mph/120kph 5.3 L/100 km (44.6 US MPG)






2016 Triumph Tiger 800 XRX – www.Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: £9700 GBP (On The Road inc 20% Vat)

Type Liquid-cooled, 12 valve, DOHC, in-line 3-cylinder
Capacity 800cc
Bore/Stroke 74.1 mm / 61.9 mm
Compression 11.3:1
Max power 95 PS/94 BHP (70KW) 9,250 rpm
Max torque 79 Nm 7,850 rpm
System Multipoint sequential electronic fuel injection
Exhaust Stainless steel 3 into 1, high level stainless steel silencer
Final drive O ring chain
Clutch Wet, multi-plateGearbox 6-speedFrame Tubular steel trellis frame
Swingarm Twin-sided, cast aluminium alloyFront Wheels Cast aluminium alloy 10-spoke 19 x 2.5 inRear Wheels Cast aluminium alloy 10-spoke 17 x 4.25 inFront Tyres 100/90-19Rear Tyres 150/70 R17
Front Suspension Showa 43 mm upside down forks, 180 mm travel
Rear Suspension Showa monoshock with hydraulically adjustable preload, 170 mm rear wheel travel
Brakes Front Twin 308 mm floating discs, Nissin 2-piston sliding calipers, Switchable ABS
Brakes Rear Single 255 mm disc, Nissin single piston sliding caliper, Switchable ABS
Instrument Display and Functions LCD multifunctional instrument pack with digital speedometer, trip computer, analogue tachometer, gear position indicator, fuel gauge, service indicator, ambient temperature, three rider modes (Road/Offroad/Rider configurable) and clock.
Width Handlebars 795 mm
Height Without Mirror 1350 mm
Seat Height 810 – 830 mm (Low seat version available: 760 – 780 mm)
Wheelbase 1530 mm
Rake 23.9 º
Trail 92.4 mm
Dry Weight 191 Kg
Tank Capacity 19 L
Constant Speed 56mph/90kph 77.4 MPG
Constant Speed 75mph/120kph 53.6 MPG


Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
