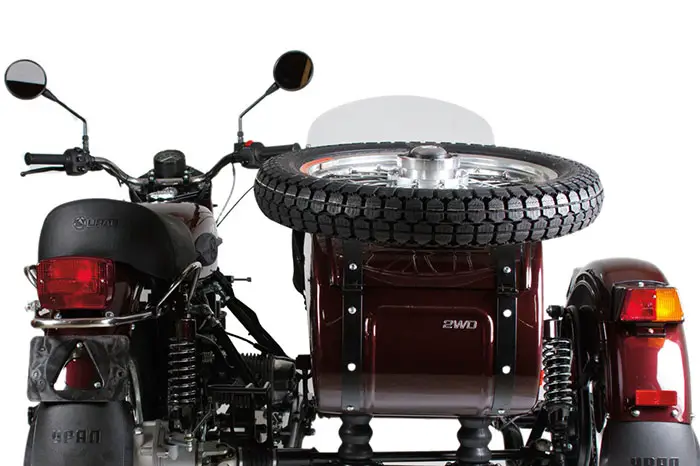

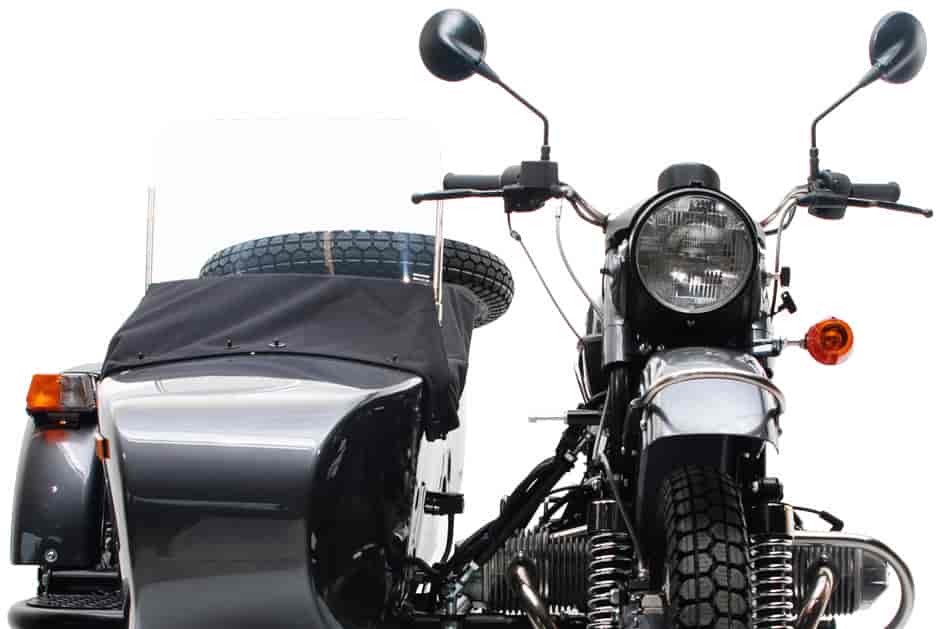

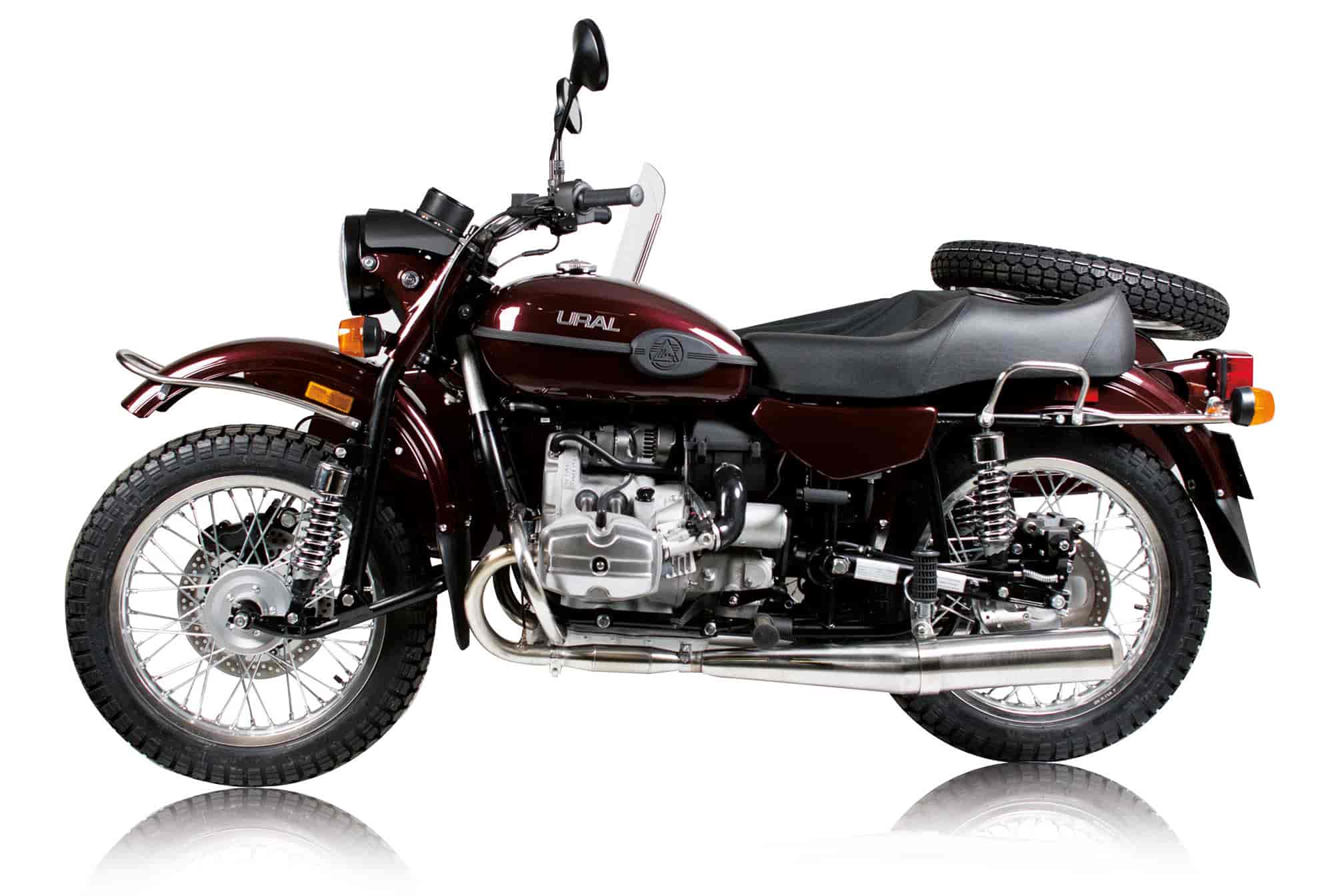

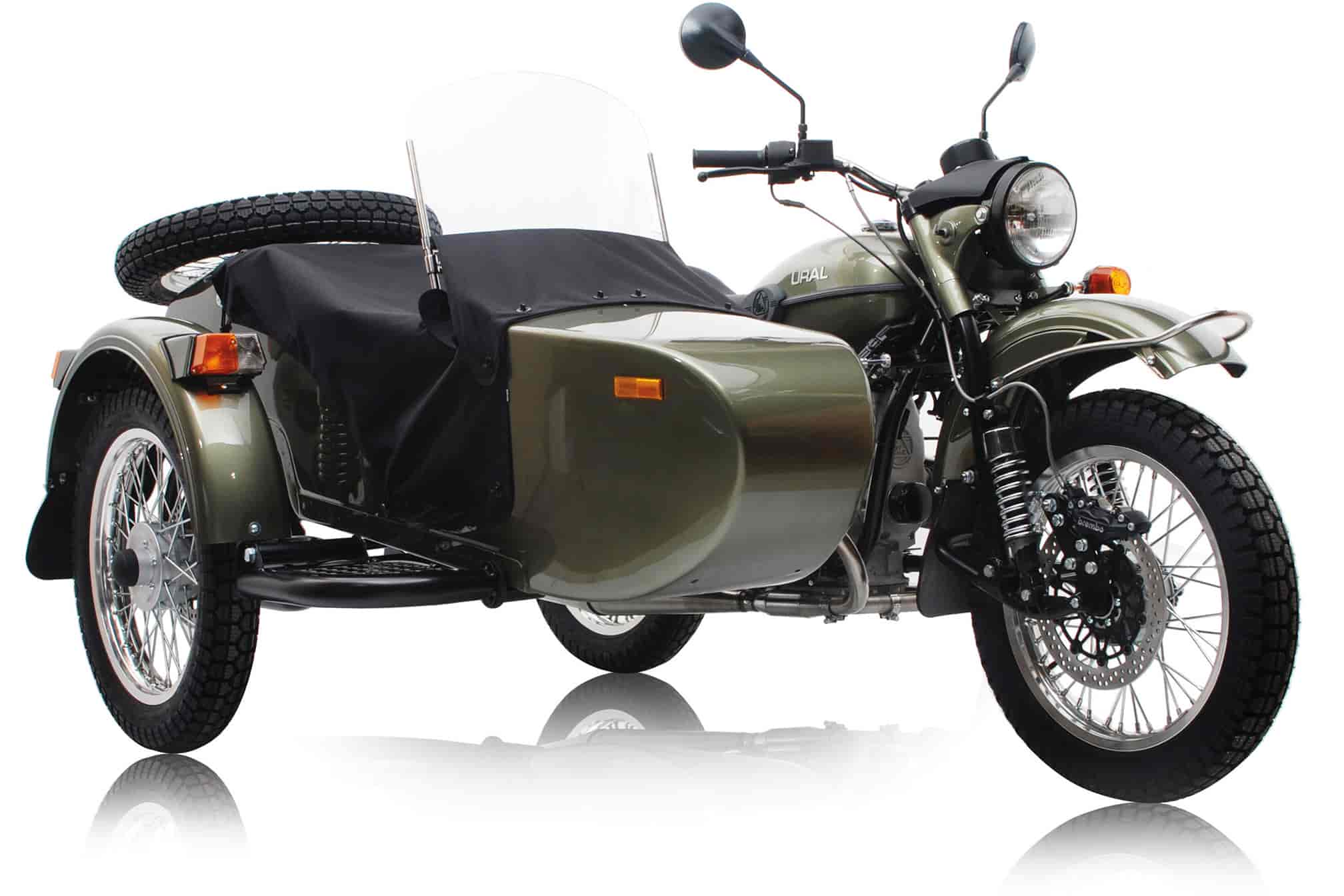

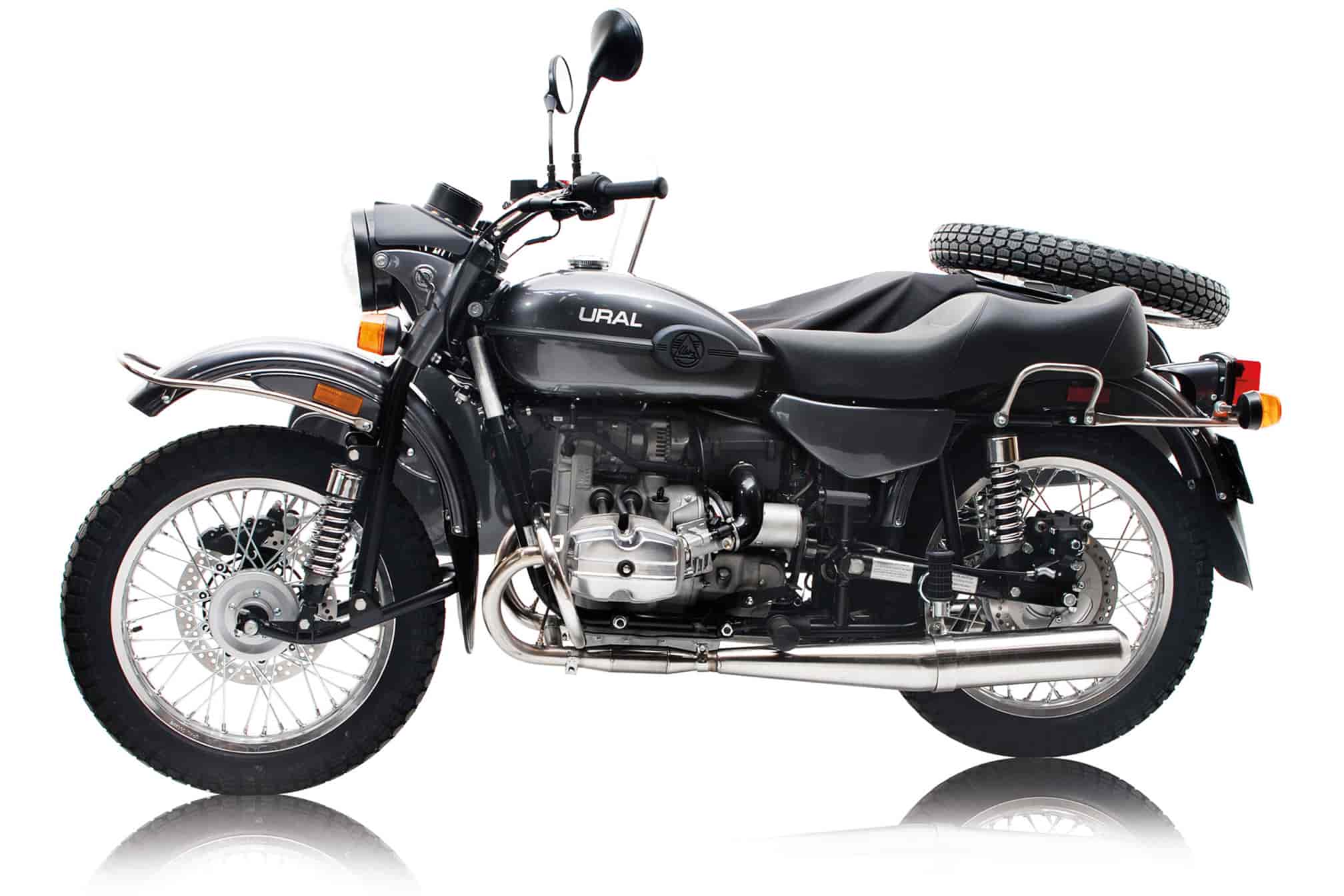

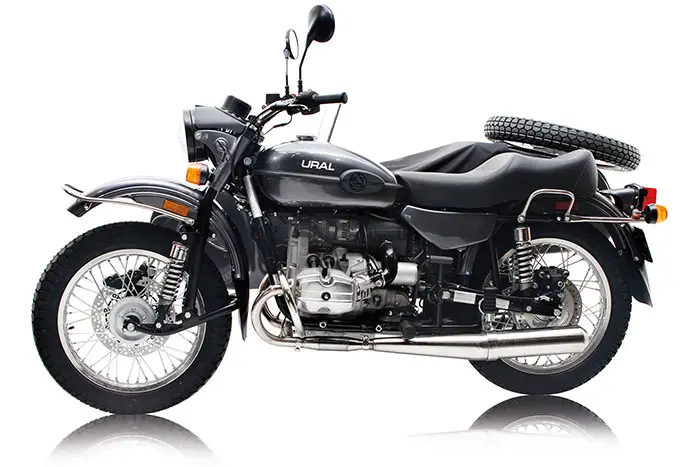

2016 Ural Patrol
2016 Ural Patrol

2016 Ural Patrol
2016 Ural Patrol

2016 Ural Patrol
2016 Ural Patrol

2016 Ural Patrol
2016 Ural Patrol

2016 Ural Patrol
2016 Ural Patrol



2016 Ural Patrol Review

2016 Ural Patrol on www.Totalmotorcycle.com

Our 2WD Touring Sidecar…

Our Patrol is designed with touring in mind, the long days on the road. Equipped standard with 2WD and spare tire it’s easily customizable to fit everything your extended aventure may need.



2016 Ural Patrol www.Totalmotorcycle.com Key Features

The Road Awaits





2016 Ural Patrol www.Totalmotorcycle.com Features and Benefits

Touring Comfort

The Patrol gives you the comfort of a touring bike with the same off road capability as our Gear-Up.

This street legal 2wd all-terrain ready motorcycle gives you the ability to switch between single-wheel drive and the unbelievable traction of dual-wheel drive with the flip of a lever.


“The Ural Patrol 2WD is almost nothing like riding a motorcycle. And that’s what’s so cool about it.”
Mark Hoyer – Cycle World Magazine

“I would soon find out that nothing would stand in the way of my Ural making its way to the top of Snoqualmie Pass…”
Jeremy Korzeniewski – AutoBlog.com

“For me, the Ural unseats my longtime favorite vehicle, the Lamborghini Murcielago.”
Jonathan Welsh – The Wall Street Journal .



Room To Share

With a sidecar and trunk you’ll have enough room for all your favorite gear (or people) during your next ride.

The Patrol provides you space for your everyday needs, whether it’s camping gear or that last minute grocery run, you’ll no longer need to worry about strapping it to your bike, or back.



Customize Your Ural

Did you know you can order your Ural in a custom color? You can order any model in any color that you see in our current lineup. You can also order most colors available from previous model years. Custom orders increase lead time between 45 and 90 days. Please contact your friendly Ural dealer for details.




Custom Paint
Make your new Ural uniquely yours.

Solid Color – MSRP $1,000 // Two-Tone MSRP $1,500



Engine Black Out
We can black out your entire engine, gearbox and final drive at the factory.

Black Powder Coated – MSRP $1,000



Undercoating
Increases the protection and durability of your bike paint. Applied to the outside bottom of the tub and the inside of the motorcycle fenders. Undercoating – MSRP $600




Accessories

We have an extensive line of accessories available to help tailor your Ural to your specific needs. Whether it’s luggage racks for your extended trip or a sidecar flood light, one of our qualified dealers can help you order and install your upgrades.



2 Year Warranty

Feel safe knowing your Ural is covered under our 2-year unlimited mileage warranty.

Our bikes are designed to take a beating, but we know, things happen. Feel safe knowing all parts and labor are covered for the first two years of ownership. We have over 70 dealers and service centers nation-wide, all ready to give a helping hand if something should go wrong. Don’t worry, we’ve got you covered.

We also offer a 3rd year extended warranty for $850. You may purchase an extended warranty at any point during the first two years of owning your new Ural. Please contact your authorized Ural dealer for complete details.











2016 Ural Patrol – www.Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $15,599*


Engine and Transmission
•Displacement, cc: 749
•Engine type: OHV air cooled 2 cylinder 4 stroke “boxer” (flat twin)
•Valve per cylinder: 2
•Bore and stroke (mm x mm): 78 x 78
•Max output (hp): 41 @ 5500 rpm
•Max torque (ft-lbs): 42 @ 4300 rpm
•Compression: 8.6:1
•Fuel system: Throttle body EFI
•Starting: Electric & Kickstart
•Clutch Double-disc dry
•Transmission type: Manual
•Speeds: 4 forward 1 reverse
•Primary drive (rear wheel): Driveshaft
•Final drive ratio: 4.62
•Engageable sidecar wheel drive: Yes, driveshaft

Physical Measurements
•Overall length, inch.: 98.8
•Overall heights, inch.: 54.3
•Overall width, inch.: 63.6
•Seat height, (unladen), inch.: 32.0
•Ground clearance (unladen),inch.: 6.8
•Dry weight, lbs: 730

Electrical
•Alternator: Denso, Peak Output 40 Amp @ 14vdc, 560 Wt
•Battery: FAYTX20HL (12V, 20A)
•Headlight: H4
•Spark plugs: NGK BPR6HS


Chassis
•Front suspension: IMZ leading link fork
•Rear suspension: Double sided swing-arm with two Sachs hydraulic spring shock absorbers, 5x adjustable
•Sidecar suspension: Single sided swing-arm with Sachs hydraulic spring shock absorber, 5x adjustable
•Wheels: 2.5X19 Aluminum rims with steel spokes
•Tires: Duro HF-308, 4.0×19?
•Front brake: 4-piston fixed Brembo caliper with 295mm floating NG rotor
•Rear brake: HB big bore single piston integrated floating caliper with 256mm fixed NG rotor
•Sidecar brake: 2-piston fixed Brembo caliper with 245mm floating NG rotor

Misc.
•Fuel grade: 91 Octane, unleaded
•Fuel tank capacity, gallons: 5.0
•Reserve, gallons: app. 1
•Estimated fuel economy, mpg: 31-37
•Estimated range, miles: 155-185
•Recommended max cruising speed, mph: 70
•Max permissible weight, lbs:1325
•Trunk volume, cubic ft.: 2.9

Warranty
•2-years parts and labor unlimited mileage.



* Excludes tax, license, registration, delivery, set-up, and dealer-installed options. Dealer prices may vary.






2016 Ural Patrol – www.Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $ CDN


Engine and Transmission
•Displacement, cc: 749
•Engine type: OHV air cooled 2 cylinder 4 stroke “boxer” (flat twin)
•Valve per cylinder: 2
•Bore and stroke (mm x mm): 78 x 78
•Max output (hp): 41 @ 5500 rpm
•Max torque (ft-lbs): 42 @ 4300 rpm
•Compression: 8.6:1
•Fuel system: Throttle body EFI
•Starting: Electric & Kickstart
•Clutch Double-disc dry
•Transmission type: Manual
•Speeds: 4 forward 1 reverse
•Primary drive (rear wheel): Driveshaft
•Final drive ratio: 4.62
•Engageable sidecar wheel drive: Yes, driveshaft

Physical Measurements
•Overall length, inch.: 98.8
•Overall heights, inch.: 54.3
•Overall width, inch.: 63.6
•Seat height, (unladen), inch.: 32.0
•Ground clearance (unladen),inch.: 6.8
•Dry weight, lbs: 730

Electrical
•Alternator: Denso, Peak Output 40 Amp @ 14vdc, 560 Wt
•Battery: FAYTX20HL (12V, 20A)
•Headlight: H4
•Spark plugs: NGK BPR6HS


Chassis
•Front suspension: IMZ leading link fork
•Rear suspension: Double sided swing-arm with two Sachs hydraulic spring shock absorbers, 5x adjustable
•Sidecar suspension: Single sided swing-arm with Sachs hydraulic spring shock absorber, 5x adjustable
•Wheels: 2.5X19 Aluminum rims with steel spokes
•Tires: Duro HF-308, 4.0×19?
•Front brake: 4-piston fixed Brembo caliper with 295mm floating NG rotor
•Rear brake: HB big bore single piston integrated floating caliper with 256mm fixed NG rotor
•Sidecar brake: 2-piston fixed Brembo caliper with 245mm floating NG rotor

Misc.
•Fuel grade: 91 Octane, unleaded
•Fuel tank capacity, gallons: 5.0
•Reserve, gallons: app. 1
•Estimated fuel economy, mpg: 31-37
•Estimated range, miles: 155-185
•Recommended max cruising speed, mph: 70
•Max permissible weight, lbs:1325
•Trunk volume, cubic ft.: 2.9

Warranty
•2-years parts and labor unlimited mileage.







2016 Ural Patrol – www.Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: £ GBP (On The Road inc 20% Vat)


Engine and Transmission
•Displacement, cc: 749
•Engine type: OHV air cooled 2 cylinder 4 stroke “boxer” (flat twin)
•Valve per cylinder: 2
•Bore and stroke (mm x mm): 78 x 78
•Max output (hp): 41 @ 5500 rpm
•Max torque (ft-lbs): 42 @ 4300 rpm
•Compression: 8.6:1
•Fuel system: Throttle body EFI
•Starting: Electric & Kickstart
•Clutch Double-disc dry
•Transmission type: Manual
•Speeds: 4 forward 1 reverse
•Primary drive (rear wheel): Driveshaft
•Final drive ratio: 4.62
•Engageable sidecar wheel drive: Yes, driveshaft

Physical Measurements
•Overall length, inch.: 98.8
•Overall heights, inch.: 54.3
•Overall width, inch.: 63.6
•Seat height, (unladen), inch.: 32.0
•Ground clearance (unladen),inch.: 6.8
•Dry weight, lbs: 730

Electrical
•Alternator: Denso, Peak Output 40 Amp @ 14vdc, 560 Wt
•Battery: FAYTX20HL (12V, 20A)
•Headlight: H4
•Spark plugs: NGK BPR6HS


Chassis
•Front suspension: IMZ leading link fork
•Rear suspension: Double sided swing-arm with two Sachs hydraulic spring shock absorbers, 5x adjustable
•Sidecar suspension: Single sided swing-arm with Sachs hydraulic spring shock absorber, 5x adjustable
•Wheels: 2.5X19 Aluminum rims with steel spokes
•Tires: Duro HF-308, 4.0×19?
•Front brake: 4-piston fixed Brembo caliper with 295mm floating NG rotor
•Rear brake: HB big bore single piston integrated floating caliper with 256mm fixed NG rotor
•Sidecar brake: 2-piston fixed Brembo caliper with 245mm floating NG rotor

Misc.
•Fuel grade: 91 Octane, unleaded
•Fuel tank capacity, gallons: 5.0
•Reserve, gallons: app. 1
•Estimated fuel economy, mpg: 31-37
•Estimated range, miles: 155-185
•Recommended max cruising speed, mph: 70
•Max permissible weight, lbs:1325
•Trunk volume, cubic ft.: 2.9

Warranty
•2-years parts and labor unlimited mileage.



Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
