2016 Victory Magnum

Back to 2016 Victory Motorcycle Model Review Page

Click photos to enlarge. Our big, clean bike pics make great desktop wallpaper.

2016 Victory Magnum
2016 Victory Magnum

2016 Victory Magnum
2016 Victory Magnum

2016 Victory Magnum
2016 Victory Magnum

2016 Victory Magnum
2016 Victory Magnum

2016 Victory Magnum
2016 Victory Magnum

2016 Victory Magnum
2016 Victory Magnum



2016 Victory Magnum Review

2016 Victory Magnum on www.Totalmotorcycle.com

Envy comes standard…

Envy comes standard. Life goes fast – make a lasting impr ession on the new Victory Magnum, our boldest bike to ever roll off the line. This big wheel bagger has the performance to turn heads, along with the style and sound to make people stop, stare, and listen. It ’s got a 21-inch wheel, slammed back-end, custom paint, and our best performing sound system ever — EVER ! Even sitting still, the Victory Magnum is never idle. Wherever it goes, it can’t be ignored.

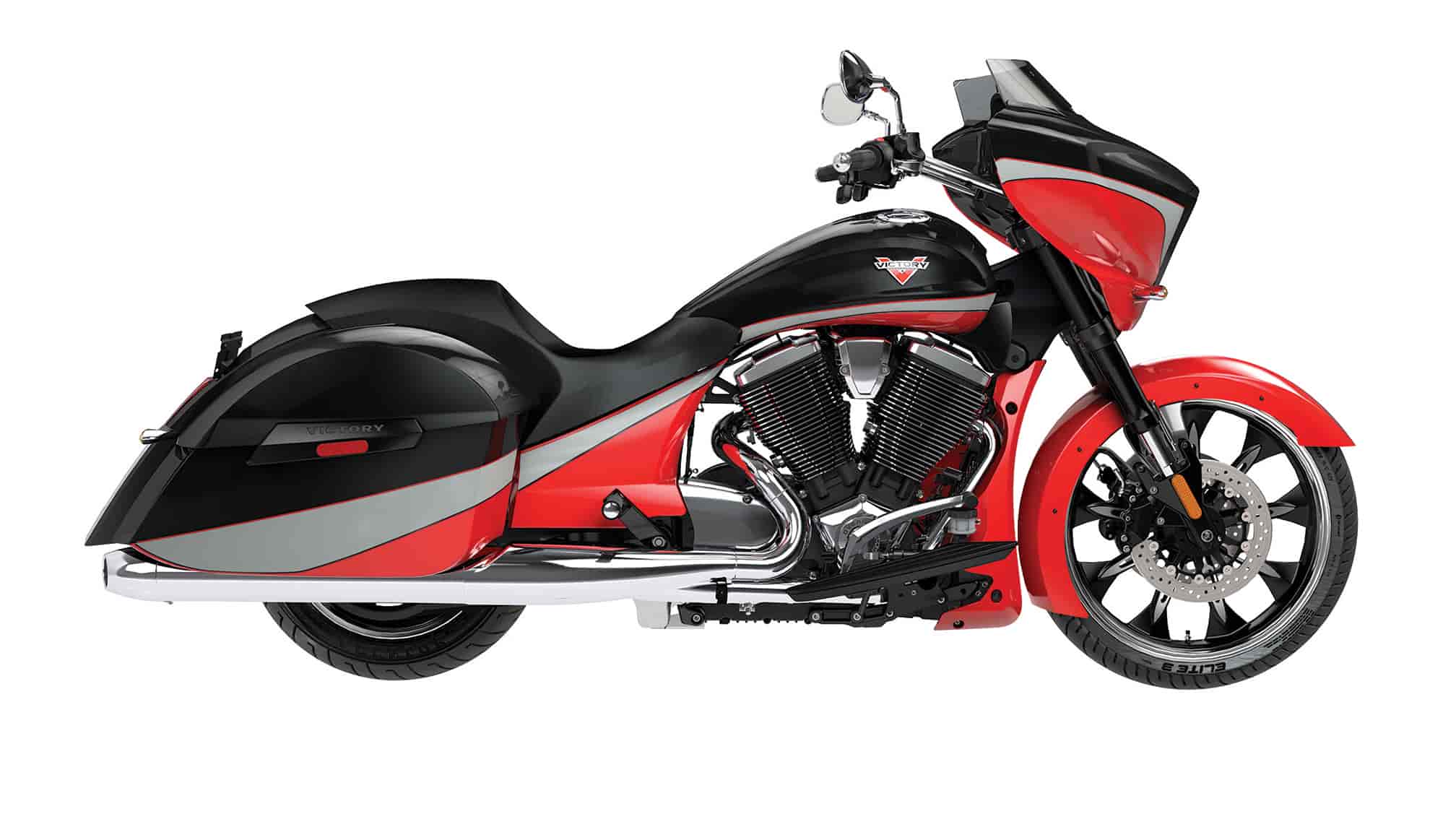

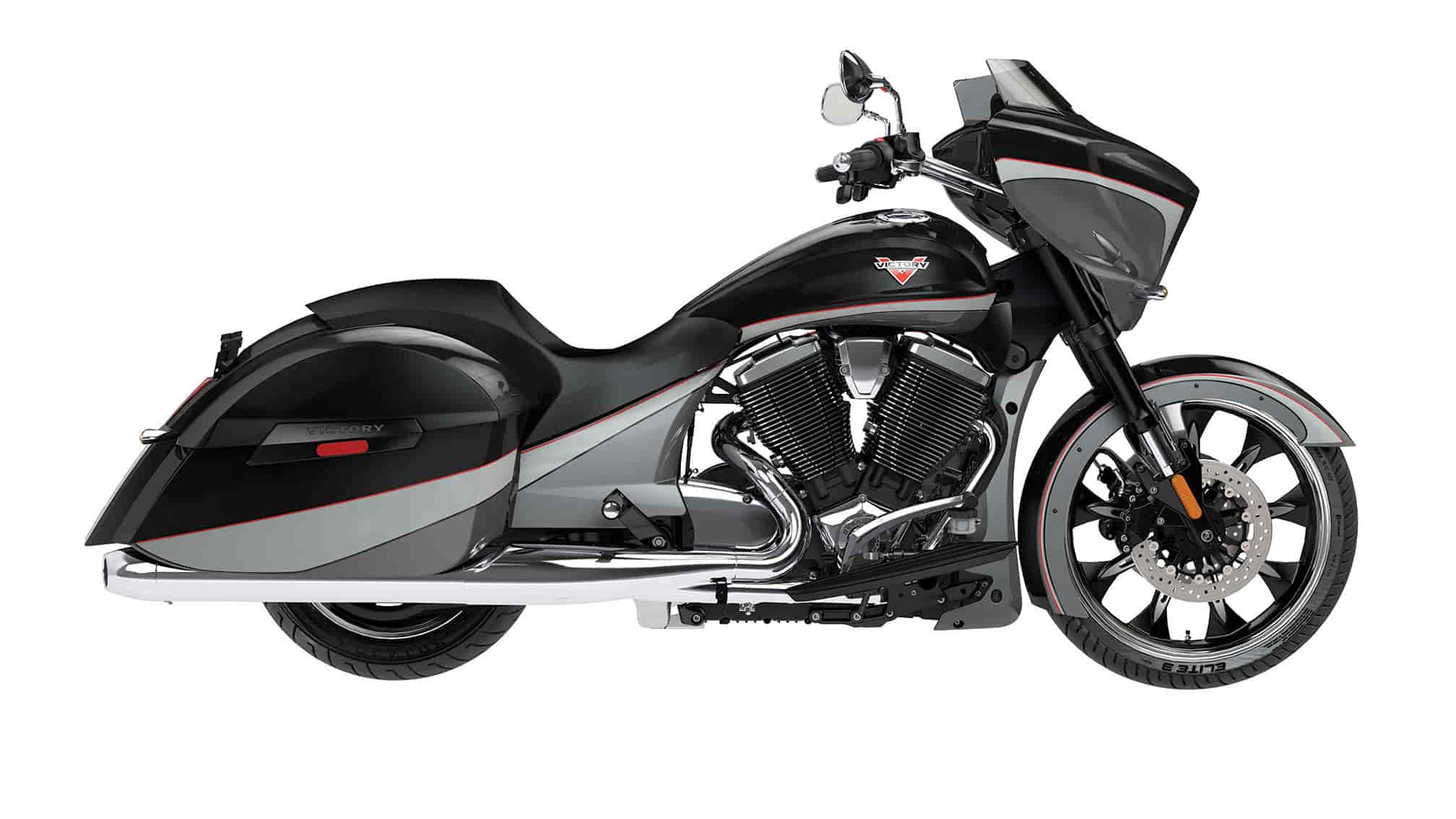

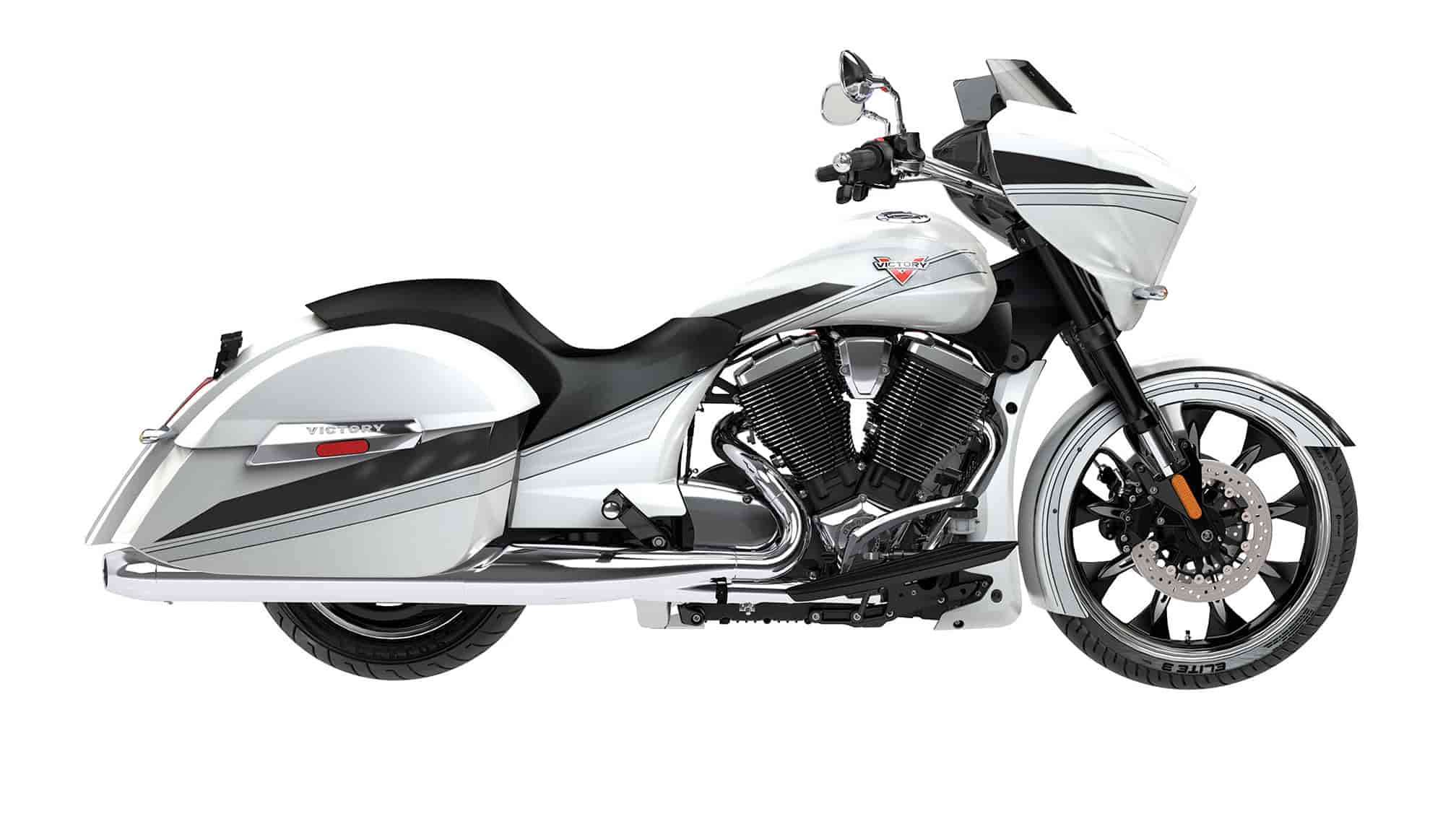

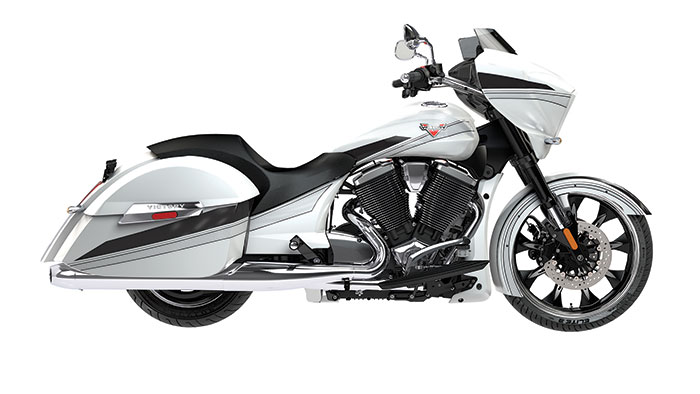

The Magnum is the boldest bagger ever put into production. For 2016 it has had the biggest makeover in the range with new paint-schemes that have stripes running from the fairing to the tail. The Magnum will come in three colour options with two of these completely new for 2016. The two new schemes are Black Crystal over Havasu Red and Suede Pearl White with Black. The third colour is Black Crystal over Super Steel Grey.

” 106 cubic inch Freedom® V-Twin (1731cc)
” 127Nm at 2,500rpm
” 6-speed overdrive transmission
” 22 litre tank
” Two-up seating
” 654mm seat height
” 21 x 3.5″ front wheel with a Dunlop D418F Elite 3
” 16 x 5.0″ with a Dunlop D418 Elite 3 tyre
” 363kg dry weight
” ABS standard





2016 Victory Magnum www.Totalmotorcycle.com Key Features

21” Custom Front Wheel

When this 21 inch alloy rim rolls up, it grabs attention, drops jaws, and doesn’t apologize for causing a scene. It’s proud to be the largest production bagger wheel on the road.




Slammed Rear End

The one-inch lowered rear seat gives the Magnum® a sleek profile that is equal parts attitude and performance.


High-Performance Audio

Stop. Stare. And listen to our high-performance audio system blasting 100 watts from 6 speakers.




Cruise Control and ABS Brakes

Turn on the cruise control, crank up the speakers, and enjoy the ride knowing that antilock brakes monitor your traction at all times.








2016 Victory Magnum www.Totalmotorcycle.com Features and Benefits


21″ CUSTOM FRONT WHEEL The Magnum struts down the street flashing its custom-styled 21” front wheel that makes it clear this is truly the king of style. This premium cast wheel delivers an outstanding ride and smooth, easy handling – along with custom style no standard bagger can match.


SLAMMED REAR END To enhance the visual impact of the custom-style 21” front wheel, and to give the Magnum a slammed, custom-shop look, the rear end is lowered 1”. There’s no compromise in the great ride or easy handling, just a significant increase in full-throttle custom style.


HIGHEST-PERFORMANCE AUDIO EVER Pump your personal riding playlists through our highest-performance audio system ever. Integrated in the custom-painted fairing are 6 speakers that serve up 100 watts of premium sound. Plus, you can crank it up even further with a set of accessory saddlebag audio (sold separately) that complement the fairing speakers.


COLOR-MATCHED PAINTED FEATURES Magnum-exclusive custom style is a symphony of color-matched painted features that complement the beautiful finishes on the sleek bodywork. From end to end, this stunning bagger has Painted Rear Fender Closeouts, Color-Matched Saddlebag Hinges and lock bezels, Color-Matched headlight/taillight bezels, a Painted Dash, and Painted Radiator Shroud. The Rear Fender Closeouts complete the custom look, covering seams and hardware with smooth, color-matched bodywork.


FREEDOM 106/6 V-TWIN: 94 FT-LB OF TORQUE, 6-SPEED TRANSMISSION Victory Magnum riders rule the streets with custom style and performance. The 106-ci Victory® Freedom® V-Twin delivers 94 ft-lb of torque, and it’s a smooth, efficient engine – counter-balanced and fuel-injected. The 6th gear overdrive of the Victory 6-speed transmission drops the RPMs and delivers the smooth ride you’re looking for.


CRUISE CONTROL AND ABS BRAKES Cruise control enhances your comfort, and Victory Anti-Lock Brakes give a rider greater confidence and peace of mind. Out on the open road, the automotive-quality cruise control lets you relax and enjoy the ride. With Victory ABS, when traction is compromised, the ABS immediately and automatically provides reliable braking to help you stop quickly and under control.


26.3″ SEAT HEIGHT The 26.3” seat height is the lowest in its class. Riders with all inseam lengths will be able to plant both feet firmly on the ground. A lower seat height provides the rider with greater control of the bike and enhances a rider’s confidence at low speeds and when stopped.


ADD VICTORY ACCESSORIES TO MAKE IT ALL YOURS Add Victory Accessories and customize your Victory Magnum™ to suit your individual style. All Victory accessories undergo the same rigorous testing as our motorcycles, so they install easily, fit properly, and deliver outstanding performance.













2016 Victory Magnum – www.Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $21,999 USD


Specifications

ABS Standard
Dry Weight 784 lbs / 356 kg
Displacement 106 ci / 1731 cc
Oil Capacity 5.0 qts / 4.73 ltr

ENGINE & DRIVETRAIN

Battery YTX20HL-BS/12 Volt 18 Amp Hour 310 CCA
Charging System 48 amps max output
Compression Ratio 9.4 : 1
Cooling Air / oil
Drive/Driven Clutch Wet, multi-plate
Exhaust Dual-Large Bore Slash-Cut with Common Volume
Fuel System Electronic Fuel Injection with dual 45mm throttle body
Transmission/Final Drive Carbon Fiber Reinforced Belt
Transmission/Primary Drive Gear drive with torque compensator
Transmission Type 6-speed overdrive constant mesh
Valve Train Single overhead camshafts with 4 valves per cylinder, self-adjusting cam chains, hydraulic lifters
Bore x Stroke (mm) 101 x 108 mm
Engine Type Freedom 106/ 6 V-Twin

Suspension

Front Suspension Telescopic Fork / 5.1″ (130mm)
Rear Suspension Single monotube air adjustable shock: 4.4″ (113 mm) travel

Brakes

Brake System Type Conventional w/ ABS
Front Brakes Dual 300mm floating rotor with 4-piston calipers
Rear Brakes Single 300 x 5mm/ Floating Rotor/ 2 Piston Caliper

Tires / Wheels

Front Tires Dunlop D418F Elite 3
Front Wheel 21 x 3.5″ Front
Rear Tires Dunlop D418 Elite 3
Rear Wheel 16 x 5.0″

DIMENSIONS

Fuel Capacity (Litres) 5.8 gal / 22 ltr
GVWR 1310 lbs / 595 kg
Ground Clearance 5.3 in / 134mm
Rake/Trail 29.0° / 5.6 in / 142 mm
Seat Height 25.7 in / 654mm
Wheelbase 65.7 in / 1670 mm
Overall Length (in./mm.) 104.6 in / 2657 mm

Features

Colors (Base) Black Crystal over Super Steel Gray, Magnum Red over Super Steel Gray, Ness Midnight Cherry, Plasma Lime with Silver










2016 Victory Magnum – www.Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $25,999 CDN


Specifications

ABS Standard
Dry Weight 784 lbs / 356 kg
Displacement 106 ci / 1731 cc
Oil Capacity 5.0 qts / 4.73 ltr

ENGINE & DRIVETRAIN

Battery YTX20HL-BS/12 Volt 18 Amp Hour 310 CCA
Charging System 48 amps max output
Compression Ratio 9.4 : 1
Cooling Air / oil
Drive/Driven Clutch Wet, multi-plate
Exhaust Dual-Large Bore Slash-Cut with Common Volume
Fuel System Electronic Fuel Injection with dual 45mm throttle body
Transmission/Final Drive Carbon Fiber Reinforced Belt
Transmission/Primary Drive Gear drive with torque compensator
Transmission Type 6-speed overdrive constant mesh
Valve Train Single overhead camshafts with 4 valves per cylinder, self-adjusting cam chains, hydraulic lifters
Bore x Stroke (mm) 101 x 108 mm
Engine Type Freedom 106/ 6 V-Twin

Suspension

Front Suspension Telescopic Fork / 5.1″ (130mm)
Rear Suspension Single monotube air adjustable shock: 4.4″ (113 mm) travel

Brakes

Brake System Type Conventional w/ ABS
Front Brakes Dual 300mm floating rotor with 4-piston calipers
Rear Brakes Single 300 x 5mm/ Floating Rotor/ 2 Piston Caliper

Tires / Wheels

Front Tires Dunlop D418F Elite 3
Front Wheel 21 x 3.5″ Front
Rear Tires Dunlop D418 Elite 3
Rear Wheel 16 x 5.0″

DIMENSIONS

Fuel Capacity (Litres) 5.8 gal / 22 ltr
GCWR 1360 lbs / 618 kg
Ground Clearance 5.3 in / 134mm
Rake/Trail 29.0° / 5.6 in / 142 mm
Seat Height 25.7 in / 654mm
Wheelbase 65.7 in / 1670 mm
Overall Length (in./mm.) 104.6 in / 2657 mm
GVWR 1310 lbs / 595 kg

Features

Color / Graphics Black Crystal over Super Steel Gray
Colors (Base) Black Crystal over Super Steel Gray, Magnum Red over Super Steel Gray, Ness Midnight Cherry, Plasma Lime with Silver








2016 Victory Magnum – www.Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: £See Dealer GBP (On The Road inc 20% Vat)

Specifications

Dry Weight 801 Lbs / 363 Kg
Displacement 106 ci / 1731 cc

Engine

Battery 12 volts / 18 amp hours
Charging System 48 amps max output
Clutch Wet, multi-plate
Compression ratio 9.4 : 1
Cooling System Air / oil
Exhaust Split dual exhaust with crossover
Final Drive Carbon Fiber Reinforced Belt
Fuel Capacity 22 ltr
Fuel System Electronic Fuel Injection with dual 45mm throttle body
Primary Drive Gear drive with torque compensator
Transmission 6-speed overdrive constant mesh
Valve train Single overhead camshafts with 4 valves per cylinder, self-adjusting cam chains, hydraulic lifters
Bore x Stroke 101 x 108 mm
Engine Type 4-stroke 50° V-Twin

Suspension

Front Suspension Inverted cartridge telescopic fork, 43 mm diameter, 5.1 in / 130 mm travel
Rear Suspension Single, mono-tube gas, cast aluminum with rising rate linkage, 4.4 in / 113 mm travel, air adjustable

Brakes

Brake system type Conventional with ABS Standard
Front braking system Dual 300mm floating rotor with 4-piston calipers
Rear braking system 300mm floating rotor with 2-piston caliper

Tires / Wheels

Front tire 120/70R21 Dunlop Elite 3
Front Wheel 21 x 3.5 in
Rear tire 180/60R16 Dunlop Elite 3
Rear Wheel 16 x 5.0 in

Chassis

Ground Clearance 5.3 in / 134 mm
GVWR 1310 lbs / 595 kg
Rake/trail 29.0° / 5.6 in / 142 mm
Seat Heigh 25.7 in / 654 mm
Wheelbase 65.7 in / 1670 mm
Length 104.6 in / 2657 mm
Lean Angle 29°
Oil capacity 4.73 ltr

Features

Colors Black Crystal over Super Steel Grey, Black Crystal over Havasu Red, Suede Pearl White with Black & Silver




Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
