2016 Yamaha XT250

Back to 2016 Yamaha Motorcycle Model Review Page

Click photos to enlarge. Our big, clean bike pics make great desktop wallpaper.

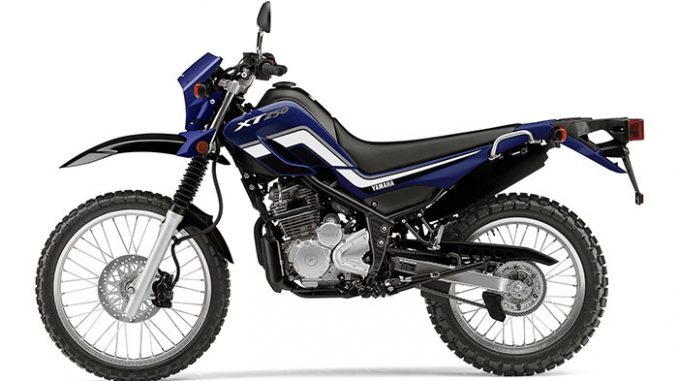

2016 Yamaha XT250
2016 Yamaha XT250

2016 Yamaha XT250
2016 Yamaha XT250

2016 Yamaha XT250
2016 Yamaha XT250

2016 Yamaha XT250
2016 Yamaha XT250




2016 Yamaha XT250 Review

2016 Yamaha XT250 on www.Totalmotorcycle.com

The XT250 offers reliable performance, ease of use and all-around function for the ultimate in versatility…

ROADS AND TRAILS

Light and nimble with a low seat height and Yamaha durability, the XT250 is the perfect traveling companion.


Conquer Dirt

Whether commuting to work or hitting the back country for a day of exploring, the ultra-reliable XT250 is a fun loving dual sport that is easy to ride. Light & nimble, with a low seat height, the fuel injected XT250 offers great versatility. Your adventure starts here.

/// Power
249cc, air-cooled, fuel injected, single overhead cam (SOHC), 2-valve, 4-stroke single produces predictable torque across the entire RPM range for great on- and off-road fun.









2016 Yamaha XT250 www.Totalmotorcycle.com Key Features

Advanced Long-Travel Suspension
Long-travel suspension and more than 11.2 inches of ground clearance live under a seat only 31.9 inches from the ground.
•Modern Fuel Injection
The XT250 has fuel injection for smooth throttle response and easy starting in nearly all conditions.
•Convenient Electric Start
Electric start makes firing up the 249cc four-stroke effortless.
•Dual Disc Brakes
245mm front disc and 203mm rear disc brakes combine to deliver superb stopping power on both paved and unpaved surfaces.




2016 Yamaha XT250 www.Totalmotorcycle.com Features and Benefits

ENGINE

Reliable Four-Stroke Motor
249cc air-cooled four-stroke with 9.5:1 compression makes for great on-and off-road performance.
•Modern Fuel Injection
The XT250 has fuel injection for smooth throttle response and easy starting in nearly all conditions.
•Advanced Cylinder Design
A light-and-strong forged piston inside a plated cylinder helps dissipate heat more efficiently, increasing both performance and durability.
•Responsive Power
A light crankshaft helps provide quick responsive power.
•5-Speed Transmission
Wide-ratio five-speed transmission for maximum power and performance in a wide range of terrain and conditions.
•Efficient Intake Design
Straighter intake tract for improved performance.
•Convenient Electric Start
Hassle-free push-button electric starting adds extra convenience and reliability.
•Trail-Ready Chassis
Engine is mounted high in the frame to provide an incredible 11.2 inches of ground clearance.
•Low Maintenance Engine
Automatic cam chain tensioner means minimal maintenance and longer engine life.



CHASSIS / SUSPENSION

Strong, Compact Frame
A semi-double-cradle steel frame achieves a lighter, nimbler feel through greater mass centralization. Greater lateral and torsional rigidity and reduced weight of the lower frame parts help produce light, stable handling.
•Advanced Long-Travel Suspension
The front fork has 8.9 inches of travel to soak up the rough stuff, both on road and off. An aluminum lower triple clamp keeps the weight down.
•Nimble Steering
Maximum turning angle of the handlebar is 51 degrees—almost like a trials machine. Combined with a short wheelbase of only 53.5 inches, the XT250 has a super-tight turning radius for excellent maneuverability.
•Linkage-Style Shock
A rear shock provides 7.1 inches of wheel travel through a progressive, Monocross® linkage system for a smooth ride.
•Dirt-Ready Wheels
21-inch front and 18-inch rear aluminum wheels are extremely durable and reduce unsprung weight for enhanced suspension performance and handling.
•Generous Ground Clearance
11.2 inches of ground clearance means you’ve got serious off-road capability.





ADDITIONAL FEATURES

Advanced LCD Instruments
Multifunction digital LCD instrument panel with cool green background lighting is easily visible day or night. It also removes unnecessary weight from the handlebar for light, precise handling.
•Extended Fuel Range
The stylish gas tank holds a full 2.6 gallons for long-range riding.
•Comfortable Saddle
Long, thick seat creates a balanced riding position for optimal rider movement and comfort.
•Protective Fenders
Durable and wide front fender is designed to keep mud and dirt off the rider when exploring off-road.
•Passenger-Ready
Frame-mounted passenger foot pegs provide two-up riding capability.
•Bright Illumination
Enduro-style, 60/55-watt halogen headlight features a cool 133mm lens for excellent visibility at night.
•Dual Sport Lighting
Flex-mounted turn indicators offer great durability against breakage.
•Fork Protection
Durable fork boots help prevent rocks and debris from damaging fork sliders.
•Forestry-Friendly Exhaust
A spark arrestor makes the XT trail ready.
•Modern Battery
Dependable, low-maintenance battery.








2016 Yamaha XT250 – www.Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $5,190 – Mineral Blue – Available from September 2015


Engine
Engine Type
249cc air-cooled SOHC 4-stroke single; 2 valves
Bore x Stroke
74.0mm x 58.0mm
Compression Ratio
9.5:1
Fuel Delivery
Yamaha Fuel Injection (YFI)
Ignition
TCI: Transistor Controlled Ignition
Transmission
5-speed; multiplate wet clutch
Final Drive
Chain

Chassis
Suspension / Front
35mm telescopic fork; 8.9-in travel
Suspension / Rear
Single shock, adjustable preload and rebound damping; 7.1-in travel
Brakes / Front
Single disc, 245mm
Brakes / Rear
Single disc, 203mm
Tires / Front
2.75-21
Tirres / Rear
120/80-18

Dimensions
L x W x H
84.6 in x 31.7 in x 45.7 in
Seat Height
31.9 in
Wheelbase
53.5 in
Rake (Caster Angle)
26.4°
Trail
4.2 in
Ground Clearance
11.2 in
Fuel Capacity
2.6 gal / CA model, 2.4 gal
Fuel Economy
76 mpg
Wet Weight
291 lb


** Fuel economy estimates are based on US EPA exhaust emission certification data obtained by Yamaha.
Your actual mileage will vary depending on road conditions, how you ride and maintain your vehicle,
accessories, cargo and operator/passenger weight.
*** Wet weight includes the vehicle with all standard equipment and all fluids, including oil, coolant (as
applicable) and a full tank of fuel. It does not include the weight of options or accessories. Wet weight is
useful in making real-world comparisons with other models.







2016 Yamaha XT250 – www.Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: Starting from $5149 CDN

/// ENGINE
ENGINE
Air-cooled, SOHC, 2-valve, single
DISPLACEMENT
249cc
BORE AND STROKE
74 x 58mm
COMPRESSION RATIO
9.5:1
MAXIMUM TORQUE
2.0kg-m (14.5 ft-lb)@ 6,500 rpm
FUEL DELIVERY
Mikuni 33mm throttle body fuel injection
ESTIMATED FUEL CONSUMPTION±
32.2kpl / 91mpg (Imp.)
LUBRICATION
Wet sump
IGNITION / STARTING
TCI / Electric Start
TRANSMISSION
5-speed
FINAL DRIVE
“O” ring chain


/// CHASSIS
SUSPENSION (FRONT)
35mm fork / 225mm (8.9″) travel
SUSPENSION (REAR)
Adjustable Link Monocross / 180mm (7.1″) travel
BRAKES (FRONT)
245mm disc / twin piston
BRAKES (REAR)
203mm disc / single piston
TIRES (FRONT)
2.75 x 21
TIRES (REAR)
120/80-18


/// CRITICAL DATA
LENGTH
2,150mm (84.6″)
WIDTH
805mm (31.7″)
HEIGHT
1,160mm (45.7″)
WHEELBASE
1,360mm (53.5″)
GROUND CLEARANCE
285mm (11.2″)
SEAT HEIGHT
810mm (31.9″)
FUEL CAPACITY
9.6 litres (2.1 imp. gallons)
WET WEIGHT
132kg (291 lb)
COLOUR(S)
Mineral Blue


Specifications, appearance, and price of product are subject to change without notice.
* MSRP does not include freight, PDI (Pre Delivery Inspection), pre-rigging (boats), or taxes. Dealer may sell for less. See your local dealer for out the door pricing.
± Fuel economy estimates are based on US EPA exhaust emission certification data obtained by Yamaha and converted into Canadian measurements. Your actual mileage will vary depending on road condition, how you ride, maintain your vehicle, accessories, cargo and operator/passenger weight.







2016 Yamaha XT250 – www.Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: See Dealer for pricing in GBP (On The Road inc 20% Vat)

Not Available

*Starting at MSRP is the manufactured suggested price and excludes delivery, setup, tax, title, license, and additional fees and expenses. Bikes may be shown with optional accessories. Final sale price determined by an authorized dealer. Specifications and MSRP are subject to change.

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
