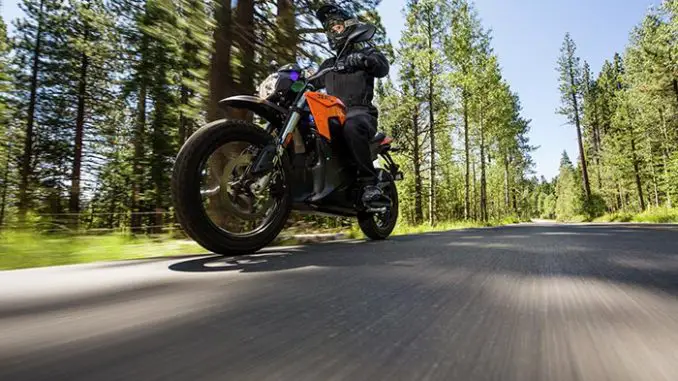

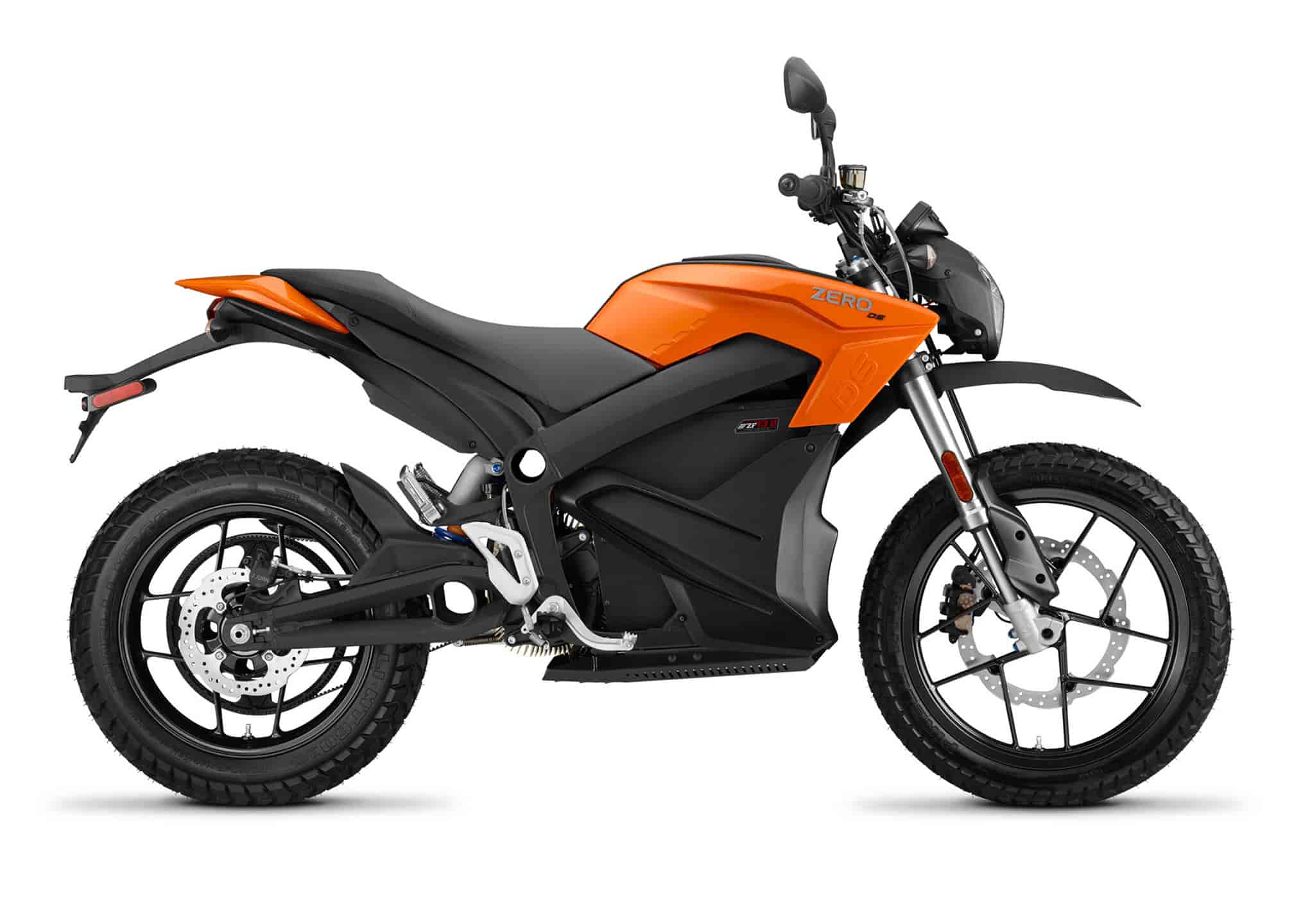

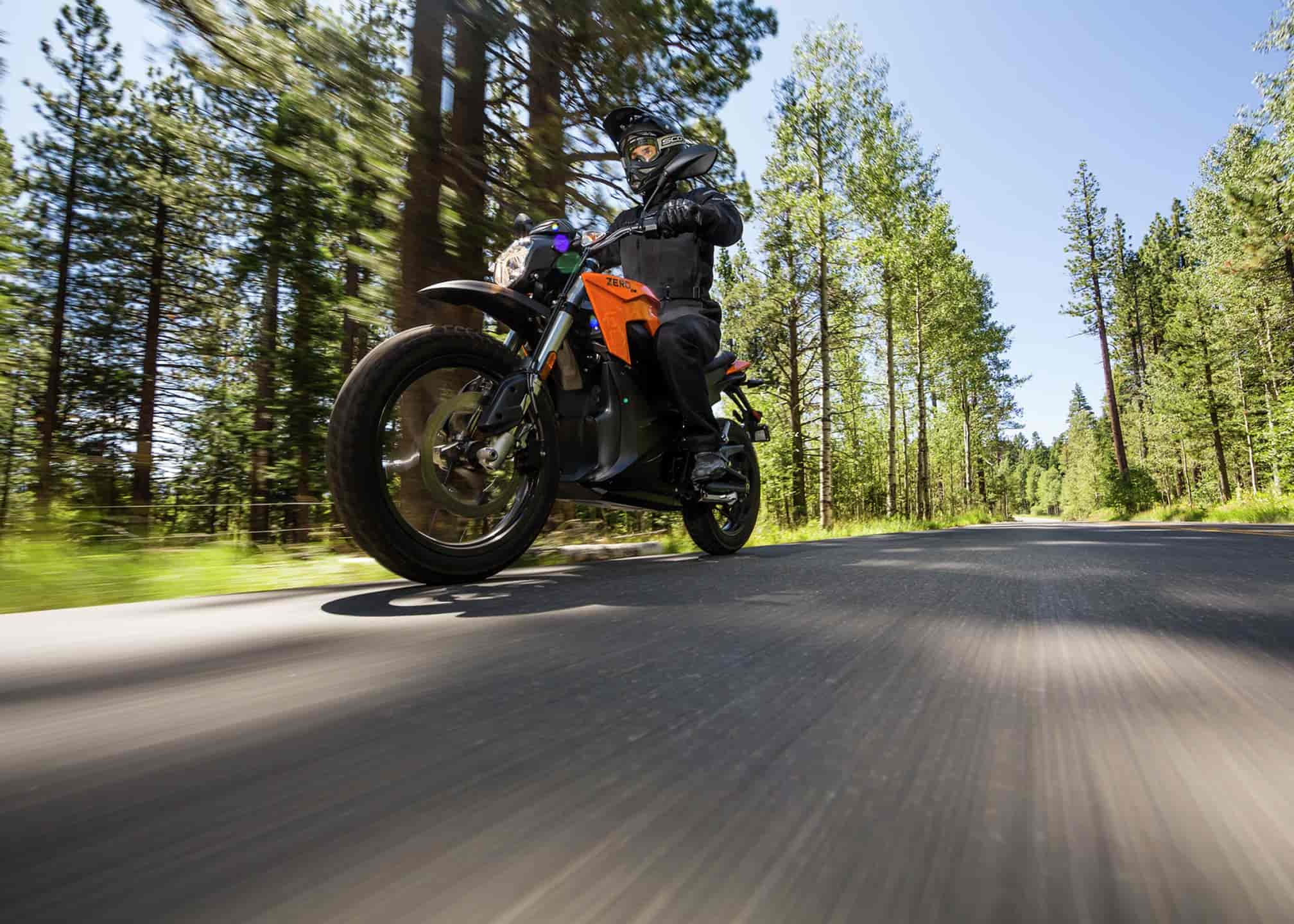

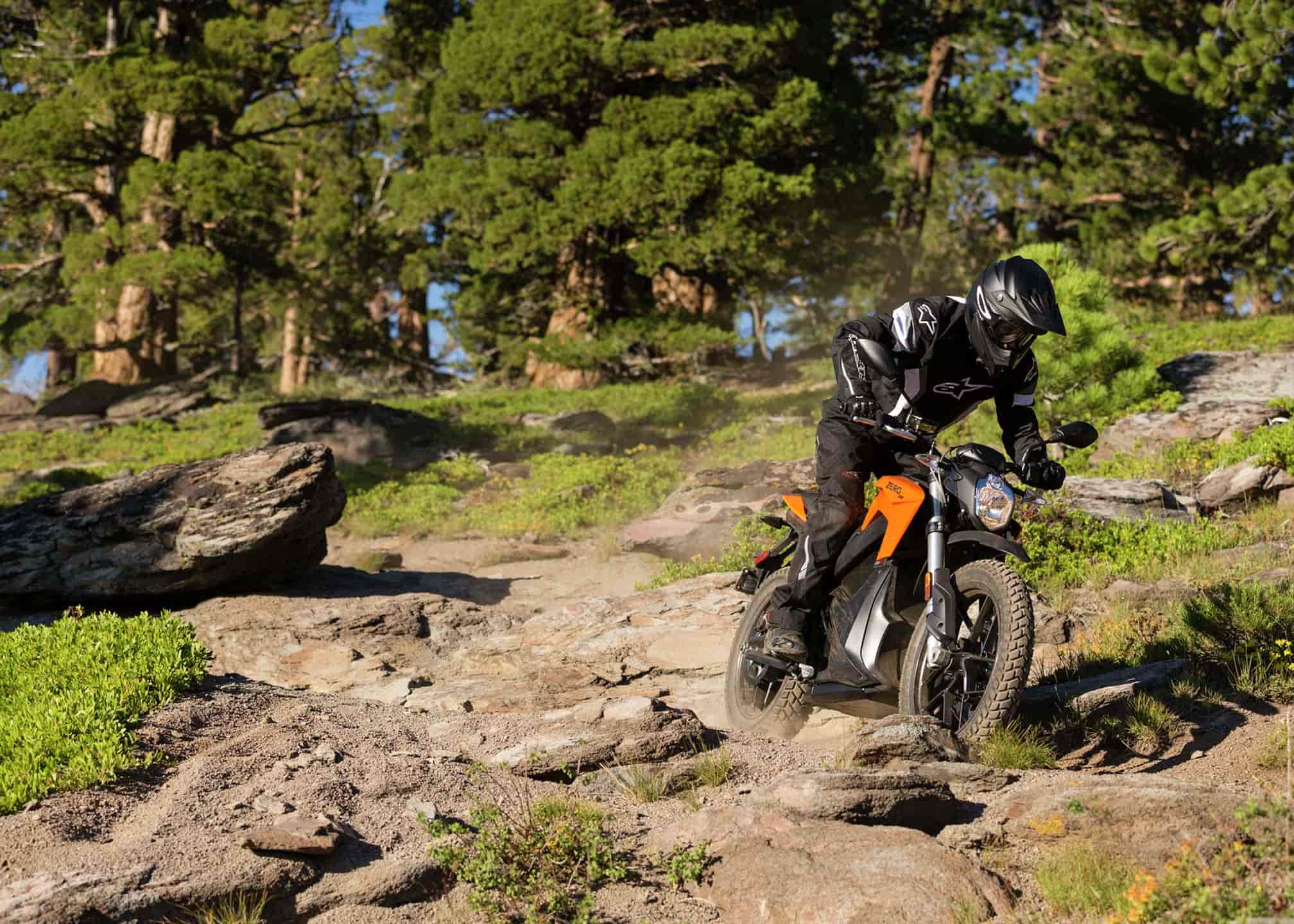

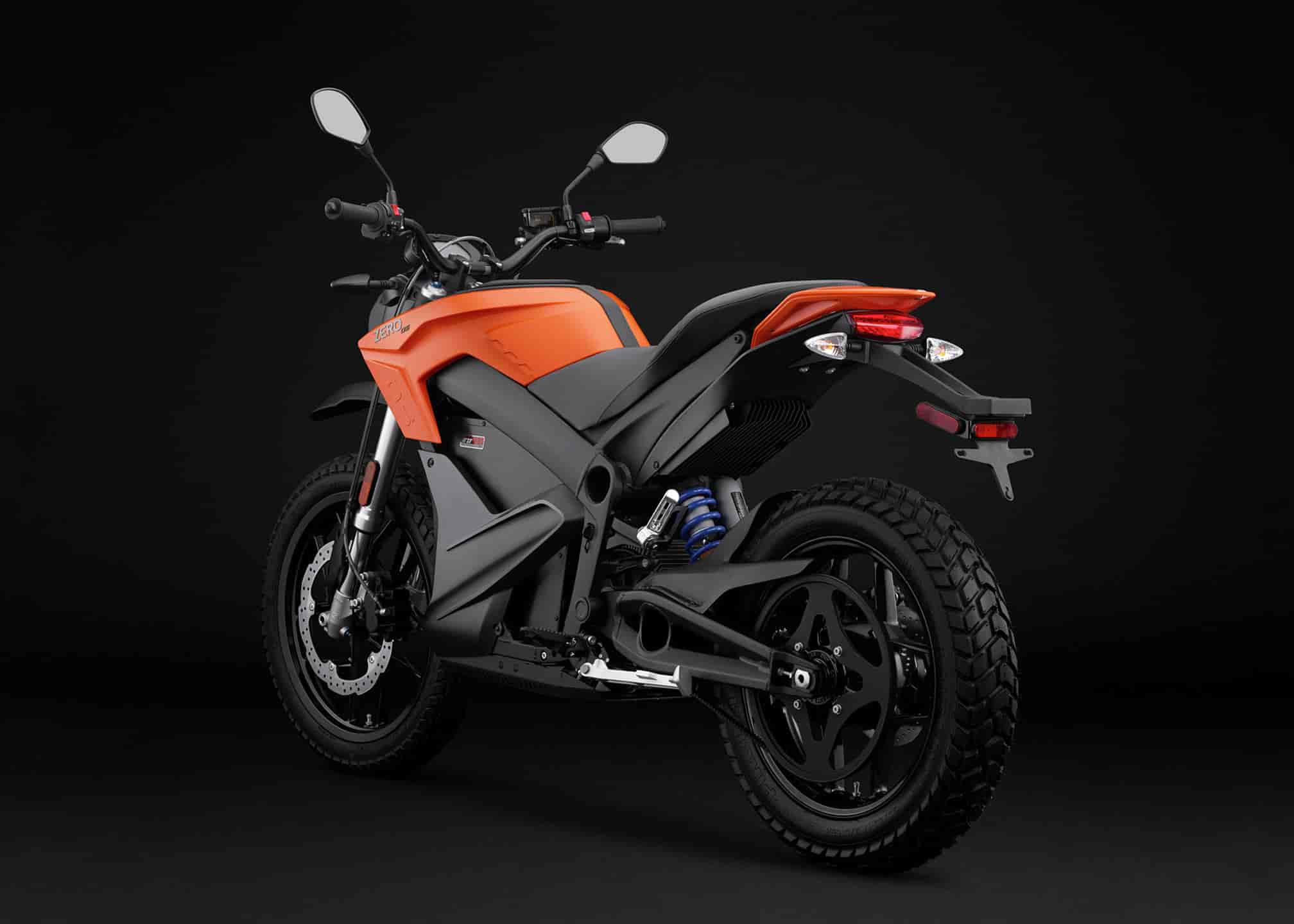

2016 Zero DS
2016 Zero DS

2016 Zero DS
2016 Zero DS

2016 Zero DS
2016 Zero DS

2016 Zero DS
2016 Zero DS

2016 Zero DS
2016 Zero DS



2016 Zero DS Review

2016 Zero DS on www.Totalmotorcycle.com

Bypass the Ordinary…

The Zero DS combines innovation with passion to deliver the world’s most versatile electric motorcycle. Designed to be agile in the dirt and quick on the street, the Zero DS represents a new kind of freedom.

Blast down a gravel road or a dusty trail. When you’re ready, stealthily pass from the wild to the civilized as you arrive at your destination. The Zero DS is tough when you demand it and distinguished when required. Choose from the Power Tank or Charge Tank accessories to extend your range or take advantage of three times faster charging.

Propelled by the most advanced technology in the industry, the Zero DS is a fully electric motorcycle that can handle any surface you throw at it. Overcoming obstacles and maintaining control is effortless due to its direct-drive, fully adjustable Showa suspension and rugged wheel set. Under technical riding conditions, Zero’s revolutionary Z-Force® motor delivers astonishing responsiveness with the twist of your wrist. As with Zero’s entire model line, the Zero DS offers a liberating ownership experience with its maintenance-free powertrain, penny per mile ‘fuel’ cost and powerful acceleration.

A refined powertrain integrated with an off-road heritage

The Zero DS and Zero DSR share much of the DNA found in the Zero S but also incorporate technology that makes them ideally suited for a wider range of conditions. In the dirt or on the street, the Pirelli dual sport tires maintain a tight grip, and the specially engineered Showa suspension system absorbs the bumps. The result is a dual sport motorcycle that is ready for any surface you throw at it.





2016 Zero DS www.Totalmotorcycle.com Key Features

Stealthily pass from the wild to the civilized

New for 2016

Farther and Faster

Years of refinement have made Zero’s versatile dual sport motorcycles even more dynamic. Smooth and stylish in the city—yet capable and robust off-road—owning a Zero DS is like having two bikes in one. And, for 2016, technological advancements will have you rolling faster and riding farther.

For the dual sport rider demanding more, we created the Zero DSR. A 660 amp controller adds 56% more torque and 25% more power to the Zero DS, the world’s most versatile electric motorcycle. The resulting acceleration is smooth and stunning.

At the heart of each Zero DS ZF13.0 and Zero DSR is an all-new Z-Force® motor. Its innovative interior permanent magnet (IPM) design cools more rapidly and has greater thermal capabilities. Performance is substantially improved in demanding conditions, both on- and off-road, and higher sustained top speeds are achieved.

To expand riding opportunities and provide access to the growing public charging infrastructure, Zero has effectively tripled charging speed with the new Charge Tank accessory. Leveraging the popular J1772 standard, the Charge Tank is designed to work with level 2 charging stations. ZF9.8 power packs can now be charged to 95% in about two hours, while the new higher capacity ZF13.0 takes about three hours.


New cell chemistry within the Z-Force® power pack stores more energy and operates more efficiently, resulting in a system that boasts the highest energy density in the electric vehicle industry. The power pack requires no routine maintenance and is backed by a 5-year / 100,000 mile warranty.

As Zero continues to raise the bar on its highest performance models, proven technology makes electric motorcycles even easier to own. With its impressive power-to-weight ratio, the 2016 Zero DS ZF9.8 delivers the thrill and convenience of electric at a new lower price.






2016 Zero DS www.Totalmotorcycle.com Features and Benefits

Game Changing Z-Force® Power Pack

140+ Mi Range / 300,000+ Mi Lifetime

The Zero DS and Zero DSR feature advanced cell chemistry and battery management systems that provide greater capacity and range. Not only does the ZF13.0 power pack enable you to go beyond 140 miles, it is also designed to last the life of the motorcycle. The result of cutting edge research and development, each cell in the power pack is individually controlled and monitored to ensure maximum health.

· Available in two configurations: ZF9.8 (110 mi) and ZF13.0 (147 mi)
· Compatible with the Power Tank accessory which adds 2.8 kWh of power pack capacity to the motorcycle for a city range of up to 179 miles
· State-of-the-art 102 volt power pack configurations and cell chemistry · Cells last 2,500 full charge-discharge cycles before hitting 80% capacity, yielding as much as 331,000 miles on the original power pack
· Highest energy density in the electric vehicle industry yields significant range and performance advantages
· Elegant low resistance and highly robust cell interconnect technology

· Advanced battery management system with enhanced 24/7 cell monitoring
· Isolated power systems and 12 volt system for running accessories





Zero DS Electric Motorcycle Power Pack


Zero DS Electric Motorcycle Z-Force® Power Tank
Power Tank Technology

Up to 179 Miles in the City

The Z-Force® Power Tank adds 2.8 kWh of power pack storage capacity to any 2014 or later Zero DS or Zero DSR. An optional accessory, the Power Tank can be added at any time during or after motorcycle purchase, bringing the maximum battery capacity to 15.9 kWh. With that much energy, you can travel up to 179 miles in the city or 86 miles on the highway.

· Extend the range of any 2014 or later Zero DS or Zero DSR model with an additional 2.8 kWh
· The Power Tank can be added at any time before or after purchase
· Can be installed quickly at Zero Motorcycles authorized dealerships
· Includes new bodywork in the tank section of the motorcycle
· Replaces the tank bag area of the motorcycle
· Not compatible with the Charge Tank accessory






Revolutionary Z-Force® Motor

Up to 67 HP, 106 FT-LBS… and incredibly efficient

Zero Motorcycles designed the Z-Force® motor from the ground up to be compact, efficient and powerful. It delivers exhilarating acceleration to a top speed of 98 mph on the Zero DSR. Completely air-cooled, the motor provides a fantastic riding experience, minus the need for any regular maintenance. When slowing down, the motor generates electricity that is channeled back into the power pack to help extend ride times.

· Designed from the ground up by Zero Motorcycles to be the world’s most efficient, powerful, compact, brushless and sealed air-cooled motor
· Interior permanent magnet (IPM) design on Zero DS ZF13.0 and Zero DSR increases efficiency, cools more rapidly, and has higher thermal capability
· Produces up to 67 hp and 106 ft-lbs of torque as configured in the Zero DSR
· Requires no routine maintenance
· Operates with such high efficiency that it does not require any complex cooling system
· Quad-level regenerative system recharges the power pack when decelerating · Re-gen level is increased during brake application vs. “neutral” deceleration
· Both braking and “neutral” re-gen levels are set higher in Eco vs. Sport mode
· “Custom” mode performance profile can be set using the Zero Motorcycles App

· Zero DSR model contains high temperature magnets for better performance at higher sustained top speeds





Zero DS Electric Motorcycle Motor

Zero DS Electric Motorcycle Frame

Frame and Bodywork

Great to look at. Even better to ride.

Aircraft grade aluminum is exclusively used in the construction of the twin spar frame. It is lightweight, strong and one of the main reasons that the motorcycles handle incredibly well on the dirt or street. Designed to have a low center of gravity, the Zero DS and Zero DSR are highly maneuverable and responsive. The refined, yet rugged, appearance is completed with sleek bodywork with a contemporary, aggressive and naked look. The ‘tank’ section of the bodywork features an integrated storage compartment that is both lockable and removable. The tank section can also be replaced with the Power Tank accessory for greater range or the Charge Tank accessory for faster charging.

· Beautifully sculpted bodywork and chin fairing provides improved cooling of the powertrain
· Integrated, lockable and removable storage compartment
· Extremely rigid and lightweight black twin spar aircraft grade aluminum frame
· Designed to have a low center of gravity for better maneuverability and responsiveness
· Sleek headlight and LED tail light
· The headlight, dash, key switch and bodywork are refined to provide elegant instrumentation and a sleeker front end aesthetic





Showa Suspension

The Magic Ride

Zero worked in close collaboration with Showa to develop suspension systems that provide excellent small bump compliance, predictable control of bigger impacts and exceptionally smooth action under all conditions. Torsional rigidity of the front end improves handling, and a hollow front axle reduces unsprung weight. Suspension settings are completely customizable to meet the demands of a wide variety of riders.

· Exceptionally smooth action for improved comfort and control
· Fully adjustable settings to meet the demands of a wide variety of riders
· Hollow front axle reduces unsprung weight
· Durable and highly protective fork guards
· Developed in close collaboration with Showa






Zero DS Electric Motorcycle Showa Rear Shock

Zero DS Electric Motorcycle brakes

Bosch Anti-Lock
Brake System (ABS)

Powerful. Precise. Control.

The Zero DS and Zero DSR feature an advanced Bosch anti-lock brake system (ABS) that improves control in a wide array of conditions and ensures the best braking performance, while a large 320 mm diameter carrier-less rotor increases stopping power.

· Advanced Bosch ABS is standard
· ABS can be switched on or off depending on rider preference
· Incredibly smooth actuation for greater control under extreme braking
· Large 320 mm diameter carrier-less front rotor increases stopping power
· Refined hydraulic ratios improve braking power and modulation
· Adjustable front brake lever for customizable ergonomics






Zero DS Electric Motorcycle Wheels

WHEELS AND TIRES

PAVED ROAD. DIRT ROAD. NO ROAD.

Pirelli tires are standard on the Zero DS and Zero DSR, providing great traction in a wide variety of conditions, excellent durability and road feel. The tires are mounted to stylish and durable cast alloy wheels.

· Versatile Pirelli MT-60 tires offer excellent traction in both on and off-road conditions, superb cornering and straight line stability and wet weather performance
· Stylish cast alloy wheels are equipped with a large carrier-less front rotor to reduce unsprung weight and increase stopping power





Zero DS Electric Motorcycle Dashboard

Dash and Controls

Impressive information. Elegantly Displayed.

The dash is designed by Zero to quickly and accurately provide useful data on such information as state of charge, power output and your selected riding profile. You can toggle through three riding profiles, using the ergonomic right-hand switch gear, to better meet the needs of your ride: Sport, Eco, Custom. The dash screen features a cool blue backlit LCD display and integrates seamlessly into the front of the motorcycle. Want more information about the motorcycle while riding or at home· Try the Zero Motorcycles App.

· High contrast and blue backlit LCD screen features data that allows you to better understand your state of charge, see your current riding profile and view other useful riding information
· Ergonomic right-hand switch assembly with integrated switch to toggle on the fly between Sport, Eco and Custom riding modes
· Custom riding mode setting allows you to set your own performance profile (custom mode performance profile must be configured within the Zero Motorcycles App)
· High intensity headlight
· Beautifully designed and comfortable two-up seat





Zero DS Electric Motorcycle App

Zero Motorcycles App

Get your Motorcycle Dialed

Using the Zero Motorcycles App, you can see detailed information about your motorcycle such as the time until charged, average watts per mile, total charge cycles and much more. When parked, the app allows you to set the custom riding mode’s performance profile by adjusting the parameters for top speed, maximum torque and maximum regenerative braking. While riding, your phone transforms into a customized dash that provides detailed real-time motorcycle information. Synced using Bluetooth, the app works on iPhone and Android mobile devices.







2016 Zero DS – www.Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $10,995 ZERO DS zf9.8; $13,995 ZERO DS ZF13.0; $16,669 ZERO DS ZF13.0 +Power Tank USD

range ZERO DS zf9.8
City 110 miles (177 km)
Highway, 55 mph (89 km/h) 66 miles (106 km)
 » Combined 83 miles (134 km)
Highway, 70 mph (113 km/h) 53 miles (85 km)
 » Combined 71 miles (114 km)
Motor
Max torque 68 ft-lb (92 Nm)
Max power 54 hp (40 kW) @ 4,300 rpm
Top speed (max) 98 mph (158 km/h)
Top speed (sustained) 80 mph (129 km/h)
Acceleration, 0-60 mph (0-100 km/h) 5.2 seconds
Type Z-Force® 75-7 passively air-cooled, high efficiency, radial flux, permanent magnet, brushless motor
Controller High efficiency, 420 amp, 3-phase brushless controller with regenerative deceleration
Power system
Est. pack life to 80% (city) 248,000 miles (399,000 km)
Power pack Z-Force® Li-Ion intelligent
Max capacity 9.8 kWh
Nominal capacity 8.6 kWh
Charger type 1.3 kW, integrated
Charge time (standard) 6.8 hours (100% charged) / 6.3 hours (95% charged)
 » With Charge Tank accessory 2.6 hours (100% charged) / 2.1 hours (95% charged)
 » With one accessory charger 4.0 hours (100% charged) / 3.5 hours (95% charged)
 » With max accessory chargers 2.0 hours (100% charged) / 1.5 hours (95% charged)
Input Standard 110 V or 220 V
Drivetrain
Transmission Clutchless direct drive
Final drive 130T / 28T, Poly Chain® GT® Carbon™ belt
Chassis / Suspension / Brakes
Front suspension Showa 41 mm inverted cartridge forks, with adjustable spring preload, compression and rebound damping
Rear suspension Showa 40 mm piston, piggy-back reservoir shock with adjustable spring preload, compression and rebound damping
Front suspension travel 7.00 in (178 mm)
Rear suspension travel 7.03 in (179 mm)
Front brakes Bosch Gen 9 ABS, J-Juan asymmetric dual piston floating caliper, 320 x 5 mm disc
Rear brakes Bosch Gen 9 ABS, J-Juan single piston floating caliper, 240 x 4.5 mm disc
Front tire Pirelli MT-60 100/90-19
Rear tire Pirelli MT-60 130/80-17
Front wheel 2.50 x 19
Rear wheel 3.50 x 17
Dimensions
Wheelbase 56.2 in (1,427 mm)
Seat height 33.2 in (843 mm)
Rake 26.5°
Trail 4.6 in (117 mm)
Weight
Frame 23 lb (10.4 kg)
Curb weight 381 lb (173 kg)
Carrying capacity 394 lb (179 kg)
Economy
Equivalent fuel economy (city) 435 MPGe (0.54 l/100 km)
Equivalent fuel economy (highway) 210 MPGe (1.12 l/100 km)
Typical cost to recharge $1.10
Pricing
MSRP $10,995
(Does not include local shipping, applicable taxes, PDI, or road registration fees.)
Warranty
Standard motorcycle warranty* 2 years
Power pack warranty* 5 years/100,000 miles



range ZERO DS zf13.0
City 147 miles (237 km)
Highway, 55 mph (89 km/h) 88 miles (142 km)
 » Combined 110 miles (177 km)
Highway, 70 mph (113 km/h) 70 miles (113 km)
 » Combined 95 miles (153 km)
Motor
Max torque 68 ft-lb (92 Nm)
Max power 54 hp (40 kW) @ 4,300 rpm
Top speed (max) 98 mph (158 km/h)
Top speed (sustained) 85 mph (137 km/h)
Acceleration, 0-60 mph (0-100 km/h) 5.7 seconds
Type Z-Force® 75-7 passively air-cooled, high efficiency, radial flux, interior permanent magnet, brushless motor
Controller High efficiency, 420 amp, 3-phase brushless controller with regenerative deceleration
Power system
Est. pack life to 80% (city) 331,000 miles (533,000 km)
Power pack Z-Force® Li-Ion intelligent
Max capacity 13.0 kWh
Nominal capacity 11.4 kWh
Charger type 1.3 kW, integrated
Charge time (standard) 8.9 hours (100% charged) / 8.4 hours (95% charged)
 » With Charge Tank accessory 3.4 hours (100% charged) / 2.9 hours (95% charged)
 » With one accessory charger 5.2 hours (100% charged) / 4.7 hours (95% charged)
 » With max accessory chargers 2.6 hours (100% charged) / 2.1 hours (95% charged)
Input Standard 110 V or 220 V
Drivetrain
Transmission Clutchless direct drive
Final drive 130T / 28T, Poly Chain® GT® Carbon™ belt
Chassis / Suspension / Brakes
Front suspension Showa 41 mm inverted cartridge forks, with adjustable spring preload, compression and rebound damping
Rear suspension Showa 40 mm piston, piggy-back reservoir shock with adjustable spring preload, compression and rebound damping
Front suspension travel 7.00 in (178 mm)
Rear suspension travel 7.03 in (179 mm)
Front brakes Bosch Gen 9 ABS, J-Juan asymmetric dual piston floating caliper, 320 x 5 mm disc
Rear brakes Bosch Gen 9 ABS, J-Juan single piston floating caliper, 240 x 4.5 mm disc
Front tire Pirelli MT-60 100/90-19
Rear tire Pirelli MT-60 130/80-17
Front wheel 2.50 x 19
Rear wheel 3.50 x 17
Dimensions
Wheelbase 56.2 in (1,427 mm)
Seat height 33.2 in (843 mm)
Rake 26.5°
Trail 4.6 in (117 mm)
Weight
Frame 23 lb (10.4 kg)
Curb weight 413 lb (187 kg)
Carrying capacity 362 lb (164 kg)
Economy
Equivalent fuel economy (city) 435 MPGe (0.54 l/100 km)
Equivalent fuel economy (highway) 210 MPGe (1.12 l/100 km)
Typical cost to recharge $1.46
Pricing
MSRP $13,995
(Does not include local shipping, applicable taxes, PDI, or road registration fees.)
Warranty
Standard motorcycle warranty* 2 years
Power pack warranty* 5 years/100,000 miles



range ZERO DS ZF13.0 +Power Tank
City 179 miles (288 km)
Highway, 55 mph (89 km/h) 107 miles (172 km)
 » Combined 134 miles (216 km)
Highway, 70 mph (113 km/h) 86 miles (138 km)
 » Combined 116 miles (187 km)
Motor
Max torque 68 ft-lb (92 Nm)
Max power 54 hp (40 kW) @ 4,300 rpm
Top speed (max) 98 mph (158 km/h)
Top speed (sustained) 85 mph (137 km/h)
Acceleration, 0-60 mph (0-100 km/h) 6.4 seconds
Type Z-Force® 75-7 passively air-cooled, high efficiency, radial flux, interior permanent magnet, brushless motor
Controller High efficiency, 420 amp, 3-phase brushless controller with regenerative deceleration
Power system
Est. pack life to 80% (city) 403,000 miles (649,000 km)
Power pack Z-Force® Li-Ion intelligent
Max capacity 15.9 kWh
Nominal capacity 14.0 kWh
Charger type 1.3 kW, integrated
Charge time (standard) 10.8 hours (100% charged) / 10.3 hours (95% charged)
 » With Charge Tank accessory N/A
 » With one accessory charger 6.3 hours (100% charged) / 5.8 hours (95% charged)
 » With max accessory chargers 3.0 hours (100% charged) / 2.5 hours (95% charged)
Input Standard 110 V or 220 V
Drivetrain
Transmission Clutchless direct drive
Final drive 130T / 28T, Poly Chain® GT® Carbon™ belt
Chassis / Suspension / Brakes
Front suspension Showa 41 mm inverted cartridge forks, with adjustable spring preload, compression and rebound damping
Rear suspension Showa 40 mm piston, piggy-back reservoir shock with adjustable spring preload, compression and rebound damping
Front suspension travel 7.00 in (178 mm)
Rear suspension travel 7.03 in (179 mm)
Front brakes Bosch Gen 9 ABS, J-Juan asymmetric dual piston floating caliper, 320 x 5 mm disc
Rear brakes Bosch Gen 9 ABS, J-Juan single piston floating caliper, 240 x 4.5 mm disc
Front tire Pirelli MT-60 100/90-19
Rear tire Pirelli MT-60 130/80-17
Front wheel 2.50 x 19
Rear wheel 3.50 x 17
Dimensions
Wheelbase 56.2 in (1,427 mm)
Seat height 33.2 in (843 mm)
Rake 26.5°
Trail 4.6 in (117 mm)
Weight
Frame 23 lb (10.4 kg)
Curb weight 457 lb (207 kg)
Carrying capacity 318 lb (144 kg)
Economy
Equivalent fuel economy (city) 435 MPGe (0.54 l/100 km)
Equivalent fuel economy (highway) 210 MPGe (1.12 l/100 km)
Typical cost to recharge $1.78
Pricing
MSRP $16,669
(Does not include local shipping, applicable taxes, PDI, or road registration fees.)
Warranty
Standard motorcycle warranty* 2 years
Power pack warranty* 5 years/100,000 miles







2016 Zero DS – www.Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $14,294 ZERO DS zf9.8; $18,194 ZERO DS ZF13.0; $21,670 ZERO DS ZF13.0 +Power Tank CDN

range ZERO DS zf9.8
City 110 miles (177 km)
Highway, 55 mph (89 km/h) 66 miles (106 km)
 » Combined 83 miles (134 km)
Highway, 70 mph (113 km/h) 53 miles (85 km)
 » Combined 71 miles (114 km)
Motor
Max torque 68 ft-lb (92 Nm)
Max power 54 hp (40 kW) @ 4,300 rpm
Top speed (max) 98 mph (158 km/h)
Top speed (sustained) 80 mph (129 km/h)
Acceleration, 0-60 mph (0-100 km/h) 5.2 seconds
Type Z-Force® 75-7 passively air-cooled, high efficiency, radial flux, permanent magnet, brushless motor
Controller High efficiency, 420 amp, 3-phase brushless controller with regenerative deceleration
Power system
Est. pack life to 80% (city) 248,000 miles (399,000 km)
Power pack Z-Force® Li-Ion intelligent
Max capacity 9.8 kWh
Nominal capacity 8.6 kWh
Charger type 1.3 kW, integrated
Charge time (standard) 6.8 hours (100% charged) / 6.3 hours (95% charged)
 » With Charge Tank accessory 2.6 hours (100% charged) / 2.1 hours (95% charged)
 » With one accessory charger 4.0 hours (100% charged) / 3.5 hours (95% charged)
 » With max accessory chargers 2.0 hours (100% charged) / 1.5 hours (95% charged)
Input Standard 110 V or 220 V
Drivetrain
Transmission Clutchless direct drive
Final drive 130T / 28T, Poly Chain® GT® Carbon™ belt
Chassis / Suspension / Brakes
Front suspension Showa 41 mm inverted cartridge forks, with adjustable spring preload, compression and rebound damping
Rear suspension Showa 40 mm piston, piggy-back reservoir shock with adjustable spring preload, compression and rebound damping
Front suspension travel 7.00 in (178 mm)
Rear suspension travel 7.03 in (179 mm)
Front brakes Bosch Gen 9 ABS, J-Juan asymmetric dual piston floating caliper, 320 x 5 mm disc
Rear brakes Bosch Gen 9 ABS, J-Juan single piston floating caliper, 240 x 4.5 mm disc
Front tire Pirelli MT-60 100/90-19
Rear tire Pirelli MT-60 130/80-17
Front wheel 2.50 x 19
Rear wheel 3.50 x 17
Dimensions
Wheelbase 56.2 in (1,427 mm)
Seat height 33.2 in (843 mm)
Rake 26.5°
Trail 4.6 in (117 mm)
Weight
Frame 23 lb (10.4 kg)
Curb weight 381 lb (173 kg)
Carrying capacity 394 lb (179 kg)
Economy
Equivalent fuel economy (city) 435 MPGe (0.54 l/100 km)
Equivalent fuel economy (highway) 210 MPGe (1.12 l/100 km)
Typical cost to recharge $1.10
Pricing
MSRP $14,294 CAD
(Does not include local shipping, PDI or road registration fees.)
Warranty
Standard motorcycle warranty* 2 years
Power pack warranty* 5 years/160,000 km



range ZERO DS zf13.0
City 147 miles (237 km)
Highway, 55 mph (89 km/h) 88 miles (142 km)
 » Combined 110 miles (177 km)
Highway, 70 mph (113 km/h) 70 miles (113 km)
 » Combined 95 miles (153 km)
Motor
Max torque 68 ft-lb (92 Nm)
Max power 54 hp (40 kW) @ 4,300 rpm
Top speed (max) 98 mph (158 km/h)
Top speed (sustained) 85 mph (137 km/h)
Acceleration, 0-60 mph (0-100 km/h) 5.7 seconds
Type Z-Force® 75-7 passively air-cooled, high efficiency, radial flux, interior permanent magnet, brushless motor
Controller High efficiency, 420 amp, 3-phase brushless controller with regenerative deceleration
Power system
Est. pack life to 80% (city) 331,000 miles (533,000 km)
Power pack Z-Force® Li-Ion intelligent
Max capacity 13.0 kWh
Nominal capacity 11.4 kWh
Charger type 1.3 kW, integrated
Charge time (standard) 8.9 hours (100% charged) / 8.4 hours (95% charged)
 » With Charge Tank accessory 3.4 hours (100% charged) / 2.9 hours (95% charged)
 » With one accessory charger 5.2 hours (100% charged) / 4.7 hours (95% charged)
 » With max accessory chargers 2.6 hours (100% charged) / 2.1 hours (95% charged)
Input Standard 110 V or 220 V
Drivetrain
Transmission Clutchless direct drive
Final drive 130T / 28T, Poly Chain® GT® Carbon™ belt
Chassis / Suspension / Brakes
Front suspension Showa 41 mm inverted cartridge forks, with adjustable spring preload, compression and rebound damping
Rear suspension Showa 40 mm piston, piggy-back reservoir shock with adjustable spring preload, compression and rebound damping
Front suspension travel 7.00 in (178 mm)
Rear suspension travel 7.03 in (179 mm)
Front brakes Bosch Gen 9 ABS, J-Juan asymmetric dual piston floating caliper, 320 x 5 mm disc
Rear brakes Bosch Gen 9 ABS, J-Juan single piston floating caliper, 240 x 4.5 mm disc
Front tire Pirelli MT-60 100/90-19
Rear tire Pirelli MT-60 130/80-17
Front wheel 2.50 x 19
Rear wheel 3.50 x 17
Dimensions
Wheelbase 56.2 in (1,427 mm)
Seat height 33.2 in (843 mm)
Rake 26.5°
Trail 4.6 in (117 mm)
Weight
Frame 23 lb (10.4 kg)
Curb weight 413 lb (187 kg)
Carrying capacity 362 lb (164 kg)
Economy
Equivalent fuel economy (city) 435 MPGe (0.54 l/100 km)
Equivalent fuel economy (highway) 210 MPGe (1.12 l/100 km)
Typical cost to recharge $1.46
Pricing
MSRP $18,194 CAD
(Does not include local shipping, PDI or road registration fees.)
Warranty
Standard motorcycle warranty* 2 years
Power pack warranty* 5 years/160,000 km



range ZERO DS ZF13.0 +Power Tank
City 179 miles (288 km)
Highway, 55 mph (89 km/h) 107 miles (172 km)
 » Combined 134 miles (216 km)
Highway, 70 mph (113 km/h) 86 miles (138 km)
 » Combined 116 miles (187 km)
Motor
Max torque 68 ft-lb (92 Nm)
Max power 54 hp (40 kW) @ 4,300 rpm
Top speed (max) 98 mph (158 km/h)
Top speed (sustained) 85 mph (137 km/h)
Acceleration, 0-60 mph (0-100 km/h) 6.4 seconds
Type Z-Force® 75-7 passively air-cooled, high efficiency, radial flux, interior permanent magnet, brushless motor
Controller High efficiency, 420 amp, 3-phase brushless controller with regenerative deceleration
Power system
Est. pack life to 80% (city) 403,000 miles (649,000 km)
Power pack Z-Force® Li-Ion intelligent
Max capacity 15.9 kWh
Nominal capacity 14.0 kWh
Charger type 1.3 kW, integrated
Charge time (standard) 10.8 hours (100% charged) / 10.3 hours (95% charged)
 » With Charge Tank accessory N/A
 » With one accessory charger 6.3 hours (100% charged) / 5.8 hours (95% charged)
 » With max accessory chargers 3.0 hours (100% charged) / 2.5 hours (95% charged)
Input Standard 110 V or 220 V
Drivetrain
Transmission Clutchless direct drive
Final drive 130T / 28T, Poly Chain® GT® Carbon™ belt
Chassis / Suspension / Brakes
Front suspension Showa 41 mm inverted cartridge forks, with adjustable spring preload, compression and rebound damping
Rear suspension Showa 40 mm piston, piggy-back reservoir shock with adjustable spring preload, compression and rebound damping
Front suspension travel 7.00 in (178 mm)
Rear suspension travel 7.03 in (179 mm)
Front brakes Bosch Gen 9 ABS, J-Juan asymmetric dual piston floating caliper, 320 x 5 mm disc
Rear brakes Bosch Gen 9 ABS, J-Juan single piston floating caliper, 240 x 4.5 mm disc
Front tire Pirelli MT-60 100/90-19
Rear tire Pirelli MT-60 130/80-17
Front wheel 2.50 x 19
Rear wheel 3.50 x 17
Dimensions
Wheelbase 56.2 in (1,427 mm)
Seat height 33.2 in (843 mm)
Rake 26.5°
Trail 4.6 in (117 mm)
Weight
Frame 23 lb (10.4 kg)
Curb weight 457 lb (207 kg)
Carrying capacity 318 lb (144 kg)
Economy
Equivalent fuel economy (city) 435 MPGe (0.54 l/100 km)
Equivalent fuel economy (highway) 210 MPGe (1.12 l/100 km)
Typical cost to recharge $1.78
Pricing
MSRP $21,670 CAD
(Does not include local shipping, PDI or road registration fees.)
Warranty
Standard motorcycle warranty* 2 years
Power pack warranty* 5 years/160,000 km






2016 Zero DS – www.Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: £ See Dealer GBP/EUR (On The Road inc 20% Vat)

range ZERO DS zf9.8
City 177 km
Highway, 89 km/h 106 km
 » Combined 134 km
Highway, 113 km/h 85 km
 » Combined 114 km
Motor
Max torque 92 Nm
Max power 54 hp (40 kW) @ 4.300 rpm
Licensing Requirement A2 Licence
Top speed (max) 158 km/h
Top speed (sustained) 129 km/h
Acceleration, 0-100 km/h 5,2 seconds
Type Z-Force® 75-7 passively air-cooled, high efficiency, radial flux, permanent magnet, brushless motor
Controller High efficiency, 420 amp, 3-phase brushless controller with regenerative deceleration
Power system
Est. pack life to 80% (city) 399.000 km
Power pack Z-Force® Li-Ion intelligent
Max capacity 9,8 kWh
Nominal capacity 8,6 kWh
Charger type 1,3 kW, integrated
Charge time (standard) 6,8 hours (100% charged) / 6,3 hours (95% charged)
 » With Charge Tank accessory 2,6 hours (100% charged) / 2,1 hours (95% charged)
 » With one accessory charger 4,0 hours (100% charged) / 3,5 hours (95% charged)
 » With max accessory chargers 2,0 hours (100% charged) / 1,5 hours (95% charged)
Input Standard 110 V or 220 V
Drivetrain
Transmission Clutchless direct drive
Final drive 130T / 28T, Poly Chain® GT® Carbon™ belt
Chassis / Suspension / Brakes
Front suspension Showa 41 mm inverted cartridge forks, with adjustable spring preload, compression and rebound damping
Rear suspension Showa 40 mm piston, piggy-back reservoir shock with adjustable spring preload, compression and rebound damping
Front suspension travel 178 mm
Rear suspension travel 179 mm
Front brakes Bosch Gen 9 ABS, J-Juan asymmetric dual piston floating caliper, 320 x 5 mm disc
Rear brakes Bosch Gen 9 ABS, J-Juan single piston floating caliper, 240 x 4,5 mm disc
Front tire Pirelli MT-60 100/90-19
Rear tire Pirelli MT-60 130/80-17
Front wheel 2,50 x 19
Rear wheel 3,50 x 17
Dimensions
Wheelbase 1.427 mm
Seat height 843 mm
Rake 26,5°
Trail 117 mm
Weight
Frame 10,4 kg
Curb weight 173 kg
Carrying capacity 179 kg
Economy
Equivalent fuel economy (city) 0,54 l/100 km
Equivalent fuel economy (highway) 1,12 l/100 km
Typical cost to recharge 2,01 €
Warranty
Standard motorcycle warranty* 2 years
Power pack warranty* 5 years/160.000 km


range ZERO DS zf13.0
City 237 km
Highway, 89 km/h 142 km
 » Combined 177 km
Highway, 113 km/h 113 km
 » Combined 153 km
Motor
Max torque 92 Nm
Max power 54 hp (40 kW) @ 4.300 rpm
Licensing Requirement A2 Licence
Top speed (max) 158 km/h
Top speed (sustained) 137 km/h
Acceleration, 0-100 km/h 5,7 seconds
Type Z-Force® 75-7 passively air-cooled, high efficiency, radial flux, interior permanent magnet, brushless motor
Controller High efficiency, 420 amp, 3-phase brushless controller with regenerative deceleration
Power system
Est. pack life to 80% (city) 533.000 km
Power pack Z-Force® Li-Ion intelligent
Max capacity 13,0 kWh
Nominal capacity 11,4 kWh
Charger type 1,3 kW, integrated
Charge time (standard) 8,9 hours (100% charged) / 8,4 hours (95% charged)
 » With Charge Tank accessory 3,4 hours (100% charged) / 2,9 hours (95% charged)
 » With one accessory charger 5,2 hours (100% charged) / 4,7 hours (95% charged)
 » With max accessory chargers 2,6 hours (100% charged) / 2,1 hours (95% charged)
Input Standard 110 V or 220 V
Drivetrain
Transmission Clutchless direct drive
Final drive 130T / 28T, Poly Chain® GT® Carbon™ belt
Chassis / Suspension / Brakes
Front suspension Showa 41 mm inverted cartridge forks, with adjustable spring preload, compression and rebound damping
Rear suspension Showa 40 mm piston, piggy-back reservoir shock with adjustable spring preload, compression and rebound damping
Front suspension travel 178 mm
Rear suspension travel 179 mm
Front brakes Bosch Gen 9 ABS, J-Juan asymmetric dual piston floating caliper, 320 x 5 mm disc
Rear brakes Bosch Gen 9 ABS, J-Juan single piston floating caliper, 240 x 4,5 mm disc
Front tire Pirelli MT-60 100/90-19
Rear tire Pirelli MT-60 130/80-17
Front wheel 2,50 x 19
Rear wheel 3,50 x 17
Dimensions
Wheelbase 1.427 mm
Seat height 843 mm
Rake 26,5°
Trail 117 mm
Weight
Frame 10,4 kg
Curb weight 187 kg
Carrying capacity 164 kg
Economy
Equivalent fuel economy (city) 0,54 l/100 km
Equivalent fuel economy (highway) 1,12 l/100 km
Typical cost to recharge 2,68 €
Warranty
Standard motorcycle warranty* 2 years
Power pack warranty* 5 years/160.000 km


range ZERO DS ZF13.0 +Power Tank
City 288 km
Highway, 89 km/h 172 km
 » Combined 216 km
Highway, 113 km/h 138 km
 » Combined 187 km
Motor
Max torque 92 Nm
Max power 54 hp (40 kW) @ 4.300 rpm
Licensing Requirement A2 Licence
Top speed (max) 158 km/h
Top speed (sustained) 137 km/h
Acceleration, 0-100 km/h 6,4 seconds
Type Z-Force® 75-7 passively air-cooled, high efficiency, radial flux, interior permanent magnet, brushless motor
Controller High efficiency, 420 amp, 3-phase brushless controller with regenerative deceleration
Power system
Est. pack life to 80% (city) 649.000 km
Power pack Z-Force® Li-Ion intelligent
Max capacity 15,9 kWh
Nominal capacity 14,0 kWh
Charger type 1,3 kW, integrated
Charge time (standard) 10,8 hours (100% charged) / 10,3 hours (95% charged)
 » With Charge Tank accessory N/A
 » With one accessory charger 6,3 hours (100% charged) / 5,8 hours (95% charged)
 » With max accessory chargers 3,0 hours (100% charged) / 2,5 hours (95% charged)
Input Standard 110 V or 220 V
Drivetrain
Transmission Clutchless direct drive
Final drive 130T / 28T, Poly Chain® GT® Carbon™ belt
Chassis / Suspension / Brakes
Front suspension Showa 41 mm inverted cartridge forks, with adjustable spring preload, compression and rebound damping
Rear suspension Showa 40 mm piston, piggy-back reservoir shock with adjustable spring preload, compression and rebound damping
Front suspension travel 178 mm
Rear suspension travel 179 mm
Front brakes Bosch Gen 9 ABS, J-Juan asymmetric dual piston floating caliper, 320 x 5 mm disc
Rear brakes Bosch Gen 9 ABS, J-Juan single piston floating caliper, 240 x 4,5 mm disc
Front tire Pirelli MT-60 100/90-19
Rear tire Pirelli MT-60 130/80-17
Front wheel 2,50 x 19
Rear wheel 3,50 x 17
Dimensions
Wheelbase 1.427 mm
Seat height 843 mm
Rake 26,5°
Trail 117 mm
Weight
Frame 10,4 kg
Curb weight 207 kg
Carrying capacity 144 kg
Economy
Equivalent fuel economy (city) 0,54 l/100 km
Equivalent fuel economy (highway) 1,12 l/100 km
Typical cost to recharge 3,26 €
Warranty
Standard motorcycle warranty* 2 years
Power pack warranty* 5 years/160.000 km




*Starting at MSRP is the manufactured suggested price and excludes delivery, setup, tax, title, license, and additional fees and expenses. Bikes may be shown with optional accessories. Final sale price determined by an authorized dealer. Specifications and MSRP are subject to change.

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).

About Michael Le Pard 943 Articles
"Mr. Totalmotorcycle". Owner and Founder of Total Motorcycle. Supporting Motorcyclists and Motorcycling for 18 great years.

Be the first to comment

Leave a Reply
