2017 Ducati 1299 Panigale S Anniversario Review
2017 Ducati 1299 Panigale S Anniversario on www.Totalmotorcycle.com
Time to celebrate…
Since 1926, Ducati’s history is about authentic passion and performance. To celebrate the 90 years at the forefront of design and technology Ducati presents the new 1299 Panigale S Anniversario. A limited edition of only 500 models.
Passion for performance
Officialy unveiled at the World Ducati Week 2016, the new 1299 Panigale S Anniversario has met the MotoGP World Champion Casey Stoner at Misano World Circuit.
Ducati DNA
A Desmodromic heart, the finest materials and the highest technology together with a dedicated livery: the 1299 Panigale S Anniversario represents the real essence of Ducati passion and performance
Want to be the one?
The 1299 Panigale S Anniversario is a strictly limited edition of 500 examples worldwide. Each bike features a special, machined billet aluminium top triple clamp, on which its name and number are laser-inscribed. Want to live
2017 Ducati 1299 Panigale S Anniversario www.Totalmotorcycle.com Key Features
2017 Ducati 1299 Panigale S Anniversario www.Totalmotorcycle.com Features and Benefits
PERFORMANCE
Superquadro
The 205 hp Ducati Superquadro 1285 cc engine is integrated smoothly into the monocoque frame, providing the perfect platform from which to unleash its incredible 205hp power. The twin-cylinder Superquadro also features Engine Brake Control (EBC), which optimises vehicle stability under extreme turn-in conditions. This ensures the very highest level of riding precision, offering the thrills that only a Ducati Superbike can provide.
DTC and DWC EVO
The exclusive 1299 Panigale S Anniversario is also equipped with advanced ‘EVO’ versions of Ducati Traction Control (DTC) and Ducati Wheelie Control (DWC); these maximise performance and active safety on the Bologna-built Superbike. The DTC EVO is based on an all-new algorithm that makes intervention faster and more precise and also interfaces with the Bosch Inertial Measurement Unit (IMU), constantly measuring the lean angle and using it to gauge optimal control of rear wheelspin.
Optimized geometry
The 1299 Panigale S Anniversario benefits from the experience of Ducati Corse, adopting a new geometry which uses a 24° steering head angle along with a 4mm lower swingarm pivot point. This enhances the bike’s agility, and provides excellent rear traction in a wide variety of riding conditions.
Lithium-ion battery
Lithium-ion is the most advanced commercially available battery technology, and allows the unit to be extremely lightweight and compact – saving a full 2 kilograms of weight versus a conventional lead-acid battery. It’s one of the crucial details that allows the 1299 Panigale S Anniversario to be even lighter than the already market-leading S version.
DESIGN

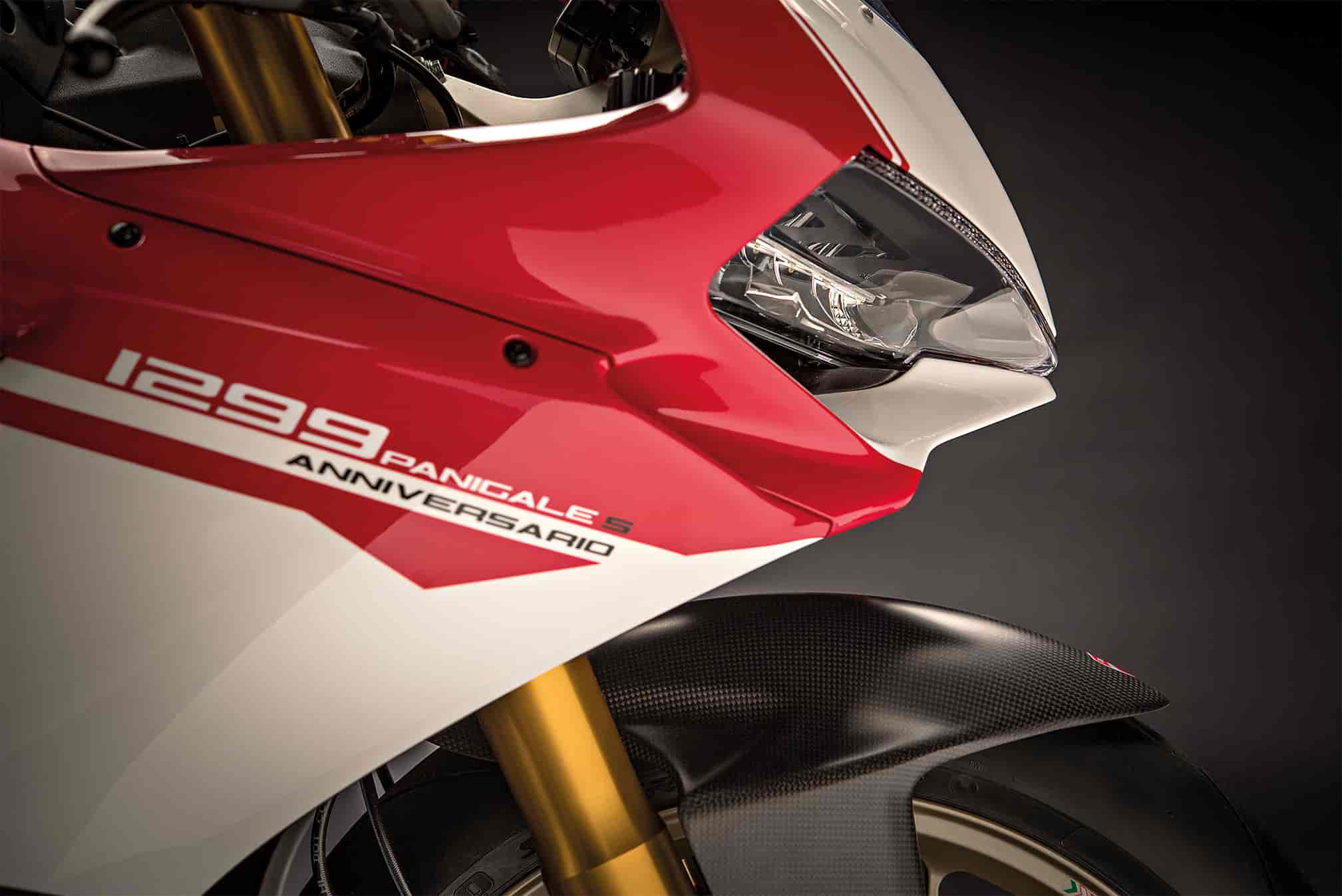

90th anniversary livery
The colours of the 1299 Panigale S Anniversario draw their inspiration from those of Ducati race bikes. The white, black and Ducati Red fairing goes perfectly with the gold wheel rims. This celebratory livery expresses all the passion, all the striving for performance that has characterised the company’s 90-year history.
Precious elements
The clutch cover, cylinder head covers, and oil pan are all cast in a golden-color magnesium alloy to ensure the engine’s strength with the absolute lowest possible weight.
Full LED lighting
The 1299 Panigale S Anniversario total racing look is expressed also by twin LED front headlamp designed to be an integral part of the front air scoops. The double LED rear lights harmoniously wrap around the air vents smoothly following the iconic Panigale tail lines.
Full TFT instrument panel
The instrument panel on the 1299 Panigale S Anniversario uses a full TFT display. The colour display’s configuration is variable and automatically adapts to variations in environmental light and to the selected Riding Mode. The display also features a “”lean angle visualization,”” allowing the riders to see their achieved lean angle displayed on the dash in real-time.
EQUIPMENT
Racing Kit
Included with the 1299 Panigale S Anniversario is a racing kit enabling the bike to go directly from the showroom floor, to dominating the track. The centerpiece of this kit is an Akrapovic racing exhaust, which is freer breathing to enhance power and is made in full titanium to shave off precious additional weight. Also included are billet aluminium mirror block-off plugs, and a license plate holder plug, for track sessions in which the bike’s mirrors and plate holder are removed.
Sport Pack
Unleash the power. Make the details count. Maximise your experience with specially conceived components and design elements which enhance both looks and performance.
The package includes carbon fibre covers for ignition switch and rear shock absorber, an adhesive carbon tank protector, a carbon sprocket cover kit, carbon heel guards for rider footpegs, an aluminium tank plug and a carbon and aluminium alloy number plate holder. Black handlebar weights are also included.
Ducati SuMisura
Ducati SuMisura is a project launched to allow users to customise their suit, in terms of graphics and on their specific physique, with a “bespoke” solution.
2017 Ducati 1299 Panigale S Anniversario – www.Totalmotorcycle.com USA Specifications/
Technical Details
US MSRP Price: $ USD
Engine
Type Superquadro L-Twin, 4 Desmodromically actuated valves per cylinder, liquid cooled
Displacement 1,285 cc
Bore x stroke 116 x 60.8 mm
Compression ratio 12.6:1
Power 150.8 kW (205 hp) @ 10,500 rpm
Torque 144.6 Nm (106.7 lb-ft) @ 8,750 rpm
Ducati 1299 Panigale S Anniversario power and torque
Fuel injection Electronic fuel injection system. Twin injectors per cylinder. Full ride-by-wire elliptical throttle bodies.
Exhaust ‘2 in 1 in 2’ system with catalytic converter and 2 lambda probes. Twin stainless steel mufflers with aluminum end caps.
Transmission
Gearbox 6 speed with DQS Ducati Quick Shift up/down
Primary drive Straight cut gears; Ratio 1.77:1
Ratio 1=37/15 2=30/16 3=27/18 4=25/20 5=24/22 6=23/24
Final drive Chain; Front sprocket 15; Rear sprocket 39
Clutch Slipper and self-servo wet multiplate clutch with hydraulic control
Chassis
Frame Monocoque aluminum
Front suspension Öhlins NIX30 43mm fully adjustable USD fork with TiN treatment. Electronic compression and rebound damping adjustment with semi-active mode.
Front wheel 3 spoke W shape forged light alloy 3.50″ x 17″
Front tyre 120/70 ZR17 Pirelli Diablo Supercorsa SP
Rear suspension Fully adjustable Öhlins TTX36 unit. Electronic compression and rebound damping adjustment with semi-active mode. Adjustable linkage: Progressive/flat. Aluminum single-sided swingarm.
Rear wheel 3 spoke W shape forged light alloy 6.00″ x 17″
Rear tyre 200/55 ZR17 Pirelli Diablo Supercorsa SP
Wheel travel (front/rear) 120 mm (4.72 in) – 130 mm (5.12 in)
Front brake 2 x 330mm semi-floating discs, radially mounted Brembo Monobloc M50 4-piston calipers with cornering ABS as standard equipment.
Rear brake 245mm disc, 2-piston caliper with cornering ABS as standard equipment
Instrumentation (dashboard) Digital unit with TFT colour display
Dimensions and weights
Dry weight 164 kg (361 lb)
Kerb weight 188 kg (414 lb)
Seat height 830 mm (32.7 in)
Wheelbase 1,442 mm (56.8 in)
Ducati 1299 Panigale S Anniversario sizes
Rake 24°
Front wheel trail 96 mm (3.8 in)
Fuel tank capacity 17 l – 4.5 gallon (US)
Number of seats Dual seat
Standard equipment
Standard equipment Riding Modes, Power Modes, Cornering ABS, DTC, DQS up/down, DWC, EBC, Fully RbW, Auto tyre calibration, Full LED lighting, Ohlins Smart EC with semi-active steering damper, Auxiliary adjustment buttons, DDA+ with GPS-ready.
Additional equipment
Additional equipment Laser-inscribed billet aluminum top triple clamp, 90th anniversary graphics, EVO traction and wheelie control, lithium-ion battery with included charger, carbon fibre heel guards, carbon fibre rear mudguard, carbon fibre shock cover, included Akrapovic titanium racing exhaust, billet aluminum mirror hole covers, license plate holder cover.
Warranty
Warranty 24 months unlimited mileage
Maintenance 12,000 km (7,500 mi)
Valve clearance adjustment 24,000 km (15,000 mi)
Emissions
Emissions Euro 3 (Europe) – USA: follows the US Federal Regulation
2017 Ducati 1299 Panigale S Anniversario – www.Totalmotorcycle.com Canadian Specifications/
Technical Details
Canada MSRP Price: $ CDN
Engine
Engine Superquadro: L-twin cylinder, 4 valves per cylinder, Desmodromic, liquid cooled
Displacement 1,285 cc
Bore X stroke 116 x 60.8 mm
Compression ratio 12.6:1
Power 150.8 kW (205 hp) @ 10,500 rpm
Torque 144.6 Nm (106.7 lb-ft) @ 8,750 rpm
Fuel injection Mitsubishi electronic fuel injection system. Twin injectors
per cylinder. Fully ride-by-wire elliptical
throttle bodies
Exhaust 2-1-2 system with catalytic converter and 2 lambda probes. Twin stainless
steel mufflers with
aluminium end caps
Transmission
Gearbox 6 speed with Ducati Quick Shift (DQS) up/down
Primary drive Straight cut gears; Ratio 1.77:1
Ratio 1=37/15 2=30/16 3=27/18 4=25/20 5=24/22 6=23/24
Final drive Chain; Front sprocket 15; Rear sprocket 39
Clutch Slipper and self-servo wet multiplate clutch with hydraulic control
Chassis
Frame Monocoque aluminium
Front suspension Öhlins NIX30 43mm fully adjustable USD fork with TiN treatment. Electronic compression and
rebound damping adjustment with semi-active mode
Front wheel 3-spoke forged alloy 3.50″ x 17″
Front tyre Pirelli Diablo Supercorsa SP 120/70 ZR17
Rear Suspension Fully adjustable Ohlins TTX36 unit. Electronic compression and rebound damping adjustment
with semi-active mode. Adjustable linkage: Progressive/flat. Aluminium single-sided swingarm
Rear Wheel 3-spoke forged alloy 6.00” x 17”
Rear tyre Pirelli Diablo Supercorsa SP 200/55 ZR17
Wheel travel (front/rear) 120 mm (4.72 in) – 130 mm (5.12 in)
Front brake 2 x 330 mm semi-floating discs, radially mounted Brembo Monobloc EVO M50 4-piston callipers,
with cornering ABS as standard
Rear brake 245 mm disc, 2-piston calliper, with cornering ABS as standard
Instrumentation Colour TFT display
Dimensions and weights
Dry weight 164 kg (362 lb)
Kerb weight 188 kg (414 lb)
Seat height 830 mm (32.68 in)
Wheelbase 1,437 mm (56.6 in)
Rake 24°
Front wheel trail 96 mm (3.78 in)
Fuel tank capacity 17 l – 4.5 gallon (US)
Number of seats Dual seat
Standard equipment
Riding Modes, Power Modes, Cornering ABS, DTC, DQS up/down, DWC, EBC, Fully RbW, Auto
tyre calibration, Full LED lighting, Ohlins Smart EC with semi-active steering damper, Auxiliary
adjustment buttons, DDA+ with GPS-ready
Additional equipment
Passenger seat and footpegs Kit
90th anniversary equipment
Laser-inscribed numbered billet aluminium top triple clamp, Akrapoviè
titanium racing slip-on
exhaust, Carbon fibre rear mudguard, chain guard, shock guard, and heel guards,
Lithium battery
with dedicated charger, Dedicated graphics, Gold-color wheels
Warranty
Warranty (months) 24 months unlimited mileage
Maintenance (km/months) 12,000 km (7,500 m)/12 months
Valve clearance adjustment (km) 24,000 km (15,000 m)
Emissions Euro 3
2017 Ducati 1299 Panigale S Anniversario – www.Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: £ GBP (On The Road inc 20% Vat)
Engine
Engine Superquadro: L-twin cylinder, 4 valves per cylinder, Desmodromic, liquid cooled
Displacement 1,285 cc
Bore X stroke 116 x 60.8 mm
Compression ratio 12.6:1
Power 150.8 kW (205 hp) @ 10,500 rpm
Torque 144.6 Nm (106.7 lb-ft) @ 8,750 rpm
Fuel injection Mitsubishi electronic fuel injection system. Twin injectors per cylinder. Fully ride-by-wire elliptical
throttle bodies
Exhaust 2-1-2 system with catalytic converter and 2 lambda probes. Twin stainless steel mufflers with
aluminium end caps
Transmission
Gearbox 6 speed with Ducati Quick Shift (DQS) up/down
Primary drive Straight cut gears; Ratio 1.77:1
Ratio 1=37/15 2=30/16 3=27/18 4=25/20 5=24/22 6=23/24
Final drive Chain; Front sprocket 15; Rear sprocket 39
Clutch Slipper and self-servo wet multiplate clutch with hydraulic control
Chassis
Frame Monocoque aluminium
Front suspension Öhlins NIX30 43mm fully adjustable USD fork with TiN treatment. Electronic compression and
rebound damping adjustment with semi-active mode
Front wheel 3-spoke forged alloy 3.50″ x 17″
Front tyre Pirelli Diablo Supercorsa SP 120/70 ZR17
Rear Suspension Fully adjustable Ohlins TTX36 unit. Electronic compression and rebound damping adjustment
with semi-active mode. Adjustable linkage: Progressive/flat. Aluminium single-sided swingarm
Rear Wheel 3-spoke forged alloy 6.00” x 17”
Rear tyre Pirelli Diablo Supercorsa SP 200/55 ZR17
Wheel travel (front/rear) 120 mm (4.72 in) – 130 mm (5.12 in)
Front brake 2 x 330 mm semi-floating discs, radially mounted Brembo Monobloc EVO M50 4-piston callipers,
with cornering ABS as standard
Rear brake 245 mm disc, 2-piston calliper, with cornering ABS as standard
Instrumentation Colour TFT display
Dimensions and weights
Dry weight 164 kg (362 lb)
Kerb weight 188 kg (414 lb)
Seat height 830 mm (32.68 in)
Wheelbase 1,437 mm (56.6 in)
Rake 24°
Front wheel trail 96 mm (3.78 in)
Fuel tank capacity 17 l – 4.5 gallon (US)
Number of seats Dual seat
Standard equipment
Riding Modes, Power Modes, Cornering ABS, DTC, DQS up/down, DWC, EBC, Fully RbW, Auto
tyre calibration, Full LED lighting, Ohlins Smart EC with semi-active steering damper, Auxiliary
adjustment buttons, DDA+ with GPS-ready
Additional equipment
Passenger seat and footpegs Kit
90th anniversary equipment
Laser-inscribed numbered billet aluminium top triple clamp, Akrapoviè titanium racing slip-on
exhaust, Carbon fibre rear mudguard, chain guard, shock guard, and heel guards, Lithium battery
with dedicated charger, Dedicated graphics, Gold-color wheels
Warranty
Warranty (months) 24 months unlimited mileage
Maintenance (km/months) 12,000 km (7,500 m)/12 months
Valve clearance adjustment (km) 24,000 km (15,000 m)
Emissions Euro 3
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
