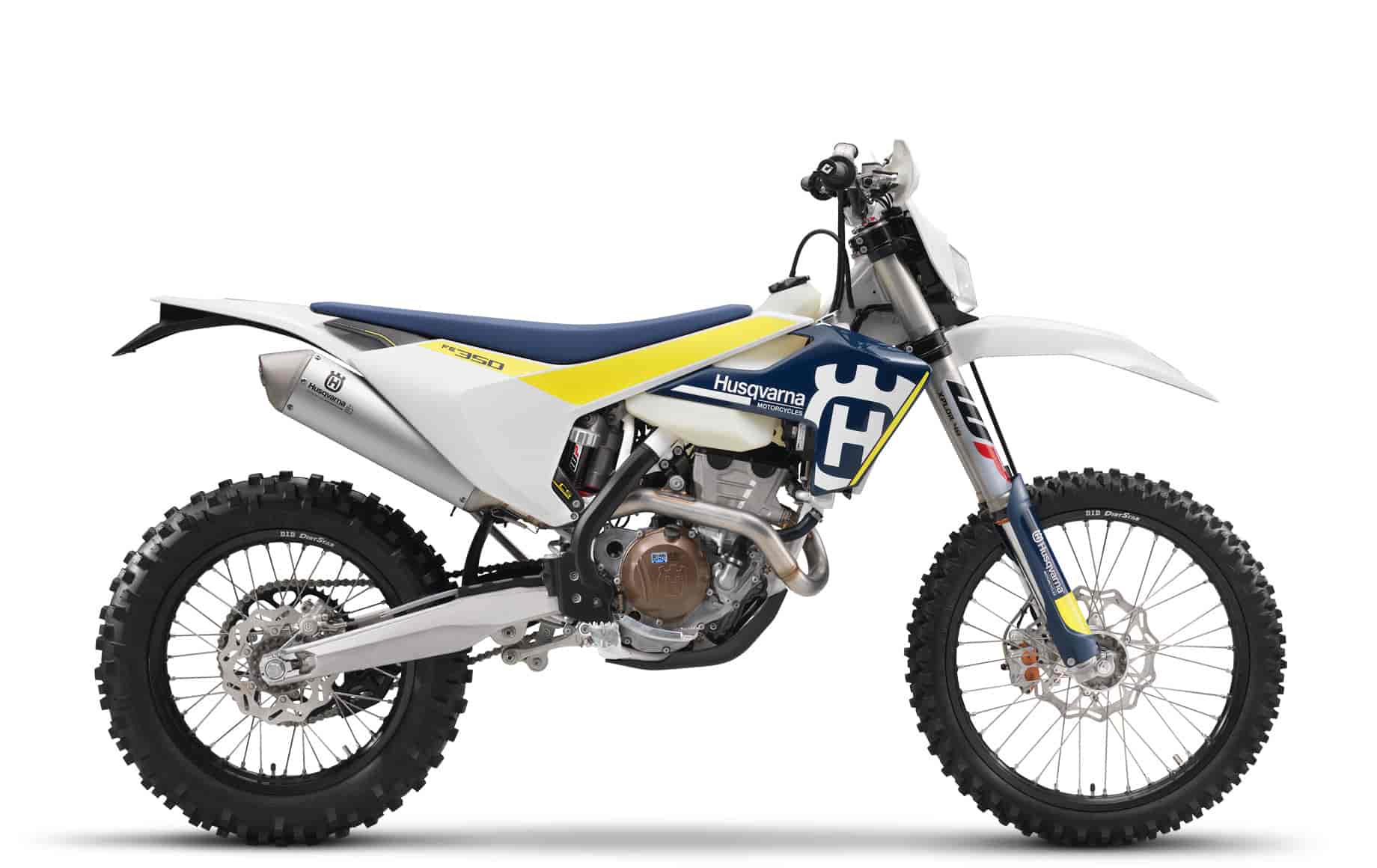

2017 Husqvarna FE350

Back to the 2017 Husqvarna Motorcycle Model Review Page

You have come to the right spot. Total Motorcycle – Built by Riders, For Riders; Enjoy the ride…

2017 Husqvarna FE350
2017 Husqvarna FE350

2017 Husqvarna FE350
2017 Husqvarna FE350

2017 Husqvarna FE350
2017 Husqvarna FE350



2017 Husqvarna FE350 Review

2017 Husqvarna FE350 on www.Totalmotorcycle.com

ENDURO PROGRESSION…

The perfect balance between power, weight and ease-of-use! The epitomy of versatility, the FE 350’s engine has delivery and throttle response similar to a FE 250, but with broad tractable 450 rivalling performance. For 2017, the engine weighs 0.7 kg less than the old design and is also 20 mm shorter. With improved performance, mass centralisation and weight reduction, ride-ability has progressed to new levels. The FE 350 features a new six-speed gearbox with specific wide-range enduro type gearing. A low-friction shifter fork coating assists with shifting precision, while a new gear sensor allows the engine management system (EMS) to select a specific engine map for each gear. The smart new gear-lever design prevents dirt build-up, springing back into position for perfect control.




2017 Husqvarna FE350 www.Totalmotorcycle.com Key Features

Husqvarna Motorcycles has today officially unveiled their complete line-up of all-new enduro models at the historic brand’s homeland in Huskvarna, Sweden.

Embodying Husqvarna’s pioneering spirit, each of the enduro machines has been redesigned from the ground up for 2017. Featuring the most advanced technology they set the benchmark in terms of handling, power, weight and aesthetics.

Introducing completely new design, reduced weight, best-in-class handling and dynamic ergonomics, Husqvarna’s 2-stroke TX 125, TE 250 and 300 and 4-stroke FE 250, 350, 450 and 501 models offer the ideal blend of functionality and Swedish-inspired style.

All 2017 models are equipped with new lighter and more compact engines, with the 4-stroke range featuring unique traction control system as standard. Fitted within redesigned frames the engines offer class-leading performance that’s specifically tailored to ensure a next level enduro riding experience.

Designed to blaze new trails, excel in all conditions and deliver a next-level enduro experience the 2017 Husqvarna enduro range represent the next step for the historic brand’s offroad motorcycle range.

MAJOR CHASSIS UPGRADES

Husqvarna’s 2017 enduro models feature new frames, which ensure increased rider comfort and confidence. Manufactured to the highest standards by WP Performance Systems, the lighter frames offer 20% higher torsional rigidity for improved stability and agility, while longitudinal stiffness is reduced by 30% for improved suspension functionality.

Remaining unique to Husqvarna, the composite subframe has been redesigned to fit the new chassis. Made with 30% carbon fibre, the subframe is 1 kg lighter than the previous part. All 2017 Husqvarna models have CNC machined triple clamps with an offset of 22 mm fitted as standard. Completing the chassis package the new swingarm has a specifically machined rear axle that allows for the chain adjuster markings to be seen from above.

A major update in the suspension department are the all-new WP Xplor 48 front forks. Featuring an open cartridge layout with a spring in each leg and split damping functions, all adjusters – including an innovative pre-load adjuster as standard – are situated on top of each fork leg. At the rear WP’s new DCC linkage shock is 0.36 kg lighter than the previous version.

Positioned 6 mm higher than on Husqvarna’s motocross bikes, new self-cleaning footpeg mounts prevent dirt build-up. Along with the new ODI lock-on grips and adjustable throttle assembly (4-strokes), they ensure an improved riding experience.

High quality Brembo callipers and controls combine with GSK discs to deliver optimum stopping power. The rear brake features a 24 mm piston (26 mm on previous models) and a 10 mm longer rear brake lever for better control while braking.

The airbox has a new design with precisely positioned inlet ducts aimed at preventing air deformation and ensuring maximum airflow and protection. The filter cage now features a simple fail proof mounting system for safe and accurate filter installation.

With futuristic new bodywork all models feature Swedish-inspired design and striking blue and yellow colours.

HUSQVARNA MY17 ENDURO CHASSIS HIGHLIGHTS
=>New frame with optimised geometry
=>WP Xplor 48 front fork designed specifically for enduro
=>Three-piece subframe made from composite materials
=>Swingarm design optimised for easy chain adjustment
=>Completely new bodywork with modern colours & graphics
=>Self-cleaning footpeg mounts
=>Longer rear brake lever
=>ODI lock-on grips
=>New airbox design

4-STROKES THAT REACH NEW HEIGHTS

For 2017 all of Husqvarna’s 4-stroke enduro machines feature redesigned engines that reach new standards in terms of performance and reliability. Focused on providing enduro specific and rider-friendly power characteristics, all engines are lighter and more compact. Fitted as standard, unique traction control system allow further adjustment of engine characteristics to perfectly suit rider preference and track conditions.

In repositioning major engine components Husqvarna Motorcycles’ engineers have managed to further enhance both the performance and handling of these new bikes. The 2017 Husqvarna FE models feature reworked cylinder heads, updated cylinders and new crankshafts, which ensure optimum durability and guarantee long service intervals of 135 hours.

The Keihin Engine Management System (EMS) on all 4-strokes is specifically designed to be smaller, lighter and faster at processing data. It integrates selectable engine maps via the switch on the handlebar as well as traction control. Combined with the new gear sensor, power delivery is tailored for each gear.

An all-new Keihin 42 mm throttle body sees its injector placed to provide an even more efficient flow of fuel to the combustion chamber.

All 4-stroke models are also fitted with updated header pipes and shorter mufflers, which are now placed 50 mm closer to the engine. The redesigned enduro-specific gearbox now has a gear sensor that allows for specific engine mapping for each gear.

All the latest updates in the 2017 FE engines have brought significant weight savings, ranging from 0.7 kg to 1.7 kg.

HUSQVARNA MY17 ENDURO 4-STROKE MODELS HIGHLIGHTS
=>New engine design focusing on mass-centralisation
=>Increased power & torque across the range
=>Traction control system as standard
=>Standard map switch
=>Faster data processing Keihin EMS
=>Gear sensor allowing for specific engine maps
=>Revised injector positioning
=>New header pipes, shorter mufflers
=>New crankshafts
=>Longer service intervals of 135 hours
=>Massive weight savings







2017 Husqvarna FE350 www.Totalmotorcycle.com Features and Benefits

Chromoly steel frame

While keeping the same successful geometry from MY 16, the hydro-formed, laser-cut and robot-welded frame is expertly crafted by WP Performance Systems. The 6mm wider and 2 mm lower steel tubes offer 20% higher torsional rigidity while longitudinal stiffness is reduced by 30%. The increased torsional rigidity improves stability and agility while reducing the longitudinal stiffness creates increased flexibility for better bump absorption and suspension functionality. The new frame weighs only 8.8 kg making it 0.6 kg lighter than its predecessor.

Composite carbon fibre subframe

The composite subframe is a design unique to Husqvarna motorcycles showcasing pioneering technology and innovation. This 3 piece component is made up of 30% carbon fibre making it remarkably light (1.4 kg) saving 1 kg over the previous design. Specific care is taken to create a calculated rigidity for optimal handling and rider ergonomics.

Magura hydraulic clutch

The FE 350 now features a new Magura hydraulic clutch system . The high quality German-made clutch system guarantees perfect modulation of the clutch in every condition. This means that the play is constantly compensated so that the pressure point and the function of the clutch remain identical in cold or hot conditions and over time. The Magura clutch also features even wear characteristics and is nearly maintenance-free.

Brembo brakes

Class-leading Brembo callipers and controls with high quality GSK discs deliver superior stopping power instilling confidence in all situations. For MY17, the rear brake calliper uses a smaller piston diameter 24mm instead of 26mm, coupled with a 10mm longer rear brake lever the system delivers improved modulation and feeling.

WP Xplor 48

The WP Xplor 48 front fork is a completely new feature developed by WP Performance Systems specifically for enduro type riding. The forks consist of an open cartridge layout with a spring in each circuit and split damping functions. Compression can be adjusted from the left side and rebound on the right via clickers situated on the top of the fork tube. Additionally, with the standard pre-load adjuster, pre-load can be adjusted by the rider without the use of tools making the new system simple and easy to set up.

WP rear shock

The WP DCC rear shock is designed to provide advanced damping characteristics while keeping to a compact and lightweight design. The new rear shock weighs only 3.7 kg which is 0.36 kg lighter than the previous version. With a pressure balance inside the shock, damping is improved resulting in greater rider comfort and handling while the outer contour of the reservoir increases cooling. The component is also fully adjustable and matched to a linkage system with a specific geometry to deliver the best possible traction and absorption.

CNC machined triple clamps

The 22 mm offset black-anodised CNC machined triple clamps offer premium quality and style standard on all Husqvarna enduro models. The triple clamps have been expertly crafted using superior techniques and materials to provide high levels of quality and reliability. A 2-way handlebar adjustment is standard and allows for customisable ergonomics.

Wheels and tyres

Black high-strength alloy rims by DID are coupled to CNC machined hubs using lightweight spokes and silver anodised aluminium nipples. Fitted to the wheels are new Metzeler 6 days extreme tyres which offer superior grip on a wide variety of terrain.

42 mm throttle body

The FE 350 features an all-new 42 mm Keihin throttle body. The injector position is revised and placed to ensure the most efficient flow of fuel into the combustion chamber. Additionally, the throttle cable is mounted directly without a throttle linkage providing more immediate throttle response and feeling while also saving 100g.

Map switch and traction control

The new map switch allows the rider to select between two engine maps. Optimised for easier operation, the map switch also activates a new traction control feature. This can be selected to an on or off position from the switch and functions by analysing throttle input from the rider and the rate at which RPM increases in the engine. If the RPM increases too quickly, the ECU will register a loss of grip and reduce the amount of power to the rear wheel ensuring maximum traction.

Gear position sensor

The FE 350 features a new 6-speed gearbox with specific wide-range enduro type gearing. The shifting fork now employs a special low friction coating to ensure smooth and precise shifting. A new gear sensor allows the EMS to deliver the optimal power delivery by selecting a specific engine map tailored for each gear.

Electric starter

A standard electric starter guarantees easy starting. The FE 350 is fitted with a new starter motor made by Mitsuba and is combined with a new Li-Ion battery saving 1 kg over the previous conventional battery.

Engine

The new DOHC 350cc engine is second to none in terms of versatility. Sharing much of its architecture with the FE 250 engine, the FE 350 is delivers a significant boost of power and torque giving its lightweight character 450-rivalling power. The new design is now 20mm shorter and 0.7 kg lighter than its predecessor weighing in at only 28.5 kg with an electric starter.

Crankshaft

The new crankshaft is not only stiffer but also features a shorter connecting rod. The shorter stroke allows the engine to rev more freely resulting in a quick and responsive power delivery. The plain big end bearing features two force-fitted bearing shells ensuring maximum reliability and durability, guaranteeing long service intervals of 135 hours.

Crankcase

The crankcase is engineered to house the shaft arrangements at the ideal centre of gravity. The clutch shaft position has moved 11.1mm back and 26.9mm up making the engine 20mm shorter in total. The casings are manufactured using a high-pressure die cast production process, resulting in thin wall thickness while retaining exceptional reliability. The iconic Husqvarna logo adorns the bronze finished crankcase covers.

Integrated cooling system

The radiators are expertly crafted by WP Performance Systems using high strength aluminium. CFD (computational fluid dynamics) is utilized to channel air through the radiators more efficiently and provide optimal cooling in all conditions. The cooling system is integrated into the frame increasing heat dissipation by channelling coolant through the frame while eliminating the need for additional hoses. Additionally, the radiator protectors do not only protect against flying debris but also act as a brace divert any energy from an impact around the radiator and into the frame.




2017 Husqvarna FE350 – www.Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: See dealer for Pricing in USD

Engine
Design 1-cylinder, 4-stroke engine
Displacement 349.7 cm³
Bore 88 mm
Stroke 57.5 mm
Starter Electric starter
Transmission 6-speed
Clutch Wet, DDS multi-disc clutch, Magura hydraulics
EMS Keihin EMS

Chassis
Frame design 25CrMo4 steel central-tube frame
Front suspension WP-USD Xplor 48 with preload adjuster
Rear suspension WP shock absorber with linkage
Suspension travel (front) 300 mm
Suspension travel (rear) 330 mm
Front brake Brembo twin-piston floating calliper, brake disc
Rear brake Brembo single-piston floating calliper, brake disc
Front brake disc diameter 260 mm
Rear brake disc diameter 220 mm
Chain X-Ring 5/8 x 1/4″
Steering head angle 63.5 °
Ground clearance 370 mm
Seat height 970 mm
Tank capacity (approx.) 8.5 l
Weight without fuel 106.8 kg








2017 Husqvarna FE350 – www.Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: See dealer for pricing in CDN

Engine
Design 1-cylinder, 4-stroke engine
Displacement 349.7 cm³
Bore 88 mm
Stroke 57.5 mm
Starter Electric starter
Transmission 6-speed
Clutch Wet, DDS multi-disc clutch, Magura hydraulics
EMS Keihin EMS

Chassis
Frame design 25CrMo4 steel central-tube frame
Front suspension WP-USD Xplor 48 with preload adjuster
Rear suspension WP shock absorber with linkage
Suspension travel (front) 300 mm
Suspension travel (rear) 330 mm
Front brake Brembo twin-piston floating calliper, brake disc
Rear brake Brembo single-piston floating calliper, brake disc
Front brake disc diameter 260 mm
Rear brake disc diameter 220 mm
Chain X-Ring 5/8 x 1/4″
Steering head angle 63.5 °
Ground clearance 370 mm
Seat height 970 mm
Tank capacity (approx.) 8.5 l
Weight without fuel 106.8 kg






2017 Husqvarna FE350 – www.Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: £7849 GBP (On The Road inc 20% Vat)

Engine
Design 1-cylinder, 4-stroke engine
Displacement 349.7 cm³
Bore 88 mm
Stroke 57.5 mm
Starter Electric starter
Transmission 6-speed
Clutch Wet, DDS multi-disc clutch, Magura hydraulics
EMS Keihin EMS

Chassis
Frame design 25CrMo4 steel central-tube frame
Front suspension WP-USD Xplor 48 with preload adjuster
Rear suspension WP shock absorber with linkage
Suspension travel (front) 300 mm
Suspension travel (rear) 330 mm
Front brake Brembo twin-piston floating calliper, brake disc
Rear brake Brembo single-piston floating calliper, brake disc
Front brake disc diameter 260 mm
Rear brake disc diameter 220 mm
Chain X-Ring 5/8 x 1/4″
Steering head angle 63.5 °
Ground clearance 370 mm
Seat height 970 mm
Tank capacity (approx.) 8.5 l
Weight without fuel 106.8 kg

The illustrated vehicles may vary in selected details from the production models and some illustrations feature optional equipment available at additional cost. All information concerning the scope of supply, appearance, services, dimensions and weights is non-binding and specified with the proviso that mistakes, printing, setting and typing errors may occur; such information is subject to change without notice.

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
