2017 Suzuki TU250X Review

2017 Suzuki TU250X on www.Totalmotorcycle.com

The Suzuki GW250 is an intelligent motorcycle in a class of its own…

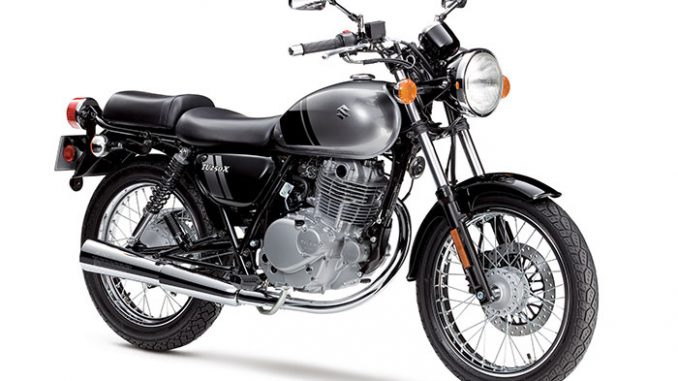

Tradition comes alive in the 2017 Suzuki TU250X. With classic styling, including spoked wheels, a round headlight, sweptback muffler layered with plenty of chrome, it’s designed to remind everyone that motorcycling is all about fun. The fun continues every time you ride, thanks to its light, agile handling and smooth performance. Best of all, it offers all that with an eye on economical ownership.

Get a grip on a whole new standard. Striking looks. Comfort. Power. Versatility. Our standards deliver easy ergonomics, modern style, and metro muscle in dynamite packages. Whatever type of riding you prefer, our standards can handle it.

*This model is not available in California.

2017 Suzuki TU250X www.Totalmotorcycle.com Key Features

Classic single cylinder air-cooled engine styling is matched perfectly to front and rear spoke wheels with chrome-plated rims

Chrome plating also sets off the headlight case, speedometer cover, tail lamp housing and front fork outer tubes

Richly polished crank case side cover produces a beautiful, high quality look

New gray and black paint scheme with contrasting stripes complements the bike’s classic sports appeal

2017 Suzuki TU250X www.Totalmotorcycle.com Features and Benefits

Engine Features
249cc, air-cooled four-stroke, single-cylinder, SOHC engine with Suzuki’s industry leading fuel injection system is tuned for strong low-end torque that’s well-suited for city riding

Suzuki Composite Electrochemical Material (SCEM) plated cylinder for improved durability, light weight reduction and superior heat dissipation

Suzuki Dual Throttle Valve (SDTV) fuel injection system, featuring a 32mm throttle body, provides superb throttle response, smooth power delivery and reduced emissions

PAIR (Pulsed-AIR) system injects fresh air into the exhaust port to ignite unburned hydrocarbons, further reducing emissions

Digital ignition provides optimum spark timing for increased efficiency and crisp throttle response

Exhaust system has a discreet catalytic converter and an oxygen sensor feedback system that contributes to precise fueling and reduced exhaust emissions

Easy-pull clutch makes gear shifting precise and take offs smooth

Smooth-shifting 5-speed transmission has gear ratios appropriate for a wide variety of riding

Chassis Features
Diamond-style steel tube frame is lightweight and strong, producing confident and agile handling

The 3.2-gallon fuel tank and fuel-efficient engine provide excellent riding range

Front disc brake with dual-piston caliper and rear drum brakes offer strong braking capabilities

Low 30.3 inch seat height and compact chassis provide confidence-inspiring performance for beginning or smaller riders

Two piece rider and passenger seat further emphasizes the bike’s classic look

Additional Features
Full lighting system and easy-to-read instrumentation include a trip meter

A variety of Genuine Suzuki Accessories for TU250X owners are available including a large selection of Suzuki logo apparel

12-month limited warranty. Longer coverage periods with other benefits are available through Suzuki Extended Protection (SEP)

*Not available in California

2017 Suzuki TU250X – www.Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $4399 USD.

Engine
Engine 249cc, 4-stroke, air-cooled, single cylinder, OHC
Bore x Stroke 72.0 mm (2.835 in) x 61.2 mm (2.409 in)
Compression Ratio 9.2 : 1
Fuel System Suzuki fuel injection
Starter Electric
Lubrication Wet sump
Drive Train
Transmission 5-speed constant mesh
Final Drive Chain, DID520V, 108 links

Chassis
Suspension Front Telescopic, coil spring, oil damped
Suspension Rear Swing arm type, coil spring, oil damped
Brakes Front Disc brake
Brakes Rear Drum brake
Tires Front 90/90-18 M/C 51S, tube type
Tires Rear 110/90-18 M/C 61S, tube type
Fuel Tank Capacity 12.0 L (3.2 US gal)
Color Metallic Oort Gray No.3 / Glass Sparkle Black

Electrical
Ignition Electronic ignition (transistorized)
Headlight 12V 60/55W H4
Tail Light 12V 21/5W
Dimensions and Curb Weight
Overall Length 2070 mm (81.5 in)
Overall Width 750 mm (29.5 in)
Overall Height 1075 mm (42.3 in)
Wheelbase 1375 mm (54.1 in)
Ground Clearance 165 mm (6.5 in)
Seat Height 770 mm (30.3 in)
Curb Weight 148 kg (326 lbs)

Warranty
Warranty 12-month, unlimited mileage, limited warranty*
Extensions *Extensions available through Suzuki Extended Protection (SEP)

2017 Suzuki TU250X – www.Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $TBA CDN

TBA

2017 Suzuki TU250X – www.Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: £3599 GBP (On The Road inc 20% Vat)

Dimensions and Weights

Overall length: 2145mm (84.4in)
Overall width: 760mm (29.9in)
Overall height: 1075mm (42.3in)
Wheelbase: 1430mm (56.3in)
Seat height: 780mm (30.7in)
Kerb Mass: 183.0kg (403.4lbs)
Fuel capacity: 13.3litres (2.9 UK gallons)
Ground clearance: 165mm (6.5in)

Engine Specifications

Engine capacity: 248cc
Engine: Four stroke, liquid-cooled, SOHC
Bore: 53.5×55.2
Compression ratio: 11.5:1
Lubrication: wet Sump
Fuel system: fuel injection
Transmission: 6-speed constant mesh
Drive: chain
MPG: 85.87*
Power: 18.00kW @ 8500rpm (24.00hp)†
Torque: 22.00N.m @ 6500rpm (16.00lb.ft)†

Chassis Specification

Front suspension: Telescopic, coil spring, oil damped
Rear suspension: Swingarm type, coil spring, oil damped
Front brakes: Disc
Rear brakes: disc
Front tyres: 110/80-17 M/C 57H, tubeless
Rear tyres: 140/70-17 M/C 66H, tubeless

2017 Suzuki TU250X – www.Totalmotorcycle.com Australia Specifications/Technical Details
Australia MSRP Price: $ See dealer for pricing.

ENGINE SINGLE CYLINDER, 4 STROKE, AIR COOLED, SOHC
STARTER ELECTRIC
TRANSMISSION 5-SPEED CONSTANT MESH
FRONT SUSPENSION 37MM TELESCOPIC, OIL SPRING, COIL DAMPED
REAR SUSPENSION SWINGARM TYPE, COIL SPRING, OIL DAMPED
FRONT BRAKES TOKICO TWIN-PISTON CALIPER, 275MM DISC
REAR BRAKES DRUM
FUEL CAPACITY 12 LITRES
COLOURS METALLIC ORANGE / GLOSS BLACK
WARRANTY 2 YEAR UNLIMITED KILOMETRE
SEAT HEIGHT 770 MM
LENGTH 2070 MM
WIDTH 750 MM
HEIGHT 1075 MM
WET WEIGHT 148 KG
WHEELBASE 1375 MM
MODEL CODE TU250XL6

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
