2018 Kawasaki Vulcan 1700 Voyager ABS Review

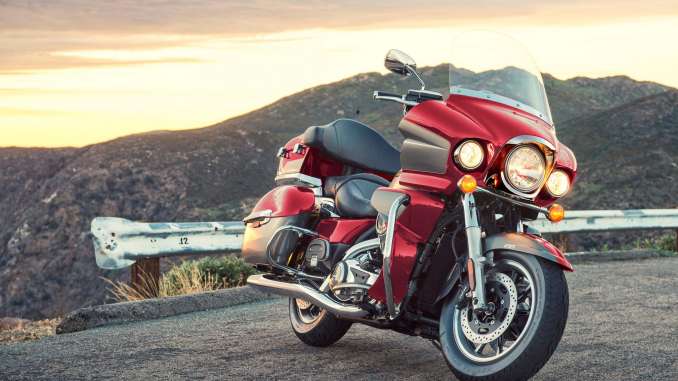

2018 Kawasaki Vulcan 1700 Voyager ABS

2018 Kawasaki Vulcan 1700 Voyager ABS 2018 Kawasaki Vulcan 1700 Voyager ABS 2018 Kawasaki Vulcan 1700 Voyager ABS 2018 Kawasaki Vulcan 1700 Voyager ABS

HAIL TO THE KING, BABY.

2018 Kawasaki Vulcan 1700 Voyager ABS Review on Total Motorcycle:

The Vulcan® 1700 Voyager®’s large frame-mounted fairing, high-capacity integrated luggage with passenger backrest, comfortable saddle, electronic cruise control and sound system makes it the perfect touring cruiser for roaming the country or cruising city to city.

Designed for those riders who set their sights beyond the horizon, the Vulcan 1700 Voyager offers everything needed for comfortable long-distance touring with or without a passenger. Offering a metric alternative to V-Twin tourers, the Vulcan 1700 Voyager combines Kawasaki reliability with the performance, comfort and amenities that long-distance touring riders demand.

THE KING OF KAWASAKI CRUISERS, THE VULCAN® 1700 VOYAGER® ABS IS THE PINNACLE OF POWER AND LUXURY ON THE OPEN ROAD. A 1,700cc FUEL-INJECTED ENGINE WITH CRUISE CONTROL COMMANDS THE ROAD WHILE A HOST OF PREMIUM TOURING AMENITIES GIVES YOU AND YOUR PASSENGER THE COMFORT TO GO THE DISTANCE.

•Fuel-injected 52-degree 1,700cc V-twin delivers high torque levels with a powerful and distinct V-twin feel
•Electronic cruise control system can be activated in third gear or at any speed between 30mph and 85mph
•Kawasaki Advanced Coactive-braking Technology (K-ACT II) ABS helps ensure ideal brake force distribution for confident, highly-effective braking
•Stylish, frame-mounted fairing keeps steering feel light by directing aerodynamic forces into the chassis
•Touring amenities such as an intercom-headset compatible audio system and integrated luggage
•Comes with a 36-month limited warranty

THE CRUISERS THAT DEFINE DEPENDABILITY, COMFORT AND STYLE
Kawasaki continues to lead the industry in comfort and produce high performing, incredibly versatile and dependable motorcycles with its stylish 2018 Vulcan® model lineup. With two engine displacements available there is a Vulcan for anyone looking for a touring motorcycle.

Powered by a V-twin 903cc engine offering excellent performance, traditional styling and modern dependability, the Vulcan® 900 cruiser delivers far more substance than anticipated and sets the bar high in the mid-weight cruiser category.

For riders looking for the ultimate long-distance machine, Kawasaki offers the Vulcan® 1700 family of motorcycles. The Vulcan® 1700 Vaquero® ABS and Vulcan® 1700 Voyager® ABS present riders with a classic V-twin experience equipped with Kawasaki dependability. All Vulcan 1700 models are backed by a three-year limited warranty, with additional protection available for up to 36 months through the optional Kawasaki Protection Plus™ plan.

The Vulcan® 900 Classic motorcycle is a mid-sized cruiser that offers a comfortable ride in combination with timeless good looks and a liquid-cooled V-twin engine. The motorcycle features dual slash-cut mufflers and a sound that stirs the soul as it cruises the road. A rugged and reliable belt final drive on the Vulcan 900 Classic cruiser keeps the overall weight down and improves rear-end styling. In 2018 this model is available in Metallic Matte Carbon Gray/Metallic Matte Graphite Gray.

The Vulcan® 900 Classic LT, a V-twin-powered cruiser, is equipped with a distinctive fat 180/70×15 rear tire and has the necessary touring goods to get you to your destination in comfort and style. Both rider and passenger will appreciate the large, adjustable windshield, the deep-dyed saddlebags, and passenger backrest. In 2018, the Vulcan 900 Classic LT is available in Candy Cardinal Red/Metallic Graystone.

The Vulcan® 900 Custom styling exudes attitude, from its tall front tire to blacked-out mufflers. In addition, the low-slung gunfighter-type seat, massive rear tire, stylish front-end accentuated by a thin 21” cast wheel and meticulously sculpted bodywork are standout features. The Vulcan 900 Custom motorcycle is available in Candy Lime Green/Metallic Spark Black.

The features of the Vulcan 1700 Vaquero ABS motorcycle add up to a truly top-of-the-line bagger, encompassing a perfect combination of functionality across a wide range of environments, from inner-city running to cruising down the open road. The Vulcan 1700 Vaquero ABS motorcycle is available in Metallic Spark Black.

The Vulcan 1700 Voyager ABS motorcycle is intended for riders who seek modern comfort and plenty of technology as well as the legendary Kawasaki dependability. With its ample storage capacity and large fuel tank, the 2018 Kawasaki Vulcan 1700 Voyager ABS is equipped to reach destinations with ease, and its range of features will help the rider to arrive in comfort. In 2018, the Vulcan Voyager ABS motorcycle is available in Candy Cardinal Red/Metallic Graystone.







2018 Kawasaki Vulcan 1700 Voyager ABS Totalmotorcycle.com Key Features

•  MUSCULAR V-TWIN ENGINE
• FRAME-MOUNTED FAIRING WITH FULL-FEATURE AUDIO SYSTEM
• ADVANCED COACTIVE-BRAKING TECHNOLOGY (K-ACT) SYSTEM WITH ABS
• ELECTRONIC CRUISE CONTROL
• 36-MONTH FACTORY WARRANTY







2018 Kawasaki Vulcan 1700 Voyager ABS Totalmotorcycle.com Features and Benefits

V-Twin Engine
•Long stroke, liquid-cooled, SOHC engine designed to deliver high levels of torque.
•Liquid-cooled A/C generator reduces the temperature of generator stator coils and thus increases output to handle additional accessories.
•Semi-dry sump(KP) design reduces overall engine height and keeps excess oil away from the crank to prevent power-robbing stirring loss. Oil is stored in the transmission, which eliminates the need for an oil tank. Triple oil pumps (2 scavenge and 1 feed pump) help reduce stirring loss and provide superb oil circulation.
•Water jackets surround only the top quarter of the cylinders and the polished-edge fins match the cylinder heads while attractively tapering to the cylinder bases.
•High-performance forged pistons(KP) are lightweight, stronger and more heat resistant than cast versions. Oil jets help cool the pistons for added durability.
•Dual primary engine balancers (KP) and rubber engine mounts (KP) help isolate high-frequency vibration while providing the rider with the core power-pulse feeling of the muscular engine.
•Single-pin crankshaft for that classic V-twin rumble and characteristic pulse.
•A cam damper mounted to the end of the crankshaft protects the drive train by damping large torque fluctuations yet helps emphasize the pleasant torque pulse.

Digital Fuel Injection (KP)
•Dual 42mm throttle bodies with Atomizing Fuel Injectors produce a fine fuel mist for better combustion and fuel consumption.

Electronic Throttle Valve (ETV) (KP)
•The throttle pulley operates an acceleration position sensor (APS) that uses the ECU to send a signal to a small motor that actually operates the throttle valves. This makes throttle pull very light for reduced rider fatigue and the more precise throttle control results in better performance, smoother running and increased fuel mileage.
•Using a cable-operated APS eliminates expensive switch housing electronics that can be damaged and costly to replace should the motorcycle get tipped on its right side.

Electronic Cruise Control
•Works in conjunction with the ETV to automatically maintain a set speed when in third gear or higher and when traveling between 30 and 85 mph.
•Convenient controls located within easy thumb reach on the right handlebar.

Kawasaki Air Management System (KAMS)(KP)
•Kawasaki Air Management System (KAMS) helps increase rider comfort at a stop. All V-twins present engine heat challenges, especially full dress models with leg shields, since the rear cylinder and exhaust pipe is almost directly under the rider and the rider’s legs. The front shield routes radiator heat down to the ground below the engine, while the rear fan draws air away from the rear cylinder and exhaust pipe and directs it to the ground on the left side of the motorcycle.
•Kawasaki is the first manufacturer to provide, as standard equipment, an effectively designed air management system to help provide a noticeably cooler rider cockpit. This system is particularly
effective in warm weather while stopped in traffic, or for extended periods of low speed operation such as during staging for group rides.



6-Speed Transmission
•Overdrive 6th gear helps reduce rpm at higher speeds and helps increase fuel mileage.
•Gear position sensor communicates with the ECU to help reduce fuel consumption and adjust timing to provide better power feeling, and an indicator on the speedometer allows the rider to monitor current gear position at a glance.

Belt Drive
•Lower unsprung weight than shaft drive to improve ride quality and suspension action.
•Carbon fiber belt provides much more strength than Kevlar while allowing the belt to be narrower.
•More efficient so more power reaches the rear wheel.
•Low maintenance and low noise.
•Large steel box-section backbone frame is very rigid and helps contribute to high stability and lightweight handling at low speeds.
•Low profile reduces seat height for an easier reach to the ground.

Dual Air-Assisted Rear Shocks
•Air shocks provide a wide range of adjustment to match the load or riding preference.
•Special spring rates to match the increased weight of the trunk and saddlebags.

Triple Disc Brakes
•Dual 300mm front discs and a single 300mm rear disc stop with authority.

Kawasaki Advanced Coactive-braking Technology (K-ACT)(KP)
•K-ACT (Kawasaki Advanced Coactive-braking Technology) ABS is a linked brake system that ensures ideal brake force distribution for confident, highly effective braking.
•Electronic system controls brake force distribution between the front and rear brakes to enhance overall braking performance, no matter how hard the front and/or rear brakes are applied.
•Anti-lock Braking System (ABS) is incorporated into K-ACT to help prevent the wheels from locking during hard, straight-up braking for enhanced control.
•For maximum controllability in tight corners or when making U-turns, K-ACT does not engage when braking is initiated at speeds below 12 mph. The ABS disengages at speeds below 4 mph.

Frame – Mounted Front Fairing
•Large front fairing and windshield help block the wind for increased rider comfort.
•The fairing is mounted to the frame to help maintain light steering.
•Retro-style dashboard is located within the fairing with a 1960s-style speedometer and digital audio system display.
•Leg shields on the front engine guards minimize wind on the rider’s legs. Adjustable air intakes allow the rider to control the amount of air reaching the legs for added touring comfort.

Huge Saddlebags and Tail Trunk
•Large trunk is big enough to hold two full-face helmets and provides a convenient backrest for the passenger.
•LED tail/brake lights are located high on the trunk for better visibility to following motorists.
•Locking saddlebags carry an amazing amount of long-distance gear.
•Sturdy saddlebag and trunk locks keep gear secure.
•Large frame-mounted chrome saddlebag guards emphasize cruiser image.

Passenger Footboards
•For maximum comfort on long rides.

CHASSIS

Full Feature Audio System
•Navigation audio prompt capability allows voice prompting audio to be heard through the speakers (or Kawasaki Genuine Accessory Helmet Headsets) when using Garmin Zumo 600/665 GPS. (Kawasaki Genuine Accessory GPS mount, adapter kit and GPS sold separately.)
•AM/FM tuner with front fairing-mounted speakers is standard equipment.
•Easy-to-use audio controls are located within easy thumb reach on the left handlebar.
•Standard audio system is equipped to easily expand with optional iPod™, XM™ tuner, CB radio and rear speakers accessories.

Classic Styling
•LED taillight provides excellent visibility when activated, and makes a strong visual statement with chrome surround.
•Tank, seat, fenders, saddlebags and details designed with a classic 1960‘s feel.
•Adjustable front brake and clutch levers and master cylinders enhance rider comfort and styling.

Electric Speedometer
•Electric design reduces weight and eliminates the front wheel drive unit and cable for a cleaner look.
•Analog speedometer face evokes memories of the ‘60s.
•Digital displays include odometer, trip meter, clock, fuel range and average mpg.
•Gear position indicator makes it easy to determine which gear the transmission is in at a glance.

36-Month Warranty
•Vulcan Voyager models feature a 36-month factory warranty





2018 Kawasaki Vulcan 1700 Voyager ABS – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $17,499 USD

Power
Engine
4-stroke, 52° V-twin, liquid-cooled
Displacement
1,700cc/103.7 cu in
Bore x Stroke
102.0 x 104.0mm
Compression ratio
9.5:1
Maximum Torque
107.6 lb-ft @ 2750 rpm
Fuel System
DFI® 42mm throttle bodies (2)
Ignition
TCBI with digital advance
Transmission
6-speed with overdrive and positive neutral finder
Final Drive
Carbon fiber-reinforced belt
Performance
Front Suspension / Wheel Travel
45mm hydraulic fork/5.5 in
Rear Suspension / Wheel Travel
Swingarm with twin air-assisted shocks, with 4-way rebound damping/3.1 in
Front Tire
130/90×16
Rear Tire
170/70×16
Front Brakes
Dual 300mm discs, dual four-piston calipers, K-ACT II ABS
Rear Brakes
Single 300mm disc, twin-piston caliper, K-ACT II ABS
Details
Frame Type
Steel, double-cradle with box-section single-tube backbone
Rake/Trail
30°/7.0 in
Overall Length
100.8 in
Overall Width
39.2 in
Overall Height
61.0 in
Ground Clearance
5.3 in
Seat Height
28.7 in
Curb Weight
895.2 lb**
Fuel Capacity
5.3 gal
Wheelbase
65.6 in
Color Choices
Candy Cardinal Red/Metallic Graystone
Warranty
36 Month Limited Warranty
Kawasaki Protection Plus™ (optional)
12, 24, or 36 months







2018 Kawasaki Vulcan 1700 Voyager ABS – Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $20,399 CDN

Engine

Displacement  1,700cc  Type  4-stroke, V-Twin  Bore and stroke  102.0 x 104.0 mm  Cooling  Liquid, plus cooling fins  Compression ratio  9.5:1  Valve system  SOHC, 4 valves per cylinder  Fuel system  Digital fuel injection with dual 42 mm throttle bodies  Ignition  TCBI with digital advance  Lubrication  Forced lubrication (semi-dry sump)
Brakes

Front: type  Dual 300 mm discs  Front: calipers  Dual 4-piston caliper  Rear: type  Single 300 mm disc  Rear: calipers  Twin-piston caliper K-ACT ABS
Dimensions

Overall length  2,560 mm (100.8 in.)  Overall width  995 mm (39.2 in.)  Overall height  1,550 mm (61.0 in.)  Wheelbase  1,665 mm (65.6 in.)  Ground clearance  135 mm (5.3 in.)  Seat height  730 mm (28.7 in.)  Curb mass**  406 kg (895.0 lbs.)  Fuel capacity  20 litres (4.4 gal.)
Drivetrain

Transmission  6-speed with overdrive  Final drive  Carbon fiber belt  Primary reduction ratio  1.515 (50/33)  Gear ratio: 1st  3.077  Gear ratio: 2nd  1.900 (38/20)  Gear ratio: 3rd  1.407 (38/27)  Gear ratio: 4th  1.143 (32/28)  Gear ratio: 5th  0.967 (29/30)  Gear ratio: 6th  0.806 (29/36)  Final reduction ratio  2.250 (72/32)  Clutch  Wet multi-disc, manual
Frame

Type  Double-cradle, high-tensile steel  Wheel travel: front  140 mm (5.5 in.)  Tire: front  130/90-B16  Wheel travel: rear  80 mm (3.1 in.)  Tire: rear  170/70-B16  Caster (rake)  30º  Trail  177 mm (7.0 in.)  Steering angle (left/right)  35º / 35º
Performance

Maximum Power‡ 54 kW {73.4 PS} @ 5,000 rpm  Maximum Torque‡ 136 N·m {13.9 kgƒ·m} @ 2,750 rpm
Suspension

Suspension, front  45 mm hydraulic telescopic fork  Suspension, rear  Swingarm with twin air-assisted shocks with 4-way rebound damping
Details

Warranty  36 months warranty





2018 Kawasaki Vulcan 1700 Voyager ABS – Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: £ GBP (On The Road inc 20% Vat)







Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
