2019 Aprilia RSV4 RR Factory 1000 Guide

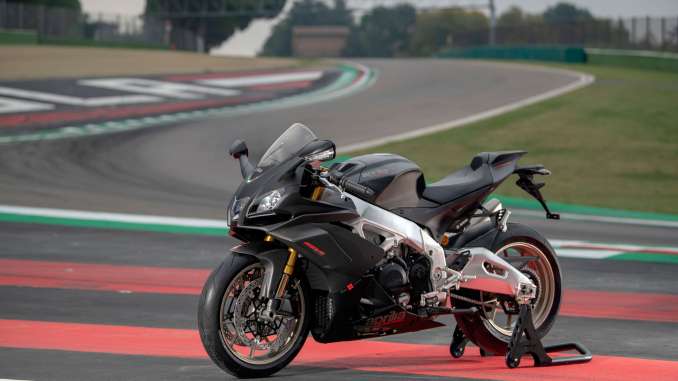

2019 Aprilia RSV4 RR Factory 1000

2019 Aprilia RSV4 RR Factory 1000 2019 Aprilia RSV4 RR Factory 1000 2019 Aprilia RSV4 RR Factory 1000 2019 Aprilia RSV4 RR Factory 1000 2019 Aprilia RSV4 RR Factory 1000 2019 Aprilia RSV4 RR Factory 1000

BEAUTY AND THE BEAST.

2019 Aprilia RSV4 RR Factory 1000:

The RSV4 project has always pursued a stated goal: to be the absolute best and fastest uncompromising superbike, the one that comes the closest to Aprilia racing bikes in terms of performance and effectiveness. A premium product at the top of its category dedicated to extremely demanding customers who want top shelf performance and refined technical equipment, provided thanks in part to the use of prestigious materials like aluminum, titanium and carbon.

Aprilia RSV4 1100 Factory – the latest step in this evolutionary line – boasts exceptional performance combined with a racing frame, suspension, and electronics package, each evolved even further.

In line with the exclusivity of this model, the Aprilia Style Centre has worked hard to make the RSV4 1100 Factory unique and recognizable even by its colors and attention to detail. The color combinations aim to enhance the exclusive nature of prestigious materials such as carbon (on the front mudguard, the side panels, the exhaust terminal guard and the aerodynamic winglets), in contrast with the titanium finish of the street-legal Akrapovic exhaust terminal, the same color as the forged aluminum wheels. For the graphics of the superstructure, an attractive total matt black look was chosen that enhances all the beauty

of the sculpture-like twin-spar frame and swingarm made of aluminum. Given the incredible performance achieved by RSV4 1100 Factory, for the first time on a factory superbike, Aprilia introduces aerodynamic winglets on the fairing, thanks to the developments made by Aprilia Racing on the RS-GP prototype from which they are derived. The particular shape designed in the wind tunnel and the inclination at which they are mounted take advantage of the downforce of the channeled air to let the winglets increase stability at high speeds, contributing to decreasing the tendency for wheelies coming out of turns and at the same time increasing stability in hard braking.

















2019 Aprilia RSV4 RR Factory 1000 Totalmotorcycle.com Key Features

APRILIA RSV4 1100 FACTORY AND RSV4 RR

THE EXTRAORDINARY PROJECT THAT NEVER STOPS GROWING, INTRODUCES THE FASTEST, MOST POWERFUL AND LIGHTEST RSV4 EVER – NEW 217 HP V4 ENGINE

MORE ADVANCED CHASSIS ARCHITECTURE AND BRAKES WITH REDUCED WEIGHT

THE RR VERSION, EQUIPPED WITH A 201 HP 1000 CC V4 ENGINE, IS AVAILABLE IN TWO NEW AND ATTRACTIVE GRAPHIC DESIGNS.

Aprilia RSV4 has always set the bar in terms of sportiness and performance, the best example of just what can be accomplished drawing from the valuable experience of a winning Racing Department like Aprilia’s which, in its brief history, has earned 54 world titles, seven of which in the World SBK championship. Skills honed on the track and transferred to the factory product to provide everyone with the same excitement that the motorbikes prepared by Aprilia Racing do.

Unmistakable in its design lucidity and applied technology, the RSV4 is conceived around a 65° V4 engine never before seen on a factory sport bike, a frame which is the heir to a dynasty that has won 18 titles and 143 Grand Prix races in the 250 GP class, enhanced by the most modern applied electronics systems to manage the engine and the bike’s dynamic performance. This is a true vocation of Aprilia, which was the first manufacturer to adopt the Ride-By-Wire multimap accelerator as standard equipment, but above all the first to patent the APRC dynamic control system, with the exclusive features of self-calibration and wheelie control, in the spirit of maximum effectiveness at the service of top performance.



Record Performance for the Aprilia 1100 V4

With the introduction of RSV4 1100 Factory, Aprilia makes all the top performance a sport rider could desire available, combined with that character and inimitable sound of the V4 from Noale. There is no other powerplant of its kind that can boast a ten-year-long history of wins. A platform capable of satisfying the needs of the most advanced sport rider and also representing an exceptional base to develop a racing bike. After reaching the benchmark of 201 HP in the street-legal factory configuration in 2017, the V4 from Aprilia reaches another evolutionary crossroad, increasing displacement to 1078 cc. This change was decided based on the experience and the outstanding feedback from critics and the public already obtained with this solution on the Tuono V4, the sport naked version of the RSV4 which went from 1000 to 1100 cc in 2015.

The RSV4 1100 Factory engine displacement is achieved thanks to new pistons with bore that went from 78 to 81 mm; the 52.3 mm stroke remains unchanged with respect to the 1000 V4 engine that still powers the RSV4 RR. The compression ratio of 13.6:1 also remains unchanged. To improve wet sump lubrication, there is a new oil pump with greater flow capacity; the piston temperature has now been lowered thanks to the use of a double oil jet. The timing system boasts optimized intake valve timing, while the primary drive now counts on a longer ratio for fifth and sixth gear. The electronic injection system now uses a throttle valve support with a more aerodynamic profile in order to improve fluid-dynamic permeability. The Magneti Marelli 7SM ECU has a new specific map with limiter management set at 13,600 rpm. This brings maximum power to 217 HP at 13,200 rpm, setting the bar in the category; maximum torque also benefits from these changes, obtaining a clear increase along the entire range of more than 10% compared to the 1000 cc engine and reaching a maximum value of 122 Nm at 11,000 rpm. This is an important value that makes the RSV4 1100 Factory not only more effective in acceleration even from low speeds on the track, but also more thrilling to ride on the road. Last, but not least, the exhaust system was optimized, not only in the layout of the manifolds, but also adding the street-legal titanium Akrapovic terminal as standard equipment, significantly lighter than the previous unit. The new Aprilia RSV4 1100 Factory also benefits from finer calibration suited for the revamped performance of its APRC electronic controls package.









2019 Aprilia RSV4 RR Factory 1000 Totalmotorcycle.com Features and Benefits

Chassis: Even More Effective Going Through Corners and in Braking

Aprilia is known as one of the best chassis manufacturers in the world and the RSV4 represents the synthesis of the technical prowess Aprilia has acquired in top level world championships. A particularity

which is still exclusive to the RSV4 RR and Factory (and which has always been a characteristics of the previous generations) is the exceptional range of possible adjustments that the standard equipment chassis is able to provide. In fact, the Aprilia is the only superbike that allows the rider to adjust the engine position in the frame, the headstock angle, the swingarm pivot and the rear end height, naturally in addition to the fully adjustable suspension. Just like a real racing bike.

The ever-popular and winning structure of the Aprilia RSV4 frame has remained unchanged and it takes advantage of the forged and molded aluminum elements capable of guaranteeing exceptional performance, thanks in part to the perfectly balanced rigidity and torsional flexibility values. Precisely because of the wide range of possible adjustments provided by the frame, the frame and suspension setup and the weight distribution on the RSV4 1100 Factory have been revisited. Thanks to new steering bushings (+ 3 mm both upper and lower), the inclination of the headstock decreases, and the offset of the new steering yoke also changes, now reduced by 2 mm. This results in a 4 mm shorter wheelbase. The overall result is that it brings the front end closer to the rider, increasing the load on the front wheel (and therefore stability), but without decreasing agility. One of the points of excellence of the RSV4 (and unequalled to date by any other bike) has always been its performance in the delicate and important braking-turning-cornering speed phase which Aprilia has managed to further amplify on the RSV4 1100 Factory, not only thanks to the changes to the front end, but also thanks to the new setup of the Öhlins NIX fork, with 5 mm more travel (125 mm total), a choice that lets the rider corner even better.

The suspension system is completed by two other prestigious Öhlins elements: the adjustable series TTX shock absorber and the steering damper, also adjustable. In order to guarantee and further increase stability coming out of turns, RSV4 1100 Factory has also undergone some changes to the swingarm which is now stiffer with a significant increase of yaw and torsion, guaranteeing more precision coming out of corners.

The braking system, already top shelf in the previous version, has also benefited from important upgrades: the Brembo Stylema front calipers, lighter and more efficient, take the place of the M50 calipers and are now fitted with pads with higher friction coefficient performance. The new brake calipers can be combined with the pair of carbon air ducts (similar to those used by Aprilia Racing on the RS-GP), which let you keep the operating temperature under control, ensuring the same exceptional braking performance even in the most extreme use. The curb weight of the RSV4 1100 Factory with a full tank is 199 kg, thanks to the introduction of the new titanium exhaust terminal and the new ultra-light Bosch lithium battery.

APRC: From Aprilia, the Cutting-Edge in Electronics

Aprilia RSV4 1000 RR and RSV4 1100 Factory are fitted with an exceptional dynamic controls package designed and patented by Aprilia. Each one of the two models benefit from a specific calibration of all the controls in line with the different performance levels the two bikes can boast. APRC (Aprilia Performance Ride Control) is the well-known dynamic control suite derived directly from the winning technology in world Superbike, one of the most complete and refined currently available on the market. The particular positioning and orientation of the inertial platform that governs the operation of the system

allows for optimum possibilities of detecting the bike’s dynamic conditions and, consequently, more effective electronic control strategies.

The fourth evolution of Aprilia’s APRC is perfectly integrated with the electronic fine tuning guaranteed by the full Ride-by-Wire throttle control which is completely built-in and requires no other components for electronic throttle valve management. This provides clear benefits in terms of weight (compared to a traditional system, the savings can be quantified at 590 grams).

APRC, which comes as standard equipment on the Aprilia RSV4 RR and RSV4 1100 Factory includes:

ATC: Aprilia Traction Control, adjustable on the fly (without having to release the throttle) to 8 settings thanks to a practical joystick, boasts high performance operating logic.

AWC: Aprilia Wheelie Control, the wheelie control system that can be adjusted to 3 levels, has extremely precise operating strategies. Wheelie control can be adjusted on the fly without closing the throttle, like the ATC, thanks to the practical left side electric block.

ALC: Aprilia Launch Control, for use on the track only, with 3 settings, uses highly effective operating strategies.

AQS: Aprilia Quick Shift, the electronic gearbox that allows shifting without closing the throttle and without using the clutch, also equipped with the downshift function, to allow clutchless downshifting. Its open-throttle downshifting feature is exclusive.

APL: Aprilia Pit Limiter, the system that lets you select and limit the top speed allowed in pit lane at the track or simply to make it easier to comply with posted speed limits on the road.

ACC: Aprilia Cruise Control. Electronic management has allowed cruise control to be introduced, very convenient on longer trips because it lets you maintain the set speed without touching the throttle.



In addition to the fourth generation APRC system, RSV4 RR and Factory come from the factory standard with advanced multimap Cornering ABS, developed in collaboration with Bosch to guarantee not only extreme safety on the road, but also the best possible performance at the circuit. The 9.1 MP system, with truly contained weight and dimensions, is able to optimize braking and the ABS intervention in corners, thanks to a specific algorithm that constantly monitors various parameters such as lateral acceleration, the pressure applied to the front brake lever, the lean, pitch and yaw angle, modulating the braking action in order to better guarantee the ratio between deceleration and stability. The ABS system works in unison with the Aprilia RLM (Rear Liftup Mitigation) system that limits the lift of the rear wheel during more abrupt braking. Cornering ABS, fine-tuned in accordance with Aprilia’s specific indications, is adjustable to 3 levels of sensibility. Each of the three Cornering ABS maps can be combined with any of the three engine maps (Sport, Track, Race), allowing riders with different experience and skill levels to find the best possible combination for their style. The three maps are “full power” and differ in the way they unload the power onto the asphalt of which the Aprilia V4 is capable in the two available configurations (1000 cc for the RR and 1100 cc for the Factory), in addition to the percentage of engine brake dedicated to them.

The color TFT instrumentation is a true digital computer with exceptional display features, now further improved thanks to increased brightness. The two selectable screen pages (Road and Race, both

with night and day backlighting) correspond to as many represented indexes. Available as an accessory for both the RSV4 RF and the RSV4 1100 Factory is V4-MP, the Aprilia multimedia platform that lets you connect your smartphone to the vehicle via Bluetooth, introducing for the first time a true corner by corner electronic settings calibration system with data that can subsequently be downloaded to your laptop (or displayed directly on the smartphone) for analysis, just like they do at the races. V4-MP is characterized by a new connection protocol that reduces smartphone battery consumption to a minimum, in addition to providing a wide range of circuits already mapped in which you can manage the electronic settings corner by corner, as well as user acquisition of a new circuit that is not in the list Aprilia has provided. V4-MP also includes the infotainment system, introduced by Aprilia for the first time on the RSV4, to manage voice commands and incoming/outgoing telephone calls with your smartphone. These activities are also displayed and managed by the digital instrumentation.



Wide Range of Accessories

Aprilia has designed and developed a wide range of accessories, so you can personalize your RSV4 RR and RSV4 1100 Factory. High quality selected items to increase performance, make them more attractive or more comfortable.

Slip-on racing exhaust: made by Akrapovic, this item has a titanium silencer and is approved for street use. The carbon slip-on version is also available, exclusively for track use.

Complete racing exhaust: this is an exhaust system complete with headers made by Akrapovic. the muffler is in carbon.

ECU: Engine control unit dedicated to track use, programmed with racing maps. To be used if exhaust systems other than the original are mounted (complete or only slip-on terminal. Street legal or not) not supplied by Aprilia.

Öhlins TTX shock absorber (standard on RSV4 1100 Factory): the TTX line is the most prestigious of the products offered by Öhlins (top and bottom attachments are in billet aluminum). They allow full and fine adjustment in all shock absorbing functions. They can be fitted with linear sensors to install telemetry.

Öhlins steering damper (standard on RSV4 1100 Factory): the fine adjustment of this item’s hydraulics provides a front end that is always solid during the most violent acceleration.

Öhlins NIX Fork: (standard on RSV4 1100 Factory): top shelf performance on the track and on the road. A wide range of precision pre-load and hydraulic rebound and compression adjustments.

Components in carbon: Carbon components: fairings, mudguards and heel guards. Made in matte finished carbon fiber. They guarantee a sporty look and lower overall weight.

Front brake air intakes: these are easily installed on the front braking system, reducing temperatures and maintaining the same braking performance in situations of prolonged stress.

Mirror plugs: made from polyethylene, these are applied in place of the mirrors when using the bike on the track.

License plate hole cover: made of laser cut aluminum, this is applied after removing the license plate bracket when using the bike on the track.

Inverted racing gear lever: this is a mechanical element that inverts the gear shifting mode in order to improve performance on the track.

Forged rims (standard equipment on the RSV4 1100 Factory): made from aluminum with a forging process, these provide maximum resistance at a light weight, essential for increasing handling.

Aluminum racing levers: made in billet aluminum, they give the bike an even more aggressive look and reduce the weight of the factory component.

Mirror plugs: in high resistance plastic material. With laser engraved logos. Allow removal of the mirrors for track use.

Handlebar counterweights: made in billet aluminum. With black nylon plug and laser engraved logos. The particular construction hides the fixing screw.

Tank bag: this bag is made of technical fabric with carbon-look inserts. Tested and approved to resist oil, fuel, UV rays and not to compromise stability even at high speeds.

Adjustable license plate bracket: made in laser-cut steel. Includes the LED license plate light.

Motorcycle cover: made of breathable Lycra, this cover was designed to protect your bike from dust.

Aprilia MIA kit: this is the installation kit for the multimedia platform dedicated to the Aprilia V4 models made up of a Bluetooth control unit and all the wiring needed for installation.







2019 Aprilia RSV4 RR Factory 1000 – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $ USD
Canada MSRP Price: $ CDN
Europe/UK MSRP Price: £ GBP (On The Road inc 20% Vat)
Australia MSRP Price: See Dealer for Pricing in AU



Engine type Aprilia longitudinal 65° V-4 cylinder, 4-stroke, liquid cooling system, double overhead camshafts (DOHC), four valves per cylinder
Bore and stroke 81 x 52.3 mm
Total engine capacity 1,078cc (999,6 cc)
Compression ratio 13.6:1



Maximum power at crankshaft 217 HP (159.6 kW) at 13,200 rpm
Maximum torque at crankshaft 122 Nm at 11,000 rpm
Fuel system Airbox with front dynamic air intakes. 4 Marelli 48-mm throttle bodies with 8 injectors and latest generation Ride-By-Wire engine management.

Choice of three different engine maps selectable by the rider with bike in motion: Track, Sport, Race

Ignition Magneti Marelli digital electronic ignition system integrated in engine control system, with one spark plug per cylinder and “stick-coil”-type coils
Starter Electric
Exhaust 4 into 2 into 1 layout, two lambda probes, lateral single silencer with ECU-controlled bypass valve and integrated trivalent catalytic converter (Euro 4)
Alternator Flywheel mounted 450 W alternator with rare earth magnets
Lubrication Wet sump lubrication system with oil radiator and two oil pumps (lubrication and cooling)
Transmission 6-speed cassette type gearbox

1st: 39/15 (2.600)

2nd: 33/16 (2.063)

3rd: 34/20 (1.700)

4th: 31/21 (1.476)

5th: 34/26 (1.307) [31/23 (1.348)]

6th: 33/27 (1.222) [34/27 (1.259)]

Gear lever with Aprilia Quick Shift electronic system (AQS)

Clutch Multi plate wet clutch with mechanical slipper system
Primary drive Straight cut gears and integrated flexible coupling, drive ratio: 73/44 (1,659)
Secondary drive Chain: Drive ratio: 41/16 (2.562)
Traction management APRC System (Aprilia Performance Ride Control), which includes Traction Control (ATC), Wheelie Control (AWC), Launch Control (ALC), cruise control (ACC) and speed limiter (APT), all of which can be configured and deactivated independently
Frame Aluminum dual beam chassis with pressed and cast sheet elements Available adjustments:

•  headstock position and rake

• engine height

• swingarm pin height



Öhlins adjustable steering damper

Front suspension Öhlins NIX fork with  43 mm stanchions and TIN surface treatment. Aluminum radial caliper mounting bracket. Adjustable spring preload and hydraulic compression and rebound damping. 125 mm wheel travel
Rear suspension Double braced aluminum swingarm; mixed low thickness and sheet casting technology.

Öhlins TTX monoshock with piggy-back, fully adjustable in: spring preload, wheelbase and hydraulic compression and rebound damping. 120 mm  wheel travel.

Brakes Front: Dual 330-mm diameter floating stainless steel disc with lightweight stainless-steel rotor and aluminum flange with 6 pins. Brembo Stylema [M50] monobloc radial calipers with 4 30 mm opposing pistons. Sintered pads. Radial pump and metal braided brake hose.

Rear: 220 mm diameter disc; Brembo caliper with two 32 mm separate pistons . Sintered pads. Pump with integrated tank and metal braided hose

Bosch 9.1 MP ABS with cornering function, adjustable to 3 maps equipped with RLM (Rear wheel Lift-up Mitigation).



Wheel rims Forged aluminum alloy wheels, completely machined, with 5 split spoke design.

Front: 3.5”X17”

Rear: 6”X17”

Tires Radial tubeless.

front: 120/70 ZR 17

rear: 200/55 ZR 17 (alternative: 190/50 ZR 17; 190/55 ZR 17)

Dimensions Wheelbase: 1439 mm

Length: 2052 mm

Width: 735 mm

Saddle height: 851 mm

Headstock angle: 24.5°

Trail: 103.8 mm

Weight: 199 kg  curb weight with a full tank of fuel; dry weight: 177 kg

Consumption 6.50 liters/100 km
CO2 emissions 155 g/km
Fuel tank capacity 18.5 liters (including 4-litre reserve)











2019 Aprilia RSV4 RR Factory 1000 – Totalmotorcycle.com Canada Specifications/Technical Details



Engine type Aprilia longitudinal 65° V-4 cylinder, 4-stroke, liquid cooling system, double overhead camshafts (DOHC), four valves per cylinder
Bore and stroke 81 x 52.3 mm
Total engine capacity 1,078cc (999,6 cc)
Compression ratio 13.6:1



Maximum power at crankshaft 217 HP (159.6 kW) at 13,200 rpm
Maximum torque at crankshaft 122 Nm at 11,000 rpm
Fuel system Airbox with front dynamic air intakes. 4 Marelli 48-mm throttle bodies with 8 injectors and latest generation Ride-By-Wire engine management.

Choice of three different engine maps selectable by the rider with bike in motion: Track, Sport, Race

Ignition Magneti Marelli digital electronic ignition system integrated in engine control system, with one spark plug per cylinder and “stick-coil”-type coils
Starter Electric
Exhaust 4 into 2 into 1 layout, two lambda probes, lateral single silencer with ECU-controlled bypass valve and integrated trivalent catalytic converter (Euro 4)
Alternator Flywheel mounted 450 W alternator with rare earth magnets
Lubrication Wet sump lubrication system with oil radiator and two oil pumps (lubrication and cooling)
Transmission 6-speed cassette type gearbox

1st: 39/15 (2.600)

2nd: 33/16 (2.063)

3rd: 34/20 (1.700)

4th: 31/21 (1.476)

5th: 34/26 (1.307) [31/23 (1.348)]

6th: 33/27 (1.222) [34/27 (1.259)]

Gear lever with Aprilia Quick Shift electronic system (AQS)

Clutch Multi plate wet clutch with mechanical slipper system
Primary drive Straight cut gears and integrated flexible coupling, drive ratio: 73/44 (1,659)
Secondary drive Chain: Drive ratio: 41/16 (2.562)
Traction management APRC System (Aprilia Performance Ride Control), which includes Traction Control (ATC), Wheelie Control (AWC), Launch Control (ALC), cruise control (ACC) and speed limiter (APT), all of which can be configured and deactivated independently
Frame Aluminum dual beam chassis with pressed and cast sheet elements Available adjustments:

•  headstock position and rake

• engine height

• swingarm pin height



Öhlins adjustable steering damper

Front suspension Öhlins NIX fork with  43 mm stanchions and TIN surface treatment. Aluminum radial caliper mounting bracket. Adjustable spring preload and hydraulic compression and rebound damping. 125 mm wheel travel
Rear suspension Double braced aluminum swingarm; mixed low thickness and sheet casting technology.

Öhlins TTX monoshock with piggy-back, fully adjustable in: spring preload, wheelbase and hydraulic compression and rebound damping. 120 mm  wheel travel.

Brakes Front: Dual 330-mm diameter floating stainless steel disc with lightweight stainless-steel rotor and aluminum flange with 6 pins. Brembo Stylema [M50] monobloc radial calipers with 4 30 mm opposing pistons. Sintered pads. Radial pump and metal braided brake hose.

Rear: 220 mm diameter disc; Brembo caliper with two 32 mm separate pistons . Sintered pads. Pump with integrated tank and metal braided hose

Bosch 9.1 MP ABS with cornering function, adjustable to 3 maps equipped with RLM (Rear wheel Lift-up Mitigation).



Wheel rims Forged aluminum alloy wheels, completely machined, with 5 split spoke design.

Front: 3.5”X17”

Rear: 6”X17”

Tires Radial tubeless.

front: 120/70 ZR 17

rear: 200/55 ZR 17 (alternative: 190/50 ZR 17; 190/55 ZR 17)

Dimensions Wheelbase: 1439 mm

Length: 2052 mm

Width: 735 mm

Saddle height: 851 mm

Headstock angle: 24.5°

Trail: 103.8 mm

Weight: 199 kg  curb weight with a full tank of fuel; dry weight: 177 kg

Consumption 6.50 liters/100 km
CO2 emissions 155 g/km
Fuel tank capacity 18.5 liters (including 4-litre reserve)













2019 Aprilia RSV4 RR Factory 1000 – Totalmotorcycle.com European Specifications/Technical Details



Engine type Aprilia longitudinal 65° V-4 cylinder, 4-stroke, liquid cooling system, double overhead camshafts (DOHC), four valves per cylinder
Bore and stroke 81 x 52.3 mm
Total engine capacity 1,078cc (999,6 cc)
Compression ratio 13.6:1



Maximum power at crankshaft 217 HP (159.6 kW) at 13,200 rpm
Maximum torque at crankshaft 122 Nm at 11,000 rpm
Fuel system Airbox with front dynamic air intakes. 4 Marelli 48-mm throttle bodies with 8 injectors and latest generation Ride-By-Wire engine management.

Choice of three different engine maps selectable by the rider with bike in motion: Track, Sport, Race

Ignition Magneti Marelli digital electronic ignition system integrated in engine control system, with one spark plug per cylinder and “stick-coil”-type coils
Starter Electric
Exhaust 4 into 2 into 1 layout, two lambda probes, lateral single silencer with ECU-controlled bypass valve and integrated trivalent catalytic converter (Euro 4)
Alternator Flywheel mounted 450 W alternator with rare earth magnets
Lubrication Wet sump lubrication system with oil radiator and two oil pumps (lubrication and cooling)
Transmission 6-speed cassette type gearbox

1st: 39/15 (2.600)

2nd: 33/16 (2.063)

3rd: 34/20 (1.700)

4th: 31/21 (1.476)

5th: 34/26 (1.307) [31/23 (1.348)]

6th: 33/27 (1.222) [34/27 (1.259)]

Gear lever with Aprilia Quick Shift electronic system (AQS)

Clutch Multi plate wet clutch with mechanical slipper system
Primary drive Straight cut gears and integrated flexible coupling, drive ratio: 73/44 (1,659)
Secondary drive Chain: Drive ratio: 41/16 (2.562)
Traction management APRC System (Aprilia Performance Ride Control), which includes Traction Control (ATC), Wheelie Control (AWC), Launch Control (ALC), cruise control (ACC) and speed limiter (APT), all of which can be configured and deactivated independently
Frame Aluminum dual beam chassis with pressed and cast sheet elements Available adjustments:

•  headstock position and rake

• engine height

• swingarm pin height



Öhlins adjustable steering damper

Front suspension Öhlins NIX fork with  43 mm stanchions and TIN surface treatment. Aluminum radial caliper mounting bracket. Adjustable spring preload and hydraulic compression and rebound damping. 125 mm wheel travel
Rear suspension Double braced aluminum swingarm; mixed low thickness and sheet casting technology.

Öhlins TTX monoshock with piggy-back, fully adjustable in: spring preload, wheelbase and hydraulic compression and rebound damping. 120 mm  wheel travel.

Brakes Front: Dual 330-mm diameter floating stainless steel disc with lightweight stainless-steel rotor and aluminum flange with 6 pins. Brembo Stylema [M50] monobloc radial calipers with 4 30 mm opposing pistons. Sintered pads. Radial pump and metal braided brake hose.

Rear: 220 mm diameter disc; Brembo caliper with two 32 mm separate pistons . Sintered pads. Pump with integrated tank and metal braided hose

Bosch 9.1 MP ABS with cornering function, adjustable to 3 maps equipped with RLM (Rear wheel Lift-up Mitigation).



Wheel rims Forged aluminum alloy wheels, completely machined, with 5 split spoke design.

Front: 3.5”X17”

Rear: 6”X17”

Tires Radial tubeless.

front: 120/70 ZR 17

rear: 200/55 ZR 17 (alternative: 190/50 ZR 17; 190/55 ZR 17)

Dimensions Wheelbase: 1439 mm

Length: 2052 mm

Width: 735 mm

Saddle height: 851 mm

Headstock angle: 24.5°

Trail: 103.8 mm

Weight: 199 kg  curb weight with a full tank of fuel; dry weight: 177 kg

Consumption 6.50 liters/100 km
CO2 emissions 155 g/km
Fuel tank capacity 18.5 liters (including 4-litre reserve)











2019 Aprilia RSV4 RR Factory 1000 – Totalmotorcycle.com Australian Specifications/Technical Details









Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).

About Michael Le Pard 2658 Articles
"Mr. Totalmotorcycle". Owner and Founder of Total Motorcycle. Supporting over Motorcyclists and Motorcycling for 19 great years. Total Motorcycle is my pride and joy and being able to reach out 300 million people has been incredible but I could not have done it without the support of my visitors, readers and members, thank you so much! You are making a difference to millions of riders worldwide. Thank you.
