2019 Harley-Davidson Breakout Guide

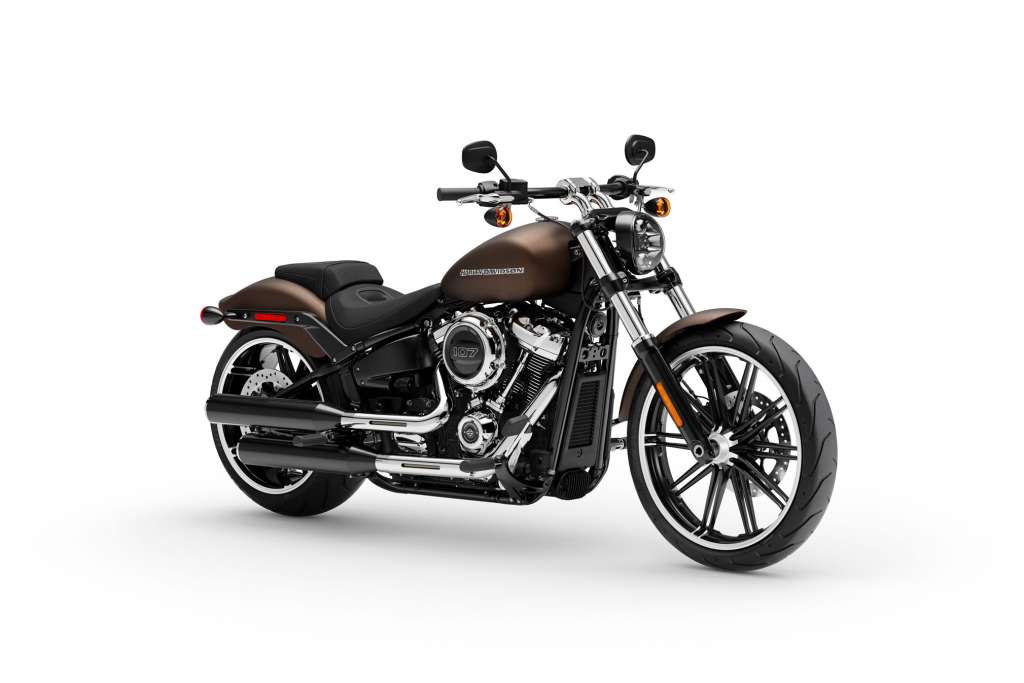

2019 Harley-Davidson Breakout

2019 Harley-Davidson Breakout 2019 Harley-Davidson Breakout 2019 Harley-Davidson Breakout

LONG, LEAN MUSCLE TAKEN TO THE MODERN EDGE.

2019 Harley-Davidson Breakout:

The Breakout® model takes long, lean muscle to the modern edge with the Milwaukee-Eight® 107 or 114 engine that stands out like a flexing bicep. It sends massive torque to the 240mm rear tire. There are custom details from fender to fender. And a re-invented Softail® frame and suspension.

2019 BREAKOUT®

The Breakout is a muscular modern chopper with pure ‘stop you in your tracks’ attitude. Be seen. Be respected. And when the light turns green, be gone.

REACH FOR THE DRAG BARS AND UNLEASH IT ON THE STREET









2019 Harley-Davidson Breakout Totalmotorcycle.com Key Features

SOFTAIL®

One look at the FXDR™ 114 is all it takes to see how far the Softail® family has come. It’s the latest in a new revolution of custom motorcycles we launched last year. With every Softail, you get a lighter frame, responsive new suspension, and the power of the Milwaukee-Eight® v-twin engine. In keeping with the custom tradition, each model has its own attitude and style. Ranging from the blacked-out nostalgia of the Heritage Classic to the futuristic edge of the Fat Bob® and FXDR 114 models. Find the one that fits your style. You’re in for one hell of a ride.

The FXDR™ 114 model combines the power of the Milwaukee-Eight® 114 engine with the latest Softail® frame and a cast aluminum swing arm rear suspension, breaking all-new ground for 2019.



Engine

Milwaukee-Eight®
107 OR 114

Engine Torque

109 ft-lb

Weight, As Shipped

648 lb.

Seat Height, Laden

25.6 in.





2019 Harley-Davidson Breakout Totalmotorcycle.com Features and Benefits

Big twin engine on a 2019 Breakout motorcycle
Milwaukee-Eight® Big Twin Engine

A powerful, smooth-running engine with crisp throttle response and a pure, soul-satisfying rumble. Available in 107 and 114 engine displacements.

Back tire on a 2019 Breakout motorcycle
240mm Rear Tire

A muscular tire that is the perfect embodiment of classic drag-bike heritage pumping through this ride.

Gauge on a 2019 Breakout motorcycle
Digital Riser Gauge

Wide digital instrumentation, mounted on risers to be close to your field of vision. Speed readout, fuel gauge, and gear indicator.

3.5 gallon tank on a 2019 Breakout motorcycle
3.5 Gallon Tank

A smooth top fuel tank that accentuates the big, powerful Milwaukee-Eight® engine.

Softail frame on a 2019 Breakout motorcycle
Softail® Frame

The reinvented frame retains the classic Softail® lines, but its lightweight design and stiffness translate to a responsive ride unlike anything you’ve felt before.

High Performance Front Suspension
Sophisticated suspension technology provides the performance of a racing-style cartridge fork for reduced weight with linear damping characteristics.

High Performance Rear Mono Shock on a 2019 Breakout motorcycle
High Performance Rear Mono Shock

Easily adjustable mono-shock rear suspension allows for dynamic cornering, quick acceleration and braking while preserving the hardtail look.







2019 Harley-Davidson Breakout – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $19049 – $19499
USD
Canada MSRP Price: $22999 – $23499 CDN
Europe/UK MSRP Price: £ GBP (On The Road inc 20% Vat)
Australia MSRP Price: See Dealer for Pricing in AUS

Pricing6

  • Vivid Black $19,049
  • Color $19,449
  • ABS Option Standard
  • Security System Option Standard
  • California Emissions $200
  • Freight $390

Engine

  • Engine 1 Milwaukee-Eight® 107
  • Bore 3.937 in.
  • Stroke 4.374 in.
  • Displacement 1,746 cc (107 cu in)
  • Compression Ratio 10.0:1
  • Fuel System 3 Electronic Sequential Port Fuel Injection (ESPFI)
  • Exhaust 2-into-2 staggered; catalyst in muffler

Dimensions

  • Length 93.3 in.
  • Seat Height, Laden 7 25.6 in.
  • Seat Height, Unladen 26.2 in.
  • Ground Clearance 4.5 in.
  • Rake (steering head) (deg) 34
  • Trail 5.7 in.
  • Wheelbase 66.7 in.
  • Tires, Front Specification 130/60B21,63H,BW
  • Tires, Rear Specification 240/40R18,79V,BW
  • Fuel Capacity 3.5 gal.
  • Oil Capacity (w/filter) 5 qt.
  • Weight, As Shipped 648 lb.
  • Weight, In Running Order 672 lb.

Performance

  • Engine Torque Testing Method J1349
  • Engine Torque 2 109 ft-lb
  • Engine Torque (rpm) 3,000
  • Lean Angle, Right (deg.) 26.8
  • Lean Angle, Left (deg.) 26.8
  • Fuel Economy Testing Method Estimated City/Hwy
  • Fuel Economy 5 47 mpg

Drivetrain

  • Primary Drive Chain, 34/46 ratio
  • Gear Ratios (overall) 1st 9.311
  • Gear Ratios (overall) 2nd 6.454
  • Gear Ratios (overall) 3rd 4.793
  • Gear Ratios (overall) 4th 3.882
  • Gear Ratios (overall) 5th 3.307
  • Gear Ratios (overall) 6th 2.79

Chassis

  • Wheels, Front Type 9 Gloss black, Gasser II cast aluminum
  • Wheels, Rear Type Gloss black, Gasser II cast aluminum
  • Brakes, Caliper Type 4-piston fixed front and 2-piston floating rear

Electric

  • Lights (as per country regulation), Indicator Lamps 8 High beam, turn signals, neutral, low oil pressure, engine diagnostics, ABS, security, low battery voltage, low fuel
  • Gauges 2.14-inch viewable area LCD display with speedometer, gear, odometer, fuel level, clock, trip, range and tachometer indication
2019 Harley-Davidson Breakout – Totalmotorcycle.com Canada Specifications/Technical Details

Pricing6

  • Vivid Black $ 22,999
  • Colour $ 23,449
  • ABS Option Standard
  • Security System Option Standard

Engine

  • Engine 1 Milwaukee-Eight™ 107
  • Bore 100 mm
  • Stroke 111.1 mm
  • Displacement 1,746 cc
  • Compression Ratio 10.0:1
  • Fuel System 3 Electronic Sequential Port Fuel Injection (ESPFI)
  • Exhaust 2-into-2 staggered; catalyst in muffler

Dimensions

  • Length 2,370 mm
  • Seat Height, Unladen 665 mm
  • Ground Clearance 115 mm
  • Rake (steering head) (deg) 34
  • Trail 145 mm
  • Wheelbase 1,695 mm
  • Tires, Front Specification 130/60B21,63H,BW
  • Tires, Rear Specification 240/40R18,79V,BW
  • Fuel Capacity 13.2 l
  • Oil Capacity (w/filter) 4.7 l
  • Weight, As Shipped 294 kg
  • Weight, In Running Order 305 kg

Performance

  • Engine Torque Testing Method J1349
  • Engine Torque 2 148 Nm
  • Engine Torque (rpm) 3,000
  • Lean Angle, Right (deg.) 26.8
  • Lean Angle, Left (deg.) 26.8
  • Fuel Economy: Estimated City/Hwy 5 5 l/100 km

Drivetrain

  • Primary Drive Chain, 34/46 ratio
  • Gear Ratios (overall) 1st 9.311
  • Gear Ratios (overall) 2nd 6.454
  • Gear Ratios (overall) 3rd 4.793
  • Gear Ratios (overall) 4th 3.882
  • Gear Ratios (overall) 5th 3.307
  • Gear Ratios (overall) 6th 2.79

Chassis

  • Wheels, Front Type 9 Gloss black, Gasser II cast aluminum
  • Wheels, Rear Type Gloss black, Gasser II cast aluminum
  • Brakes, Caliper Type 4-piston fixed front and 2-piston floating rear

Electric

  • Lights (as per country regulation), Indicator Lamps 8 High beam, turn signals, neutral, low oil pressure, engine diagnostics, ABS, security, low battery voltage, low fuel
  • Gauges 2.14-inch viewable area LCD display with speedometer, gear, odometer, fuel level, clock, trip, range and tachometer indication



Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
