2019 Harley-Davidson Low Rider Guide

2019 Harley-Davidson Low Rider

2019 Harley-Davidson Low Rider 2019 Harley-Davidson Low Rider 2019 Harley-Davidson Low Rider

RIDE HARD OR STAY HOME.

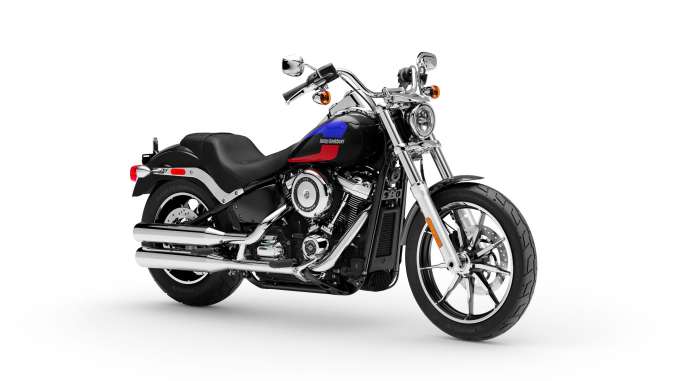

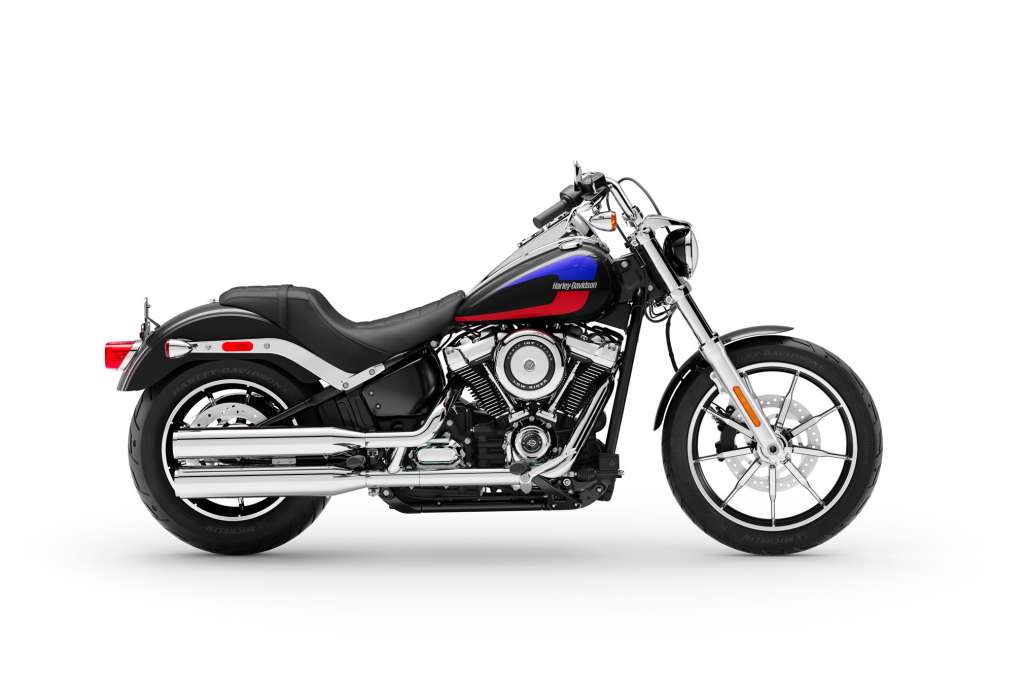

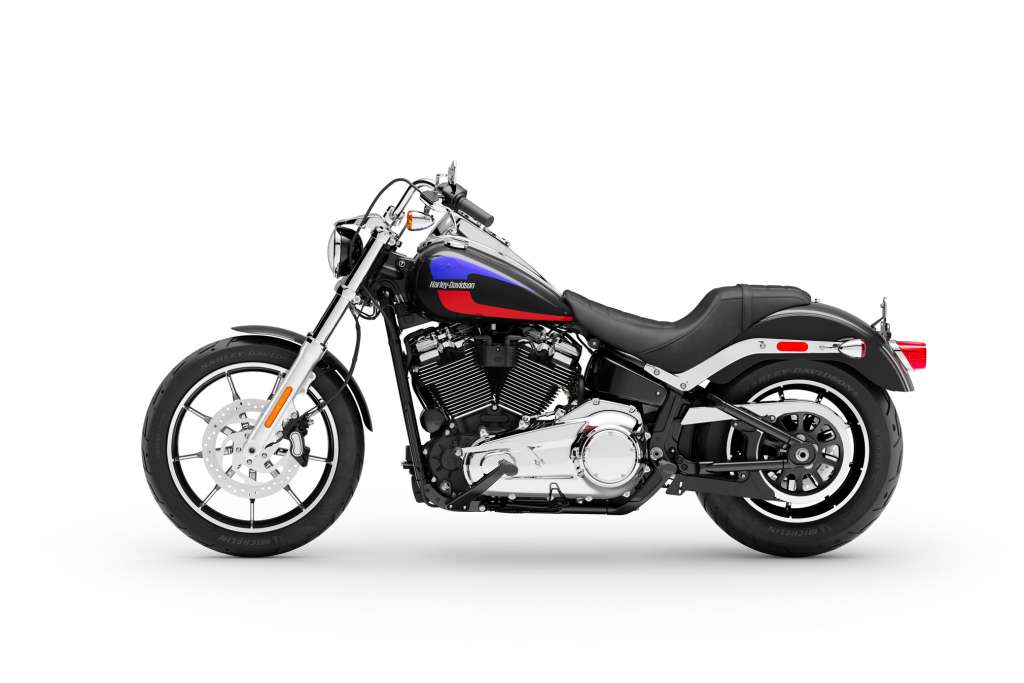

2019 Harley-Davidson Low Rider:

The Low Rider is rugged individualism turned to metal with a rake on its front end, dual tank gauges and ‘70s-inspired graphics.

2019 LOW RIDER®

With styling reminiscent of the original in the ’70s, the tradition of individualism carries on in the powerful Low Rider® motorcycle.

RUGGED INDIVIDUALISM TURNED TO METAL







2019 Harley-Davidson Low Rider Totalmotorcycle.com Key Features

SOFTAIL®

One look at the FXDR™ 114 is all it takes to see how far the Softail® family has come. It’s the latest in a new revolution of custom motorcycles we launched last year. With every Softail, you get a lighter frame, responsive new suspension, and the power of the Milwaukee-Eight® v-twin engine. In keeping with the custom tradition, each model has its own attitude and style. Ranging from the blacked-out nostalgia of the Heritage Classic to the futuristic edge of the Fat Bob® and FXDR 114 models. Find the one that fits your style. You’re in for one hell of a ride.

The FXDR™ 114 model combines the power of the Milwaukee-Eight® 114 engine with the latest Softail® frame and a cast aluminum swing arm rear suspension, breaking all-new ground for 2019.



Engine

Milwaukee-Eight® 107

Engine Torque

110 ft-lb

Weight, As Shipped

633 lb.

Seat Height, Laden

26.2 in.





2019 Harley-Davidson Low Rider Totalmotorcycle.com Features and Benefits

Gas tank on a 2019 Low Rider Motorcycle
Throwback Style

Dual tank mounted gauges, headlight visor and ’70s-inspired tank graphics carry forward the traditional Low Rider motorcycle cues.

Classic Chrome

It’s chromed-out from headlight visor to exhaust.

Front tire with cast wheels on a 2019 Low Rider Motorcycle
Cast Wheels

Bold aluminium wheels that stay true to the modern classic look.

Milwaukee-Eight 107 Engine On a 2019 Low Rider Motorcycle
Milwaukee-Eight® 107 Engine

A powerful, smooth-running V-Twin engine with crisp throttle response and a pure, soul-satisfying rumble.

2019 Harley-Davidson Low Rider Motorcycle Frame
Softail® Frame

The reinvented frame retains the classic Softail® lines, but its lightweight design and stiffness translate to a responsive ride unlike anything you’ve felt before.

Front suspension on a 2019 Low Rider Motorcycle
High Performance Front Suspension

Sophisticated suspension technology provides the performance of a racing-style cartridge fork for reduced weight with linear damping characteristics.

High Performance Rear Mono Shock

Easily adjustable mono-shock rear suspension allows for dynamic cornering capability, quicker acceleration, and braking while preserving the hardtail look.

Front light on a 2019 Low Rider Motorcycle
Signature LED Forward Lighting

Darkness-defying lighting that gives you great visibility at night.





2019 Harley-Davidson Low Rider – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $15049 – $15449
USD
Canada MSRP Price: $18599 – $19049 CDN
Europe/UK MSRP Price: £ GBP (On The Road inc 20% Vat)
Australia MSRP Price: See Dealer for Pricing in AUS

Pricing6

  • Vivid Black $15,049
  • Color $15,449
  • ABS Option $795
  • Security System Option Standard
  • California Emissions $200
  • Freight $390

Engine

  • Engine 1 Milwaukee-Eight® 107
  • Bore 3.937 in.
  • Stroke 4.375 in.
  • Displacement 1,746 cc (107 cu in)
  • Compression Ratio 10.0:1
  • Fuel System 3 Electronic Sequential Port Fuel Injection (ESPFI)
  • Exhaust 2-into-2 shotgun; catalyst in muffler

Dimensions

  • Length 92.7 in.
  • Seat Height, Laden 7 26.2 in.
  • Seat Height, Unladen 27.2 in.
  • Ground Clearance 5.1 in.
  • Rake (steering head) (deg) 30
  • Trail 6.4 in.
  • Wheelbase 64.2 in.
  • Tires, Front Specification 110/90B19,62H,BW
  • Tires, Rear Specification 180/70B16,77H,BW
  • Fuel Capacity 5 gal.
  • Oil Capacity (w/filter) 5 qt.
  • Weight, As Shipped 633 lb.
  • Weight, In Running Order 661 lb.

Performance

  • Engine Torque Testing Method J1349
  • Engine Torque 2 110 ft-lb
  • Engine Torque (rpm) 3,000
  • Lean Angle, Right (deg.) 29.6
  • Lean Angle, Left (deg.) 29.6
  • Fuel Economy Testing Method Estimated City/Hwy
  • Fuel Economy 5 47 mpg

Drivetrain

  • Primary Drive Chain, 34/46 ratio
  • Gear Ratios (overall) 1st 9.311
  • Gear Ratios (overall) 2nd 6.454
  • Gear Ratios (overall) 3rd 4.793
  • Gear Ratios (overall) 4th 3.882
  • Gear Ratios (overall) 5th 3.307
  • Gear Ratios (overall) 6th 2.79

Chassis

  • Wheels, Front Type 9 Black, machine highlighted, Radiate cast aluminum wheel
  • Wheels, Rear Type Black, machine highlighted, Radiate cast aluminum wheel
  • Brakes, Caliper Type 4-piston fixed front and 2-piston floating rear

Electric

  • Lights (as per country regulation), Indicator Lamps 8 High beam, turn signals, neutral, low oil pressure, engine diagnostics, ABS (optional), security, low battery voltage, low fuel
  • Gauges 4-inch analog speedometer with digital gear, odometer, fuel level, clock, trip, range and tachometer indication; 4-inch analog tachometer
2019 Harley-Davidson Low Rider – Totalmotorcycle.com Canada Specifications/Technical Details

Pricing6

  • Vivid Black $ 18,599
  • Colour $ 19,049
  • ABS Option Standard
  • Security System Option Standard

Engine

  • Engine 1 Milwaukee-Eight™ 107
  • Bore 100 mm
  • Stroke 111 mm
  • Displacement 1,746 cc
  • Compression Ratio 10.0:1
  • Fuel System 3 Electronic Sequential Port Fuel Injection (ESPFI)
  • Exhaust 2-into-2 shotgun; catalyst in muffler

Dimensions

  • Length 2,355 mm
  • Seat Height, Unladen 690 mm
  • Ground Clearance 130 mm
  • Rake (steering head) (deg) 30
  • Trail 163 mm
  • Wheelbase 1,630 mm
  • Tires, Front Specification 110/90B19,62H,BW
  • Tires, Rear Specification 180/70B16,77H,BW
  • Fuel Capacity 18.9 l
  • Oil Capacity (w/filter) 4.7 l
  • Weight, As Shipped 287 kg
  • Weight, In Running Order 300 kg

Performance

  • Engine Torque Testing Method J1349
  • Engine Torque 2 149 Nm
  • Engine Torque (rpm) 3,000
  • Lean Angle, Right (deg.) 29.6
  • Lean Angle, Left (deg.) 29.6
  • Fuel Economy: Estimated City/Hwy 5 5 l/100 km

Drivetrain

  • Primary Drive Chain, 34/46 ratio
  • Gear Ratios (overall) 1st 9.311
  • Gear Ratios (overall) 2nd 6.454
  • Gear Ratios (overall) 3rd 4.793
  • Gear Ratios (overall) 4th 3.882
  • Gear Ratios (overall) 5th 3.307
  • Gear Ratios (overall) 6th 2.79

Chassis

  • Wheels, Front Type 9 Black, machine highlighted, Radiate cast aluminum wheel
  • Wheels, Rear Type Black, machine highlighted, Radiate cast aluminum wheel
  • Brakes, Caliper Type 4-piston fixed front and 2-piston floating rear

Electric

  • Lights (as per country regulation), Indicator Lamps 8 High beam, turn signals, neutral, low oil pressure, engine diagnostics, ABS (optional), security, low battery voltage, low fuel
  • Gauges 4-inch analog speedometer with digital gear, odometer, fuel level, clock, trip, range and tachometer indication; 4-inch analog tachometer



Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
