2019 Harley-Davidson Street 500 Guide

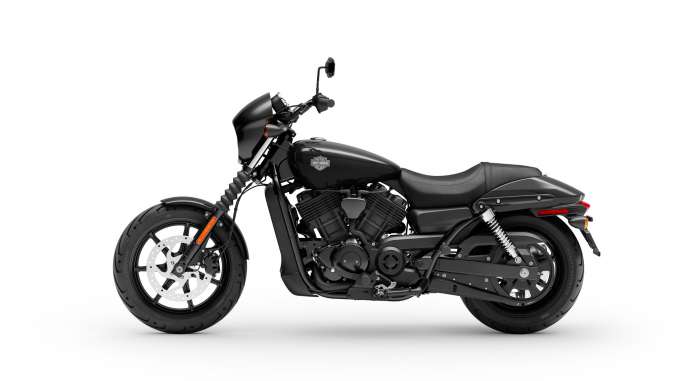

2019 Harley-Davidson Street 500

2019 Harley-Davidson Street 500 2019 Harley-Davidson Street 500 2019 Harley-Davidson Street 500

BUILT TO SHRED THE CITY STREETS.

2019 Harley-Davidson Street 500:

Get the power of the Revolution X engine and the confidence and quick handling of a nimble chassis, dialed-in suspension and optional ABS brakes on the Street™ 500.





2019 Harley-Davidson Street 500 Totalmotorcycle.com Key Features

2019 Harley-Davidson Street® 500

Take on the urban grid with 500cc of easy-handling, authentic Harley-Davidson® Dark Custom style.



Engine

Liquid-cooled, Revolution X™ V-Twin

Engine Torque

29.5 ft-lb

Weight, As Shipped

492 lb.

Seat Height, Laden

25.7 in.



2019 Harley-Davidson Street 500 Totalmotorcycle.com Features and Benefits

STYLING + FEATURES

Fire one up and start shredding

2019 Street 500 motorcycle Engine

500cc Liquid-Cooled Revolution X™ Engine

The blacked-out, liquid-cooled V-Twin engine is built to conquer the hot and heavy traffic of urban streets. You can count on smooth response to the progressive throttle when you want to get through any hole that opens up in front of you.

Optional Anti-Lock Brakes (ABS)

The sophisticated, factory-installed ABS gives you confidence in the saddle knowing your bike’s going to behave when you need it.

Light Lift Off Force

Lifting it up off the side stand is easy, thanks to its low weight and low center of gravity. It makes pulling out from the curb feel as effortless as putting your thumb to the starter button.

H-D 2019 Street 500 motorcycle seat
Low Seat Height

The seat height is just 28-inches. And the frame and seat are narrow, which makes for an even easier reach. The advantages of a low seat also shine when the light turns green. It gives you a low center of gravity for confidence when you’re negotiating traffic, just rolling slow through a parking lot looking for a spot.

2019 Street 500 motorcycle Shocks
Specially Tuned Shocks

Specifically tuned and dialed in for the weight of the bike, the geometry of the frame, and the position of the rider. You’ll experience a smooth ride and excellent handling when you encounter rough urban pavement.

Dark Custom 2019 Street 500 motorcycle
Dark, Aggressive, Custom Look

Sports an all-black two-into-one exhaust, black cast aluminum wheels, blacked-out front end with a café inspired speed screen, and a chrome medallion made of steel on the fuel tank.





2019 Harley-Davidson Street 500 – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $6899 – $7349
USD
Canada MSRP Price: $6999 – $7519 CDN
Europe/UK MSRP Price: £ GBP (On The Road inc 20% Vat)
Australia MSRP Price: See Dealer for Pricing in AUS
  • PRICING6

    • Vivid Black $6,899
    • Color $7,194
    • Two-Tone $7,349
    • ABS Option $750
    • Security System Option $395
    • California Emissions $50
    • Freight $330

    Engine

    • Engine 1 Liquid-cooled, Revolution X™ V-Twin
    • Bore 2.72 in.
    • Stroke 2.6 in.
    • Displacement 494 cc (30 cu in)
    • Compression Ratio 10.5:1
    • Fuel System 3 Electronic Sequential Port Fuel Injection (ESPFI)
    • Exhaust Black two into one

    Dimensions

    • Length 87.2 in.
    • Seat Height, Laden 7 25.7 in.
    • Seat Height, Unladen 28.3 in.
    • Ground Clearance 5.7 in.
    • Rake (steering head) (deg) 32
    • Trail 4.5 in.
    • Wheelbase 59.8 in.
    • Tires, Front Specification 100/80-17
    • Tires, Rear Specification 140/75 R15
    • Fuel Capacity 3.5 gal.
    • Oil Capacity (w/filter) 3.3 qt.
    • Weight, As Shipped 492 lb.
    • Weight, In Running Order 514 lb.

    Performance

    • Engine Torque Testing Method J1349
    • Engine Torque 2 29.5 ft-lb
    • Engine Torque (rpm) 3,750
    • Lean Angle, Right (deg.) 28.5
    • Lean Angle, Left (deg.) 28.5
    • Fuel Economy Testing Method Estimated City/Hwy
    • Fuel Economy 5 64 mpg

    Drivetrain

    • Primary Drive Gear, 36/68 ratio
    • Gear Ratios (overall) 1st 14.272
    • Gear Ratios (overall) 2nd 10.074
    • Gear Ratios (overall) 3rd 7.446
    • Gear Ratios (overall) 4th 6.006
    • Gear Ratios (overall) 5th 5.037
    • Gear Ratios (overall) 6th 4.533

    Chassis

    • Wheels, Front Type 9 Black, 7-spoke Cast Aluminum
    • Wheels, Rear Type Black, 7-spoke Cast Aluminum
    • Brakes, Caliper Type 2-piston floated front and rear

    Electric

    • Lights (as per country regulation), Indicator Lamps 8 High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning
    • Gauges 3.5 inch electronic speedometer with high beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning, blade key ignition and fork lock, and locking gas cap



    2019 Harley-Davidson Street 500 – Totalmotorcycle.com Canada Specifications/Technical Details

    PRICING6

    • Vivid Black $ 6,999
    • Colour $ 7,349
    • Two-Tone $ 7,519
    • ABS Option $ 560
    • Security System Option $ 355

    Engine

    • Engine 1 Liquid-cooled, Revolution X™ V-Twin
    • Bore 69 mm
    • Stroke 66 mm
    • Displacement 494 cc
    • Compression Ratio 10.5:1
    • Fuel System 3 Electronic Sequential Port Fuel Injection (ESPFI)
    • Exhaust Black two into one

    Dimensions

    • Length 2,215 mm
    • Seat Height, Unladen 720 mm
    • Ground Clearance 145 mm
    • Rake (steering head) (deg) 32
    • Trail 115 mm
    • Wheelbase 1,520 mm
    • Tires, Front Specification 100/80-17
    • Tires, Rear Specification 140/75 R15
    • Fuel Capacity 13.1 l
    • Oil Capacity (w/filter) 3.1 l
    • Weight, As Shipped 223 kg
    • Weight, In Running Order 233 kg

    Performance

    • Engine Torque Testing Method J1349
    • Engine Torque 2 40 Nm
    • Engine Torque (rpm) 3,750
    • Lean Angle, Right (deg.) 28.5
    • Lean Angle, Left (deg.) 28.5
    • Fuel Economy: Estimated City/Hwy 5 3.6 l/100 km

    Drivetrain

    • Primary Drive Gear, 36/68 ratio
    • Gear Ratios (overall) 1st 14.272
    • Gear Ratios (overall) 2nd 10.074
    • Gear Ratios (overall) 3rd 7.446
    • Gear Ratios (overall) 4th 6.006
    • Gear Ratios (overall) 5th 5.037
    • Gear Ratios (overall) 6th 4.533

    Chassis

    • Wheels, Front Type 9 Black, 7-spoke Cast Aluminum
    • Wheels, Rear Type Black, 7-spoke Cast Aluminum
    • Brakes, Caliper Type 2-piston floated front and rear

    Electric

    • Lights (as per country regulation), Indicator Lamps 8 High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning
    • Gauges 3.5 inch electronic speedometer with high beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning, blade key ignition and fork lock, and locking gas cap

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
