2019 Kawasaki Vulcan 900 Custom Guide

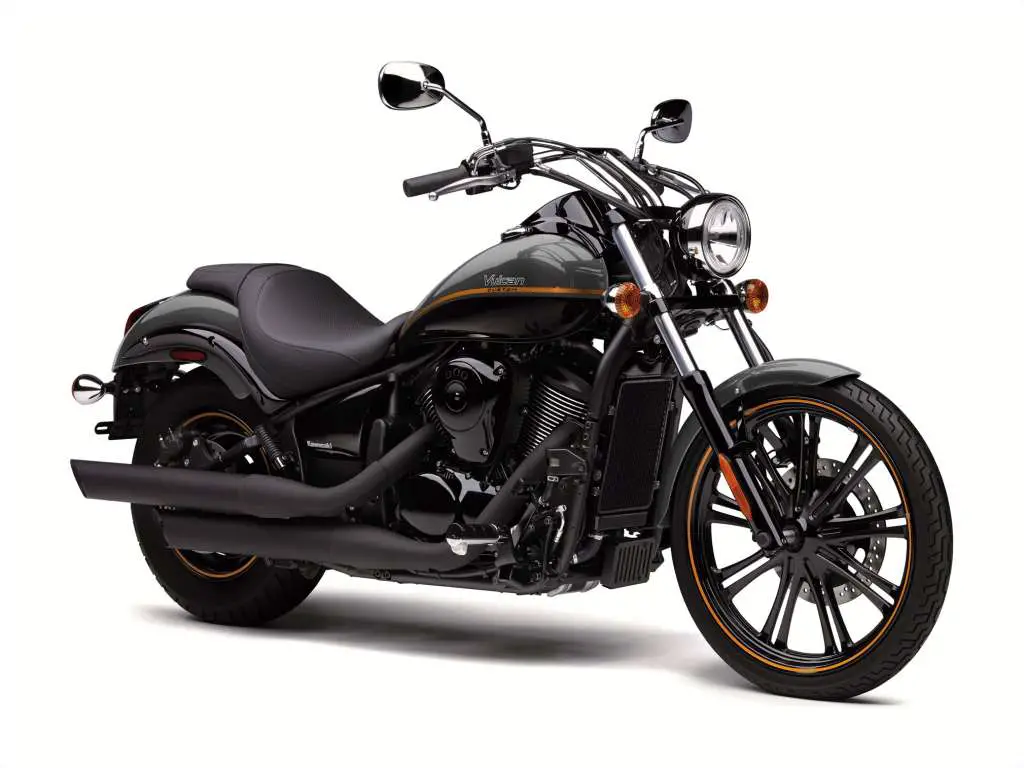

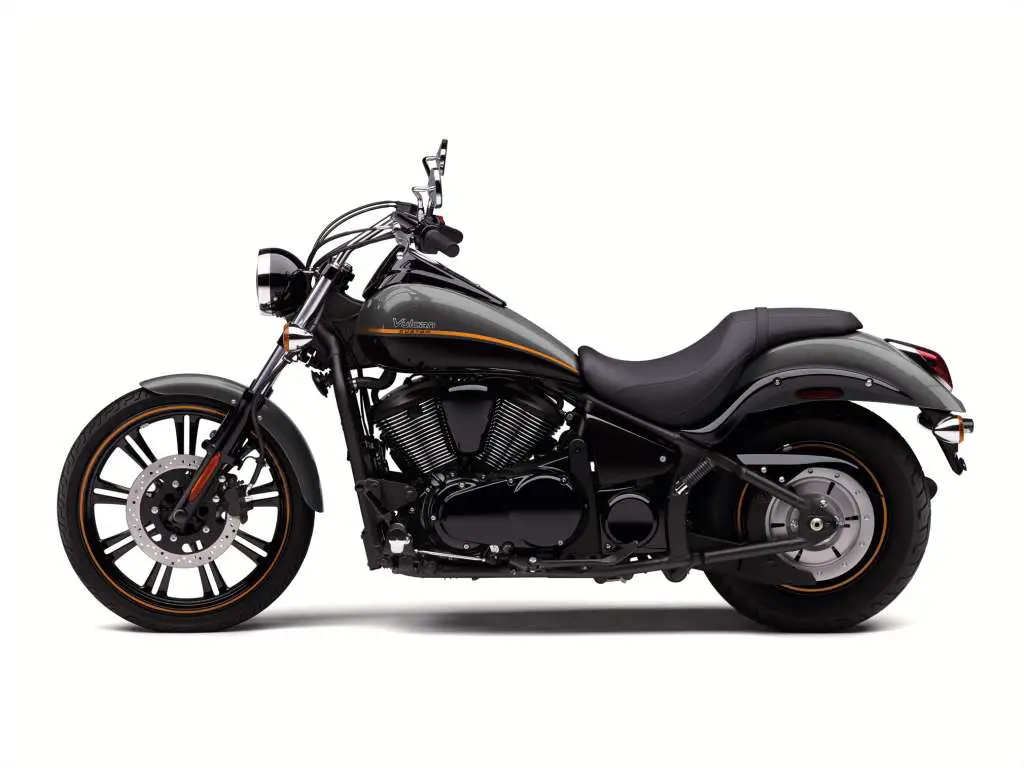

2019 Kawasaki Vulcan 900 Custom

2019 Kawasaki Vulcan 900 Custom 2019 Kawasaki Vulcan 900 Custom 2019 Kawasaki Vulcan 900 Custom 2019 Kawasaki Vulcan 900 Custom 2019 Kawasaki Vulcan 900 Custom

STAND OUT FROM THE CROWD.

2019 Kawasaki Vulcan 900 Custom:

The Vulcan® 900 Custom shares all of the attributes of the Vulcan 900 Classic but features custom styling with 21-inch front tire, drag-style handlebar and blacked-out parts that help present a more aggressive appearance.

The Vulcan 900 Custom is a factory built custom bike that really stands out from the crowd – it is the result of Kawasaki’s pursuit of the essence of a true custom motorcycle. A study in contrasts, its low-set rear, massive rear tire and solid disc wheel are juxtaposed against a clean and lightweight front end.

The 900cc V-twin powered Kawasaki Vulcan® 900 motorcycle has all the style and attitude of a one-of-a-kind build. From the detailed paint job to the intense exhaust, the Vulcan 900 is an artful expression of individuality. Enjoy the dynamic fusion of hand-built design and premium fit and finish of the Vulcan 900—a tantalizing combination that could only come from Kawasaki.

FULL-SIZE PERFORMANCE IN A MIDDLEWEIGHT CRUISER GIVES YOU THE POWER AND EFFICIENCY TO TAKE ON ROADS OF ALL SIZES–ACROSS TOWN OR ACROSS STATE LINES. ENJOY ALL-DAY COMFORT WITH THE SCULPTED SEATS, SPACIOUS FLOORBOARDS AND A PROTECTIVE WINDSHIELD, AND LET THE POWER OF THE LIQUID-COOLED 903cc V-TWIN ENGINE PUT A SMILE ON YOUR FACE.











2019 Kawasaki Vulcan 900 Custom Totalmotorcycle.com Key Features

•Fuel-injected 903cc V-twin engine delivers ample roll-on power and excellent fuel economy
•Low seat height adds to rider confidence by enabling both feet to be placed on the ground at stops
•Wide drag bars enable plenty of leverage from the comfortable and roomy one-piece seat, and forward-mounted footpegs complete the relaxed riding stance
•Low center of gravity for easy handling
•Custom styling with teardrop tank, parallel slash cut pipes, pinstripe wheels and engine fins









2019 Kawasaki Vulcan 900 Custom Totalmotorcycle.com Features and Benefits

903cc V-Twin, SOHC Engine
• Tuned to deliver lots of torque from low rpm.
• Smooth and reliable.
• Gear-driven balancer allows use of single pin crankshaft for that classic V-twin rumble without the heavy vibration.

Liquid and Air Cooling
• Finned cylinders and heads combine with liquid cooling to provide exceptional thermal control.
• Maintains consistent engine temperatures for long engine life and sustained power.
• Automatic fan keeps things cool even in traffic.
• Includes temperature warning light.

Rubber-Mounted Engine
• Eliminates engine vibration at all speeds.

Positive Neutral Finder(KP)
• Just lift the shift pedal from first gear at a stop to select neutral easily, every time.

Digital Fuel Injection (KP)
• Dual throttle valves(KP) provide optimum performance and rideability. The sub throttles, located behind the main throttle valve, are controlled by the ECU so that the DFI® system retains more precise throttle response, similar to a constant velocity carburetor.
• Fine-atomizing fuel injectors produce a fine fuel mist for better acceleration, combustion and fuel consumption.

Kevlar-Reinforced Belt Drive
• Lower unsprung weight than shaft drive to improve ride quality and suspension action.
• More efficient so more power reaches the rear wheel, compared to shaft drive.
• Cleaner and lower maintenance than chain drive.

Double Cradle Frame
• Large-diameter box section backbone is very rigid, allows use of a larger fuel tank, and helps contribute to high stability and lightweight handling at low speeds.
• Triangular swingarm appears to be a hardtail design, but acts on a single shock hidden beneath the seat.
• Long and low for minimal seat height, maximum visual impact.
• Fork offset and frame geometry combine for light, low-effort handling at ultra-low speeds.
• Long wheelbase adds to highway stability.

Low Stepped Seat
• Ultra-low 27-inch seat height allows riders to easily plant both-feet on the ground at stops.
• Laid-back riding comfort for two.

Front and Rear Disc Brakes
• A 300mm front and 270mm rear disc have twin-piston calipers for some of the best stopping power in the class.

21-inch Front Wheel
• Designed by hand, the cast wheel’s 18 “spokes” are tapered and flanged in two directions for an exquisite custom appearance.
• Narrow profile for that custom American chopper look.

Wide Rear Tire
• 180mm rear tire mounted on a solid 15-inch cast wheel provides added stability while projecting a powerful image.
• Wider tire than that found on most large-displacement cruisers.







2019 Kawasaki Vulcan 900 Custom – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $8499 USD
Canada MSRP Price: $9999 CDN
Europe/UK MSRP Price: £ GBP (On The Road inc 20% Vat)
Australia MSRP Price: See Dealer for Pricing in AU

Power

Engine

4-stroke, 55° V-twin, 4 valves per cylinder, SOHC, liquid-cooled

Displacement

903cc/55.10 cu in

Bore x Stroke

88.0 x 74.2mm

Compression Ratio

9.5:1

Maximum Torque

58.2 lb-ft @ 3500 rpm

Fuel System

DFI® 34mm throttle bodies (2), with sub-throttle valves

Ignition

TCBI with digital advance

Transmission

5-speed with positive neutral finder

Final Drive

Kevlar-reinforced belt

Performance

Front Suspension / Wheel Travel

41mm hydraulic telescopic fork/5.9 in

Rear Suspension / Wheel Travel

Uni-Trak® swingarm, 7-way adjustable spring preload/4.1 in

Front Tire

80/90×21

Rear Tire

180/70×15

Front Brakes

Single 300mm hydraulic disc

Rear Brakes

Single 270mm hydraulic disc

Details

Frame Type

Double cradle, high-tensile steel

Rake/Trail

33°/7.2 in

Overall Length

94.7 in

Overall Width

35.2 in

Overall Height

44.1 in

Ground Clearance

5.5 in

Seat Height

27.0 in

Curb Weight

610.8 lb**

Fuel Capacity

5.3 gal

Wheelbase

64.8 in

Color Choices

Pearl Storm Gray/Ebony

Warranty

12 Month Limited Warranty

Kawasaki Protection Plus™ (optional)

12, 24, 36, or 48 months











2019 Kawasaki Vulcan 900 Custom – Totalmotorcycle.com Canada Specifications/Technical Details

Engine

Displacement 903cc
Type 4-stroke, V-Twin
Bore and stroke 88.0 x 74.2 mm
Cooling Liquid
Compression ratio 9.5:1
Valve system SOHC, 4 valves per cylinder
Fuel system Digital fuel injection with dual 34 mm throttle bodies
Ignition TCBI with digital advance
Lubrication Forced lubrication (wet sump)

Brakes

Front: type Single 300 mm disc
Front: calipers 2-piston calipers
Rear: type Single 270 mm hydraulic disc
Rear: calipers 2-piston calipers

Dimensions

Overall length 2,405 mm (94.7 in.)
Overall width 895 mm (35.2 in.)
Overall height 1,120 mm (44.1 in.)
Wheelbase 1,645 mm (64.8 in.)
Ground clearance 140 mm (5.5 in.)
Seat height 685 mm (27.0 in.)
Curb mass** 277 kg (611 lbs.)
Fuel capacity 20 liters (4.4 gal.)

Drivetrain

Transmission 5-speed, constant mesh, return shift
Final drive Kevlar belt
Primary reduction ratio 2.184 (83/38)
Gear ratio: 1st 2.786 (39/14)
Gear ratio: 2nd 1.889 (34/18)
Gear ratio: 3rd 1.360 (34/25)
Gear ratio: 4th 1.107 (31/28)
Gear ratio: 5th 0.963 (26/27)
Final reduction ratio 2.063 (66/32)
Clutch Wet multi-disc, manual

Frame

Type Double-cradle, high-tensile steel
Wheel travel: front 150 mm (5.9 in.)
Tire: front 80/90-21
Wheel travel: rear 103 mm (4.1 in.)
Tire: rear 180/70-15
Caster (rake) 33°
Trail 182 mm (7.1 in.)
Steering angle (left/right) 36° / 36°

Performance

Maximum Power 37 kW {50.0 PS} @ 5,700 rpm
Maximum Torque 78 N·m {8.0 kgƒ·m} @ 3,500 rpm

Suspension

Suspension, front 41 mm hydraulic telescopic fork
Suspension, rear Uni-Trak with 7-way adjustable preload

Details

Warranty 12 months warranty





* The Manufacturer’s Suggested Retail Price does not include freight, pre-delivery inspection or applicable taxes. The final price is at the discretion of the dealer. Prices and Specifications are subject to change without prior notice. The amount indicated as “Your price” may include an optional instant Mega Cash credit that is deducted from the manufacturer’s suggested retail price before taxes. This promotion is time limited and certain conditions will apply. See your dealer for complete details. Offer not available on financed purchases and cannot be combined with any other special offers. The final price is at the discretion of the dealer. Prices and Specifications are subject to change without prior notice.

** Includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90% of capacity) and tool kit (if supplied)

‡ Power / Torque figures measured at the crankshaft.

The specifications mentioned here apply to and have been achieved by production models under standard operating conditions. We intend only to give a fair description of the vehicle and its performance capabilities but these specifications may not apply to every machine supplied for sale. Kawasaki Heavy Industries, Ltd. reserves the right to alter specifications without prior notice. Equipment illustrated and specifications may vary to meet individual markets. Available colours may vary by market.







2019 Kawasaki Vulcan 900 Custom – Totalmotorcycle.com European Specifications/Technical Details

TBA





2019 Kawasaki Vulcan 900 Custom – Totalmotorcycle.com Australian Specifications/Technical Details

TBA









Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
