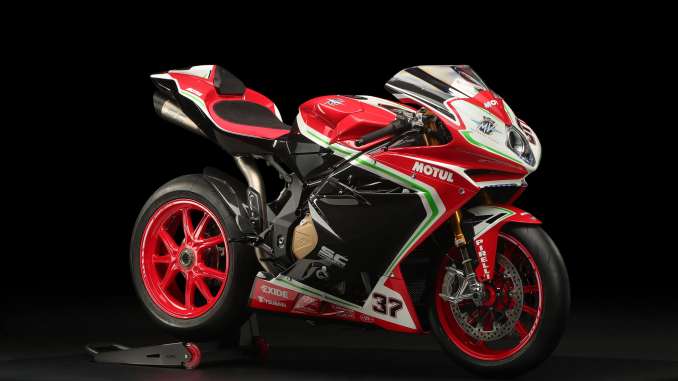

2019 MV Agusta F4 RC Guide

2019 MV Agusta F4 RC

2019 MV Agusta F4 RC 2019 MV Agusta F4 RC 2019 MV Agusta F4 RC

EVOLUTIONARY PEAK.

2019 MV Agusta F4 RC:

THE F4 HAS HIGH-PERFORMANCE MOTORCYCLING HISTORY IN ITS BLOOD. IT IS THE EPITOME OF EMOTION, PERFORMANCE, SPEED AND INCOMPARABLE DESIGN. THE NEW F4 IS MUCH MORE: IT’S A LIMITLESS TECHNOLOGICAL REVOLUTION.

Legendary project is at its evolutionary peak. Included with the F4 RC is a dedicated racing kit, including an electronic control unit with specific mapping and a titanium SC-Project single exit exhaust. These components allow the maximum power of the short-stroke four-cylinder engine to be increased (bore 79 mm – stroke 50.9 mm) with central timing chain and radial valve configuration from 205 hp to 212 hp. The technical features, which include Öhlins fork and shock absorber as well as advanced engine and vehicle management software, make the F4 RC bike the closest version to the one which raced in the World Superbike Championship. The 2019 colour scheme is entirely new, centred around a large black central area that shows the exposed carbon fibre on the fairing. Wheels, fuel tank and tail fairing favour red, with white and green areas which are proudly reminiscent of Italian craftsmanship.











2019 MV Agusta F4 RC Totalmotorcycle.com Key Features

MV Agusta 2019 RC Model Range

RC, as in ‘Reparto Corse’ (Racing Department), the place where the MV Agusta machines destined for racing are born. At the core of the RC range is one of the keystones of the MV Agusta philosophy: the belief that races are fundamental for improving factory production bikes. This is why the technological transfer from the track to the assembly line is as direct and as quick as possible. The RC range models include the sport naked Brutale and Dragster models, the eclectic Turismo Veloce, the F3 675 and F3 800 supersport bikes, and naturally, the exuberant F4.

After the extensive technical updates in 2018, particularly on the three-cylinder bikes, the 2019 RC machines confirm their extremely high-level of technical content.

F4 RC legendary project is at its evolutionary peak. Included with the F4 RC is a dedicated racing kit, including an electronic control unit with specific mapping and a titanium SC-Project single exit exhaust. These components allow the maximum power of the short-stroke four-cylinder engine to be increased (bore 79 mm – stroke 50.9 mm) with central timing chain and radial valve configuration from 205 hp to 212 hp. The technical features, which include Öhlins fork and shock absorber as well as advanced engine and vehicle management software, make the F4 RC bike the closest version to the one which raced in the World Superbike Championship. The 2019 colour scheme is entirely new, centred around a large black central area that shows the exposed carbon fibre on the fairing. Wheels, fuel tank and tail fairing favour red, with white and green areas which are proudly reminiscent of Italian craftsmanship.

F3 675 RC and F3 800 RC have the same livery that enhances the sleek lines and extraordinary compactness of a model born to provide the best on the track, in the race or on the fiercest of track days. Each limited edition F3 RC unit comes with a dedicated race kit that includes the titanium exhaust with SC-Project silencer, pipes and joints, the carbon fibre heel guard and aluminium mounting brackets. The dedicated electronic control unit is included in the kit along with the CNC machined brake and clutch levers in ergal, a sprocket to achieve maximum acceleration, a rear wheel stand and a bike cover. Each unit comes with a certificate of authenticity.

Dragster 800 RC best interprets the “drag racing” vocation that has made it famous. Thanks to its weight of just 160 kg, its 150 horses and highly effective chassis architecture, the Dragster 800 RC is a pure sport bike which finds its most fascinating side in the accessories package put together by the racing department. The spoked wheels in the standard package move over to make room for the highly popular nine-spoke design in lightweight forged alloy with an unmistakeable racing style. The technical sponsor logos decorate the essential fairing of the Dragster 800, along with the number 37 – the number of world titles won by MV Agusta.

Brutale 800 RC is an uncompromising bike, reminiscent of the most sensational and aggressive versions of the four-cylinder Brutale, a model that revolutionised the design of the middle-weight segment, also focusing on extreme performance. Its carbon fibre components stand out, including the front fender, the rear inner fender, the fuel tank side panels and the instrument cluster cover. The forged alloy wheels have a strong impact, unmistakeably red, to complete the racing colour scheme common to the RC range and made even more attractive by the technical sponsor logos

Turismo Veloce RC emphasises the sport DNA of a model that stands out for its conceptual originality in the touring bike segment. Its extreme versatility stems from unique and specific technical choices like the compact and relatively small displacement engine, the vehicle’s consequent light weight and the agile dimensions of the chassis architecture. All in a segment characterised by increasingly heavy and bulky bikes. Naturally, the Turismo Veloce RC is equipped with SCS technology. The abbreviation stands for “Smart Clutch System” and identifies the solution developed exclusively by MV Agusta for fully automatic clutch management. The Smart Clutch System lets you choose from two possibilities: operate the clutch manually using the clutch lever, or leave operation entirely up to the system, so you can focus exclusively on the ride.







2019 MV Agusta F4 RC Totalmotorcycle.com Features and Benefits











2019 MV Agusta F4 RC – Totalmotorcycle.com Specifications/Technical Details
US MSRP Price: $ USD
Canada MSRP Price: $ CDN
Europe/UK MSRP Price: £ GBP (On The Road inc 20% Vat)
Australia MSRP Price: See Dealer for Pricing in AU

ENGINE

Type Four cylinder, 4 stroke, 16 valve

Timing system “D.O.H.C”, radial valve

Total displacement 998 cm3(60.9 cu. in.)

Compression ratio 13.4:1

Starting Electric

Bore x stroke 79 mm x 50.9 mm (3.1 in. x 2.0 in.)

Max. power- r.p.m.(at the crankshaft) 151,0 kW (205 hp) at 13.450 r.p.m.

158.0 kW (212 hp) at 13.600 r.p.m.**

Max. torque – r.p.m. 115,0 Nm (11,7 kgm) at 9.300 r.p.m.

Cooling system Cooling with separated liquid and oil radiators

Engine management system Integrated ignition – injection system MVICS (Motor & Vehicle Integrated Control System) with eight injectors (4 lower fuel injectors by Mikuni + 4 upper fuel injectors by Magneti

Marelli with increased fuel flow). Engine control unit Eldor EM2.0, throttle body full ride by wire Mikuni, pencil-coil with ion-sensing technology, control of detonation and misfire – Torque control with four maps,

Traction Control with eight levels of interventionwith lean angle sensor – TSS

Torque Shift System employing variable length intake runners

Electronic quick-shift MV EAS 2.0 (Electronically Assisted Shift Up & Down)

Clutch Wet, multi-disc with back torque limiting device and Brembo radial pump/lever assembly

Transmission Cassette style; six speed, constant mesh

Primary drive 48/82

Gear ratio

First gear: Speed 14/37

Second gear: Speed 16/33

Third gear: Speed 18/31

Fourth gear: Speed 20/30

Fifth gear: Speed 22/29

Sixth gear: Speed 21/25

Final drive ratio 15/41

ELECTRICAL EQUIPMENT

Voltage 12 V

Alternator 350 W at 5000 r.p.m.

Battery Li-ion12.8 V – 4.0 Ah

DIMENSIONS AND WEIGHT

Wheelbase 1430 mm (56.27 in.)

Overall length 2115 mm (83.30 in.)

Overall width 750 mm (29.51 in.)

Saddle height 830 mm (32.68 in.)

Min. ground clearance 115 mm (4.52 in.)

Trail 100,4 mm (3.93 in.)

Dry weight 183 kg (403.45 lbs.) – 175 kg (385.80 lbs.)**

Fuel tank capacity 17 l (4.49 U.S. gal.)

PERFORMANCE

Maximum speed* 302 km/h (187.65 mph)



FRAME

Type CrMo Steel tubular trellis

Rear swing arm pivot plates material Aluminium alloy – Adjustable swingarm pivot height

FRONT SUSPENSION

Type Öhlins USD front fork, NIX 30 type with TIN coating on inner tubes, left compression and right rebound manual adjustment, top out spring.

Fork dia. 43 mm (1.69 in.)

Fork travel 120 mm (4.72 in.)

REAR SUSPENSION

Type Öhlins progressive, TTX36 twin tube rear shock absorber with piggyback resevoir, compression and rebound adjusted with anodized aluminium adjustment knobs

Single sided swing arm material Aluminium alloy

Wheel travel 120 mm (4.72 in.)

BRAKES

Front brake Double floating disc with Ø 320 mm (Ø 12.6 in.) diameter, with steel braking disc and aluminium flange Brembo radial pump/level assembly

Front brake caliper Brembo GP radial-type, single-piece with 4 pistons Ø 30 mm (Ø 1.18 in.)

Rear brake Single steel disc with Ø 210mm (Ø 8.27 in.) dia.

Rear brake caliper Nissin with 4 pistons – Ø 25.4 mm (Ø 1.00 in.)

ABS System Bosch 9 Pluswith Race Mode and RLM (Rear wheel Lift-up Mitigation)

WHEELS

Front: Material/size Forged aluminium alloy 3,50 ” x 17 ”

Rear: Material/size Forged aluminium alloy 6,00 ” x 17 ”

TYRES

Front 120/70 – ZR 17 M/C (58 W)

Rear 200/55 – ZR 17 M/C (78 W)

FAIRING

Material Carbon fiber and thermoplastic

CONTENTS

Steering damper Öhlins linear telescopic, manual adjustment

Rider’s footpegs Adjustable height

Exclusive features Light crankshaft – Cylinder head with new intake ducts – Magnesium engine covers Light pistons and rods – Titanium bolts, screws and fasteners



KIT RACING PARTS

SC ProjectTitanium exhaust pipe system

with mapped ECU – Carbon fibre passenger seat cover – Carbon fiber under tail covers Anodizing aluminium caps for rear mirror seats Racing Ergal fuel tank cap – Dedicated bike cover – Certificate of origin – Limited Edition

Environmental Standard Euro 3





Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
